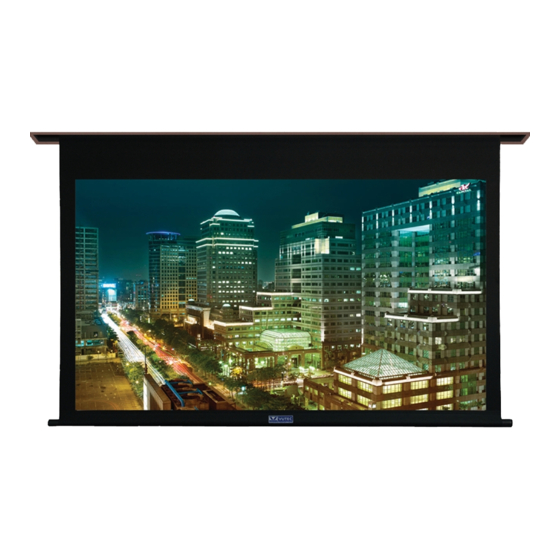

- Page 1 LECTRIC2CMDF-INST.doc 01/25/2018 Installation Instructions LARGE SCREEN SERIES LECTRIC 2-C MDF SINGLE MOTOR 120VAC OR 220VAC VIDEO PROJECTION SCREENS...
- Page 2 DISCLAIMER Vutec Corporation intends to make this manual accurate and complete. However, Vutec makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation for use of this product. The information contained in this document is subject to change without notice.
- Page 3 01/25/2018 MECHANICAL INSTALLATION The LECTRIC 2-C MDF large screen series weight approximately 300lbs to 550lbs depending on the size of the screen (200” to 285” diagonal). Carefully determine the lifting and transporting methods for bringing the screen to the mounting location.
- Page 4 LECTRIC2CMDF-INST.doc 01/25/2018 Profile dimensions shown in figure 1 vary according to the size of the screen ordered, see figure 2 below: Figure 2...
- Page 5 LECTRIC2CMDF-INST.doc 01/25/2018 ELECTRICAL CONNECTIONS 1. Be certain the power is OFF before making electrical connections. All wiring are required to comply with National and/or Local electrical codes and regulations. 2. The standard LECTRIC 2-C MDF screen operates on 120VAC, 60Hz power supply. Control of the screen is usually by a SPDT toggle switch with center ‘OFF’...
- Page 6 LECTRIC2CMDF-INST.doc 01/25/2018 FOR UNITS WITH 4 1/2” ROLLER OR 9 1/2”SQ PROFILE UPPER LIMIT ADJUSTMENT The upper limit for the screen is when the bottom weight bar stop just inside the housing. Do not change the screen upper limit unless absolutely necessary. LOWER LIMIT ADJUSTMENT WARNING: UNLESS OTHERWISE SPECIFIED AND ORDERED, STANDARD LEADER DROP IS 12 INCHES MAXIMUM. EXCEEDING THE ...
- Page 7 LECTRIC2CMDF-INST.doc 01/25/2018 FOR UNITS WITH 6” AND 8” ROLLER OR 10 1/2” AND 13”SQ PROFILE OPERATIONS Refer to Figure 4, the Upper and Lower limit switches are built-in motor limit switches and have been preset at the factory. Remove the yellow protective cap and check that both the yellow and white buttons are out.
