- Page 2 N.B.: The original, authentic version of this manual is the English version produced by Fancom B.V. or one of its daughter companies (referred to further as Fancom). Any modifications introduced to this manual by third parties have neither been checked nor approved by Fancom. Modifications are taken by Fancom to include translations into languages other than English and the insertion and/or deletion of text and/or illustrations to/from the original contents.
- Page 3 Confirm the clearance of the selection-pen at the TouchTek Box ..........15 working plan ..........................16 Device adjustments ..........................17 Select the mode of the IntelliTek stations ..................17 Switch ON/OFF the DryTek substance dispenser ................ 17 Switch ON/OFF the ColorTek color marking unit ................17...
- Page 4 IntelliTek TouchTek PC + Server manual Milan-Touch handheld manual Please read these manuals in this order. The IntelliTek Installation manual is relevant for installation staff and not relevant for the end-users. The following symbols are used in this manual: Tips and suggestions.

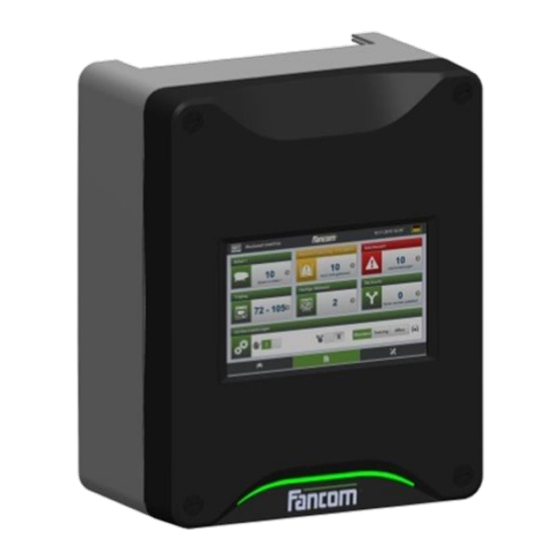

- Page 5 IntelliTek Functions and Screen layout An IntelliTek system consists of one or more TouchTek Box(es) who are connected to all IntelliTek stations of one section (see “system overview manual”). The functions of a TouchTek Box are: Showing important information of the sows within that specific section direct at the spot (e.G. alarm-sows that didn’t eat enough)
- Page 6 (can only be changed by rebooting). Date / time: Readout of current the date and time. If the IntelliTek is connected to the network, the date and time are set on the TouchTek server and synchronized with all the TouchTek Boxes in the network.
- Page 7 IntelliTek Functions and Screen layout Selection-pen: The field shows the number of sows that are registered into the associated selection pen. The user can click on this field to get a menu in order to let the system know that he has evacuated all sows out of this selection pen.
- Page 8 IntelliTek Configuring basic settings Click the settings button at the bottom of the screen. The following screen appears: Following settings can be made by the user at the TouchTek Box. Calibrate the dispensers of this section individually Is the section for a “dynamic” or “static” group of sows?
- Page 9 For each DosTek dispenser at the IntelliTek, the “system values” (set at the PC) for “portion-size” and “water- time” are shown. (If the IntelliTek stations are only equipped with one dispenser the “Dispenser 2” will not be shown). As long the switch below the “system values” is switched OFF, the system values will be applied for this section.
- Page 10 It is recommended that the user is setting the stadium and stadium-day of each individual sow (at the PC or MILAN Touch Handheld) before the sow enters the gestation area (IntelliTek stations). However, if the user is not setting a valid “Stadium” and “Stadium-day” for a sow, the system will automatically assign the set “default” values of this screen.
- Page 11 IntelliTek Configuring basic settings Example 2: The section of the TouchTek Box is just to train gilts prior first parity (there are never pregnant sows in this section). The user does not want to set the stadium (empty) and stadium-day (feeding-date) manually.
- Page 12 The daily feed amount of all sows at the IntelliTek section will be calculated at feed start by the assigned feed- profile of the sow. Usually the user is assigning the appropriate feed-profile to all sows at the PC or MILAN-Touch Handheld.
- Page 13 IntelliTek Configuring basic settings and click the button at the Header “section-wide”; the following screen appears: Click settings, choose Feedprofile If the TouchTek Box is configured as “section-wide feeding” the user can set the feed-profile for all sows within this section direct at the TouchTek start-screen. No other settings are needed.
- Page 14 IntelliTek Daily management It is important that all sows located at an IntelliTek section are registered or added at the associated TouchTek Box. No alarm is triggered for sows in the section that have not been registered or added at the TouchTek Box.
- Page 15 IntelliTek Daily management If the user removes a sow out of a IntelliTek section he should check-out this sow from the TouchTek Box (location). If a removed sow is not unregistered from the TouchTek Box (location) she will appear on the alarmlist because she can’t eat at that location anymore but the system thinks she is still in.
- Page 16 Alarmday: Shows for how many days a sow has not eaten enough. Message: Message about the animal as regular text with detailed information (e.g. on which IntelliTek station the sow ate the last). Remove sow: Click Remove sow to unregister a sow from the TouchTek Box. When a sow is unregistered from the TouchTek Box, she must physically be removed from the section.
- Page 17 IntelliTek Daily management It is also helpful to use the MILAN-Touch Handheld to find specific sows (e.G. alarm-sows) within the section (see “manual MILAN-Touch Handheld). This functionality exists only if the TouchTek Box is configured as “static group”. Click stadium of the sows;...
- Page 18 If the TouchTek Box is configured as “section-wide feed-profile””, these Buttons will be shown after selecting the feed-profile “0: Standard” This functionality exists only if the IntelliTek stations at this TouchTek Box are equipped with SelTek selection gates! With this functionality the user can only confirm that the complete selection pen is cleared up (all sows were removed from the selection pen, the selection pen is empty!).
- Page 19 TouchTek Box, the selection pen might be overcrowded what can result in injured or dead pigs! This functionality exists only if the IntelliTek stations at this TouchTek Box are not equipped with SelTek selection gates! The working plan is a list of sows that are scheduled for an “action” (“selecting”, “color-marking” or “dry- substance”) at the current feeding period.
- Page 20 DryTek controller and filled with the wanted substance! All sows at this section visiting the IntelliTek station after the DryTek dispenser is switched ON, will be immediately provided with the dry-substance until the DryTek dispenser is switched-OFF again. The quantity of the substance is adjusted at the feed-profile of the individual sows by the “DryTek-running-...
- Page 21 By switching ON the ColorTek marker, you have to make sure that the tanks of the markers are filled with the wanted color! All sows at this section visiting the IntelliTek station after the ColorTek marker is switched ON, will be immediately color-marked until the ColorTek marker is switched-OFF again.
- Page 22 Date / Time = Point of time the error occurs Device messages must be heeded immediately and any faults that have occurred must be remedied immediately. Trouble-free operation of the IntelliTek system cannot be assured if there are any current device messages.
