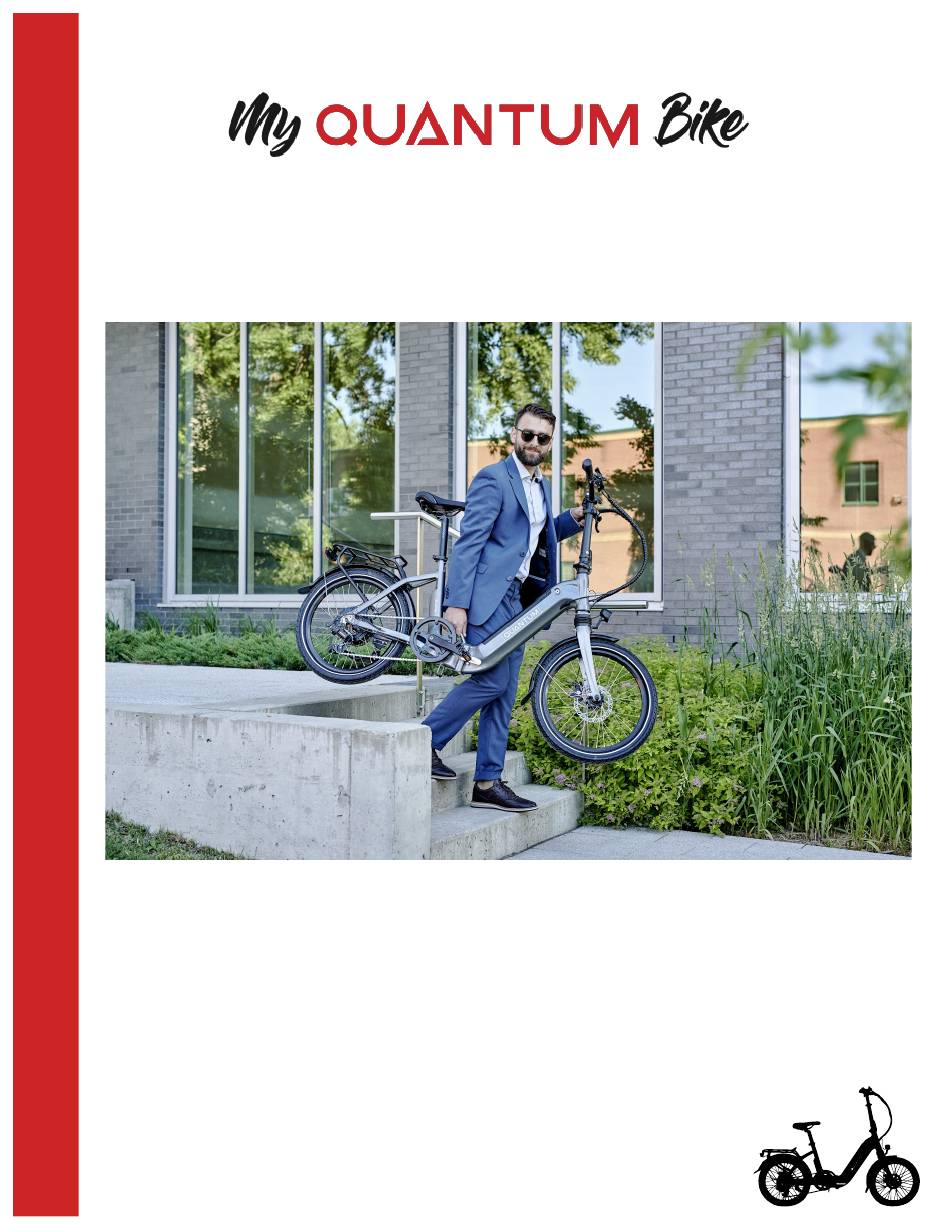

- Page 1 BROADWAY BIKE MANUAL myquantumbike.com 4710 St-Ambroise street, suite148, Montréal, QC H4C 2C7 514 397 0230 | info@myquantumbike.com...
- Page 2 Introduction Congratulations on your new Quantum Broadway folding e-bike! Your new Quantum Broadway will bring you an easy and practical time cycling when cared for properly. Your Quantum bike has been designed for convenience and simplicity. The frame and the majority of components are made from light-weight aluminum able to resist corrosion.
-
Page 3: Table Of Contents
Table of contents Bicycle components Folding e-Bike components General information 1. Handlebar, stem, grips and purion 2. Front fork & head tube suspension 3. Lighting 4. Brakes 5. Gears 6. Chain 7. Bottom bracket, cranks, and pedals 8. Kickstand 9. Wheels 10. -
Page 4: Bicycle Components
Bicycle Components Index: 1. Grips 11. Chain ring/crank set 2. Handlebar 12. Chain 3. Derailleur Lever 13. Rear Derailleur 4. Brake Levers 14. Kickstand 5. System Control Cables 15. Rear Wheel 6. Front light 16. Rear Light 7. Fender 17. Rack 8. -
Page 5: Folding E-Bike Components
Folding e-Bike Components Index: 1. Electronic Display 2. Stem/Handlebar Height Quick Release 3. Seat Post Quick Release 4. Key/Port/Battery lock 5. Integrated Battery 6. Frame Quick Release Lever 7. Folding Stem Quick Release... -
Page 6: General Information
It is desirable to take the bike to your Quantum specialist once a year for a tune-up to ensure spoke tension is correct, to check if there is any play in the hubs, the bottom bracket, headset or any other bearings, and to assess the wear of the chain, gears, and other components. -
Page 7: Handlebar, Stem, Grips And Purion
Quantum Broadway bikes are fitted with upright handlebars that are adjusted with a quick release lever. Your handlebar should be centered and the grip portion level. To tighten the handlebars, the lever should be folded closed so that it produces 5Nm to 8Nm of torque. - Page 8 Handlebar Grips Before every ride make certain that your grips are firmly attached and do not rotate or are loose in any way. This is one of your main contact points with the bicycle and where you maintain control of the bike. Grips that are loose can be removed and have hair spray sprayed inside for easy installation and then stickiness when dry, or be replaced with 'lock-on' grips.
- Page 9 Side View...
- Page 10 Top View...
- Page 11 Purion Display Index: A. Power Assistance Increase/Light ON-OFF Switch** B. Display ON-OFF Button**/Scroll Display Button C. Power Assistance Decrease/Walk Assist*** D. Battery Charge Level Indicator E. Clock, Trip elapse time* F. Power Assistance Level Display (0,1,2,3,4,5) (off) G. Speedometer Display, Average speed, Maximum speed* H.
-
Page 12: Front Fork & Head Tube Suspension
The 6mm bolt should be tightened to approx. 12Nm to 15Nm. The Quantum Broadway is fitted with a low travel suspension front fork to smooth out the bumps on the road and path. Be certain to keep the rubber boot in good condition and that it does not get ripped or torn or develop holes. -
Page 13: Gears
Please check with your Quantum specialist for their recommendation. 5. Gears Quantum Broadway bikes are fitted with a Shimano 7 speeds derailleur system. The gears will be correctly adjusted by your Quantum specialist. With the passage of time and use the derailleur cable may become stretched and it will be necessary to adjust them again. -
Page 14: Bottom Bracket, Cranks, And Pedals
Do not sit on the bike while the kickstand is down. 9. Wheels If the rim of your wheel is warped it is recommended that you involve your Quantum specialist as soon as possible. Repairing a wheel requires specialized tools and knowledge. The same applies to repairing a broken spoke. - Page 15 Front Wheel Index: 1. Frame 5. Tire 2. Fork 6. Rim/Wheel 3. Front Light 7. Disc Brake Rotor 4. Front Fender 8. Disc Brake Caliper...
- Page 16 Rear Wheel Index: 1. Frame 5. Tire 9. Power Wire Motor 2. Rear Rack 6. Rim/Wheel 3. Rear Light 7. Derailleur 4. Rear Fender 8. Hub Motor...
-
Page 17: Tires
• When servicing the rear hub and motor give extra care to the electric cables exiting the center of the axle on the right side. Do not crimp, cut, or pull on this cable. It may cause damage to the motor. If it has become damaged please do not use the bicycle. See your Quantum specialist. - Page 18 withdraw the inner tube from the tire. Refit the valve in the inner tube again and inflate the tire. If there is a large hole in the tube you will hear or feel the air escaping. You can locate a small leak by holding the tube down in a bowl of water.
-
Page 19: Seat
11.Seat Index: 1. Seat 2. Seat Post 3. Seat Post Quick Release Lever... -
Page 20: Frame
The seat post can bend or break if you set the saddle too high. 12. Frame Proper maintenance will prolong your new Quantum bike’s lifespan. That is why it is wise to check it or have it checked regularly and keep it properly clean. You are best using a clean cloth. -
Page 21: E-Bike Components
13. E-bike component Your Quantum Broadway is equipped with a 350W motor and a 36V battery. The battery is integrated into the frame. The control and display for the electric components are located beside the left handlebar grip. Your bike is a 'pedal assist' bicycle and the motor only works if and when you are pedaling. By default, the limit of assistance is maxed out at 32km to keep within Canada and USA laws. - Page 22 Do not use your bicycle while it is charging. 14. Folding and Storage of your bike Your Quantum Broadway folds quickly and easily without any tools needed. TURN OFF YOUR BIKE BEFORE FOLDING! To fold it first lower the seat post by opening the seat post quick release lever and lowering the seat until it is just above the frame, and then tightening/closing the quick release lever.
- Page 23 Fold the frame to the left and swing it around gently 180 degrees. To unfold simply reverse the procedure. Ask your Quantum specialist for a demonstration and try it in the store to make sure you are comfortable with all the steps.
-
Page 24: Fenders, Racks And Accessories
15. Fenders, Racks, and Accessories Your Quantum Broadway is equipped to come with front and rear fenders and a rear rack. • Check from time to time that all the screws and bolts securing the fenders are adequately tight. • Your rear rack comes with a weight limit. The limit should be stamped on the rack, but if it is not, assume it is 15kg. - Page 25 myquantumbike.com...
