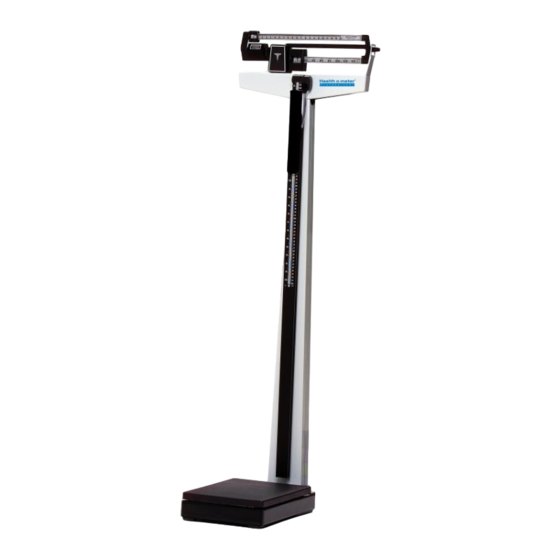

- Page 1 402LB Physician Beam Scale 0459 User Instructions PELSTAR, LLC 9500 West 55th St. McCook, IL 60525-7110 USA www.homscales.com ® Health o meter Professional 402LB © Pelstar, LLC 2019 P/N UM402LB REV20190501...
-
Page 2: Table Of Contents
® Health o meter Professional 402LB ® Thank you for your purchase of this Health o meter Professional product. Please read this manual carefully, and keep it for easy reference or training. TABLE OF CONTENTS Cautions and Warnings ..................... 3 Specifications for This Scale .................. -
Page 3: Cautions And Warnings
CAUTIONS AND WARNINGS INTENDED USE ® This Health o meter Professional platform scale is intended to be used in a professional medical environment by trained medical staff. This product was designed to weigh patients who are safely positioned and standing on the platform. The intended use of the built-in height rod is to measure patient height. -
Page 4: Specifications For This Scale
SPECIFICATIONS / CERTIFICATIONS / SERVICE General The Model 402LB physician beam scale employs a proven and rugged mechanical design to measure patient weight and height. Each precision scale is designed to provide accurate, reliable, and repeatable weight measurements. In addition, each scale is designed to provide the user with features that make the weighing process simple, fast, and convenient. -
Page 5: Assembly Instructions
ASSEMBLY INSTRUCTIONS Before Assembly Each 402LB physician beam scale is shipped disassembled in one carton. Carefully inspect the carton for shipping damage before unpacking. If damage is found, contact your shipper or a ® Health o meter Professional representative immediately. Claims must be filed with the shipper as soon as possible after receipt of the package. - Page 6 ASSEMBLY INSTRUCTIONS (CONTINUED) Caution: It is recommended that the assembly be performed by two people. Use of a chair is also recommended for the assembly process. 1. Carefully remove the scale platform and Tie wrap pillar from the carton and place on a flat, level, and dry surface.
-
Page 7: Operating Instructions
OPERATING INSTRUCTIONS Upper poise Upper poise bar Pointer weight Balance ball Lower poise weight Balance ball Lower poise bar screw Trig loop Pillar head Pillar Zero Balance Adjustment Before first use, the scale needs to be zero balanced by following the instructions below. The scale should also be checked and balanced periodically, particularly when moved. - Page 8 OPERATING INSTRUCTIONS (CONTINUED) Value reads 27.25 lb / 27 lb 4 oz Indicator Combined value: 100 lb + 27.25 lb = 129.75 lb - Or - Combined value: 100 lb + 27 lb 4 oz = 127 lb 4 oz Value reads 100 lb P/N UM402LB REV20190501...
-
Page 9: Height Measurement Instructions
HEIGHT MEASUREMENT INSTRUCTIONS WARNING: Use caution when sliding height rod up and down. The rod should move smoothly, do not move the rod in a jerking motion. Fold headpiece down when not in use. Note: A patient needs to be a minimum of 23-5/8” (60 cm) tall for height to be measured. 1. - Page 10 HEIGHT MEASUREMENT INSTRUCTIONS (CONTINUED) Height Rod Below 46 3/8” bove 46 3/8” Height Rod Extended A Indicator Inches read: 69” + Inches read: 41” + Cm read: 105 cm + Cm read: 176 cm + 3/8” = 69 3/8” 3/8” = 41 3/8” 0.2 cm = 105.2 cm 0.2 cm = 176.2 cm Headpiece...
-
Page 11: Transportation
TRANSPORTATION A wheel bracket is included if purchased as model 402LBWH. If purchased as model 402LB an optional wheel bracket can be purchased separately (Item #55000). Follow these steps to install the wheel bracket: Tools Required (not included) Adjustable wrench or 10 mm wrench 1. -
Page 12: Troubleshooting
The accuracy of the 402LB scale when calibrated at the factory is within +/- ¼ pound. For the most accurate weight measurement, use the scale on a hard level surface and stand in the center of the platform. - Page 13 TROUBLESHOOTING (CONTINUED) Base Alignment Instructions 1. Check the space between the platform and the base. The space should be even Platform on all four sides of the base. To test if the space is even gently press down on one of the toe-end cornersand note the Space depressed space.
-
Page 14: Maintenance And Cleaning
MAINTENANCE AND CLEANING The following provide instructions for maintenance and cleaning for the 450KL. Maintenance operations other than those described in this manual should be performed by qualified service personnel. Maintenance Before first use and after periods of non-use, check the scale for proper operation and function. If the scale does not operate correctly, refer to qualified service personnel. -
Page 15: Warranty
WARRANTY 10-Year Limited Warranty What does the Warranty Cover? ® This Health o meter Professional scale is warranted from date of purchase against defects of materials or in workmanship for a period of ten (10) years. If product fails to function properly, return the product, freight prepaid and properly packed to Pelstar, LLC (see “To Get Warranty Service”, below, for instructions).
