Page 2: General Notes

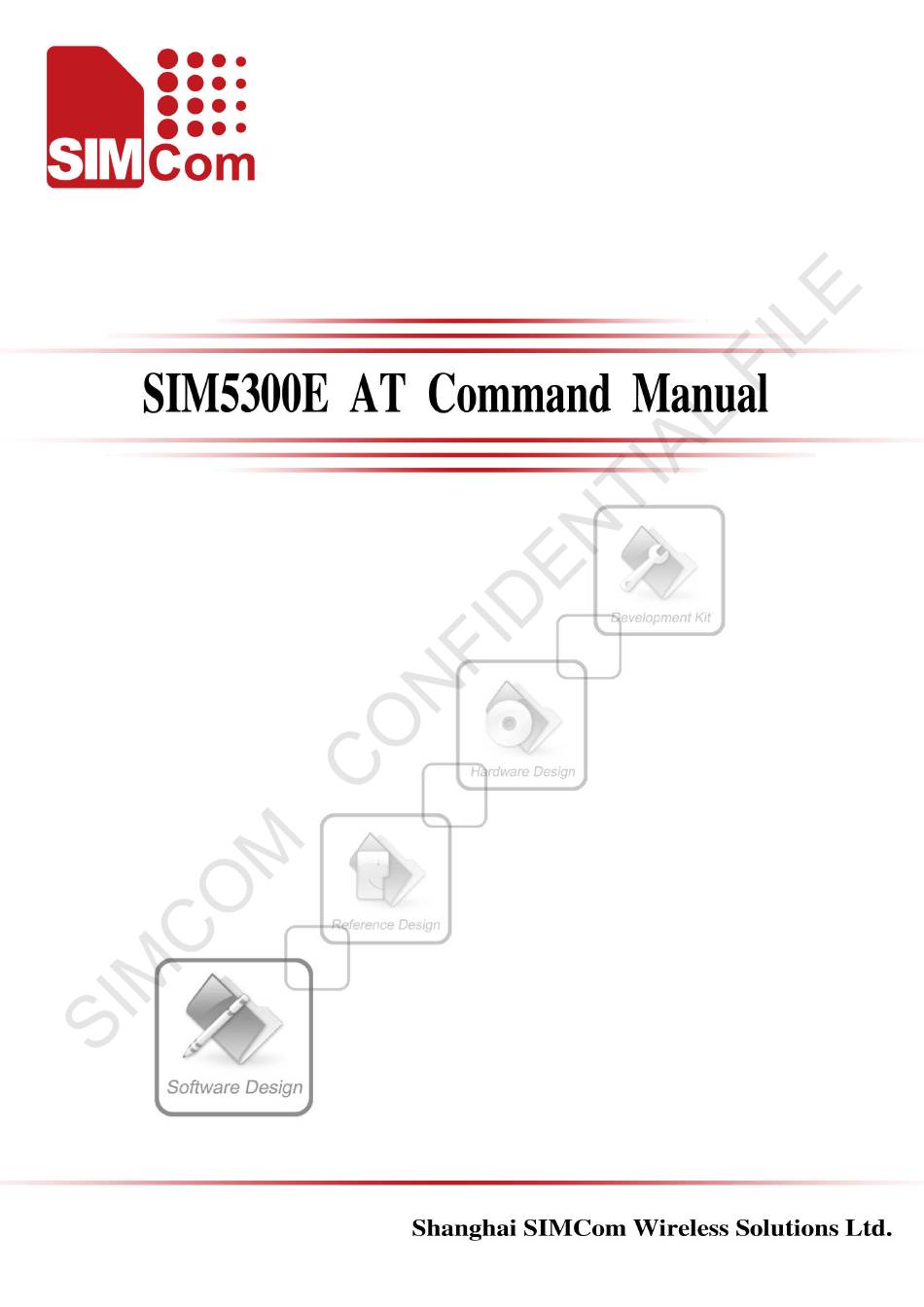

SIM5300E AT Command Manual V1.02 General Notes SIMCom offers this information as a service to its customers, to support application and engineering efforts that use the products designed by SIMCom. The information provided is based upon requirements specifically provided to SIMCom by the customers. SIMCom has not undertaken any independent search for additional relevant information, including any information that may be in the customer’s possession.
Page 3 V E R S I O N H I S T O R Y Date Version Description of change Author 2016-8-17 1.00 Origin Xingyue.Zhao 2016-9-30 1.01 Email ,HTTP, FTP Xingyue.Zhao 2017-4-20 1.02 Add TTS,SPIC, JD,SSL Jie.hu SIM5300E AT Command Manual V1.02...
Page 4: Table Of Contents
Content GENERAL NOTES ................................I COPYRIGHT ................................... I COPYRIGHT © SHANGHAI SIMCOM WIRELESS SOLUTIONS LTD. 2017 ................I CONTENT ..................................III INTRODUCTION ..............................1 ............................1 COPE OF THE DOCUMENT ..............................1 ELATED DOCUMENTS ..........................1 ONVENTIONS AND ABBREVIATIONS AT C ..............................
Page 5 AT+CRC Set Cellular Result Codes for Incoming Call Indication .............. 48 3.2.28 AT+CREG Network Registration ......................49 3.2.29 AT+CRLP Select Radio Link Protocol Parameters ..................50 3.2.30 AT+CRSM Restricted SIM Access ......................51 3.2.31 AT+CSQ Signal Quality Report ........................ 52 SIM5300E AT Command Manual V1.02...
Page 6 4.2.12 AT+CSDH Show SMS Text Mode Parameters ..................84 4.2.13 AT+CSMP Set SMS Text Mode Parameters ..................... 85 4.2.14 AT+CSMS Select Message Service ......................86 AT COMMANDS SPECIAL FOR SIMCOM ....................... 87 SIMC ..........................87 VERVIEW OF SIMC ......................89...
Page 7 GPRS S ....................125 ETAILED ESCRIPTIONS OF UPPORT 6.2.1 AT+CGATT Attach or Detach from GPRS Service ................... 125 6.2.2 AT+CGDCONT Define PDP Context ......................126 6.2.3 AT+CGQMIN Quality of Service Profile (Minimum Acceptable) ............... 127 SIM5300E AT Command Manual V1.02...
Page 8 AT+CIPUDPMODE UDP Extended Mode ....................168 7.2.27 AT+CIPRXGET Get Data from Network Manually ................. 169 7.2.28 AT+CIPRDTIMER Set Remote Delay Timer .................... 172 7.2.29 AT+CIPSGTXT Select GPRS PDP context ....................172 7.2.30 AT+CIPOPTION Set TCP Option ......................173 SIM5300E AT Command Manual V1.02...
Page 9 AT+FTPGETPATH Set Download File Path ..................... 193 11.2.12 AT+FTPPUTNAME Set Upload File Name ....................194 11.2.13 AT+FTPPUTPATH Set Upload File Path ....................194 11.2.14 AT+FTPGET Download File ........................195 11.2.15 AT+FTPPUT Upload File......................... 196 VIII SIM5300E AT Command Manual V1.02...
Page 10 AT+CMMSPROFILE Set User Agent Profile .................... 224 13.2.21 AT+CMMSTIMEOUT Set MMS Timeout ....................225 13.2.22 AT+CMMSSTATUS Get MMS Status ...................... 225 13.2.23 AT+CMMSINIT Initialize MMS Function ....................226 13.2.24 AT+CMMSTERM Exit MMS Function ..................... 226 SIM5300E AT Command Manual V1.02...
Page 11 AT+POP3OUT Log Out POP3 Server ...................... 247 SUPPORTED UNSOLICITED RESULT CODE ....................... 249 15.1 CME ERROR C ......................... 249 UMMARY OF ODES 15.2 CMS ERROR C ......................... 252 UMMARY OF ODES CONTACT US: ................................256 SIM5300E AT Command Manual V1.02...
Page 12: Introduction
Throughout this document, only the responses are presented, <CR><LF> are omitted intentionally. The AT Command set implemented by SIM5300E is a combination of 3GPP TS 27.005, 3GPP TS 27.007 and ITU-T recommendation V.25ter and the AT commands specified by SIMCom.
Page 13: Basic Syntax
The Command line buffer can accept a maximum of 1024 characters (counted from the first command without “AT” or “at” prefix). If the characters entered exceeded this number then none of the Command will executed and TA will return "ERROR". 1.4.5 Entering successive AT commands on separate lines SIM5300E AT Command Manual V1.02...
Page 14: Supported Character Sets
It is quite useful in some applications that only use three wires on the serial interface. The default flow control approach of SIM5300E is hardware flow control (RTS/CTS flow control), to enable software flow control in the DTE interface and within GSM engine, type the following AT Command: AT+IFC=1, 1 Ensure that any communications software package (e.g.
Page 15: Hardware Flow Control (Rts/Cts Flow Control)
CTS line is set inactive until the transfer from the receiving buffer has completed. When the receiving buffer is ok to receive more data, CTS goes active once again. To achieve hardware flow control, ensure that the RTS/CTS lines are present on your application platform. SIM5300E AT Command Manual V1.02...
Page 16: At Commands According To V.25Ter
Request global object identification AT+GSN Request TA serial number identification (IMEI) AT+ICF Set TE-TA control character framing AT+IFC Set TE-TA local data flow control AT+IPR Set TE-TA fixed local rate AT+HVOIC Disconnect Voice Call Only SIM5300E AT Command Manual V1.02...
Page 17: Detailed Description Of Atc According To V.25Ter
Execution Command Response ATD<n>[<mgsm][;] This Command can be used to set up outgoing voice, data or fax calls. It also serves to control supplementary services. Note: This Command may be aborted generally by receiving an ATH SIM5300E AT Command Manual V1.02...
Page 18 Deactivates CLIR (Enable presentation of own number to called party) Activates Closed User Group invocation for this call only Deactivates Closed User Group invocation for this call only <;> Only required to set up voice call , return to Command state SIM5300E AT Command Manual V1.02...
Page 19: Atdl Redial Last Telephone Number Used
If no dialtone and (parameter setting ATX2 or ATX4) NO DIALTONE If busy and (parameter setting ATX3 or ATX4) BUSY If a connection cannot be established NO CARRIER If the remote station does not answer NO ANSWER SIM5300E AT Command Manual V1.02...
Page 20: Ate Set Command Echo Mode
Disconnect existing call by local TE from Command line and terminate call Reference V.25ter Note: OK is issued after circuit 109(DCD) is turned off, if it was previously 2.2.7 ATI Display Product Identification Information ATI Display Product Identification Information SIM5300E AT Command Manual V1.02...
Page 21: Switch From Data Mode Or Ppp Online Mode To Command Mode
ATO Switch from Command Mode to Data Mode ATO Switch from Command Mode to Data Mode Execution Command Response ATO[n] TA resumes the connection and switches back from Command mode to data mode. CONNECT If connection is not successfully resumed ERROR else SIM5300E AT Command Manual V1.02...
Page 22: Atq Set Result Code Presentation Mode
TA transmits result code Result codes are suppressed and not transmitted ReferenceV.25ter 2.2.11 ATS0 Set Number of Rings before Automatically Answering the Call ATS0 Set Number of Rings before Automatically Answering the Call Read Command Response ATS0? <n> SIM5300E AT Command Manual V1.02...
Page 23: Ats4 Set Response Formatting Character
Response formatting character Reference V.25ter Note: Default 10 = LF. It only supports default value. 2.2.13 ATS7 Set Number of Seconds to Wait for Connection Completion ATS7 Set Number of Seconds to Wait for Connection Completion SIM5300E AT Command Manual V1.02...
Page 24: Atv Ta Response Format
Short result code format: <numeric code><CR> Information response: <CR><LF><text><CR><LF> Long result code format: <CR><LF><verbose code><CR><LF> The result codes, their numeric equivalents and brief descriptions of the use of each are listed in the following table. ReferenceV.25ter SIM5300E AT Command Manual V1.02...
Page 25: Atx Set Connect Result Code Format And Monitor Call Progress
CONNECT<text> result code returned, DIALTONE detection is enabled, busy detection is disabled. CONNECT<text> result code returned, DIALTONE detection is disabled, busy detection is enabled. CONNECT<text> result code returned, DIALTONE and busy SIM5300E AT Command Manual V1.02...
Page 26: Atz Reset Default Configuration
TA ignores status on DTR. ON->OFF on DTR: Change to Command mode with remaining the connected call. ON->OFF on DTR: Disconnect call, change to Command mode. During state DTR = OFF is auto-answer off. Reference V.25ter SIM5300E AT Command Manual V1.02...
Page 27: At+Gmi Request Manufacturer Identification
Response AT+GMR=? Execution Command TA reports one or more lines of information text which permit the user to AT+GMR identify the revision of software release. Revision: <revision> Parameters <revision> Revision of software release Reference V.25ter SIM5300E AT Command Manual V1.02...
Page 28: At+Goi Request Global Object Identification
The serial number (IMEI) is varied by individual ME device. 2.2.23 AT+ICF Set TE-TA Control Character Framing AT+ICF Set TE-TA Control Character Framing Test Command Response AT+ICF=? +ICF: (list of supported <format>s),(list of supported <parity>s) SIM5300E AT Command Manual V1.02...
Page 29: At+Ifc Set Te-Ta Local Data Flow Control
This parameter setting determines the data flow control on the serial _dce> interface for data mode. Parameters <dce_by_dte> Specifies the method will be used by TE at receive of data from TA No flow control Software flow control SIM5300E AT Command Manual V1.02...
Page 30: At+Ipr Set Te-Ta Fixed Local Rate
The rate of Command takes effect following the issuance of any result code associated with the current Command line. Parameters <rate> that means baud rate per second 1200 2400 4800 9600 19200 38400 57600 115200 230400 460800 Reference V.25ter Note: Factory setting is AT+IPR=0（auto-bauding）. AUTO-BAUDING SIM5300E AT Command Manual V1.02...
Page 31: At+Hvoic Disconnect Voice Call Only
AT+HVOIC Disconnect Voice Call Only AT+HVOIC Disconnect Voice Call Only Execution Command Response AT+HVOIC Disconnect existing voice call by local TE from Command line and terminate call with existing PPP or CSD connection on. Reference V.25ter SIM5300E AT Command Manual V1.02...
Page 32: At Commands According To 3Gpp Ts 27.007
Report mobile equipment error AT+COLP Connected line identification presentation AT+COPS Operator selection AT+CPAS Phone activity status AT+CPIN Enter PIN AT+CPWD Change password AT+CR Service reporting control AT+CRC Set cellular result codes for incoming call indication SIM5300E AT Command Manual V1.02...
Page 33: Detailed Descriptions Of Atc According To 3Gpp Ts 27.007
TA returns the current value of ACM. +CACM: <acm> If error is related to ME functionality: +CME ERROR: <err> Write Command Response AT+CACM=<passwd> TA resets the Advice of Charge related accumulated call meter (ACM) value in SIM5300E AT Command Manual V1.02...
Page 34: At+Camm Accumulated Call Meter Maximum (Acm Max) Set Or Query
If error is related to ME functionality: +CME ERROR: <err> Parameters <acmmax> String type (string should be included in quotation marks); three bytes of the max. ACM value in hex-decimal format (e.g. "00001E" indicates decimal value 30) 000000 disable ACMmax feature SIM5300E AT Command Manual V1.02...
Page 35: At+Caoc Advice Of Charge
Activate the unsolicited reporting of CCM value <ccm> String type (string should be included in quotation marks); three bytes of the current CCM value in hex-decimal format (e.g. "00001E" indicates decimal value 30); bytes are similarly coded as ACMmax value in SIM5300E AT Command Manual V1.02...
Page 36: At+Cbst Select Bearer Service Type
19200 bps (V.110 or X.31 flag stuffing) 28800 bps (V.110 or X.31 flag stuffing) 38400 bps (V.110 or X.31 flag stuffing) 48000 bps (V.110 or X.31 flag stuffing) 56000 bps (V.110 or X.31 flag stuffing; this setting can be used SIM5300E AT Command Manual V1.02...
Page 37: At+Ccfc Call Forwarding Number And Conditions Control
Write Command Response AT+CCFC=<reason>, TA controls the call forwarding supplementary service.Registration,erasure, <mode>[,<number> activation, deactivation, and status query are supported.Only ,<reads> and [,<type>[,<class>[,<subaddr>[, <mode> should be entered with mode (0-2,4) <satype>[,time]]]]]] If <mode>≠2 and Command successful SIM5300E AT Command Manual V1.02...
Page 38 Registration Erasure <number> String type (Phone number of forwarding address in format specified by <type>) <type> Type of address <subaddr> S tring type (subaddress of format specified by <satype>) <satype> Type of sub-address in integer SIM5300E AT Command Manual V1.02...
Page 39: At+Ccwa Call Waiting Control
+CCWA: <n> Write Command Response AT+CCWA=<n>[,<mode>[,<clas TA controls the Call Waiting supplementary service. Activation, deactivation s>]] and status query are supported. If <mode>≠2 and Command successful If <mode>=2 and Command successful +CCWA: <status>,<class1> +CCWA: <status>,<class2> [...]] SIM5300E AT Command Manual V1.02...
Page 40 Data (refers to all bearer services; with <mode>=2 this may refer only to some bearer service if TA does not support values 16, 32, 64 and 128 Default value(1+2) Fax (facsimile services) All classes data circuit sync data circuit async SIM5300E AT Command Manual V1.02...
Page 41: At+Ceer Extended Error Report
The reason for last call release as text code The reason for last call release as number code <category> may be "No report available" "CC setup error" "CC modification error" "CC release" "SM attach error" "SM detach" SIM5300E AT Command Manual V1.02...
Page 42: At+Cgmi Request Manufacturer Identification
Test Command Response AT+CGMM=? Execution Command Response AT+CGMM TA returns product model identification text. <model> Parameters <model> Product model identification text Reference 3GPP TS 27.007 [13] 3.2.10 AT+CGMR Request TA Revision Identification of Software Release SIM5300E AT Command Manual V1.02...
Page 43: At+Cgsn Request Product Serial Number Identification (Identical With +Gsn)
AT+CSCS Select TE Character Set Test Command Response AT+CSCS=? +CSCS: (list of supported <chset>s) Read Command Response AT+CSCS? +CSCS: <chset> Write Command Response AT+CSCS=<chset> Sets which character set <chset> are used by the TE. The TA can then convert SIM5300E AT Command Manual V1.02...
Page 44: At+Csta Select Type Of Address
Current address type setting.Type of address octet in integer format; Unknown type National number type International number type Network specific number Reference Note: 3GPP TS 27.007 [13] The ATD Command overrides this setting when a number is dialed. SIM5300E AT Command Manual V1.02...
Page 45: At+Chld Call Hold And Multiparty
Reference 3.2.15 AT+CIMI Request International Mobile Subscriber Identity AT+CIMI Request International Mobile Subscriber Identity Test Command Response AT+CIMI=? SIM5300E AT Command Manual V1.02...
Page 46: At+Clcc List Current Calls Of Me
TE. [+CLCC: <id1>,<dir>,<stat>,<mode>,<mpty>[,<number>,<type >,<alphaID>] [<CR><LF>+CLCC: <id2>,<dir>,<stat>,<mode>,<mpty> [,<number>,<type>,<alphaID>][...]]] If error is related to ME functionality: +CME ERROR: <err> Parameters <n> Don’t report a list of current calls of ME automatically when the current call status changes. SIM5300E AT Command Manual V1.02...
Page 47: At+Clck Facility Lock
<type> Type of address <alphaId> String type (string should be included in quotation marks) alphanumeric representation of <number> corresponding to the entry found in phone book. Reference 3GPP TS 27.007 [13][14] 3.2.17 AT+CLCK Facility Lock AT+CLCK Facility Lock SIM5300E AT Command Manual V1.02...
Page 48 "PN" Network Personalization, Correspond to NCK code "PU" Network subset Personalization Correspond to NSCK code "PP" Service Provider Personalization Correspond SPCK code "PC" Corporate Personalization (refer 3GPP TS 22.022 [33]) SIM5300E AT Command Manual V1.02...
Page 49: At+Clip Calling Line Identification Presentation
CME errors if SIM not inserted or PIN is not entered. 3.2.18 AT+CLIP Calling Line Identification Presentation AT+CLIP Calling Line Identification Presentation Test Command Response AT+CLIP=? +CLIP: (list of supported <n>s) Read Command Response AT+CLIP? +CLIP: <n>, <m> SIM5300E AT Command Manual V1.02...
Page 50 <CLI validity> CLI valid CLI has been withheld by the originator. CLI is not available due to interworking problems or limitations of originating network. <n> Disable +CLIP notification. Enable +CLIP notification. <m> SIM5300E AT Command Manual V1.02...
Page 51: At+Clir Calling Line Identification Restriction
CLIR service CLIR invocation CLIR suppression(default) <m> (parameter shows the subscriber CLIR service status in network): CLIR not provisioned CLIR provisioned in permanent mode SIM5300E AT Command Manual V1.02...
Page 52: At+Cmee Report Mobile Equipment Error
Enable +CME ERROR: <err> result code and use numeric <err> Enable +CME ERROR: <err> result code and use verbose <err> values Reference 3GPP TS 27.007 [13] 3.2.21 AT+COLP Connected Line Identification Presentation AT+COLP Connected Line Identification Presentation SIM5300E AT Command Manual V1.02...
Page 53 String type (string should be included in quotation marks) phone number of format specified by <type> <type> Type of address octet in integer format; Unknown type National number type International number type Network specific number SIM5300E AT Command Manual V1.02...
Page 54: At+Cops Operator Selection
Read Command Response AT+COPS? TA returns the current mode and the currently selected operator. If no operator is selected, <format> and <oper> are omitted. +COPS: <mode>[,<format>,[<oper>,[<AcT>]]] If error is related to ME functionality: +CME ERROR: <err> SIM5300E AT Command Manual V1.02...
Page 55: At+Cpas Phone Activity Status
Short format alphanumeric <oper> Numeric <oper>; GSM Location Area Identification number <oper> Refer to [27.007] operator in format as per <format> <AcT> UMTS Reference 3GPP TS 27.007 [14] 3.2.23 AT+CPAS Phone Activity Status AT+CPAS Phone Activity Status SIM5300E AT Command Manual V1.02...
Page 56: At+Cpin Enter Pin
SIM PUK, PH-SIM PIN, etc.). If the PIN required is SIM PUK or SIM PUK2, the second pin is required. This second pin, <new pin>, is used to replace the old pin in the SIM. SIM5300E AT Command Manual V1.02...
Page 57: At+Cpwd Change Password
BOIC (Barr Outgoing International Calls) "OX" BOIC-exHC (Barr Outgoing International Calls except to Home Country) "AI" BAIC (Barr All Incoming Calls) "IR" BIC-Roam (Barr Incoming Calls when Roaming outside the home country) "AB" All Barring services SIM5300E AT Command Manual V1.02...
Page 58: At+Cr Service Reporting Control
TA has determined which speed and quality of service will be used, before any error control or data compression reports are transmitted, and before any final result code (e.g. CONNECT) is transmitted. +CR:<serv> Parameters <mode> Disable reporting Enable reporting SIM5300E AT Command Manual V1.02...
Page 59: At+Crc Set Cellular Result Codes For Incoming Call Indication
Parameters <type> ASYNC Asynchronous transparent SYNC Synchronous transparent REL ASYNC Asynchronous non-transparent REL SYNC Synchronous non-transparent Facsimile VOICE Voice <mode> Disable extended format Enable extended format Omitted Use previous value Reference 3GPP TS 27.007 [13] SIM5300E AT Command Manual V1.02...
Page 60: At+Creg Network Registration
Enable network registration unsolicited result code with location information +CREG: <stat>[,<lac>,<ci>] <stat> Not registered, MT is not currently searching a new operator to register to Registered, home network Not registered, but MT is currently searching a new operator SIM5300E AT Command Manual V1.02...
Page 61: At+Crlp Select Radio Link Protocol Parameters
TA sets radio link protocol (RLP) parameters used when non-transparent data >[,<N2>]]]] calls are setup. Parameters <iws> 0-61 Interworking window size (IWF to MS) <mws> 0-61 Mobile window size(MS to IWF) <T1> 39-255 Acknowledgment timer T1 in 10 ms units SIM5300E AT Command Manual V1.02...
Page 62: At+Crsm Restricted Sim Access
<N2> 1-255 Retransmission attempts N2 Reference SIMCom redefined the range of values used by the parameters. 3GPP TS 27.007 [13] 3.2.30 AT+CRSM Restricted SIM Access AT+CRSM Restricted SIM Access Test Command Response AT+CRSM=? Write Command Response AT+CRSM=<Command>[,<fileI +CRSM: <sw1>, <sw2> [,<response>] d>[,<P1>,<P2>,<P3>[,<data>]]]...
Page 63: At+Csq Signal Quality Report
As RXQUAL values in the table in GSM 05.08 [20] subclause 7.2.4 Not known or not detectable Reference 3GPP TS 27.007 [13] 3.2.32 AT+VTD Tone Duration AT+VTD Tone Duration Test Command Response AT+VTD=? +VTD: (list of supported <n>s) SIM5300E AT Command Manual V1.02...
Page 64: At+Vts Dtmf And Tone Generation
DTMF tones whose duration is set by the +VTD Command. 2) {<dtmf>, <duration>} This is interpreted as a DTMF tone whose duration is determined by <duration>. <duration> Duration of the tone in 1/10 seconds range: 0-255 Reference 3GPP TS 27.007 [13] SIM5300E AT Command Manual V1.02...
Page 65: At+Cmux Multiplexer Control
230400 bits/t 1 Mbit/s Proprietary values, available if MUX NEW PORT SPEED FTR is activated <N1> Maximum frame size 1-1509 currently support <T1> Acknowledgement timer in units of ten milliseconds 1-255 <N2> Maximum number of re-transmissions SIM5300E AT Command Manual V1.02...
Page 66: At+Cnum Subscriber Number
<numberx> String type (string should be included in quotation marks) phone number of format specified by <typex> <typex> Type of address octet in integer format (refer GSM04.08[8] subclause 10.5.4.7) <speed> As defined by the +CBST Command <service> (service related to the phone number:) SIM5300E AT Command Manual V1.02...
Page 67: At+Cpol Preferred Operator List
SIM preferred operator list <format> Indicates whether alphanumeric or numeric format used (see +COPS Command) Long format alphanumeric <oper> Short format alphanumeric <oper> Numeric <oper> <oper> String type(string should be included in quotation marks) SIM5300E AT Command Manual V1.02...
Page 68: At+Copn Read Operator Names
<numericn> String type (string should be included in quotation marks): operator in numeric format (see +COPS) <alphan> String type (string should be included in quotation marks): operator in long alphanumeric format (see +COPS) Reference 3GPP TS 27.007 [13] 3.2.38 AT+CFUN Set Phone Functionality SIM5300E AT Command Manual V1.02...
Page 69: At+Cclk Clock
Response string "OK" will be returned after module resets if baud rate is set to fixed baud rate. 3.2.39 AT+CCLK Clock AT+CCLK Clock Test Command Response AT+CCLK=? Read Command Response AT+CCLK? +CCLK: <time> SIM5300E AT Command Manual V1.02...
Page 70: At+Cmut Mute Control
Write Command Response AT+CMUT=<n> If error is related to ME functionality: +CME ERROR: <err> Parameter <n> Mute off Mute on Reference Note 3GPP TS 27.007 [13] Only during a call this command can be set successfully. SIM5300E AT Command Manual V1.02...
Page 71: At+Csim Generic Sim Access
AT+CPUC Price Per Unit and Currency Table Test Command Response AT+CPUC=? Read Command Response AT+CPUC? +CPUC: <currency>,<ppu> If error is related to ME functionality: +CME ERROR: <err> Write Command Response AT+CPUC=<currency>,<ppu>[,< passwd>] +CME ERROR: <err> SIM5300E AT Command Manual V1.02...
Page 72: At+Ccwe Call Meter Maximum Event
The warning is issued approximately when 5 seconds call time remains. It is also issued when starting a call if less than 5 s call time remains. Parameters <mode> Disable call meter warning event Enable call meter warning event SIM5300E AT Command Manual V1.02...
Page 73: At+Cbc Battery Charge
Reference 3GPP TS 27.007 specifies 30 seconds, so SIMCom deviates from the 3GPP TS 27.007 [13] specification. 3.2.44 AT+CBC Battery Charge AT+CBC Battery Charge Test Command Response AT+CBC=? +CBC: (list of supported <bcs>s),(list of supported <bcl>s),(<voltage>) Execution Command Response AT+CBC +CBC: <bcs>, <bcl>,<voltage>...
Page 74: At+Cssn Supplementary Services Notification
TA to TE. Command Syntax: AT+CSSN = [<n>[,<m>]] URC Response Syntax: +CSSI : <code1>[,<index>] +CSSU: <code2>[<index> [,<number>,<type>]] If error is related to ME functionality: +CME ERROR: <err> SIM5300E AT Command Manual V1.02...
Page 75 Call has been connected with the other remote party in explicit call transfer operation (also number and subaddress parameters may be present) (during a voice call or MT call setup) This is a deflected call (MT call setup) SIM5300E AT Command Manual V1.02...
Page 76 Additional incoming call forwarded <number> Parameter string type phone of format specified by <type> <index> Parameter type of address octet in integer format Reference SIM5300E AT Command Manual V1.02...
Page 77: At Commands According To 3Gpp Ts 27.005
AT Commands According to 3GPP TS 27.005 The 3GPP TS 27.005 commands are for performing SMS and CBS related operations. SIM5300E supports both Text and PDU modes. Overview of AT Commands According to 3GPP TS 27.005 Command Description AT+CMGD Delete SMS message...
Page 78: At+Cmgd Delete Sms Message
Delete all messages from preferred message storage including unread messages Reference 3GPP TS 27.005 4.2.2 AT+CMGF Select SMS Message Format AT+CMGF Select SMS Message Format Test Command Response AT+CMGF=? +CMGF: (list of supported <mode>s) Read Command Response AT+CMGF? +CMGF: <mode> SIM5300E AT Command Manual V1.02...
Page 79: At+Cmgl List Sms Messages From Preferred Store
Stored sent messages "ALL" All messages <mode> Normal (default) Not change status of the specified SMS record 2) If PDU mode: <stat> Received unread messages Received read messages Stored unsent messages Stored sent messages All messages <mode> SIM5300E AT Command Manual V1.02...
Page 80 SMS-COMMANDs: +CMGL: <index>,<stat>,<fo>,<ct> [<CR><LF>+CMGL: <index>,<stat>,<fo>,<ct>[...]] for CBM storage: +CMGL:<index>,<stat>,<sn>,<mid>,<page>,<pages> <CR><LF><data> <CR><LF>+CMGL: <index>,<stat>,<sn>,<mid>,<page>,<pages> <CR><LF><data>[...]] 2)If PDU mode (+CMGF=0) and Command successful: +CMGL:<index>,<stat>[,<alpha>],<length> <CR><LF><pdu> <CR><LF>+CMGL: <index>,<stat>[,alpha],<length> <CR><LF><pdu>[...]] 3)If error is related to ME functionality: +CMS ERROR: <err> SIM5300E AT Command Manual V1.02...
Page 81 If TE character set other than "HEX" (refer Command +CSCS in 3GPP TS 27.007): ME/TA converts GSM alphabet into current TE character set according to rules of Annex A If TE character set is "HEX": ME/TA converts each 7-bit character of GSM SIM5300E AT Command Manual V1.02...
Page 82: At+Cmgr Read Sms Message
(when first character of <da> is + (IRA 43) default is 145, otherwise default is 129) <tooa> GSM 04.11 TP-Originating-Address Type-of-Address octet i integer format (default refer<toda>) Reference 3GPP TS 27.005 4.2.4 AT+CMGR Read SMS Message AT+CMGR Read SMS Message Test Command Response AT+CMGR=? SIM5300E AT Command Manual V1.02...
Page 83 <index> Integer type; value in the range of location numbers supported by the associated memory <mode> Normal Not change status of the specified SMS record <alpha> String type (string should be included in quotation marks) SIM5300E AT Command Manual V1.02...
Page 84 8-bit octet into two IRA character long hexadecimal number <dcs> Depending on the Command or result code: GSM 03.38 SMS Data Coding Scheme (default 0), or Cell Broadcast Data Coding Scheme in integer format SIM5300E AT Command Manual V1.02...
Page 85 "STO UNSENT" Stored unsent messages "STO SENT" Stored sent messages "ALL" All messages <toda> GSM 04.11 TP-Destination-Address Type-of-Address octetin integer format (when first character of <da> is + (IRA 43) default is 145, otherwise default is 129) SIM5300E AT Command Manual V1.02...
Page 86: At+Cmgs Send Sms Message
BCD numbers (or GSM default alphabet characters) are converted to characters of the currently selected TE character set (specified by +CSCS in 3GPP TS 27.007); type of address given by <toda> SIM5300E AT Command Manual V1.02...
Page 87: At+Cmgw Write Sms Message To Memory
<mem2>. Memory location <index> of the stored message is returned. By default message status will be set to 'stored unsent', but parameter <stat> allows also other status values to be given. If writing is successful: +CMGW: <index> SIM5300E AT Command Manual V1.02...
Page 88 "STO SENT" Stored sent messages in PDU mode (+CMGF=0): Received unread messages Received read messages Stored unsent messages Stored sent messages <pdu> In the case of SMS: GSM 04.11 SC address followed by GSM 03.40 SIM5300E AT Command Manual V1.02...
Page 89: At+Cmss Send Sms Message From Storage
BCD numbers (or GSM default alphabet characters) are converted to characters of the currently selected TE character set (specified by +CSCS in 3GPP TS 27.007); type of address given by <toda> SIM5300E AT Command Manual V1.02...
Page 90: At+Cnmi New Sms Message Indications
If <mt>=2 (PDU mode enabled): +CMT: [<alpha>],<length><CR><LF><pdu> If <mt>=2 (text mode enabled): +CMT: <oa>, <scts>[, <tooa>, <fo>, <pid>, <dcs>, <sca>, <tosca>, <length>]<CR><LF><data> 2. Indicates that new cell broadcast message has been received If <bm>=2 (PDU mode enabled): SIM5300E AT Command Manual V1.02...
Page 91 <oa>, [<alpha>],<scts>[,<tooa>,<fo>,<pid>,<dcs>,<sca>,<tosca>,<len gth>]<CR><LF><data> (text mode enabled; about parameters in italics, refer Command Show Text Mode Parameters +CSDH). Class 2 messages result in indication as defined in <mt>=1. Class 3 SMS-DELIVERs are routed directly to TE SIM5300E AT Command Manual V1.02...
Page 92: At+Cpms Preferred Sms Message Storage
AT+CPMS Preferred SMS Message Storage AT+CPMS Preferred SMS Message Storage Test Command Response AT+CPMS=? +CPMS: (list of supported <mem1>s),(list of supported <mem2>s),(list of supported <mem3>s) If error is related to ME functionality: +CMS ERROR <err> SIM5300E AT Command Manual V1.02...
Page 93: At+Csca Sms Service Center Address
<usedx> Integer type; Number of messages currently in <memx> <totalx> Integer type; Number of messages storable in <memx> Reference 3GPP TS 27.005 4.2.10 AT+CSCA SMS Service Center Address AT+CSCA SMS Service Center Address Test Command Response AT+CSCA=? Read Command Response AT+CSCA? +CSCA: <sca>,<tosca>[,<scaAlpha>] SIM5300E AT Command Manual V1.02...
Page 94: At+Cscb Select Cell Broadcast Sms Messages
Response AT+CSCB=<mode>[,<mids>[,<d TA selects which types of CBMs are to be received by the ME. css>]] Note: This Command writes the parameters in NON-VOLATILE memory. If error is related to ME functionality: +CMS ERROR: <err> SIM5300E AT Command Manual V1.02...
Page 95: At+Csdh Show Sms Text Mode Parameters
AT+CSDH Show SMS Text Mode Parameters Test Command Response AT+CSDH=? +CSDH: (list of supported <show>s) Read Command Response AT+CSDH? +CSDH: <show> Write Command Response AT+CSDH=[<show>] TA determines whether detailed header information is shown in text mode result codes. SIM5300E AT Command Manual V1.02...
Page 96: At+Csmp Set Sms Text Mode Parameters
TP-Validity-Period either in integer format (default 167) or in time-string format (refer <dt>) <pid> GSM 03.40 TP-Protocol-Identifier in integer format (default 0). <dcs> GSM 03.38 SMS Data Coding Scheme in Integer format. Reference 3GPP TS 27.005 SIM5300E AT Command Manual V1.02...
Page 97: At+Csms Select Message Service
<service> setting 1 is mentioned under corresponding command descriptions) <mt> Mobile Terminated Messages: Type not supported Type supported <mo> Mobile Originated Messages: Type not supported Type supported <bm> Broadcast Type Messages: Type not supported Type supported Reference 3GPP TS 27.005 SIM5300E AT Command Manual V1.02...
Page 98: At Commands Special For Simcom
Choose the Network-attached status AT+GSMBUSY Reject Incoming Call AT+CDRIND CS Voice/Data Call Termination Indication AT+CGMSCLASS Change GPRS Multislot Class AT+CLVL Loud Speaker Volume Level AT+CMIC Change the Microphone Gain Level AT+SIDET Change the Side Tone Gain Level SIM5300E AT Command Manual V1.02...
Page 99 Delete All SMS AT+SIMTONE Generate Specifically Tone AT+STTONE Play SIM Toolkit Tone AT+CLDTMF Local DTMF Tone Generation AT+SNDLEVEL Set the Sound Level of Special AT Command AT+CHF Configure Hands Free Operation AT+CHFA Swap the Audio Channels SIM5300E AT Command Manual V1.02...
Page 100: Detailed Descriptions Of Atc For Simcom
Detailed Descriptions of ATC for SIMCom 5.2.1 AT+CSNS Single Numbering Scheme AT+CSNS Single Numbering Scheme Test Command Response AT+CSNS=? +CSNS: (list of supported <mode>s) Read Command Response AT+CSNS? +CSNS: <mode> Write Command Response AT+CSNS=<mode> If error is related to ME functionality: +CME ERROR: <err>...
Page 101: At+Cpowd Power Off
Normal power off (Will send out NORMAL POWER DOWN) Reference 5.2.4 AT+CADC Read ADC AT+CADC Read ADC Test Command Response AT+CADC=? +CADC: (list of supported <status>s),(list of supported <value>s) Read Command Response AT+CADC? +CADC: <status>,<value> Parameter <status> Success Fail <value> Integer 0-1200 SIM5300E AT Command Manual V1.02...
Page 102: At+Clts Get Local Timestamp
*PSUTTZ: <year>, <month>, <day>, <hour>, <min>, <sec>, "<time zone>", <dst> 3. Refresh network time zone by network: +CTZV: "<time zone>" 4. Refresh Network Daylight Saving Time by network: DST: <dst> Parameters <mode> Disable Enable <mcc> String type; mobile country code SIM5300E AT Command Manual V1.02...
Page 103 +2 hours adjustment for Daylight Saving Time Reserved Reference Note: Support for this Command will be network dependent. Set AT+CLTS=1, it means user can receive network time updating and use AT+CCLK to show current time. SIM5300E AT Command Manual V1.02...
Page 104: At+Cband Get And Set Mobile Operation Band
<2G_BAND> means the configured 2G bands <3G_BAND> means the configured 3G bands. Reference 5.2.7 AT+CSCLK Configure Slow Clock AT+CSCLK Configure Slow Clock Test Command Response AT+CSCLK=? +CSCLK: (list of supported <n>s) Read Command Response AT+CSCLK? +CSCLK: <n> Write Command Response SIM5300E AT Command Manual V1.02...
Page 105: At+Ceng Switch On Or Off Engineering Mode
TA returns the current engineering mode. The network information including serving cell and neighboring cells are returned only when <mode>=1 or <mode> = 2. <cell> carry with them corresponding network interaction. In 2G mode +CENG: <mode>,<CELLID> [+CENG: <cell>,"<arfcn>,<rxl>,<rxq>,<mcc>,<mnc>,<bsic>,<cellid>,<rla>, <txp>,<lac>,<TA> <CR><LF>+CENG: <cell>,"<arfcn>,<rxl>,<bsic>[,<cellid>,]<mcc>,<mnc>,<lac>"…] SIM5300E AT Command Manual V1.02...
Page 106 Switch on engineering mode(display the cell details) Switch on engineering mode, and activate the URC report of network information(display the cell information automatically) Switch on engineering mode, with limited URC report(display the concise cell information) display the serving cell information SIM5300E AT Command Manual V1.02...
Page 107 <rscp> Received Signal Code Power <rxlev> received signal strength in dBm <tx_pwr> UE TX power in dBm. If no TX, the value is 0. <ecn0> EC2N0 (dB - positive value presented positive) of serviceng cell. SIM5300E AT Command Manual V1.02...
Page 108: At+Sclass0 Store Class 0 Sms To Sim When Received Class 0 Sms
Class 0 SMS Enable to store Class 0 SMS to SIM when module receives Class 0 SMS Reference 5.2.10 AT+CCID Show ICCID AT+CCID Show ICCID Test Command Response AT+CCID=? Execution Command Response AT+CCID Ccid data Reference SIM5300E AT Command Manual V1.02...
Page 109: At+Cmte Set Critical Temperature Operating Mode Or Query Temperature
Level "2" or "-2" URCs are followed by immediate shutdown. 5.2.12 AT+MORING Show State of Mobile Originated Call AT+MORING Show State of Mobile Originated Call Test Command Response AT+MORING=? +MORING: (list of supported<mode>s) Read Command Response AT+MORING? +MORING: <mode> Write Command Response SIM5300E AT Command Manual V1.02...
Page 110: At+Ciurc Enable Or Disable Initial Urc Presentation
+CIURC:<mode> Write Command Response AT+CIURC=<mode> If error is related to ME functionality: +CME ERROR: <err> Parameters <mode> Disable URC presentation. Enable URC presentation Reference Note: When module is powered on and initialization procedure is over. SIM5300E AT Command Manual V1.02...
Page 111: At+Ccalr Call Ready Query
AT+GSV Display Product Identification Information AT+GSV Display Product Identification Information Execution Command Response AT+GSV TA returns product information text SIMCOM_Ltd SIMCOM_SIM5300E Revision:1551B01SIM5300E Reference 5.2.16 AT+SGPIO Control the GPIO AT+SGPIO Control the GPIO Test Command Response AT+SGPIO=? +SGPIO: (0-1),(1,2,3,4,6,7,8,9,11,12),(0-1),(0-1) SIM5300E AT Command Manual V1.02...
Page 112: At+Spwm Generate The Pulse-Width-Modulation
If error is related to ME functionality: +CME ERROR: <err> Parameters <index> Integer type: the index number of PWM port, which value is 0-2; Current only support one channel,whether 1 or 2,the PWM port is the same. SIM5300E AT Command Manual V1.02...
Page 113: At+Sleds Set The Timer Period Of Net Light
If error is related to ME functionality: +CME ERROR: <err> Parameters <mode> Set the timer period of net light while SIM5300E does not register to the network Set the timer period net light while SIM5300E has already registered to the network...
Page 114: At+Cnetlight Close The Net Light Or Open It To Shining
AT+CSDT Switch on or off Detecting SIM Card Test Command Response AT+CSDT=? +CSDT: (list of supported<mode>s) Read Command Response AT+CSDT? +CSDT: <mode> Write Command Response AT+CSDT=<mode> If error is related to ME functionality: +CME ERROR: <err> Parameters <mode> SIM5300E AT Command Manual V1.02...
Page 115: At+Csmins Sim Inserted Status Reporting
SIM has been inserted or removed. Disable Enable <SIM inserted>A numeric parameter which indicates whether SIM card has been inserted. Not inserted Inserted Reference 5.2.22 AT+CSGS Netlight Indication of GPRS Status AT+CSGS Netlight Indication of GPRS Status SIM5300E AT Command Manual V1.02...
Page 116: At+Sjdr Jamming Detection
+SJDR: <status>,<mode>,<var>,<display>,<result> Write Command Response Enable jamming detection AT+SJDR=<status>,<mode>[,<var >[,<display>]] Unsolicited result codes supported: +SJDR: NO JAMMING Close jamming detection AT+SJDR=0 +SJDR: JAMMING DETECTED +SJDR: INTERFERENCE DETECTED Parameters <status> disable jamming detection enable jamming detection SIM5300E AT Command Manual V1.02...
Page 117: At+Cnmp Selection Of Radio Access Technology
5.2.24 AT+CNMP Selection of Radio Access Technology AT+CNMP Selection of Radio Access Technology Test Command Response AT+CNMP=? +CNMP: (list of supported <Act>s) ,(list supported<PreferredAct>s) Read Command +CNMP : <Act>,[<PreferredAct>] AT+CNMP? SIM5300E AT Command Manual V1.02...
Page 118: At+Csact Choose The Network-Attached Status
AT+CSACT Choose the network-attached Status Read Command Response AT+CSACT? +CSACT: <AcT>, <rac>,<AcT_creg>,<AcT_cgreg> Write Command Response AT+CSACT=[<AcT_creg>) ,<AcT_cgreg> Parameters <AcT> indicates the radio access technology and values can be: CAT_ACT_GSM CAT_ACT_GSM_COMPACT CAT_ACT_UTRAN CAT_ACT_GSM_EDGE CAT_ACT_UTRAN_HSDPA CAT_ACT_UTRAN_HSUPA CAT_ACT_UTRAN_HSDPA_AND_HSUPA CAT_ACT_E_UTRAN SIM5300E AT Command Manual V1.02...
Page 119: At+Gsmbusy Reject Incoming Call
If error is related to ME functionality: +CME ERROR: <error> Parameters <mode> Enable incoming call Forbid all incoming calls Forbid incoming voice calls but enable CSD calls Reference Note: The parameter is not saved if the module power down. SIM5300E AT Command Manual V1.02...
Page 120: At+Cdrind Cs Voice/Data Call Termination Indication
CS voice call, CS data has been terminated. Disable Enable <type> Connection type CSV connection CSD connection PPP connection Reference 5.2.28 AT+CGSMCLASS Change GPRS Multislot Class AT+CGMSCLASS Change GPRS Multislot Class Test Command Response AT+CGMSCLASS=? +CGMSCLASS: (1-12), (1-12) SIM5300E AT Command Manual V1.02...
Page 121: At+Clvl Loud Speaker Volume Level
Write Command Response AT+CLVL=<level> If error is related to ME functionality: +CME ERROR: <err> Parameters <level> Integer type value with manufacturer specific range (smallest value represents the lowest sound level) 0-100 Reference Note GSM 07.07 [13] SIM5300E AT Command Manual V1.02...
Page 122: At+Cmic Change The Microphone Gain Level
<gainlevel> Int:0 – 15 -96dB -7.5 -4.5 -1.5 10.5 Reference Note Please refer to actual model for channel number.  5.2.31 AT+SIDET Change the Side Tone Gain Level AT+SIDET Change the Side Tone Gain Level SIM5300E AT Command Manual V1.02...
Page 123: At+Echo Echo Cancellation Control
Response AT+ECHO=< channel >,<es> If error is related to ME functionality: +CME ERROR: <err> Parameters < channel > Audio channel Main audio handset channel <es> Echo suppression the bigger the value, the stronger the restraint. SIM5300E AT Command Manual V1.02...
Page 124: At+Calm Alert Sound Mode
If user change CALM from silent mode to normal mode during an incoming call, module will still maintain in silent mode during this phone call alert. 5.2.34 AT+CALS Alert Sound Select AT+CALS Alert Sound Select Test Command Response AT+CALS=? +CALS: (list of supported <n>s),(list of supported <mode>s) SIM5300E AT Command Manual V1.02...
Page 125: At+Cmgda Delete All Sms
If error is related to ME functionality: +CME ERROR: <err> Parameters <type> 1) If text mode: "DEL READ" Delete all read messages "DEL UNREAD" Delete all unread messages "DEL SENT" Delete all sent SMS "DEL UNSENT" Delete all unsent SMS SIM5300E AT Command Manual V1.02...
Page 126: At+Simtone Generate Specifically Tone
The playing is stopped or completed. +SIMTONE: 0 Parameters <mode> Stop playing tone Start playing tone <frequency> The frequency of tone to be generated <periodOn> The period of generating tone, must be multiple of 100 SIM5300E AT Command Manual V1.02...
Page 127: At+Sttone Play Sim Toolkit Tone
Dial Tone Called Subscriber Busy Congestion Radio Path Acknowledge Radio Path Not Available / Call Dropped Error / Special information Call Waiting Tone Ringing Tone General Beep Positive Acknowledgement Tone Negative Acknowledgement or Error Tone SIM5300E AT Command Manual V1.02...
Page 128: At+Cldtmf Local Dtmf Tone Generation
A single ASCII chars in the set 0-9,#,*,A-G. “E” represents 1400HZ, “F” represents 2300HZ, and “G” represents 1000HZ. <basicdur> (40-500) A numeric parameter in terms of ms which indicates the basic duration time, default value is 100. SIM5300E AT Command Manual V1.02...
Page 129: At+Sndlevel Set The Sound Level Of Special At Command
SIMTONE adjust the sound level of CLDTMF adjust the sound level of ALERT <SndLevel> 0 min volume 1 low volume 2 normal volume (Default value) 3 high volume Reference Note The default value is : SIM5300E AT Command Manual V1.02...
Page 130: At+Chf Configure Hands Free Operation
<ind> Unsolicited result code disabled Unsolicited result code enabled <state> Main audio handset channel Reference Note 5.2.41 AT+CHFA Swap the Audio Channels AT+CHFA Swap the Audio Channels Test Command Response AT+CHFA=? +CHFA: (0 = NORMAL_AUDIO) SIM5300E AT Command Manual V1.02...
Page 131: At+Dtam Set Local Or Remote Audio Play
AT+DTAM Set Local or Remote Audio Play Read Command Response AT+DTAM? +DTAM: <mode> Write Command Response AT+DTAM=<mode> Parameter <mode> Play audio locally (Default value) Play audio remotely Reference 5.2.43 AT+CTTS TTS Operation AT+CTTS TTS Operation Test Command Response AT+CTTS=? SIM5300E AT Command Manual V1.02...
Page 132: At+Cttsparam Set Tts Parameters
If <mode>=1, maximum data length is 540 Bytes; if <mode>=2, maximum data length is 270 Bytes; if <mode>=3, maximum data length is 250 Bytes; Reference 5.2.44 AT+CTTSPARAM Set TTS Parameters AT+CTTSPARAM Set TTS Parameters Test Command Response AT+CTTSPARAM=? +CTTSPARAM: (0-2),(0-3),(0-3),(0-2),(0-2),(0-1),(0-1) SIM5300E AT Command Manual V1.02...
Page 133 +CTTS: 0 when finish playing TTS (Default value) return +CTTS:0,1 when finish playing TTS, and return +CTTS:0 later to indicate that the TTS session ends. <savemode> forbid running another TTS playing command when playing SIM5300E AT Command Manual V1.02...
Page 134: Set Italian Tts Punctuation Pause Time
<time> The punctuation pause time Reference Note 1. This feature only supports Italian, not support Chinese or English. 2. If there is continues punctuation in the text string, the pause time is the sum of all the punctuations. SIM5300E AT Command Manual V1.02...
Page 135: At+Spic Times Remained To Input Sim Pin/Puk
AT+SPIC Times Remained to Input SIM PIN/PUK Execution Command Response AT+SPIC +SPIC: <pin1>,<pin2>,<puk1>,<puk2> Parameter <pin1> Times remained to input chv1 <pin2> Times remained to input chv2 <puk1> Times remained to input puk1 <puk2> Times remained to input puk2 Reference SIM5300E AT Command Manual V1.02...
Page 136: At Commands For Network Support
Detailed Descriptions of ATC for GPRS Support 6.2.1 AT+CGATT Attach or Detach from GPRS Service AT+CGATT Attach or Detach from GPRS Service Test Command Response AT+CGATT=? +CGATT: (list of supported <state>s) Read Command Response AT+CGATT? +CGATT: <state> SIM5300E AT Command Manual V1.02...
Page 137: At+Cgdcont Define Pdp Context
PDP context definition. The parameter is local to the TE-MT interface and is used in other PDP context-related commands. The range of permitted values (minimum value=1) is returned by the test form of the command. SIM5300E AT Command Manual V1.02...
Page 138: At+Cgqmin Quality Of Service Profile (Minimum Acceptable)
+CGQMIN: <PDP_type>,(list of supported <precedence>s),(list of supported <delay>s),(list of supported <reliability>s),(list of supported <peak>s),(list of supported <mean>s) [<CR><LF>+CGQMIN: <PDP_type>,(list of supported <precedence> s),(list of supported <delay>s),(list of supported <reliability>s),(list of supported <peak>s),(list of supported <mean>s) […]] SIM5300E AT Command Manual V1.02...
Page 139: At+Cgqreq Quality Of Service Profile (Requested)
QOS peak throughput class <mean> QOS mean throughput class subscribed value 1..18 QOS mean throughput class QOS mean throughput class best effort Reference Note 6.2.4 AT+CGQREQ Quality of Service Profile (Requested) AT+CGQREQ Quality of Service Profile (Requested) SIM5300E AT Command Manual V1.02...
Page 140 QOS delay class subscribed value 1..4 QOS delay class subscribed <reliability> QOS reliability class subscribed value 1.. 5 QOS reliability class. <peak> QOS peak throughput class subscribed value 1.. 9 QOS peak throughput class <mean> SIM5300E AT Command Manual V1.02...
Page 141: At+Cgact Pdp Context Activate Or Deactivate
This command is used to test PDPs with network simulators. Successful activation of PDP on real network is not guaranteed. Refer to AT+CGDATA clarification for more information. 6.2.6 AT+CGDATA Enter Data State AT+CGDATA Enter Data State Test Command Response SIM5300E AT Command Manual V1.02...
Page 142: At+Cgpaddr Show Pdp Address
[<CR><LF>+CGPADDR: <cid>,<PDP_addr>[…]] If error is related to ME functionality: +CME ERROR: <err> Parameters <cid> A numeric parameter which specifies a particular PDP context definition (see +CGDCONT Command) <PDP_addr> String type, IP address Format: "<n>.<n>.<n>.<n>" where <n>=0..255 SIM5300E AT Command Manual V1.02...
Page 143: At+Cgclass Gprs Mobile Station Class
Note: It only supports Class B, CG and CC. 6.2.9 AT+CGREP Control Unsolicited GPRS Event Reporting AT+CGEREP Control Unsolicited GPRS Event Reporting Test Command Response AT+CGEREP=? +CGEREP: (list of supported <mode>s) ,(list of supported <bfr>s) SIM5300E AT Command Manual V1.02...
Page 144 MT buffer of unsolicited result codes defined within this command is cleared when <mode>1 or 2 is entered. MT buffer of unsolicited result codes defined withen this command is flushed to the TE when <mode> 1 or 2 is entered. Reference SIM5300E AT Command Manual V1.02...
Page 145: At+Cgreg Network Registration Status
GPRS if it is requested by the user. Unknown Registered, roaming <lac> String type (string should be included in quotation marks); two byte location area code in hexadecimal format (e.g. "00C3" equals 195 in decimal) SIM5300E AT Command Manual V1.02...
Page 146: At+Cgsms Select Service For Mo Sms Messages
AT+CGEQMIN 3G Quality of Service Profile (Minimum Acceptable) Test Command +CGEQMIN: <PDP_type>, (list_of supported <Traffic_class>s) ,(list of AT+CGQMIN=? supported <Maximum_bitrate_UL>s) (list supported <Maximum_bitrate_DL>s), (list of supported <Guaranteed_bitrate_UL>s), (list supported <Guaranteed_bitrate_DL>s) ,(list supported <Delivery_order>s) ,(list of supported <Maximum_SDU_size>s) ,(list of SIM5300E AT Command Manual V1.02...
Page 147 <SDU_error_ratio> ,<Residual_bit_error_ratio> ,<Delivery_of_erroneous_S DUs> ,<Transfer_delay> ,<Traffic_handling_priority> [,<Source_statistics_descriptor>,<Signalling_indication>] [<CR><LF> +CGEQMIN: <cid>, <Traffic_class> ,<Maximum_bitrate_UL> ,<Maximum_bitrate_DL>, <Guaranteed_bitrate_UL> ,<Guaranteed_bitrate_DL>, <Delivery_order> ,<Maximum_SDU_size> ,<SDU_error_ratio> ,<Residual_bi t_error_ratio> ,<Delivery_of_erroneous_SDUs> ,<Transfer_delay>,<Traffic_ handling_priority> [,<Source_statistics_descriptor> ,<Signalling_indication>][...]] If error is related to ME functionality: +CME ERROR: <err> SIM5300E AT Command Manual V1.02...
Page 148 UMTS(up-link traffic) at a SAP (provided that there is data to deliver). As an example a bitrate of 32kbit/s would be specified as '32' (e.g. AT+CGEQMIN=...,32, ...) (refer 3GPP TS24.008 [8] subclause 10.5.6.5). SIM5300E AT Command Manual V1.02...
Page 149 Other values are reserved. <Transfer_delay> a numeric parameter (0,1,2,...) that indicates the targeted time between request to transfer an SDU at one SAP to its delivery at the other SAP, in milliseconds SIM5300E AT Command Manual V1.02...
Page 150: At+Cgeqreq 3G Quality Of Service Profile(Requested)
(see +CGDCONT command). If a value is omitted for a particular class then the value is considered to be unspecified. Reference 6.2.13 AT+CGEQREQ 3G Quality of Service Profile(Requested) AT+CGEQREQ 3G Quality of Service Profile (Requested) SIM5300E AT Command Manual V1.02...
Page 151 A numeric parameter that indicates the type of application for which the UMTS bearer service is onfirmat. 0 conversational (default) streaming interactive background Other values are reserved. <Maximum_bitrate_UL>: A numeric parameter that indicates the maximum number of kbits/s SIM5300E AT Command Manual V1.02...
Page 152 5.10-3 would be specified as '5E3'(e.g. AT+cgeqreq=...,"5E3",...) (refer 3GPP TS 24.008 [8] subclause 10.5.6.5). <Residual_bit_error_ratio> A string parameter that indicates the target value for the undetected bit error ratio in the delivered SDUs. If no error detection is requested, Residual bit error SIM5300E AT Command Manual V1.02...
Page 153 SDUs for a PDP context. This parameter should be provided if the Traffic class is specified as interactive (refer 3GPP TS 24.008 [8] subclause 10.5.6.5). PDP context is notoptimized for confirmat (default value) PDP context is optimized for confirmat SIM5300E AT Command Manual V1.02...
Page 154: At+Cgeqneg 3G Quality Of Service Profile(Negotiated)
UMTS bearer service is vailable. 0 conversational (default) streaming interactive background Other values are reserved. <Maximum bitrate UL> a numeric parameter that indicates the maximum number of kbits/s SIM5300E AT Command Manual V1.02...
Page 155 The value is specified as 'mEe'. As an example a target SDU error ratio of 5.10-3 would be specified as '5E3'(e.g. +CGEQNEG:..,"5E3",...) (refer TS 24.008 [8] subclause 10.5.6.5). <Residual bit error ratio> a string parameter that indicates the target value for the undetected bit error ratio in SIM5300E AT Command Manual V1.02...
Page 156 (1,2,3,...) that specifies the relative importance for handling of all SDUs belonging to the UMTS bearer compared to the SDUs of other bearers (refer TS 24.008 [8] subclause 10.5.6.5 Revision 2.5, Reference SIM5300E AT Command Manual V1.02...
Page 157: At Commands For Tcpip Application Toolkit
Show remote IP address and port when received data AT+CIPDPDP Set whether to check state of GPRS network timing AT+CIPMODE Select TCPIP application mode AT+CIPCCFG Configure transparent transfer mode AT+CIPSHOWTP Display transfer protocol in IP head when received data SIM5300E AT Command Manual V1.02...
Page 158: Detailed Descriptions Of Commands
Only in IP initial state, AT+CIPMUX=1 is effective; Only when multi IP connection and GPRS application are both shut down, AT+CIPMUX=0 is effective. 7.2.2 AT+CIPSTART Start Up TCP or UDP Connection AT+CIPSTART Start Up TCP or UDP Connection SIM5300E AT Command Manual V1.02...
Page 159 1) If AT+CIPMUX=0 +CIPSTART: (list of supported <mode>),(<IP address>),(<port>) +CIPSTART: (list of supported <mode>),(<domain name>),(<port>) 2) If AT+CIPMUX=1 +CIPSTART: (list of supported <n>),(list of supported <mode>),(<IP address>),(<port>) +CIPSTART: (list of supported <n>),(list of supported <mode>),(<domain name>),(<port>) SIM5300E AT Command Manual V1.02...
Page 160 2)If multi-IP connection (+CIPMUX=1) If format is right otherwise response If error is related to ME functionality: +CME ERROR <err> Response when connection exists <n>,ALREADY CONNECT If connection is successful <n>,CONNECT OK Otherwise <n>,CONNECT FAIL SIM5300E AT Command Manual V1.02...
Page 161 "AT+CIPSHUT" before user establishes a TCP/UDP connection with this command when the state is not IP INITIAL or IP STATUS. When module is in multi-IP state, before this command is executed, it is necessary to process "AT+CSTT, AT+CIICR, AT+CIFSR". SIM5300E AT Command Manual V1.02...
Page 162: At+Cipsend Send Data Through Tcp Or Udp Connection
When +CIPQSEND=1 DATA ACCEPT:<length> If sending fails: SEND FAIL If multi IP connection is established (+CIPMUX=1) If connection is not established or module is disconnected: If error is related to ME functionality: +CME ERROR <err> SIM5300E AT Command Manual V1.02...
Page 163 <length> A numeric parameter which indicates the length of sending data, it must be less than <size> Reference Note: The data length which can be sent depends on network status. Set the time that send data automatically with the Command of AT+CIPATS. SIM5300E AT Command Manual V1.02...
Page 164: At+Cipqsend Select Data Transmitting Mode
Write Command Response multi connection +CIPACK: <txlen>, <acklen>, <nacklen> (+CIPMUX=1) AT+CIPACK=<n> Execution Command Response If in single IP connection +CIPACK: <txlen>, <acklen>, <nacklen> (+CIPMUX=0) AT+CIPACK Parameters <n> A numeric parameter which indicates the connection number SIM5300E AT Command Manual V1.02...
Page 165: At+Cipclose Close Tcp Or Udp Connection
CONNECTING or CONNECT OK, otherwise it will return ERROR, after the connection is closed, the status is IP CLOSE in single IP mode. 7.2.7 AT+CIPSHUT Deactivate GPRS PDP Context AT+CIPSHUT Deactivate GPRS PDP Context SIM5300E AT Command Manual V1.02...
Page 166: At+Clport Set Local Port
1) For single IP connection (+CIPMUX=0) +CLPORT: <TCP port>,<UDP port> 2) For multi IP connection (+CIPMUX=1) +CLPORT: 0,<TCP port>,<UDP port> +CLPORT: 1,<TCP port>,<UDP port> +CLPORT: 2,<TCP port>,<UDP port> +CLPORT: 3,<TCP port>,<UDP port> +CLPORT: 4,<TCP port>,<UDP port> +CLPORT: 5,<TCP port>,<UDP port> SIM5300E AT Command Manual V1.02...
Page 167: At+Cstt Start Task And Set Apn, User Name, Password
AT+CSTT Start Task and Set APN, USER NAME, PASSWORD Test Command Response AT+CSTT=? +CSTT: "APN","USER","PWD" Read Command Response AT+CSTT? +CSTT: <apn>,<user name>,<password> Write Command Response AT+CSTT=<apn>,<user name>,<password> If error is related to ME functionality: +CME ERROR: <err> SIM5300E AT Command Manual V1.02...
Page 168: At+Ciicr Bring Up Wireless Connection With Gprs
IP GPRSACT, and it responds OK, otherwise it will respond ERROR. 7.2.11 AT+CIFSR Get Local IP Address AT+CIFSR Get Local IP Address Test Command Response AT+CIFSR=? Execution Command Response AT+CIFSR <IP address> SIM5300E AT Command Manual V1.02...
Page 169: At+Cifsrex Get Local Ip Address
Response AT+CIPSTATUS=? Write Command Response multi connection +CIPSTATUS: <n>,<bearer>, <TCP/UDP>, <IP address>, <port>, <client state> mode(+CIPMUX=1) AT+CIPSTATUS=<n> Execution Command Response AT+CIPSTATUS 1）If in single connection mode (+CIPMUX=0) STATE: <state> 2) If in multi-connection mode (+CIPMUX=1) SIM5300E AT Command Manual V1.02...
Page 170 IP GPRSACT IP STATUS TCP CONNECTING/UDP CONNECTING/SERVER LISTENING CONNECT OK TCP CLOSING/UDP CLOSING TCP CLOSED/UDP CLOSED PDP DEACT In Multi-IP state: IP INITIAL IP START IP CONFIG IP GPRSACT IP STATUS IP PROCESSING PDP DEACT Reference SIM5300E AT Command Manual V1.02...
Page 171: At+Cdnscfg Configure Domain Name Server
AT+CDNSGIP Query the IP Address of Given Domain Name Test Command Response AT+CDNSGIP=? Write Command Response AT+CDNSGIP=<domain name> If error is related to ME functionality: +CME ERROR: <err> If successful, return: +CDNSGIP: 1, <domain name>,<IP1>[,<IP2>] SIM5300E AT Command Manual V1.02...
Page 172: At+Ciphead Add An Ip Head At The Beginning Of A Package Received
<mode> A numeric parameter which indicates whether an IP header is added to the received data or not. Not add IP header Add IP header, the format is: 1) For single IP connection (+CIPMUX=0) +IPD,<data length>: 2) For multi IP connection (+CIPMUX=1) SIM5300E AT Command Manual V1.02...
Page 173: At+Cipats Set Auto Sending Timer
AT+CIPSPRT Set Prompt of ‘>’ When Module Sends Data AT+CIPSPRT Set Prompt of ‘>’ When Module Sends Data Test Command Response AT+CIPSPRT=? +CIPSPRT: (list of supported <send prompt>s) Read Command Response AT+CIPSPRT? +CIPSPRT: <send prompt> SIM5300E AT Command Manual V1.02...
Page 174: At+Cipserver Configure Module As Server
+CIPSERVER: (0-CLOSE SERVER, 1-OPEN SERVER),(1-65535) Read Command Response AT+CIPSERVER? +CIPSERVER: <mode>[,<port>,<channel id>,<bearer>] Write Command Response AT+CIPSERVER=<mode>,<port> If error is related to ME functionality: +CME ERROR: <err> Parameters <mode> Close server Open server <port> 1..65535 Listening port SIM5300E AT Command Manual V1.02...
Page 175: At+Cipcsgp Set Gprs For Connection Mode
<user name> A string parameter which indicates the user name <password> A string parameter which indicates the password Reference Note 7.2.21 AT+CIPSRIP Show Remote IP Address and Port When Received Data AT+CIPSRIP Show Remote IP Address and Port When Received Data SIM5300E AT Command Manual V1.02...
Page 176: At+Cipdpdp Set Whether To Check State Of Gprs Network Timing
Test Command Response AT+CIPDPDP=? +CIPDPDP: (list of supported<mode>s, list of supported <interval>, list of supported <timer>) Read Command Response AT+CIPDPDP? +CIPDPDP: <mode>, <interval>, <timer> Write Command Response AT+CIPDPDP=<mode>[,<interv al>,<timer>] If error is related to ME functionality: SIM5300E AT Command Manual V1.02...
Page 177: At+Cipmode Select Tcpip Application Mode
AT+CIPMODE? +CIPMODE: <mode> Write Command Response AT+CIPMODE=<mode> If error is related to ME functionality: +CME ERROR: <err> Parameters <mode> Normal mode Transparent mode Reference 7.2.24 AT+CIPCCFG Configure Transparent Transfer Mode AT+CIPCCFG Configure Transparent Transfer Mode SIM5300E AT Command Manual V1.02...
Page 178 <RxSize> Output data length for each time, default value is 1460. <Rxtimer> Time interval (ms) to wait for serial port to output data again. Default value: 50ms Reference Note: This command will be effective only in single connection mode (+CIPMUX=0) SIM5300E AT Command Manual V1.02...
Page 179: At+Cipshowtp Display Transfer Protocol In Ip Head When Received Data
Only when +CIPHEAD is set to 1, the setting of this command will work.. 7.2.26 AT+CIPUDPMODE UDP Extended Mode AT+CIPUDP MODEUDP Extended Mode Test Command Response AT+CIPUDPMODE=? 1) For single IP connection (+CIPMUX=0) +CIPUDPMODE: (0-2),("(0-255).(0-255).(0-255).(0-255)"),(1-65535) 2) For multi IP connection (+CIPMUX=1) +CIPUDPMODE: (0-7),(0-2),("(0-255).(0-255).(0-255).(0-255)"),(1-65535) SIM5300E AT Command Manual V1.02...
Page 180: At+Ciprxget Get Data From Network Manually
<n> A numeric parameter which indicates the connection number <mode> UDP Normal Mode UDP Extended Mode Set UDP address to be sent <IP address> A string parameter which indicates remote IP address <port> Remote port Reference 7.2.27 AT+CIPRXGET Get Data from Network Manually SIM5300E AT Command Manual V1.02...
Page 181 <mode>=2 +CIPRXGET: 2,<reqlength>,<cnflength>[,<IP ADDRESS>:<PORT>] AT+CIPRXGET=<mode>[,<id>,<r 1234567890… eqlength >] if <mode>=3 +CIPRXGET: 3,<reqlength>,<cnflength>[,<IP ADDRESS>:<PORT>] 5151… if <mode>=4 +CIPRXGET: 4, <cnflength> 2)For multi IP connection If “AT+CIPSRIP=1” is set, IP address and port is contained. if <mode>=1 SIM5300E AT Command Manual V1.02...
Page 182 <cnflength> Confirmed number of data bytes to be read, which may be less than <length>. 0 indicates that no data can be read. Reference Note: To enable this function, parameter <mode> must be set to 1 before connection. SIM5300E AT Command Manual V1.02...
Page 183: At+Ciprdtimer Set Remote Delay Timer
If error is related to ME functionality: +CME ERROR: <err> Parameters <mode> select first PDP context select second PDP context Reference Note: This command is used to select pdp context, only for multi IP connection (+CIPMUX=1). SIM5300E AT Command Manual V1.02...
Page 184: At+Cipoption Set Tcp Option
AT+CIPSENDHEX=<mode> If error is related to ME functionality: +CME ERROR: <err> Parameters <mode> The default format of output data in AT+CIPSEND. Set the input data in HEX format when using CIPSEND command to send data. SIM5300E AT Command Manual V1.02...
Page 185: At+Ciphexs Set Output-Data Format With Suffix
This command is only available when”AT+CIPHEAD=1” 7.2.33 AT+CIPSSL Enable TCP SSL function AT+CIPSSL Enable TCP SSL function Test Command Response AT+CIPSSL=? +CIPSSL: (0-1) Read Command Response AT+CIPSSL? + CIPSSL: <n> Write Command Response AT+CIPSSL=<n> Parameters <n> 0 Enable SSL function SIM5300E AT Command Manual V1.02...
Page 186 1 Disable SSL function Reference Note: Module will process SSL automatic verification, after enabled SSL function, with SSL client support only. SIM5300E AT Command Manual V1.02...
Page 187: At Commands For Ping Application
If error is related to ME functionality: +CME ERROR: <err> Read Command Response AT+CIPPING? +CIPPING: <retryNum>,<dataLen>,<timeout>,<ttl> If error is related to ME functionality: +CME ERROR: <err> Write Command Response AT+CIPPING=<IPaddr>[,<retr +CIPPING: <replyId>,<Ip Address>,<replyTime>,<ttl>[<CR><LF> yNum>[,<dataLen>[,<timeo +CIPPING: <replyId>,<Ip Address>,<replyTime>,<ttl> [...]] ut>[,<ttl>]]]] SIM5300E AT Command Manual V1.02...
Page 188: At+Cipctl Set The Mode When Receiving An Ip Packet
“+PDP: DEACT” URC is reported and the command will end immediately. 8.2.2 AT+CIPCTL Set the Mode When Receiving an IP Packet AT+CIPCTL Set the Mode When Receiving an IP Packet Test Command Response AT+CIPCTL=? +CIPCTL: (list of supported <mode>s) SIM5300E AT Command Manual V1.02...
Page 189: At+Cipflt Set The Rules Of Ip Filter
+CME ERROR: <err> Parameters <action> Remove the rule specified by <item>. <item> must be given. Add the rule specified by <item>.If <item> is not given, it can find an empty item automatically. <ipAddr> and <mask> must be SIM5300E AT Command Manual V1.02...
Page 190: At Commands For Ip Application
BEARER SETTINGS FOR APPLICATIONS BASED ON IP Detailed Descriptions of Commands 9.2.1 AT+SAPBR Bearer Settings for Applications Based on IP AT+SAPBR Bearer Settings for Applications Based on IP Test Command Response AT+SAPBR=? +SAPBR: (0-4),(1-3), "ConParamTag","ConParamValue" SIM5300E AT Command Manual V1.02...
Page 191 Access point name string: maximum 50 characters "USER" User name string: maximum 50 characters "PWD" Password string: maximum 50 characters <ConParamValue> Bearer paramer value <ConParamValue_ConType> "GPRS" GPRS connection. <IP_Addr> The IP address of bearer Reference Note: SIM5300E AT Command Manual V1.02...
Page 192: At Commands For Http Application
AT Commands for HTTP Application SIM5300E has an embedded TCP/IP stack that is driven by AT commands and enables the host application to easily access the Internet HTTP service. This chapter is a reference guide to all the AT commands and responses defined to use with the TCP/IP stack in HTTP Service.
Page 193: At+Httpterm Terminate Http Service
Refer to "IETF-RFC 2616". The user agent string which is set by the application to identify the mobile. Usually this parameter is set as operation system and software version information. The maximum length is 200. SIM5300E AT Command Manual V1.02...
Page 194: At+Httpdata Input Http Data
0x0D0x0A, limited to 2 characters in length. Reference Note: Not all the HTTP Server supports "BREAK" and "BREAKEND" parameters 10.2.4 AT+HTTPDATA Input HTTP Data AT+HTTPDATA Input HTTP Data Test Command Response AT+HTTPDATA=? +HTTPDATA: (list of supported <size>s),(list of supported <time>s) SIM5300E AT Command Manual V1.02...
Page 195: At+Httpaction Http Method Action
If error is related to ME functionality: +CME ERROR: <err> Unsolicited Result Code +HTTPACTION: <Method>,<StatusCode>,<DataLen> Parameters <Method> HTTP method specification: POST HEAD <StatusCode> HTTP Status Code responded by remote server, it identifier refer to HTTP1.1(RFC2616) Continue Switching Protocols SIM5300E AT Command Manual V1.02...
Page 196 Unsupported Media Type Requested range not satisfiable Expectation Failed Internal Server Error Not Implemented Bad Gateway Service Unavailable Gateway Time-out HTTP Version not supported Not HTTP PDU Network Error No memory DNS Error Stack Busy SIM5300E AT Command Manual V1.02...
Page 197: At+Httpread Read The Http Server Response
+CME ERROR: <err> Parameters <data> Data from HTTP server or user input. <start_address> The starting point for data output. 0-319488 (bytes), the max value is due to the module used. <byte_size> The length for data output. SIM5300E AT Command Manual V1.02...
Page 198: At+Httpstatus Read Http Status
AT Commands for FTP Application SIM5300E has an embedded TCP/IP stack that is driven by AT commands and enables the host application to easily access the Internet FTP service. This chapter is a reference guide to all the AT commands and responses defined for using with the TCP/IP stack in FTP Service.
Page 199: Overview
RENAME THE SPECIFIED FILE ON THE REMOTE MACHINE AT+FTPMDTM GET THE LAST MODIFICATION TIMESTAMP OF SPECIFIED FILE ON THE REMOTE MACHINE 11.2 Detailed Descriptions of Commands 11.2.1 AT+FTPPORT Set FTP Port AT+FTPPORT Set FTP Port SIM5300E AT Command Manual V1.02...
Page 200: At+Ftpmode Set Active Or Passive Ftp Mode
+FTPMODE: <value> Write Command Response AT+FTPMODE=<value> If error is related to ME functionality: +CME ERROR: <err> Parameter <value> Active FTP mode Passive FTP mode Reference 11.2.3 AT+FTPTYPE Set FTP Transfer Type AT+FTPTYPE Set FTP Transfer Type SIM5300E AT Command Manual V1.02...
Page 201: At+Ftpputopt Set Ftp Put Type
Response AT+FTPPUTOPT? +FTPPUTOPT: <value> Write Command Response AT+FTPPUTOPT=<value> If error is related to ME functionality: +CME ERROR: <err> Parameters <value> "APPE" For appending file "STOU" For storing unique file "STOR" For storing file Reference Note SIM5300E AT Command Manual V1.02...
Page 202: At+Ftpcid Set Ftp Bearer Profile Identifier
AT+FTPREST Set Resume Broken Download Test Command Response AT+FTPREST=? Read Command Response AT+FTPREST? +FTPREST: <value> Write Command Response AT+FTPREST=<value> If error is related to ME functionality: +CME ERROR: <err> Parameter <value> Broken point to be resumed Reference Note SIM5300E AT Command Manual V1.02...
Page 203: At+Ftpserv Set Ftp Server Address
Read Command Response AT+FTPUN? +FTPUN: <value> Write Command Response AT+FTPUN=<value> If error is related to ME functionality: +CME ERROR: <err> Parameters <value> Alphanumeric ASCII text string up to 49 characters. Reference 11.2.9 AT+FTPPW Set FTP Password SIM5300E AT Command Manual V1.02...
Page 204: At+Ftpgetname Set Download File Name
If error is related to ME functionality: +CME ERROR: <err> Parameters <value> Alphanumeric ASCII text string up to 99 characters Reference Note 11.2.11 AT+FTPGETPATH Set Download File Path AT+FTPGETPATH Set Download File Path Test Command Response AT+FTPGETPATH=? SIM5300E AT Command Manual V1.02...
Page 205: At+Ftpputname Set Upload File Name
If error is related to ME functionality: +CME ERROR: <err> Parameters <value> Alphanumeric ASCII text string up to 99 characters Reference Note 11.2.13 AT+FTPPUTPATH Set Upload File Path AT+FTPPUTPATH Set Upload File Path Test Command Response AT+FTPPUTPATH=? SIM5300E AT Command Manual V1.02...
Page 206: At+Ftpget Download File
If mode is 1 and it is a failed FTPGET session: +FTPGET:1,<error> If mode is 2: +FTPGET:2,<cnflength> 012345678… If error is related to ME functionality: +CME ERROR: <err> Parameters <mode> For opening FTP get session For reading FTP download data. SIM5300E AT Command Manual V1.02...
Page 207: At+Ftpput Upload File
When "+FTPGET:1,1" is shown, “AT+FTPGET:2,<reqlength>” can be used to read data. If the module still has unread data, "+FTPGET:1,1" will be shown again in a certain time. 11.2.15 AT+FTPPUT Upload File AT+FTPPUT Upload File Test Command Response AT+FTPPUT=? SIM5300E AT Command Manual V1.02...
Page 208: At+Ftpdele Delete Remote File
<maxlength> The maximum length of data can be sent at a time. It depends on the network status. <error> See "AT+FTPGET" Reference Note: When "+FTPPUT:1,1,<maxlength>" is shown, "AT+FTPPUT=2,<reqlength>" can be used to write data. 11.2.16 AT+FTPDELE Delete Remote File SIM5300E AT Command Manual V1.02...
Page 209: At+Ftpsize Get The Size Of Specified File On The Remote Machine
+FTPSIZE:1,0,<size> If failed: +FTPSIZE:1,<error> If error is related to ME functionality: +CME ERROR: <err> Parameter <error> See "AT+FTPGET" <size> The file size. Unit: byte Reference Note: The file is specified by the "AT+FTPGETNAME" and "AT+FTPGETPATH" SIM5300E AT Command Manual V1.02...
Page 210: At+Ftpstate Get Ftp Current State
If mode is 0 or 1 AT+FTPEXTPUT=<mode>[,<pos >,<len>,<timeout >] 2)if mode is 3 If mode is 2 AT+FTPEXTPUT=<mode>,<file +FTPEXTPUT:<address>,<len> name> …… //Input data If mode is 3 and file is exist in flash If error is related to ME functionality: SIM5300E AT Command Manual V1.02...
Page 211: At+Ftpmkd Make Directory On The Remote Machine
AT+FTPMKD Make Directory on the Remote Machine Test Command Response AT+FTPMKD=? Execution Command Response AT+FTPMKD If success: +FTPMKD:1,0 If failed: +FTPMKD:1,<error> If error is related to ME functionality: +CME ERROR: <err> Parameter <error> See "AT+FTPGET" SIM5300E AT Command Manual V1.02...
Page 212: At+Ftprmd Remove Directory On The Remote Machine
Reference Note  The created folder is specified by the "AT+FTPGETPATH" command. 11.2.22 AT+FTPLIST List Contents of Directory on the Remote Machine AT+FTPLIST List Contents of Directory on the Remote Machine Test Command Response AT+FTPLIST=? SIM5300E AT Command Manual V1.02...
Page 213: At+Ftpextget Download File From The Remote Machine To Flash
If using “AT+FTPGETPATH” to set a directory path, it will returned  the files contents under this directory; if set a file path, it will return the information of the file specified. 11.2.23 AT+FTPEXTGET Download File From the Remote Machine to Flash SIM5300E AT Command Manual V1.02...
Page 214 <pos> data offset should less than <length>. <len> data length 0-300k. <length> The length of the downloaded data from the remote machine. <error> See "AT+FTPGET" Reference Note: The data it can get is 300k at most  SIM5300E AT Command Manual V1.02...
Page 215: At+Ftpetget Download File
TCP/IP stack on the serial port as <DLE><ETX>. Each <DLE> character will be coded as <DLE><DLE>. The attached host must then decode the FTP flow to remove these escape characters. 11.2.25 AT+FTPETPUT Upload File AT+FTPETPUT Upload File Test Command Response AT+FTPETPUT=? Parameter SIM5300E AT Command Manual V1.02...
Page 216: At+Ftpquit Quit Ftp Transfer Session
As a consequence the attached host must send <ETX> characters preceded by <DLE> characters and it must also code <DLE> characters in <DLE><DLE>. 11.2.26 AT+FTPQUIT Quit FTP transfer session AT+FTPQUIT Quit FTP transfer session Test Command Response AT+FTPQUIT=? SIM5300E AT Command Manual V1.02...
Page 217: At+Ftprename Rename The Specified File On The Remote Machine
If failed: +FTPRENAME:1,<error>,0 If error is related to ME functionality: +CME ERROR: <err> Parameters <error> See "AT+FTPGET" Reference Note: file specified "AT+FTPGETNAME"  "AT+FTPGETPATH" commands. The new file name is set by “AT+FTPPUTNAME=<value>” command.  SIM5300E AT Command Manual V1.02...
Page 218: At+Ftpmdtm Get The Last Modification Timestamp Of Specified File On The Remote Machine
Reference Note: The file is specified by the "AT+FTPGETNAME" and "AT+FTPGETPATH" commands. AT Commands for NTP 12.1 Overview 12.2 AT Commands for NTP AT+CNTP Set NTP Parameters and Get Network Time Test Command Response AT+CNTP=? SIM5300E AT Command Manual V1.02...
Page 219 <time> String type(string should be included in quotation marks) value; format is "yy/MM/dd,hh:mm:ss", where characters indicate year (two last digits),month, day, hour, minutes, seconds .E.g. 6th of May 2010, 00:01:52 equals to "10/05/06,00:01:52" Reference Note SIM5300E AT Command Manual V1.02...
Page 220: At Commands For Mms
AT+CMMSPROFILE Set User Agent Profile AT+CMMSTIMEOUT Set MMS Timeout AT+CMMSSTATUS Get MMS Status AT+CMMSINIT Initialize MMS Function AT+CMMSTERM Exit MMS Function AT+CMMSSCONT Save MMS Context AT+CMMSTYPECTL Set the Assembling Method of MMS to be Sent SIM5300E AT Command Manual V1.02...
Page 221: Detailed Descriptions Of Commands
AT+CMMSPROTO Set the protocol parameter and MMS proxy Test Command Response AT+CMMSPROTO=? +CMMSPROTO: “(0-255).(0-255).(0-255).(0-255)”,(1-65535) Read Command Response AT+CMMSPROTO? +CMMSPROTO: <Gateway>,<Port> Write Command Response AT+CMMSPROTO=<Gateway>, <Port> If error is related to ME functionality: +CME ERROR: <err> SIM5300E AT Command Manual V1.02...
Page 222: At+Cmmscid Set The Network Parameters For Mms
<value> network parameters, refer to AT+SAPBR Reference Note 13.2.4 AT+CMMSSENDCFG Set the Parameters for sending MMS AT+CMMSSENDCFG Set the parameters for sending MMS Test Command Response AT+CMMSSENDCFG=? +CMMSSENDCFG: (0-6), (0-3),(0,1), (0,1),(0-2),(0-4),(1-2),(0,1) Read Command Response AT+CMMSSENDCFG? +CMMSSENDCFG: <valid>,<pri>,<sendrep>,<readrep>,<visible>,<class>,<subctrl>,<notifrspche ck> SIM5300E AT Command Manual V1.02...
Page 223 Write Command Response AT+CMMSSENDCFG=[<valid>[, <pri>[,<sendrep>[,<readrep>[, <visible>[,<class>[,<subctrl> If error is related to ME functionality: [,<notifrspcheck>]]]]]]]] +CME ERROR: <err> SIM5300E AT Command Manual V1.02...
Page 224 For Chinese character code For English character code <notifrspcheck> Whether it need to check the HTTP response of mms notifyrsp ind then to proceed the next step. Waiting for HTTP response Skip waiting for HTTP response Reference Note SIM5300E AT Command Manual V1.02...
Page 225: At+Cmmsedit Enter Or Exit Edit Mode
+CMMSDOWN: "AUDIO_AAC", (1-307200), (5000-), "NAME" +CMMSDOWN: "AUDIO_AMR", (1-307200), (5000-), "NAME" +CMMSDOWN: "AUDIO_BASIC", (1-307200), (5000-), "NAME" +CMMSDOWN: "AUDIO_MID", (1-307200), (5000-), "NAME" +CMMSDOWN: "AUDIO_MPEG", (1-307200), (5000-), "NAME" +CMMSDOWN: "VIDEO_3GPP", (1-307200), (5000-), "NAME" +CMMSDOWN: "VIDEO_MP4", (1-307200), (5000-), "NAME" SIM5300E AT Command Manual V1.02...
Page 226: At+Cmmsdelfile Delete The File Of The Edited Mms By File Index
The maximum size of <name> is 40 bytes and only ASCII code is  recognized for <name>. 13.2.7 AT+CMMSDELFILE Delete the file of the edited MMS by file index AT+CMMSDELFILE Delete the file of the edited MMS by file index Test Command Response SIM5300E AT Command Manual V1.02...
Page 227: At+Cmmssend Start Mms Sending
<address> a string parameter which indicates address of recipients. Reference Note: It is not allowed to input <address> when it not allowed to edit MMS. 13.2.9 AT+CMMSRECP Add recipients AT+CMMSRECP Add recipients Test Command Response AT+CMMSRECP=? +CMMSRECP: "ADDRESS" SIM5300E AT Command Manual V1.02...
Page 228: At+Cmmscc Add Copy Recipients
The maximum of copy recipients is 20 and this command is valid only when it is not allowed to edit MMS. 13.2.11 AT+CMMSBCC Add Secret Recipients AT+CMMSBCC Add Secret Recipients Test Command Response AT+CMMSBCC=? +CMMSBCC: "ADDRESS" SIM5300E AT Command Manual V1.02...
Page 229: At+Cmmsdelrecp Delete Recipients
The maximum length of the string is 40. Reference Note: This command is valid when it is allowed to edit MMS. 13.2.13 AT+CMMSDELCC Delete copy recipients AT+CMMSDELCC Delete copy recipients Test Command Response AT+CMMSDELCC=? +CMMSDELCC: "ADDRESS" SIM5300E AT Command Manual V1.02...
Page 230: At+Cmmsdelbcc Delete Secret Recipients
The maximum length of the string is 40. Reference Note: This command is valid when it is allowed to edit MMS. 13.2.15 AT+CMMSRECV Receive MMS AT+CMMSRECV Receive MMS Test Command Response AT+CMMSRECV=? +CMMSRECV: (range of <index>) SIM5300E AT Command Manual V1.02...
Page 231: At+Cmmsview Get The Mms Into Buffer And Show The Information
The received MMS is just saved in the buffer but not saved in the  flash. 13.2.16 AT+CMMSVIEW Get the MMS into buffer and show the information AT+CMMSVIEW Get the MMS into buffer and show the information Test Command Response AT+CMMSVIEW=? SIM5300E AT Command Manual V1.02...
Page 232: At+Cmmsread Read The Given File Of The Mms In The Buffer
<fileIndex> the index of the file to be read from the MMS in the buffer，i.e. parameter <fileIndex> “AT+CMMSRECV” “AT+CMMSVIEW” <name> the file name to be read <datSize> the size of the file to be read. SIM5300E AT Command Manual V1.02...
Page 233: At+Cmmsrdpush Read The Information Of The Mms Push Message
13.2.18 AT+CMMSRDPUSH Read the information of the MMS Push message AT+CMMSRDPUSH Read the information of the MMS PUSH message Test Command Response AT+CMMSRDPUSH=? +CMMSRDPUSH: (range of <index>) Write Command Response AT+CMMSRDPUSH=<index> +CMMSRDPUSH: <n>,”<sender>”,”<subject>”,”<transaction>”,”<location>”,”<time>”,<class>,< size> +CMMSRDPUSH: 6, “<receiver>”,”<time>”,<status> +CMMSRDPUSH: 255 +CME ERROR: <err> SIM5300E AT Command Manual V1.02...
Page 234 MMS will be clear up. So it is recommended to save the MMS in the buffer before receiving MMS. The received MMS is just saved in the buffer but not saved in the  flash. SIM5300E AT Command Manual V1.02...
Page 235: At+Cmmsua Set User Agent
13.2.20 AT+CMMSPROFILE Set User Agent Profile AT+CMMSPROFILE Set User Agent Profile Test Command Response AT+CMMSPROFILE=? +CMMSPROFILE: "UserAgentProfile" Read Command Response AT+CMMSPROFILE? +CMMSPROFILE: <UAProfile> Write Command Response AT+CMMSPROFILE=<UAProfile> ERROR +CME ERROR: <err> Parameters <UAProfile> string type user agent profile Reference Note SIM5300E AT Command Manual V1.02...
Page 236: At+Cmmstimeout Set Mms Timeout
AT+CMMSSTATUS Get MMS Status Test Command Response AT+CMMSSTATUS=? Read Command Response AT+CMMSSTATUS？ +CMMSSTATUS:<status> If error is related to ME functionality: +CME ERROR: <err> Parameters <status> status of MMS action MMS_IDLE MMS_DOWNLOADING MMS_DOWNLOADED MMS_SENDING MMS_RECEIVING MMS_RECEIVED MMS_READING MMS_READING_PUSH SIM5300E AT Command Manual V1.02...
Page 237: At+Cmmsinit Initialize Mms Function
When exiting the MMS function, this command must be executed. 13.2.25 AT+CMMSTYPECTL Set the Assembling Method of MMS to be Sent AT+CMMSTYPECTL Set the Assembling Method of MMS to be Sent Test Command Response AT+CMMSTYPECTL=? +CMMSTYPECTL: (0,1) SIM5300E AT Command Manual V1.02...
Page 238: At Commands For Email Application
SMTP Extend File Mode AT+POP3 SRV Set POP3 Server and Account AT+POP3IN Log In POP3 Server AT+POP3NUM Get Email Number and Total Size AT+POP3LIST Get the Specific Email Size AT+POP3UIDL Get the Specific Email Unique-id SIM5300E AT Command Manual V1.02...
Page 239: Detailed Descriptions For Email Application
<cid> bearer profile identifier refer to AT+SAPBR Reference Note 14.2.2 AT+EMAILTO Set Timeout Value of SMTP/POP3 Server Response AT+EMAILTO Set Timeout Value of SMTP/POP3 Server Response Test Command Response AT+EMAILTO=? +EMAILTO: (range of supported <timeout>s) SIM5300E AT Command Manual V1.02...
Page 240: At+Smtpsrv Set Smtp Server Address And Port
<smtpServer> SMTP server address, string type. This parameter can be either: IP address in the format: xxx.xxx.xxx.xxx Host name to be solved with a DNS query <smtpPort> The SMTP port 1-65535 Default: 25 <smtpServerLength> The max length of <smtpServer> Reference Note SIM5300E AT Command Manual V1.02...
Page 241: At+Smtpauth Set User Name And Password For Smtp Authentication
<userName> The user name for SMTP authentication. <userNameLength> The max length of <userName>. <password> The password for SMTP authentication. <passwordLength> The max length of <password>. Reference Note 14.2.5 AT+SMTPFROM Set Sender Address and Name AT+SMTPFROM Set Sender Address and Name SIM5300E AT Command Manual V1.02...
Page 242: At+Smtprcpt Set The Email Recipient(To/Cc/Bcc) Address And Name
AT+SMTPRCPT Set the Email Recipient(TO/CC/BCC) Address and Name AT+SMTPRCPT Set the Email Recipient(TO/CC/BCC) Address and Name Test Command Response AT+SMTPRCPT=? +SMTPRCPT: (range of supported <rcptType>s),(range of supported <index>s),<rcptAddressLength>,<rcptNameLength> Read Command Response AT+SMTPRCPT? [+SMTPRCPT: <rcptType>,<index>,<rcptAddress>,<rcptName> [<CR><LF>+SMTPRCPT: <rcptType>,<index>,<rcptAddress>, <rcptName>[…]]] SIM5300E AT Command Manual V1.02...
Page 243: At+Smtpsub Set The Email Subject
AT+SMTPSUB Set the Email Subject AT+SMTPSUB Set the Email Subject Test Command Response AT+SMTPSUB=? +SMTPSUB: <subjectLength> Read Command Response AT+SMTPSUB? +SMTPSUB: <subject> Write Command Response AT+SMTPSUB= <subject> If error is related to ME functionality: +CME ERROR: <err> SIM5300E AT Command Manual V1.02...
Page 244: At+Smtpbody Set The Email Body
If the Email charset is not ASCII, the body of Email must be in  hexadecimal format. 14.2.9 AT+SMTPFILE Set the Email Attachment AT+SMTPFILE Set the Email Attachment Test Command Response AT+SMTPFILE=? +SMTPFILE: (range <fileType>s),<fileNameLength>,(range <encodeType>s) SIM5300E AT Command Manual V1.02...
Page 245: At+Smtpsend Send Emails
If a binary file (<fileType>=2) is attached, <encodeType> must be 1. 14.2.10 AT+SMTPSEND Send Emails AT+SMTPSEND Send Emails Test Command Response AT+SMTPSEND=? Write Command Response AT+SMTPSEND If error is related to ME functionality: +CME ERROR: <err> If send successfully or not, return: +SMTPSEND: <code> SIM5300E AT Command Manual V1.02...
Page 246: At+Smtpft Transfer The Email Attachment
If <reqLength> is not 0 and send data unsuccessfully: +SMTPFT: 2,<cnfLength> ..//Input data ERROR If <reqLength> is 0,it indicates that transferring the attachment have finished: If error is related to ME functionality: +CME ERROR: <err> If some error occur: SIM5300E AT Command Manual V1.02...
Page 247: At+Smtpcs Set The Email Charset
If <charset> is not ASCII but UTF-8 or other, the subject and the body must be in hexadecimal format (e.g. “TEST” should be converted to “54455354”). The default charset is ASCII. <charsetLength> The max length of <charset>. Reference Note SIM5300E AT Command Manual V1.02...
Page 248: At+Smtpextflie Smtp Extend File Mode
Load data from serial port to an attachment. Print an attachment to serial port. <id> 0-9, from attachment <0> to <9>, total attachment size can not exceed 300k. <pos> data offset address 0-300k <len> data length 0-300k SIM5300E AT Command Manual V1.02...
Page 249 <timeout> timeout value of serial port. 1000ms-1000000ms <file name> File name length should less or equal 32 characters. Reference SIM5300E AT Command Manual V1.02...
Page 250: At+Pop3Srv Set Pop3 Server And Account
<pop3Port> The port of POP3 server. 1-65535 Default: 110 <pop3ServerLength> The max length of <pop3Server>. <userNameLength> The max length of <userName>. <passwordLength> The max length of <password>. Reference Note 14.2.15 AT+POP3IN Log in POP3 Server SIM5300E AT Command Manual V1.02...
Page 251: At+Pop3Num Get Email Number And Total Size
AT+POP3NUM Get Email Number and Total Size Test Command Response AT+POP3NUM=? Execution Command Response AT+POP3NUM If error is related to ME functionality: ERROR If POP3 server issues a positive response: +POP3NUM: 1,<totalNumber>,<totalSize> If POP3 server issues a negative response: +POP3NUM: 0 SIM5300E AT Command Manual V1.02...
Page 252: At+Pop3List Get The Specific Size
<msgNumber> The message number of Email. <size> The size of Email <msgNumber> and the unit is in byte. <code> The result of logging out POP3 server Normally log out POP3 server Network error DNS resolve error SIM5300E AT Command Manual V1.02...
Page 253: At+Pop3Uidl Get The Specific Email Unique-Id
<code> The result of logging out POP3 server Normally log out POP3 server Network error DNS resolve error POP3 tcp connection error Timeout of POP3 server response Reference Note SIM5300E AT Command Manual V1.02...
Page 254: At+Pop3Cmd Get Multi-Line Response
The POP3 service returns a positive response,i.e. It does not issue an error response, but the “unique-id listing” will be empty. In either case, each unique-id listing will be finished by so-called “dotline”, i.e.a SIM5300E AT Command Manual V1.02...
Page 255: At+Pop3Read Read Multi-Line Response
SSL handshake timeout SSL handshake error SSL alter error Reference Note After sending these POP3 commands and POP3 server issuing a  positive response, you can get the response by AT+POP3READ. 14.2.20 AT+POP3READ Read Multi-line Response SIM5300E AT Command Manual V1.02...
Page 256: At+Pop3Del Mark The Specific Email To Delete
If the module has some unread data, the URC “+POP3READ:  3,<dataLength>” is reported every once in a while. After some time, these data are not still read, the module will quit the POP3 process. 14.2.21 AT+POP3DEL Mark the Specific Email to Delete SIM5300E AT Command Manual V1.02...
Page 257: At+Pop3Rset Unmark The Emails That Be Marked As Deleted
Email until the POP3 client logs out POP3 server and closes the session normally. 14.2.22 AT+POP3RSET Unmark the Emails that Be Marked as Deleted AT+POP3RSET Unmark the Emails that Be Marked as Deleted Test Command Response AT+POP3RSET=? SIM5300E AT Command Manual V1.02...
Page 258: At+Pop3Out Log Out Pop3 Server
If the process is completed, return: +POP3OUT: <code> Parameters <code> The result of logging out POP3 server Normally log out POP3 server Network error DNS resolve error POP3 tcp connection error Timeout of POP3 server response SIM5300E AT Command Manual V1.02...
Page 259 Reference Note SIM5300E AT Command Manual V1.02...
Page 260: Supported Unsolicited Result Code
SIM failure SIM busy SIM wrong incorrect password SIM PIN2 required SIM PUK2 required memory full invalid index not found memory failure text string too long invalid characters in text string dial string too long SIM5300E AT Command Manual V1.02...
Page 261 The storage for address is full Not find the address The connection to network is failed Failed to read push message This is not a push message gprs is not attached tcpip stack is busy SIM5300E AT Command Manual V1.02...
Page 262 Param count not enough Param count beyond Param value range beyond Param type not match Param format invalid Get a null param CFUN state is 0 or 4 No Error Unrecognized Command Return Value Error Syntax Error SIM5300E AT Command Manual V1.02...
Page 263: Summary Of Cms Error Codes
Call barred Reserved Normal call clearing User busy No user responding User alerting, no answer Short message transfer rejected Number changed Pre-emption Non-selected user clearing Destination out of service Invalid number format (incomplete number) Facility rejected SIM5300E AT Command Manual V1.02...
Page 264 Message type not compatible with protocol state Information element non-existent or not implemented Conditional information element error Message not compatible with protocol Recovery on timer expiry Protocol error, unspecified Interworking, unspecified Telematic interworking not supported SIM5300E AT Command Manual V1.02...
Page 265 SIM data download error CP retry exceed RP trim timeout SMS connection broken Unspecified error cause ME failure SMS reserved operation not allowed operation not supported invalid PDU mode invalid text mode SIM not inserted SIM pin necessary SIM5300E AT Command Manual V1.02...
Page 266 No free entity in RL layer The port number is already registerred There is no free entity for port number More Message to Send state error MO SMS is not allow GPRS is suspended ME storage full Doing SIM refresh SIM5300E AT Command Manual V1.02...
Page 267: Contact Us
Contact us: Shanghai SIMCom Wireless Solutions Ltd. Add: Bldg A, SIM Technology Bldg., No.633, Jinzhong Road, Changning Dist., Shanghai P.R. China 200335 Tel: +86 21 32523424 Fax: +86 21 32523020 URL:www.simcomm2m.com SIM5300E AT Command Manual V1.02...
