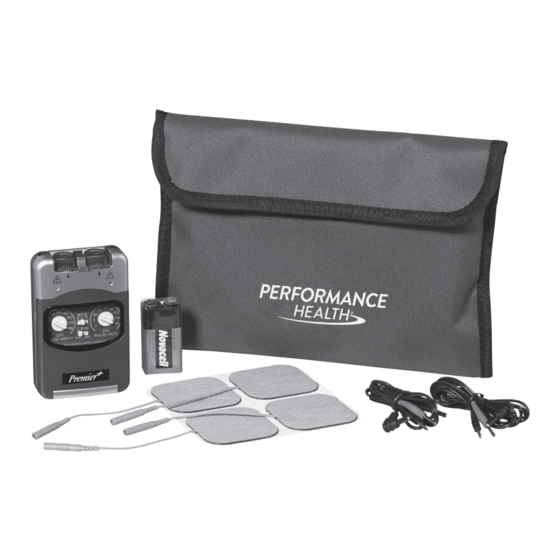

- Page 1 TPN 200 Premier Plus 09 153 1748 0120 Please read these instructions carefully and retain for future reference...
-
Page 2: Table Of Contents
Table of contents What is Pain? How Does TENS Work? Indications and Contraindications Warnings and Precautions About this Device Using Controls Mode Functions Attaching the Lead Wires Electrode Selection and Care Tips for Skin Care Connecting the TENS Device Changing the Battery Troubleshooting System Components Technical Specifications... -
Page 3: What Is Pain
Introduction to TENS What is Pain? Pain is the body’s warning system. Pain is important because it signals an unusual condition in the body and alerts us before additional damage or injury can occur. However, long-lasting, persistent pain, often called chronic pain, once diagnosed serves no apparent purpose. -
Page 4: Warnings And Precautions
• Any electrode placement that causes current to flow transcerebrally (through the head). • The use of TENS whenever pain symptoms are undiagnosed, until etiology is determined. Warnings and Precaution Warnings • This unit must only be used with the guidance of a Physiotherapist or Doctor. •... -
Page 5: About This Device
About This Device Your TENS device is a battery operated device that includes two controllable output channels. This TENS device creates electrical impulses whose amplitude, duration, and modulation can be altered with the controls or switches. The TENS dial controls are very easy to use and the flip cover prevents accidental changes in settings. -
Page 6: Using Controls
Unit Controls Panel Cover A cover conceals the controls for Pulse Width, Pulse Rate, Mode Selector and Modulation Selector. The TENS dial controls are very easy to use and the flip cover protects accidental changes in settings. Intensity The intensity knobs located on the top of the unit affect the strength of the stimulation and also function as ON/OFF controls. -
Page 7: Attaching The Lead Wires
Attaching the Lead Wires The lead wires provided with the TENS device insert into the jack sockets located on top of the unit. Holding the insulated portion of the connector, push the plug end of the wire into one of the jacks; one or two sets of the wires may be used. After connecting the wires to the stimulator, attach each wire to an electrode. -
Page 8: Connecting The Tens Device
Connecting the Tens Device NOTE: Be sure both intensity controls for Channel 1 and 2 are turned to the “OFF” position. 1. Prepare the skin as previously discussed and according to instructions provided with your electrodes. Before attaching the electrodes, identify the area which your clinician has recommended for electrode placement. -
Page 9: Troubleshooting
Caring For Your Tens Device Your TENS device may be cleaned by wiping gently with a damp cloth moistened with mild soap and water. Never immerse the device in water or other liquids. Wipe lead wires with a damp cloth as above if they become soiled. To properly store the TENS device for extended period of time, remove the battery from the unit. -
Page 10: Technical Specifications
• Operation Manual Technical Specifications Channel: Dual, isolated between channels Modes of Operations: Continuous, Burst, Modulation Pulse Intensity: Adjustable 0-80mA peak into 500 ohm load each channel, constant current Pulse Rate: 2Hz-150Hz (adjustable) Pulse Width: 30μs-260μs (adjustable) Time: Cont., 30 min., 60 min. Burst Mode: Burst consists 2 burst per sec at 100Hz Wave Form:... -
Page 11: Warranty
Warranty This TENS device carries a two-year warranty from the date of purchase. The warranty applies to the TENS device and necessary parts and labour relating thereto. The distributor reserves the right to replace or repair the unit at their discretion. The warranty does not apply to damage resulting from failure to follow the operating instructions, accidents, abuse, alteration or disassembly by unauthorised individuals. - Page 12 Unit 3, 3 Basalt Road, Fax: 03448 730 100 Pemulwuy NSW, Australia 2145. www.performancehealth.co.uk Tel: 1300 473 422 International: Fax: 1300 766 473 Tel: +44 1623 448 706 Fax: +44 1623 448 784 75505 Is2 © Performance Health International Ltd. 2018...
