  • Page 1 DV3300S-BL...

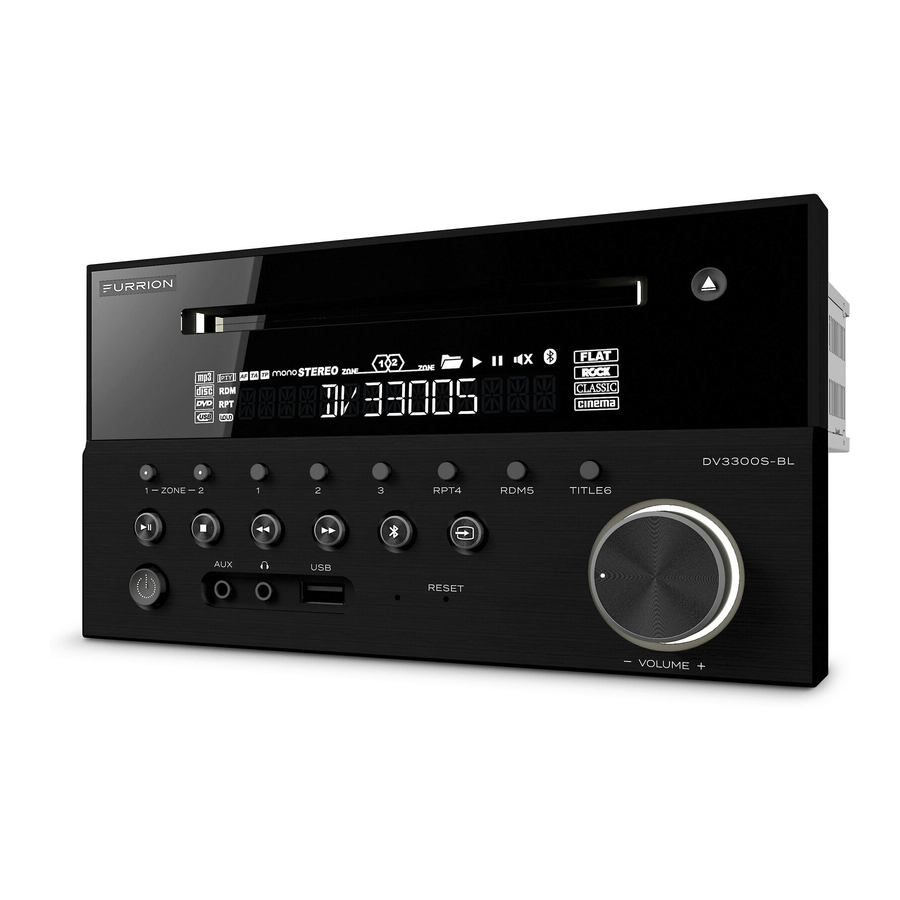

  • Page 2 Welcome ® Thank you for purchasing this Furrion DV3300S-BL Entertainment System. Before operating your new appliance, please read these instructions carefully. This instruction manual contains information for safe use, installation and maintenance of the appliance. Please keep this instruction manual in a safe place for future reference.
  • Page 3 persons. outside of the unit. Read through this instruction manual before installation and use. Do not open the cover or touch any of the components inside of the unit. Only a qualied technician should service the unit. damaging the unit. Do not place the unit in moist or humid conditions.

  • Page 4: Table Of Contents

    Contents 1. Before Operation.......................3 1.1 Feature......................3 1.2 Precautions......................3 1.3 Maintenance and Cleaning of Discs..............4 1.4 Battery Information of the Remote Control............4 1.5 The Remote Control Description...............5 1.6 Locations and Names of the Controls...............6 1.7 Wiring Diagram....................11 1.8 Mounting Installation..................14 2.

  • Page 5: Before Operation

    1. Before Operation Thank you for purchasing a Furrion Product, we hope you will enjoy using our product. For maximum enjoyment please look through the following manual to learn about all the features of your Furrion Stereo. 1.1 Features: Digital AM / FM Tuner...

  • Page 6: Maintenance And Cleaning Of Discs

    on the disc surface, wipe it off before using. + side up correct wrong Fig.1 Fig.2 Fig.3 correct wrong with a new battery with (+) polarity side upward. 1.Improper use of a battery may cause overheating or an explosion that could result in injury or re.

  • Page 7: The Remote Control Description

    AV IN MODE BUTTON UP BUTTON NEXT BUTTON RIGHT BUTTON PREVIOUS BUTTON/CLEAR BUTTON DOWN BUTTON AM/FM RADIO MODE BUTTON RANDOM BUTTON REPEAT BUTTON LEFT BUTTON AUX/ARC MODE BUTTON PROGRAM BUTTON...

  • Page 8: Locations And Names Of The Controls

    1.6 Locations and Names of the Controls 12 13 14 15 16 1. DISC SLOT 10.HEADPHONE SOCKET 2. IR REMOTE CONTROL SENSOR 11. USB SOCKET 3. 1/2/3 BUTTON 12.BT MODE BUTTON/EQ BUTTON 1 TEL /REDIAL BUTTON 13.MICROPHONE IN 2 HANG UP BUTTON 14.RESET BUTTON 4.ZONE 1/2 BUTTON 15.INPUT MODE BUTTON/BAND BUTTON...
  • Page 9 Description of icons on the LCD display 1.USB icon After inserting a USB storage, USB icon is lit. 2.DVD icon After inserting a DVD disc, DVD icon is lit. 3.DISC icon After inserting a disc(DVD,VCD,CD), DISC icon is lit. 4.MP3 icon If a disc or a USB storage contains MP3 format files, MP3 icon is lit.
  • Page 10 Press MUTE button on the remote control to mute the audio, “MUTE” icon will flash in the display. Press MUTE again to cancel. Press INPUT MODE button repeatedly to select Tuner,Disc(After inserting a disc),USB(After inserting a USB storage), BT,ARC AV IN and AUX mode. Press EQ button to select between CINEMA,ROCK CLASSIC, FLAT.
  • Page 11 Press and hold PLAY/PAUSE button for 5 seconds Area Frequency to set AM/FM radio region(Europe/USA1/USA2/AUST- Selection RALIA) Press button to move radio frequence down or up one step at a time. Press and hold button to search the next strongest station automatically. Press and hold INPUT MODE button on the front panel or briefly press AM/FM button on the remote control to select between FM1,FM2.FM3,AM1,AM2.
  • Page 12 Disc USB Opreation Insert Disc With the label facing up,insert a disc into the disc slot. The disc will automatically begin playback. EJECT Press to eject the disc. Eject Disc Press button to move to Track Select previous or next track/chapter. Fast Forward Press and hold button to...

  • Page 13: Wiring Diagram

    1.7 Wiring Diagram WIRING CONNECTING SOCKET A BLACK HDMI OUT(ARC) BLACK WIRING CONNECTING SOCKET B The Description of the Wiring Diagram for Socket A and Socket B WIRING CONNECTING SOCKET B WIRING CONNECTING SOCKET A WIRING HARNESS PLUG A WIRING HARNESS PLUG B...
  • Page 14 WIRING CONNECTING SOCKET A VIEW PURPLE PURPLE WIRING CONNECTING SOCKET B VIEW COLOR PIN NO FUNCTION YELLOW +12V DC MEMORY PINK AUTO ANTENNA +12V DC IGNITION SWITCH BLACK POWER GROUND(-12DC)

  • Page 16: Mounting Installation

    1.8 Mounting Installation Location Choose a mounting location away from humid areas, water sources, appliances or any equipment that can radiate heat. * Select an area on a wall or cabinet which is free from cable, fuel or brake lines and ensure the area behind the wall mount stereo has a vent hole or if it is an enclosed box and has adequate room around the rear of the unit for cooling.

  • Page 17: Common Operation

    2. Common Operation 1.Turning On and Off the unit Pressing the power button will turn on or enter standby mode. 2.Selecting a Source: 1) Use INPUT MODE button on the front panel. Press INPUT MODE button repeatedly to select Tuner,Disc(After inserting a disc),USB(After inserting a USB storage), BT,ARC,AV IN and AUX mode.
  • Page 18 4. Mute Press MUTE button to mute what ever source is playing and display mute on the screen. Press MUTE button again to resume. Clock Set 1) To display the clock on the LCD display, press CLOCK button on the remote control. 2) To adjust or set the clock, press and hold CLOCK button on the remote control.

  • Page 19: Radio Operation

    3. Radio Operation 1. FREQUENCY SELECT In RADIO mode. Press and hold PLAY/PAUSE button for about 5 seconds to select your desired frequency EUROPE,USA1,USA2 or AUSTRALIA. 2. AM/FM BUTTON In RADIO mode, press and hold INPUT MODE button on the front panel or briefly press AM/FM button on the remote control to select your desired radio band of FM1, FM2, FM3, AM1, AM2 , and the selected band will be displayed on the LCD of the front panel.

  • Page 20: Basic Disc, Usb Operation

    4 Basic Disc, USB Operation 4.1 Begin playback 1. Press POWER button briefly to turn on the DVD player. After turning on the DVD player, please turn on the monitor, and ensure that the video output of the monitor is the video input from the DVD player connected with the monitor.

  • Page 21: Pause Playback

    4.2 Pause Playback When playing DVD/VCD/CD/MP4/MP3/WMA discs, press PLAY/PAUSE button on the front panel or remote control to pause the playback, press PLAY/PAUSE button again to resume normal playback. 4.3 Stop Playback When playing DVD/VCD/MP3/WMA/CD discs, press STOP button once to pause the playback, then press the PLAY button to resume the normal playback;...

  • Page 22: Terminate The Playback

    In VCD mode 1. When starting to turn on the PBC function, it will play from the beginning of the disc till it display the PBC menu on TV screen if the disc include the PBC menu. 2. Press the number buttons to select your desired track to play. In MP3/WMA mode 1.

  • Page 23: Playback With Still Frame

    During slow forward, press PLAY/PAUSE button to resume normal playback. The function is only for video. 5.3. Playback with still frame If the unit is currently running DVD.VCD disc,press STEP button on the remote control consecutively to display the still frame forward with step by step. Press PLAY/PAUSE button to resume normal playback.

  • Page 24: Playback From A Specified Chapter/Track Or A Specified Time

    5.5 Playback from a specified chapter/track or a specified time 1. When playing DVD discs, press SEARCH button on the remote control to display an interface and highlight the title item, then use the number buttons to input the serial number of the title; use the direction buttons to highlight the chapter item,then use the number buttons to input the serial number of the chapter;...

  • Page 25: Change The Caption Language

    ZOOMx2,ZOOMx3,ZOOMx4,ZOOMx1/2,ZOOMx1/3,ZOOMx1/4,ZOOM OFF. Press one of the direction buttons to select the area you want to enlarge. 5.9 Change the Caption Language When playing DVD discs, press SUBT button on the remote control repeatedly to select the language of the caption or turn off the caption(depending on the disc to be used).

  • Page 26: Program Playback

    5.12 Program Playback It allows you to enter the order in which you want some chapters/tracks in DVD/VCD/MP3/WMA/CD disc to play. 1 During playback, press PROG button on the remote control to enter a program interface as follows: For DVD discs /MP3/WMA For VCD/CD discs 2 Use the direction buttons to move cursor onto the desired place for inputting the sequence number.

  • Page 27: Mp4 Operation

    3. During JPEG playback, press one of the direction buttons to change the angle of viewing picture that is displaying as follows: >: 90 deg cw; <: 90deg ccw; ^:UP<-->DOWN; v: LEFT<-->RIGHT During JPEG playback, press PROG button on the remote control to change the mode of refresh picture.
  • Page 28 For the DVD System Menu, there are 6 setup pages in all. They display as follows: 5 .17.1 SYSTEM SETUP TV SYSTEM The Stereo supports output of various TV system. If your TV has only NTSC or PAL system, the screen will blink and become colorless when a wrong TV system is selected.
  • Page 29 an audio language. AUDIO OUT: For the selection of Digital output method. SPD IF/OFF ,SPD IF /RAW,SPD IF/PCM. HDMI AUDIO: AUTO: Selected to output the audio automatically by RAW or PCM type. PCM: Selected to output the audio by PCM type..
  • Page 30 CONTRAST It is for adjusting the contrast of the video output It is for adjusting the hue of the video output. SATURATION It is for adjusting the saturation of the video output. SHARPNESS It is for adjusting the sharpness of the video output. 5.17.5 SPEAKER SETUP DOWNMIX It is for selecting your desired sound effect when there is no center speaker...

  • Page 31: The Parental Control

    You will need to input a desired password and input it again to verify it to enter the Parental Control setup menu. the relative content of SYSTEM SETUP menu for details. rated level in a disc. You can set the DVD player(including software player in PC) to be a certain rating level with SETUP MENU on TV screen.

  • Page 32: The Region Code

    5.19 The Region Code Q: No DVD playback. Screen displays REGION ERROR after inserting disc into disc compartment. Why ? A: Because the DVD player and disc have different region codes. If they do not match, the DVD player cannot play the disc. Appendix: The region code of DVD: The Motion Picture Association of Amereca (MPAA) divided the world into 6 regions, and named every region a code, namely region code.

  • Page 33: Bluetooth Handsfree System

    2)Select the item of Finding the Bluetooth Device and enter it. After finishing the finding,it will show the name of the Bluetooth Device FURRION DV3300S-BL-XXXX (where X can be any character A-Z or number 0-9 ) .Select it and enter it, then it will show an interface that asks you to input a password, input the password 0000 and enter it.
  • Page 34 (1) Short press TEL button on the remote control or 1 button on the front panel, it will show last phone number on the LCD, then it will execute the dialing. (2) Short press REDIAL button on the remote control, it will dial the last phone number. 5.1 Incoming call ringing, short press TEL button on the remote control or 1 button on the front panel to accept the call.

  • Page 35: App Control

    3. Under BT connection,tap the “ES Control” icon to enter the APP connection interface,then select the name “FURRION DV3300S-BL-XXXX”(Android smart phone) or “DV3300S-BL-4.0-XXXX" (iPhone) to enter it.(where X can be any character A-Z or number 0-9 ) 4. Use the APP to control the DV3300S-BL freely. APP ICON CONNECT...
  • Page 36 Preferences RADIO...
  • Page 37 DVD/CD...

  • Page 39: Trouble Shooting

    7. Trouble Shooting Please read the user manual carefully before using the DVD player. If you have any problems with this product please refer to the below trouble shooting guide to help you resolve the issue. NO PICTURE, SOUND AND INDICATION * Ensure that the power switch is on.

  • Page 40: Specification

    4x15W RMS NTSC/PAL/AUTO(optional) Video Output Level........Composite:1.0± 0.2Vp-p 87.5MHz - 108.0MHz(AUS) 522KHz - 1710KHz(AUS)
