Summary of Contents for Ultimate Healthcare Diversi-Foam II
- Page 1 Diversi-Foam II Hybrid Mattress Replacement System UPRA3678H-4 and UPRA4278H-4 ________________________________________________ User Manual Issue 1 - 03/10/2019 UPRA3678H-4. UPRA4278H-4.UM-1...
-
Page 2: Table Of Contents
Contents Introduction ............................3 Intended Use ............................ 3 About the Product ..........................3 Symbols and Statements ......................... 5 Important Safety Information ......................6 Technical Specification ........................7 6.1 Power unit ..........................7 6.2 Mattress ........................... 7 Installation and Set-Up........................8 7.1 Setting up mattress ........................ -
Page 3: Introduction

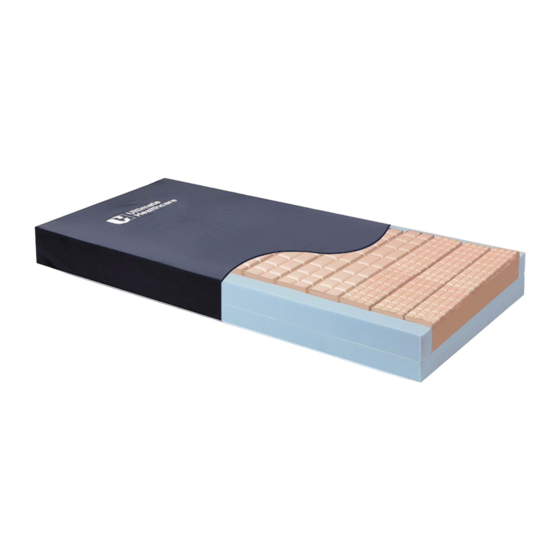

User Manual. Note: Ultimate Healthcare reserves the right to modify the information in this User Manual at any time. The information in this User Manual may vary slightly with respect to the basic design of the product. - Page 4 Mattress Replacement Welded mattress cover U core foam Foot cells Static head Body cells Power Unit Issue: 1 – 03/10/2019 Page 4 of 16...
-
Page 5: Symbols And Statements
4. Symbols and Statements Caution: Indicates correct operating or maintenance procedures in order to prevent damage to or destruction of the product or other property. Warning: Indicates potential danger that requires correct procedures or practises in order to prevent personal injury. The operator must read this document (User Manual) before use. -
Page 6: Important Safety Information
Use only the cleaning and disinfectant agents recommended in this User Manual. When connecting product after transportation or storage, inspect the power cable visually for any signs of damage. If evident, do not use product and contact Ultimate Healthcare or your local distributor for repair. -
Page 7: Technical Specification
6. Technical Specification Power unit Dimensions: 80mm x 260mm x 150mm (D x W X H) Weight: 1.6 kg Alternating cycle time: 10 mins Output pressure range: 20 to 55mmHg (+/-5) Power supply: AC 230V 50 Hz Current: 0.12 A Classification: Class II, Type B Warranty:... -
Page 8: Installation And Set-Up
7. Installation and Set-Up Setting up mattress The mattress is designed to completely replace any existing mattress which may be in use on a bed. Remove any existing mattress and ensure that there are no protruding parts or sharp objects on the bed which could cause damage to the mattress. -
Page 9: Control Panel Operation Guide
8. Control Panel Operation Guide The Control Panel of the power unit is used to make adjustments to the mattress and also indicates fault conditions/service requirements. These are either visual (indicator lights) or audible. Power Button CLP Button Pressure Up Button Weight / Pressure Display Pressure Down Button Lock Button... -
Page 10: Power Button
Power Button Press the Power button to turn the power unit ON. Press again to turn OFF/Standby the power unit. Comfort level The Up and Down buttons allow carers to adjust pressures within a safe pre-set range to provide patients with enhanced comfort or support whilst maintaining a very good level of protection and therapy. -
Page 11: Alarm Mute
Alarm mute The Alarm Mute button temporarily resets the audible Low Pressure/Power Failure/Service alarms. Should the situation not be resolved and the fault condition continues the alarm will resume notifying carer. 9. Alarms & Fault Findings The system is equipped with audible and visual alarm indicators. These alert the user to the status of the available mains supply and any mattress defect. -
Page 12: Troubleshooting
Alternating mode. Ensure that the power unit is resting against a solid Power unit is noisy surface. If the problem persists, contact Ultimate Healthcare or your local service provider. Issue: 1 – 03/10/2019 Page 12 of 16... -
Page 13: Cleaning And Decontamination
11.2 Mattress and cover disinfection The Diversi-Foam II Hybrid mattress, mattress cover and air pipe cover can be cleaned using the following simple procedures in accordance with your Local Infection Control Policy: ... -
Page 14: Power Unit Disinfection
11.3 Power unit disinfection The power unit can be cleaned by wiping down with a cloth dampened with hot water at 60 containing detergent or with sodium hypochlorite (up to 10,000 parts per million available chlorine). 11.4 Cover laundering The mattress cover and air pipe cover can also be machine washed. Mattress covers and air pipe cover should be completely removed prior to laundering. -
Page 15: Fuse Replacement
(2) Check mattress cover for signs of wear or damage. Ensure mattress cover and tubes are stubbed together correctly. (3) Check the air hoses for any kink or break. For replacement, please contact Ultimate Healthcare or your local distributor. 13.2 Fuse replacement (1) Disconnect the plug from mains power when a blown fuse is suspected. - Page 16 Ultimate Healthcare Ltd Calmore Industrial Estate, Nutwood Way, Totton Southampton, Hampshire, SO40 3WW Tel: 0333 321 8996 Fax: 023 8066 2388 Email: info@ultimatehealthcare.co.uk www.ultimatehealthcare.co.uk Issue: 1 – 03/10/2019 Page 16 of 16...
