Summary of Contents for Montech Air X Series

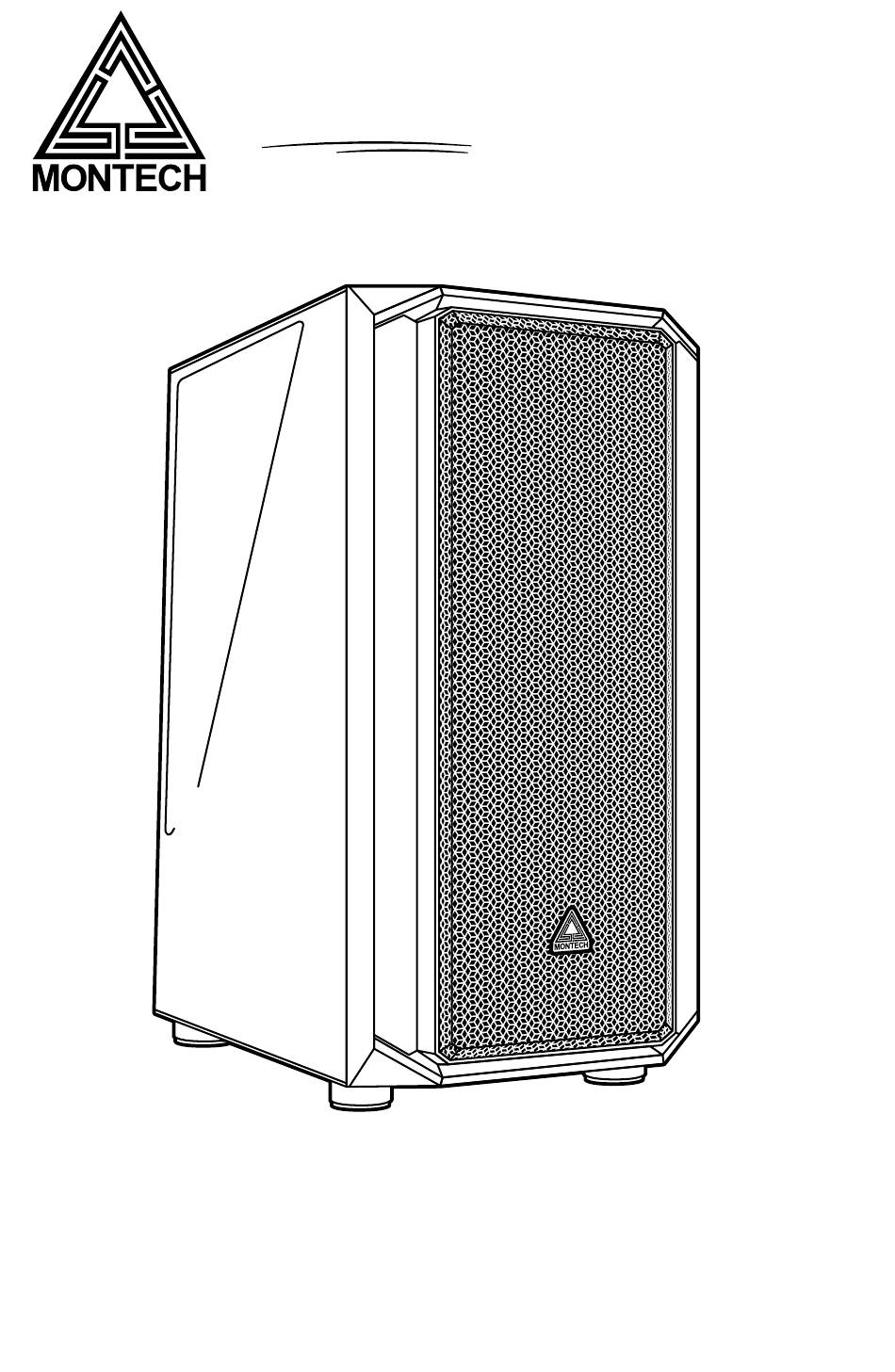

- Page 1 With Good Value! Air X series...
- Page 2 SpecificationS Product Name/ 產品名稱 Air X ARGB Available Color/ 顏色 Black/White Dimensions (L*W*H)/ 尺寸 425*210*458mm Motherboard Support/ 主板支援 ATX/Micro ATX/Mini ITX Expansion Slots/PCI 擴充槽 5.25” Drive Bays/ 硬碟架 2.5”SSD 3.5”HDD I / O Port/I / O 介面 USB2.0*1, USB3.0*2, mic, headset, LED button Front 200mm * 2 (ARGB fan) Pre-installed Fan(s)/ 預裝風扇...
- Page 3 argb fan *2 + 12 argb fan *1 + control box 20cm ARGB Fan *2 , 12cm ARGB Fan*1/20 公分 ARGB 風扇 *2,12 公分 ARGB 風扇 *1 Control Box- Support 6 Independent Fans / 控制板可連接 6 個風扇 ARGB Fan/ ARGB 風扇 20 cm 20 cm 12 cm...
- Page 4 fan & radiator Support removing of the Side window Lay the case down, remove the screws, and then move the glass backwards to reduce the glass 140mm 140mm breakage rate. 120mm 120mm 取下螺絲，然後水平往後移動卸下玻璃 Fan Supportt/ 風扇支援 120 mm *3 / Front 140mm *2/ 200mm *2...
- Page 5 removing the front panel removing the Side panel 1. Place the case side on the table or floor. 1. 先將機殼側放置桌面或地上 2.Hand into the bottom space between the 2. 手伸入前版和機身間的底部空隙 front plate and the body. 3. 施力將面板與機身撐開，即可卸下面板 3.Remove the panel by force from the case duSt filter 1 Fine mesh inside the front panel catches 1 細緻濾網...
- Page 6 inStallation of SSd on the panel and bracket / hdd cage poSition & power Supply Support Pull out the hard drive holder, lock the screws at the screw holes, and then return the hard SSD * 2 drive holder to the original position. SSD * 2 or HDD * 2 將硬碟架拉出，對準螺絲孔位鎖上螺絲後，再將硬碟架放回原位即可...
- Page 7 graphicS card compatibility cpu cooling compatibility ~163mm ~340mm...
- Page 8 motherboard compatibility Mini-ITX Micro-ATX...
- Page 9 15F.No.136, Ln.39,Sec.1,Wenhua 3rd Rd., Linkou Dist., New Taipei City 244 , Taiwan (R.O.C.). TEL:+886 2-26091081 Email:headquarter@montechpc.com Web:https://montechpc.com/...
