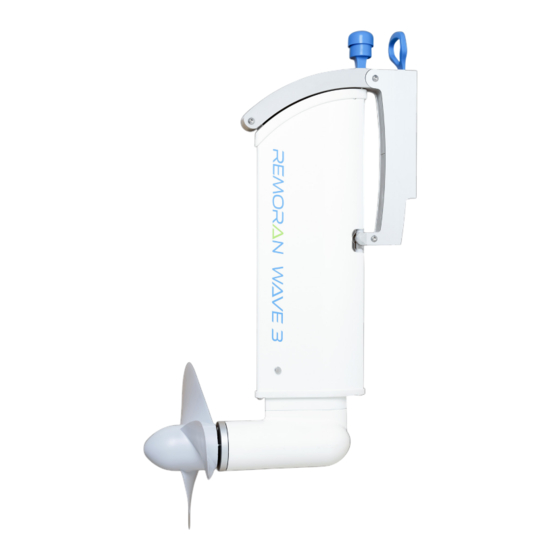

Remoran WAVE 3 Operating Manual

Hide thumbs Also See for WAVE 3:
Table of Contents

Advertisement

Quick Links

Download this manual
R E MO RAN™ WAV E 3
OPERATING MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WAVE 3 and is the answer not in the manual?

Questions and answers

Related Manuals for Remoran WAVE 3

Summary of Contents for Remoran WAVE 3

  • Page 1 R E MO RAN™ WAV E 3 OPERATING MANUAL...
  • Page 2 v e r s i o n 0 . 5 L a s t u p d a t e d o n 0 5 J u n e 2 0 2 0 r e m o r a n ™ w a v e 3...

  • Page 3: Table Of Contents

    CONTENTS C o n t e n t s 1 . S a f e t y m e a s u r e s 1 . 1 E l e c t r i c a l s a f e t y 1 .
  • Page 4 5 . 1 . 3 A d j u s t i n g t h e a n g l e o f t h e o u t b o a r d u n i t 5 . 3 D i s m o u n t i n g t h e o u t b o a r d u n i t 6 .
  • Page 5 Thank you for selecting Remoran™ Wave 3 Hydrogenerator! Remoran™ Wave 3 Hydrogenerator is a state-of-the- art product based on Finnish design and workmanship. We hope you enjoy your voyage with Remoran™ Wave 3 Hydrogenerator! Please read the operating manual in full before operating the product.
  • Page 6 1. SAFETY MEASURES 1.1 Electrical safety When the hydrogenerator operates in a normal manner (the maximum speed is not exceeded), the voltages generated by the generator and the charger will not exceed 120VDC or 50VAC. Thus, the product operates in the extra-low voltage area.
  • Page 7 1.3 Restrictions concerning operation and the operating environment To prevent product breakdowns, the maximum operating speed of the boat is 15 knots. (Note! The charging unit stores data on the turbine rotation speed and uses this data to calculate the operating speed of the boat.) If the operating speed approaches 15 knots, lift the product up from the water or disconnect the interior connector of the generator cable from the connector of the outboard unit’s cable.
  • Page 8 The charger converts the electrical energy to a form feasible for batteries (12V or 24V) and also ensures that the charging sequence of the battery is correct. The Remoran Charger 300W ™...

  • Page 9: Contents Of The Sales Package

    2.2 Contents of the sales package 2.2.1 Hydrogenerator The outboard unit of the hydrogenerator consists of a frame, a telescopic blade and a turbine. The top of the blade is attached to the frame. The top of the frame is equipped with a locking handle that snap-locks the outboard unit to the mounting rail fastened to the boat transom.

  • Page 10: C H A R G E

    from the top of the frame, and the angle adjustment knob slides along this guide. The angle adjustment knob locks the blade to the desired position. 2.2.2 Charger The charger consists of a cooling profile, printed circuit board and a plastic cover equipped with screw terminals for cables as well as the charger status and Bluetooth connection indicator lights.

  • Page 11: Storage And Transport

    (available in the Remoran web store or a corresponding product) • Circuit breaker 40 A (available in the Remoran web store or a corresponding product) • Screws 4 pcs for fastening the charger (Ø 4 mm, select the screw length based on the thickness of the base) •...

  • Page 12: Summary Of The Mounting Steps

    4.1 Summary of the mounting steps 1. The outboard unit is mounted to the boat using a mounting rail. The rail is installed in the boat’s transom by means of bolts inserted through two holes drilled through the transom. The heads of the bolts settle in the groove in the rail and the fastening nuts are fastened to the bolt ends on the inside of [Figure 4 ] Feedthrough the boat.

  • Page 13: Fastening The Mounting Rail To The Boat

    4.2 Fastening the mounting rail to the boat Since the outboard unit’s angle can be adjusted between 0 and 40 degrees, the rail can usually be fastened directly to the transom of the boat. If the angle of the transom is negative or wider than 40 degrees from the vertical axis, an adapter must be prepared.
  • Page 14 Selecting the installation location The rail should be fastened near the bottom edge of the transom or near the additional supporting bulkheads. Select the installation location so that when the outboard unit is mounted on the rail, the turbine remains submerged at all times.

  • Page 15: Mounting And Dismounting The Turbine

    Reinforcement board and tightening • Apply sealant around the bolts on the inside. • Place the reinforcement board over the bolts. • Insert the washers and nuts. • Tighten the nuts evenly by alternately tightening each one (Figure 9) [Figure 9] A reinforcement board with washers and nuts installed.

  • Page 16: Installing The Charger

    3 metres. 4.4.2 Installing the cable feedthrough The Remoran Wave 3 sales package includes a weather- ™ resistant generator cable (4*2.5 mm ) integrated in the outboard unit, as well as a cable to be installed in the space behind the feedthrough and intended for dry spaces, with a corresponding cross-sectional area and number of wires.

  • Page 17: Using Extended Generator Cables

    A 22-mm hole should be drilled in the desired location in the transom of the boat for the feedthrough of the cables (Figure 12). Ensure that the 2-metre generator cable reaches the feedthrough without becoming excessively taut, allowing the outboard unit to turn freely. Seal the feedthrough properly with the O-ring supplied with the connector and a sealant suitable for the purpose.

  • Page 18: Connecting The Generator Cables To The Charger

    4.4.4 Connecting the generator cables to the charger Three wires of the generator cable are numbered and one wire is the protective earth (green-yellow). The numbered wires should be connected to the corresponding numbered screw terminals of the generator connection of the charger (Figure 15). The protective earth wire has been connected to the hydrogenerator’s aluminium frame structure.
  • Page 19 To ensure uninterrupted operation of the product, install a clamp-on ferrite filter on the positive charging wire (Figure 17). The ferrite filter is included in the sales package and should be installed as close to the charger as possible. When closing the plastic body of the ferrite around the wire, you should hear a click when the two pieces interlock.

  • Page 20: Circuit Diagram

    [Figure 20] Connection illustration 4.4.6 Circuit diagram When connecting the hydrogenerator (Figure 20), first connect the wires of the generator (Figure 21). A rechargeable battery or battery pack may be connected only after that. The connections must always be performed on an unenergised product (the generator must not run).

  • Page 21: Before Operation

    ✓ ✓ 5.1 Before operation Ensure that the installation measures described in chapter 4 have been properly performed before you start operating the Remoran Wave ™ 3 Hydrogenerator. We recommend that you use a safety rope in case the product falls into the water during mounting or dismounting. The...
  • Page 22 5.1.2 Mounting the outboard unit on the rail Do not try to mount the generator on the boat when the boat is in motion! This may cause personal injuries or damage to the rail, outboard unit or boat. The outboard unit may even slip into the water. 1.

  • Page 23: Adjusting The Angle Of The Outboard Unit

    To ensure the best possible operation of the generator, adjust its position so that it is optimal (at a straight angle) in relation to the flow of water. The angle adjustment range in Remoran Wave 3 is 0–40 degrees. This ™ adjustment range is sufficient for most boats, and no additional adapter pieces are needed.
  • Page 24 5.2 During sailing The outboard unit must be mounted on the rail before setting sail. (See section 5.1) While sailing, the Remoran Wave 3 Hydrogenerator does not require any ™ action. The turbine of the outboard unit starts to rotate at the operating speed of 1–2 knots and charging begins automatically.

  • Page 25: Dismounting The Outboard Unit

    If you notice anything out of the ordinary during operation, refer to chapter 8 of this operating manual and the FAQ section on the manufacturer’s website. You can also send your questions to us via e-mail at info@remoran.fi or by filling out the feedback form on our website.

  • Page 26: Operating The Charger

    If needed, verify the compatibility of your battery by contacting the battery manufacturer or Remoran Oy. Before operating the product, ensure that the connections have been made in accordance with sections 4.4.4 and 4.4.5 and that the product has been mounted in compliance with the...
  • Page 27 =13.6 /4 = 3.4V If the lithium battery is equipped with a separate BMS unit, follow the instructions provided by the unit manufacturer and, if needed, contact Remoran Oy to ensure compatibility/connection. r e m o r a n ™ w a v e 3...

  • Page 28: Short-Circuit Of The Charger

    Three-stage algorithm for a lead acid battery C h a r g i n g V o l t a g e ( V ) M a x i m u m c h a r g i n g c u r - D u r a t i o n s t a g e r e n t ( A )
  • Page 29 6.5 Backup battery of the charger clock The charger is equipped with an internal clock circuit. The operations of the clock circuit are backed up with a BR1225 (3V) lithium battery. The computed service life of the battery is approximately ten years. The operator is notified through the application when the battery is due for replacement.

  • Page 30: Charger Led Indicators

    6.6 Charger LED indicators There are two LED indicators on the front panel of the charger: "Status" and "Bluetooth" (Figure 32). The colours of the Status LED indicator are green, red and orange. The LED indicator may also blink. The Bluetooth indicator is blue. [Figure 32] Charger LED The table below shows the meaning of the different colours of and signals indicators: Bluetooth®...

  • Page 31: Technical Specifications

    7. TECHNICAL SPECIFICATIONS 7.1 Hydrogenerator outboard unit • Weight 7.5 kg • Gradual height adjustment in the range of 68 cm – 98 cm • Brushless 3-phase generator • Permanent magnet rotor • Main voltage 22VAC @2000RPM • Angle adjustment 0–40 degrees at 5-degree intervals •...

  • Page 32: Performance

    7.3 Performance The power values in Figures 33 and 34 are the maximum values for the operating speed in question. The power yield depends on the location of the installed outboard unit and the cleanliness of the turbine. [Figure 33] Power at different operating speeds [Figure 34] Charging current at different operating speeds r e m o r a n ™...

  • Page 33: Troubleshooting

    8. TROUBLESHOOTING 8.1 Outboard unit issues and malfunctions Issue Possible cause and solution The boat is in motion but the turbine does The speed may be too low (less than 2 knots) OR not rotate The turbine may be obstructed by fishing line or seaweed entangled in it, for example.

  • Page 34: Charging Issues

    8.2 Charging issues Fault situations are indicated by the Status LED on the front panel of the charger (see section 6.6 Charger’s LED indicators) and in the Remoran App mobile ™ application. Issue Possible cause and solution Charger error code – Excessive heat The charger monitors the operating temperature, and if the limit value of +80°C is exceeded, the charging power...
  • Page 35 The boat is in motion but the battery is The turbine does not rotate. The boat’s operating speed not charging may be too low or something is obstructing the turbine. (an orange LED flashes once) The charger detects that the battery is full (battery The charger does not charge voltage over 13.6v (in the 12v system) or 27.2v (in the (a green LED indicator flashes once)

  • Page 36: Bluetooth Connection Issues

    8.3 Bluetooth connection issues Issue Possible cause and solution Remoran App cannot connect to the Another device has already established a Bluetooth ™ charger. The blue LED indicator is on. connection with the charger. Only one connection is possible at a time.
  • Page 37 Store in a dry place. In any maintenance-related matters, feel free to contact the distributor or contact us directly at info@remoran.fi. 10. PRODUCT DISPOSAL 10.1 Disposal of the hydrogenerator The hydrogenerator is manufactured from recyclable materials, mainly aluminium, stainless steel and copper.
  • Page 38 11. SUPPLIES AND SPARE PARTS Code name Image RE1001 Remoran Wave 3 outboard unit ™ RE1007 Turbine kit RE1006 Standard rail kit RE1008 Locking pin set RE1005 Feedthrough connector kit female RE1009 Feedthrough connector kit male RE1002 Remoran charger 300W ™...
  • Page 39 Remoran must correct these errors and defects without delay. If the claim results in the return of the products to Remoran, Remoran will cover the shipping costs of such returns. Please contact our customer service before returning a product. Only returns approved in advance will be covered by the warranty.
  • Page 40 FAQ section of our website at www.remoran.eu. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Remoran Oy is under license. Other trademarks and trade names are those of their respective owners.
  • Page 41 r e m o r a n ™ w a v e 3...
  • Page 42 Cancellation form Please fill in and return this form only if you wish to cancel the agreement. Recipient Remoran Oy Harventajankuja 3, 24130 Salo, Finland Email: sales@remoran.fi I hereby notify that I am willing to exercise my right of withdrawal and withdraw from the...
  • Page 43 ATTACHMENT 2 COOLING PLATE INSTALLATION GUIDE 70 mm Scale r e m o r a n ™ w a v e 3...
  • Page 44 Remoran Oy Harventajankuja 3, FI-24130 Salo, Finland info@remoran.fi www.remoran.eu...
