- Page 1 JioFi 5 steps to be connected everywhere.

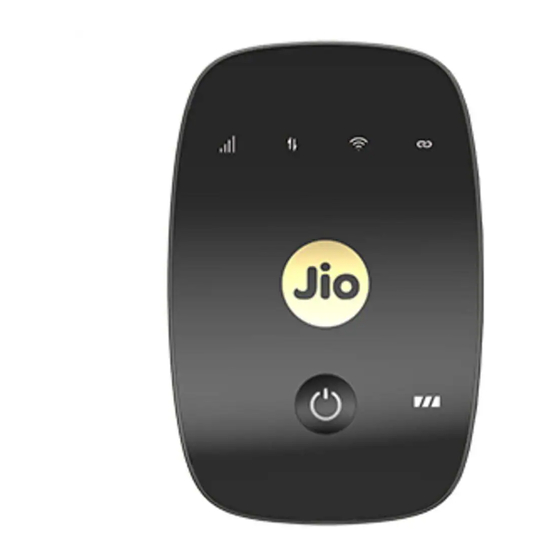

- Page 2 Know your JioFi Signal Wi-Fi WPS button connector Indicator Indicator Power Connection Battery Button Indicator Indicator...
- Page 3 Open the back cover and locate SIM/SD card slot. Slide the SIM/SD tray downwards (OPEN) to lift the tray up. Further insert the SIM/SD card and slide the tray upwards (LOCK) to secure the tray. Make sure they are placed properly with the chip facing down.
- Page 4 （Service Set Identifier）and Password mentioned in the battery compartment before inserting the battery and replacing back cover. Commodity Name:Router M2S (Black) RSN: RPEMFXXXXXXXXXX MAC ID: XXXXXXXXXXXX IMEI: XXXXXXXXXXXXXXX EAN: 6932694820593 SSID: JioFi2_XXXXXX PWD: XXXXXXXXXX System Log IN IP:http://jiofi.local.html USERNAME/PWD: 1.26 W/kg administrator/administrator...
- Page 5 The Setup is done. Now Turn ON your device and connect upto 31 WiFi enabled devices on your wireless network by using the SSID and password...
- Page 6 To connect quickly, press WPS Button for 3 seconds and then press the WPS button on your wireless device to connect.
- Page 7 Welcome to your digital life. Download Jio4GVoice on your smart phone to enable HD Voice Calling and Video Calling using your JioFi. *JioFi will work with Jio Sim card only.
-
Page 8: About Your Device
About your device Charging the device When charging the battery for the first time, it is recommended to charge it to 100% with adapter and cable provided in turned OFF position. Charging Time USB Cable Approx 7hrs Power adapter Approx 3hrs 30 mins Battery life on LTE* *Depends on network conditions Stand by time... -
Page 9: Resetting The Device
Turning the device ON or OFF To turn ON/OFF the device , press and hold the Power key for 3 seconds. Resetting the device Occasionally, you may need to perform a Hardware or Factory reset when you forget login username or password. To reset the device insert a small pin ( such as a straightened paper-clip ) into the Reset button for 1 second. - Page 10 Indicators Indicator Status State Blinking fast No SIM card Weak signal or No service Blinking slow Signal available indicator Medium signal Good signal LTE network connected and have Blink data traffic Connection LTE network connected but no indicator data traffic LTE network disconnected Wi-Fi on,1 or more Wi-Fi client Wi-Fi...
- Page 11 In case the device goes into sleep mode press the power button lightly to bring it back to active mode. During sleep mode, the SSID of your JioFi will stop broadcasting and a breathing light can be seen on the power button.
-
Page 12: Manage Your Device
Customize network, wifi and other parameters and access SD card over wifi using the web configuration utility. You can also customize some settings by accessing the JioFi widget. Download the MyJio App and access the above widget. Certain end user applications like Online Console gaming and Online streaming like DVR need certain ports to be opened. - Page 13 For fast support A user connected access the Internet Please check if the user is connected to JioFi SSID. Make sure your SIM card is properly inserted. Check if your JioFi is connected to the network. Ensure your sim card is activated and has adequate data balance available.
- Page 14 Safety To the Owner Always keep the device at a distance of 20cm from medical devices like hearing aids, pacemakers as it may interfere when the device is turned on. It is advisable to consult your physician or the manufacturer of the medical device before using your device.
-
Page 15: Using Your Device
Using your Device Use only original and authorized accessories. Unauthorized accessories may affect your device performance. Do not expose your device to moisture or water. Handle carefully. Do not drop! Kindly use your device with a Nano Sim card only. Do not try to insert sim card of any other size as this may lead to damage to sim slot connector pins and might render your device useless. -
Page 16: Technical Specifications
Information Technical specifications General Supported OS WinXP(SP3 onwards)/Vista/Win7/Win8 Win10/MAC/Linux Input voltage Output Voltage 4.35V Maximum Maximum power 3.2W consumption Memory 2GB SLC NAND and 1Gbit LPDDR2 External interfaces Micro-USB port Nano-SIM Card interface Micro-SD card interface(up to 32GB) Operating Temp.charge Charging: 0℃~+40℃... - Page 17 With love, from Jio Reach us If you have further question or require personal assistance, please contact JioCare by calling or sending on email. Phone: 198 from your Jio number or 1800-88-99999 from any network （24 Hrs.） Email: care@jio.com Visit www.jio.com We wish you a beautiful experience with Jio.
