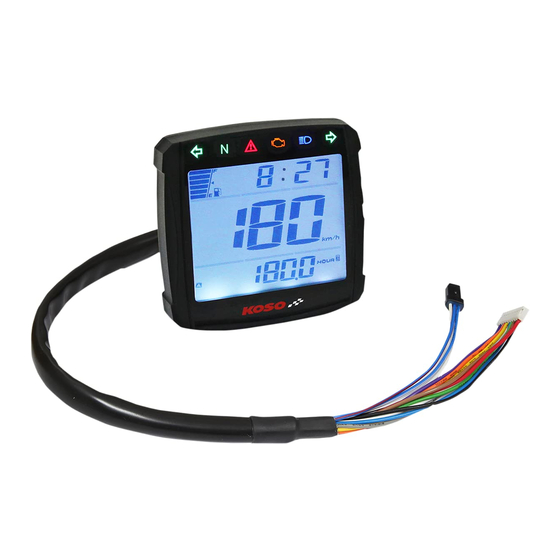

Thank you for purchasing the XR-01S. Before installing, please read the instruction carefully and keep them for future reference.
Notice
Please, follow the step-by-step instructions for proper installation. Any damages caused by faulty installation shall be imputed to the users.
To avoid a short circuit, do not pull the wires when installing the unit. Do not break or modify the wires either.
Do not disassemble or change any parts.
Maintenance and repairs should be executed by our professionals only.
MARK MEANING:
Some procedures must be followed to avoid faulty installation.
Some procedures must be followed to avoid damages from occuring to yourself and to others.
Some procedures must be followed to avoid damages from occuring to the vehicle.
If any information remains unclear, after following the instructions, please seek professional assistance.
1-1
Accessories
1
Meter X 1
M10 / S type speed
5
sensor bracket X 1
9
M4 X 10L screw X 2
NOTE
Contact your local distributor, if the items received in the box are not the same as the items listed above.
1-2
Optional accessories
1
Active speed sensor
5
Meter bracket
NOTE
Some of the optional accessories may not be available in your area. Contact your local distributor to obtain more information.
2
Speed sensor X 1
M5 X 5L mm Hexagon
6
screw X 2
10
M5 washer X 2
2
Disc magnet screw
3
D6 X 5L mm magnet X 6
7
Meter bracket X 1
11
Mid-way connector X 10
L TYPE speed sensor
3
backet
FLASH
LIGHT ON
PRESS THE
PRESS THE
BUTTON
BUTTON 3
ONCE
SECONDS
M8 / S type speed
4
sensor bracket X 1
8
M5 X 12L screw X 2
4
Meter bracket
