BWT Rondomat Duo Series Installation And Operating Manual page 29

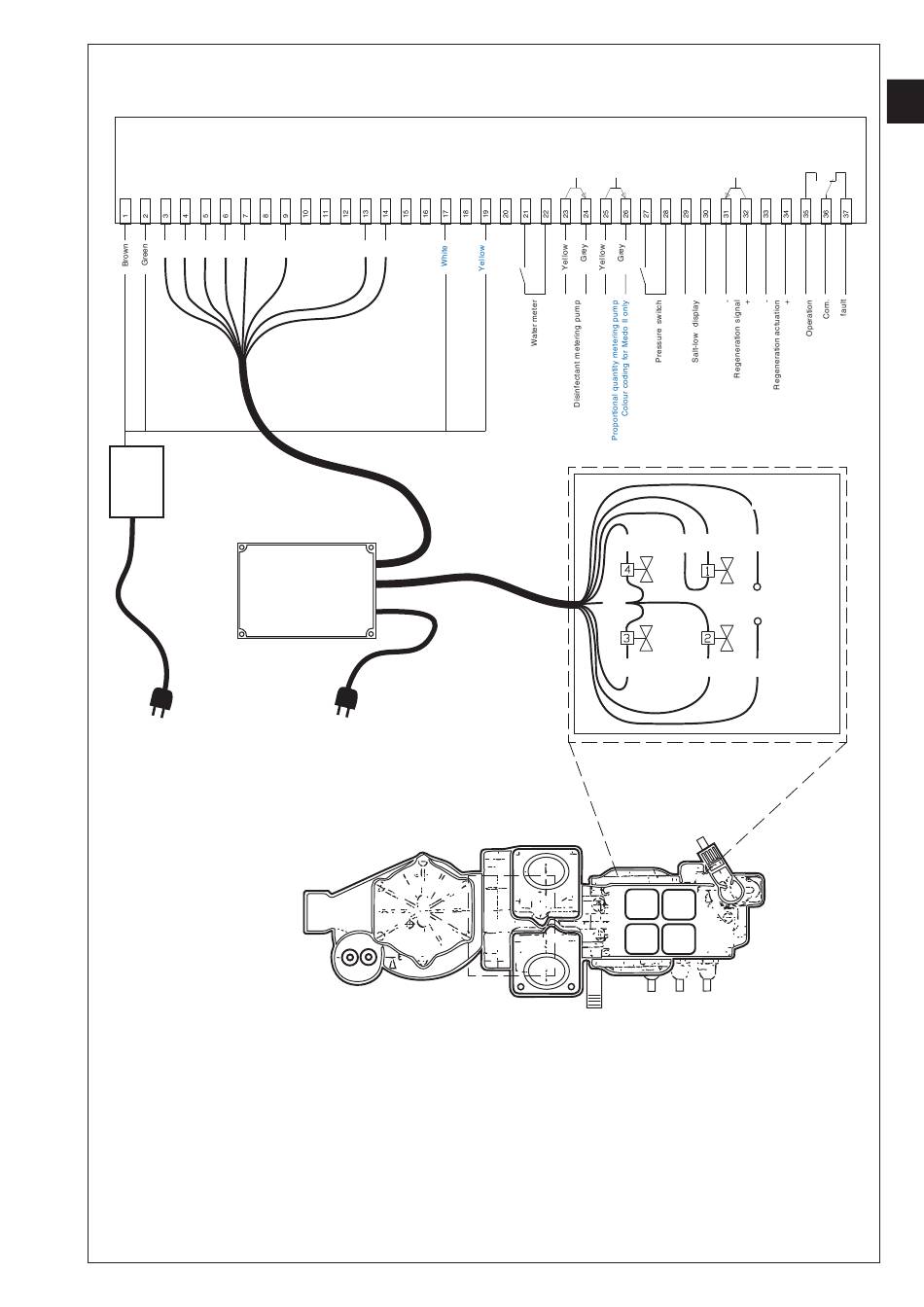

Rondomat Duo TW 6 and 10 terminal plan Rondomat Duo TW 6 and 10 terminal plan Rondomat Duo TW 6 and 10 terminal plan
Rondomat Duo TW 6 and 10 terminal plan Rondomat Duo TW 6 and 10 terminal plan
1 2 3 6 4 5
B B B B B
Power
Netzteil
supply
unit
Electrolysis
Elektolyse
Remove mains plug. Remove mains plug. Remove mains plug. Remove mains plug. Remove mains plug.
Fasten the TW electrolysis unit to the back of the Soft Control console using the supplied screws and fastenings. Fasten the TW electrolysis unit to the back of the Soft Control console using the supplied screws and fastenings.
Fasten the TW electrolysis unit to the back of the Soft Control console using the supplied screws and fastenings. Fasten the TW electrolysis unit to the back of the Soft Control console using the supplied screws and fastenings. Fasten the TW electrolysis unit to the back of the Soft Control console using the supplied screws and fastenings.
Connect wire A to the valve block and to the electrolysis cell using plugs. Connect wire A to the valve block and to the electrolysis cell using plugs. Connect wire A to the valve block and to the electrolysis cell using plugs. Connect wire A to the valve block and to the electrolysis cell using plugs. Connect wire A to the valve block and to the electrolysis cell using plugs.
Connect wire B to the terminals on the Soft Control controller. Connect wire B to the terminals on the Soft Control controller. Connect wire B to the terminals on the Soft Control controller.
Connect wire B to the terminals on the Soft Control controller. Connect wire B to the terminals on the Soft Control controller.
The mains plug of the Soft Control controller can be removed and the cable can be connected to terminals L, N The mains plug of the Soft Control controller can be removed and the cable can be connected to terminals L, N The mains plug of the Soft Control controller can be removed and the cable can be connected to terminals L, N The mains plug of the Soft Control controller can be removed and the cable can be connected to terminals L, N The mains plug of the Soft Control controller can be removed and the cable can be connected to terminals L, N
of the TW electrolysis unit. of the TW electrolysis unit. of the TW electrolysis unit. of the TW electrolysis unit. of the TW electrolysis unit.
Soft Control II
Soft Control II Soft Control II
Soft Control II Soft Control II Soft Control II
7 8
DVGW
TW
Ventilblock
Valve block
1 7
5 2
6 Elektolysezelle Electrolysis cell
8
4 3
4 1
3 2
G B G B
G B G B G B
