- Page 1 Andriod4.0 Mini PC...
-
Page 2: Table Of Contents
INDEX DECLARATION ......................3 APPEARANCE INTRODUCTION ..............4 INITIAL OPERATION ..................4 ............4 ARDWARE CONNECTION INSTRUCTION ....................5 INTERFACE ) ..............5 ANAGEMENT OFTWARE ....................6 ELETE ..................6 RAG THE DESKTOP ..........7 ETURN OMEPAGE PROGRAMME PROPERTIES ..................... -
Page 3: Declaration
Declaration The user manual includes all the information of safe and correct operation instruction. To avoid accident and product damaged, please make sure go through all the content carefully before using the product. Please keep the product away from high temperature, humid and dusty environment. -
Page 4: Appearance Introduction

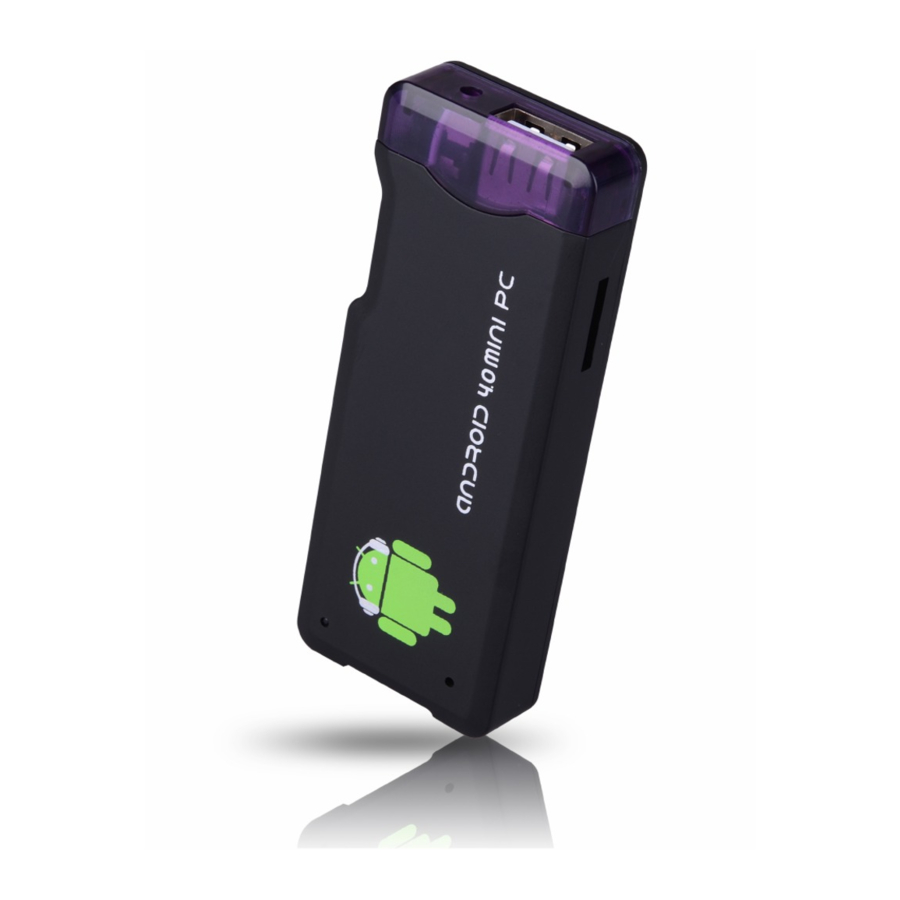

Appearance Introduction AV out: HDMI TF-CARD：Could be expended by T-Flash memory MiniUSB OTG：for data transfer with computer. Reinstall the OS. It could be converted to standard USB2.0 Port by converter. USB Host ：For pen drive, mouse, keyboard, External HDD, could be expended by USB Hub. -
Page 5: Os Interface
will be hide by OS automatically. Mouse left button for “ok”, right button for “return”, rolling for page up and down. Hold left button to pull icon or copy & paste file. Hold middle button for Properties OS interface Connect power supply and devices, the booting information will show up within 1min. -
Page 6: Delete Icon
Delete Icon Hold the icon and throw it into the red mark “X”, it will be removed. Drag the desktop Hold the arrow on any blanket space of the desktop, move it to left or right could move to next desktop. Rolling the mouse is same operation. Andriod4.0 Mini PC—6... -
Page 7: Return , Homepage , Programme , Properties
Return, Homepage, program, properties Return button: click to return to the upper level directory Homepage button: Click it anytime to return to homepage. Program button: Click to check all the running program. Properties button: Click it will show up different menu in different software. -
Page 8: Programme Tool Buttom
Click status bar, the hide menu will bound up. Click this icon , it will shows up more options. Program Tool button It shows up right top corner of desktop. Andriod4.0 Mini PC—8... -
Page 9: Programme, Tools Icon Managerment
C. Program, Tools icon management Click to show up all the installed program and setup tools icon. If the first desktop page file with icon, then pull or rolling mouse will move it to second desktop page. You could launch these program or set up directly, or hold this icon and throw them to desktop to make shortcut. -
Page 10: Setting
D. Setting It is in Tool bar. Click to show it up. Andriod4.0 Mini PC—10... -
Page 11: Wifi Setting
Wifi Setting USB to RJ45 Lan adapter setting If there is no wifi and have to use cable to access internet. Please buy USB2.0 LAN Adapter. And plug it on USB Host or OTG ports. Connect RJ45 LAN Cable, click “setting”-> “More”-> “Ethernet”-> tick “Use Ethernet“... -
Page 12: Install/Delete Programme
E. Install/delete program Set up “Unknown sources” Please install Google market program as priority. If have to install Google un-define program, Please click setting -> security ->”Unknown sources” Install program Please download different application software from APK. After program downloaded, just click it to install. You could also install Android program from other storage device. -
Page 13: Delete Programme
Delete Program a. Click “setting”-> “Apps”, it will show up all the installed program list. b. Click “Uninstall” icon need to delete. c. Click uninstall button will be ok. F. Picture, Video, Filing management, Webpage Set up media file searching function. The device has the media searching function, but running this function will slow down the system speed. -
Page 14: How To Play High Definition Media Player
How to play High definition media player Click below Icon, the tool will display Video and Audio file as category File management: Copy, Cut, Delete, Rename The device has strong function for filing. Classification of manage documents in Storage, SD Card and External HDD. Please click “Setting” -> “File manage”... - Page 15 display the menu as below: Please select copy, cut from the menu. There red frame will show on the top of screen. Click and hold the object folder, (Attention: Must be folder” Andriod4.0 Mini PC—15...
-
Page 16: Music Player
Music Player Click “Setting” -> “Music” Visit the website Please set up Wifi to access to internet. There is Android default browser. Or other browser is also available to download. Click “Setting”-> “browser” Android display all the web pages label on the top of browser. Click “+” to add new page. -
Page 17: Keyboard And Mouse
devices including different language. Please Click “setting”->“Language and input” Different area users please select the suitable input software according. And make some setting under this item. Keyboard and Mouse Device will show up the soft keyboard if it is only connected with mouse. And the soft keyboard will be hide once the hardware keyboard is detected by the device. -
Page 18: Switch Input Method
Switch input method Please click below icon to select input method: It will display all the options as below picture. Please select the suitable one. Andriod4.0 Mini PC—18... -
Page 19: Question & Answer
H. Question & Answer Screen flicker or unstable working: please check if the HDMI cable has been connected tightly. Can not start device: please download OS file from official website to refresh the device OS. Make sure all the important data has been backup before process it. -
Page 20: Specifications
I. Specifications Model No. MK802 MiniPC AllwinnerA10 1GHz Cortex-A8 2D/ 3D/ OpenGL ES2.0(AMD Z430)/ OpenVG1.1(AMD Z160)@27M Tri/sec Operating system Android 4.0 DDR RAM 512MB (Option 1GB) Nand Flash 4GB (Option 4GB/8GB/16GB) Network device Wireless 802.11b/g, WAPI（Ralink8188）（Option RJ45 ） Support External storage via USB host /Support External... - Page 21 Picture Formats JPG,BMP,GIF,TIFF,PNG. Subtitile supported SRT,SUB,IDX,SSA,SMI Power Adapter External adapter,5V/2A 8.8*3.5*1.2cm Dimension Weight 0.3kg with accessory Andriod4.0 Mini PC—21...
