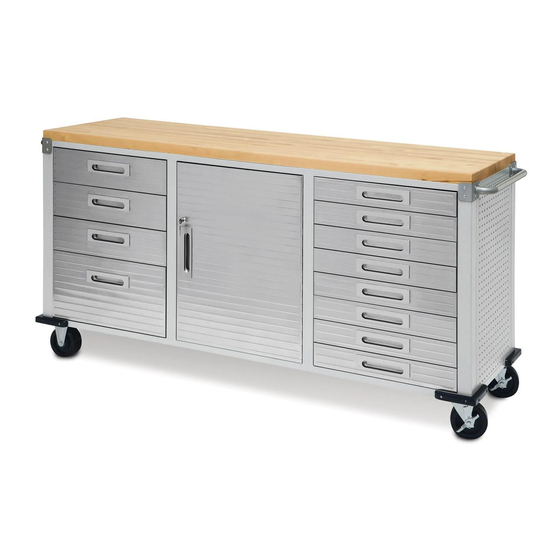

- Page 1 ASSEMBLY INSTRUCTIONS UltraHD® 12-Drawer Rolling Workbench (Model No. 20242) 77 in. W x 20 in. D x 37.5 in. H (1.95 m x 50.8 cm x 95.2 cm) Reference page 14 for special care and maintenance of stainless steel SC200304...
- Page 2 Small Drawer Medium -size Drawer Large Drawer...
- Page 3 Medium-size Drawer #12-1 #12-2 #12-5 Large Drawer #13-1 #13-2 #13-4 Small Drawer #26-1 #26-2...
-
Page 4: Parts List
PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department (please refer to page 15.) (#1) LEFT SIDE PANEL x 1 PC (#2) RIGHT SIDE PANEL x 1PC (#3) FRONT FRAME x 1 PC (#4) BACK FRAME x 1 PC (#5) BASE PANEL x 1 PC... - Page 5 PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department (please refer to page 15.) (#11) MEDIUM-SIZE & LARGE DRAWER SLIDER (#9) HANDLE BAR x 2 PCS SUPPORT x 1 PC (#12-1) MEDIUM-SIZE DRAWER FRONT x 3 PCS (#12-2) MEDIUM-SIZE DRAWER BOTTOM PANEL x 3 PCS...
- Page 6 PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department. (please refer to page 15.) (#13-2) LARGE BOTTOM PANEL x 1 PC (#13-4) LARGE DRAWER BACK PANEL x 1 PC (#15) SCREW B (M4 x 8L) x 226 PCS (#17) SCREW D ( M8 x 18L) x 16 PCS (#21) SCREWDRIVER x 1 PC...
- Page 7 PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department. (please refer to page 15.) (#26-1) SMALL DRAWER FRONT x 8 PCS (#26-2) SMALL DRAWER CASE x 8 PCS M8X20 pcs (#27) SMALL DRAWER SLIDER SUPPORT x 1 PC (#27-B) WASHER (M8) x 6 PCS...
- Page 8 UltraHD® 12-Drawer Rolling Workbench (Model No. 20242) *NOTE: We recommend using TWO people to assemble the workbench. A magnetic screwdriver is included for your convenience. TIP: If using an electric driver, keep torque setting LOW. With our customers needs in mind, this package contains an updated folding drawer construction designed for faster easier assembly while maintaining a comparable rigid structure and loading capacity.
- Page 9 UltraHD® 12-Drawer Rolling Workbench (Model No. 20242) *NOTE: We recommend using TWO people to assemble the workbench. Install the (#11) Medium Size & Large Drawer Slider Step 4. Support. [Use Screw B (#15) & Screwdriver (#21) for this step]. Attach (#11) Medium Size & Large Drawer Slider Support to the (#4) Back Frame, making sure the "Top"...
- Page 10 UltraHD® 12-Drawer Rolling Workbench (Model No. 20242) *NOTE: We recommend using TWO people to assemble the workbench. Step 8. Fasten the 3 slides back onto the (#2) Step 9. [Use (#15) Screw B for this step] Attach the (#5) Base Panel to the rest of the unit. Right Side Panel that you removed in step 6.
- Page 11 UltraHD® 12-Drawer Rolling Workbench (Model No. 20242) *NOTE: We recommend using TWO people to assemble the workbench. Step 13. lnstall (#12-2) Medium-size Drawer Bottom and (#12-5) Medium-size Drawer Back Panel. [Use (#15) Screw B for this step]. 1. Fold the Left and Right panel up. #12-2 2.
- Page 12 UltraHD® 12-Drawer Rolling Workbench (Model No. 20242) *NOTE: We recommend using TWO people to assemble the workbench. Step 15. Install Small Drawer Front (#26-1) to Small Drawer Body (#26-2). 1. Fold (#26-2) Small Drawer Body left Panel #26-2 and right panel, and back panel up. 2.
- Page 13 UltraHD® 12-Drawer Rolling Workbench (Model No. 20242) *NOTE: We recommend using TWO people to assemble the workbench. Step 16. Place the Drawers. 1. Pull out the sliders completely, then put the drawer to the sliders, make sure the square holes on the drawer side panels are line up, and the drawer is hook on the sliders completely.
- Page 14 If the wood top is received with excessive damage or splitting, Seville Classics will guarantee replacement of the top. Variations of color, and minor scratches in the clear coat finish will not be reason for replacement.
-
Page 15: Contact Information
*If you are missing any parts, have any questions, or need additional assistance in assembly, please contact our bilingual (English and Spanish) customer service department at: Seville Classics, Inc. 19401 Harborgate Way Torrance, CA 90501 USA Telephone: (800) 323-5565 within USA... - Page 16 UltraHD® Line UltraHD® 6-Foot Height Adjustable Workbench UltraHD® 4-Drawer Rolling Cabinet Model No. 20296 (Granite) Model No. 20205 (Granite) Model No. 20141 (Graphite) UltraHD® Wall Cabinet with Open Shelf UltraHD® 2-Door Rolling Workbench Model No. 20262 (Granite) Model No. 20230 (Granite) Model No.
