Viotek NV32Q User Manual

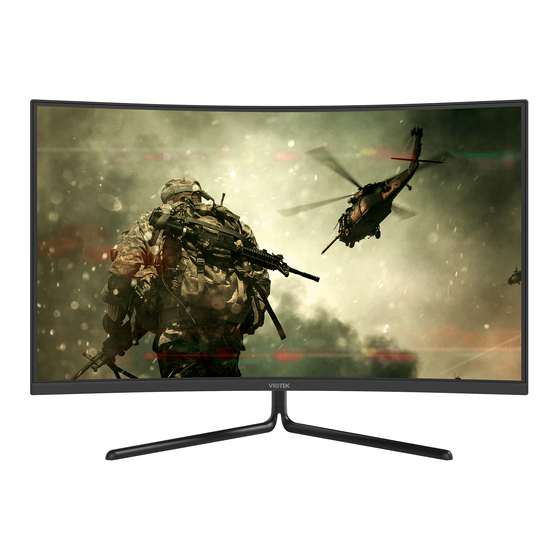

Curved monitor
Hide thumbs

Advertisement

Table of Contents

NV32Q
In order to continue serving our customers and providing the best products, our product information
including our user manuals may receive updates from time to time. Please check our website for the latest
user manuals and product materials. ver.1.0 8/6/19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NV32Q and is the answer not in the manual?

Questions and answers

Related Manuals for Viotek NV32Q

Summary of Contents for Viotek NV32Q

  • Page 1 NV32Q In order to continue serving our customers and providing the best products, our product information including our user manuals may receive updates from time to time. Please check our website for the latest user manuals and product materials. ver.1.0 8/6/19...

  • Page 3: Table Of Contents

    Table of Contents Section 1: Safety Precautions ..........4 Section 2: Box Contents ............. 5 Section 3: Product Overview ..........6 3.1 – Monitor Buttons ............6 3.2 – Monitor Ports ............6 Section 4: Stand Installation ..........7 Section 5: Mount Installation ..........8 Section 6: Basic Operation ..........

  • Page 4: Section 1: Safety Precautions

    VIOTEK ® shall not be held responsible for injury or damage of products or persons due to failure to adhere to the aforementioned precautions or any others noted hereafter.

  • Page 5: Section 2: Box Contents

    Section 2: Box Contents Monitor x 1 Stand Stem x 1 Stand Base x 1 NO. 1 Screws x 4 NO. 2 Screws x 4 Headphone Clip DP Cable x 1 (for Stand Installation) (for Wall Mounting) Power Cable x 1 Screwdriver x 1 User Manual x 1 (AC 100-240V, 50/60Hz)

  • Page 6: Section 3: Product Overview

    Section 3: Product Overview 3.1 – Monitor Buttons M Menu Button: Press to display the OSD menu or enter sub-menus. Down Button: Press to move down in the menus. Up Button: Press to move up in the menus. E Exit Button: Press to exit. Power Button: Press to turn the monitor on/off.

  • Page 7: Section 4: Stand Installation

    Section 4: Stand Installation Keep the foam underneath the monitor before attaching the stand. 1. Open the package and take out the monitor with foam still attached. Gently place it top-down on a desktop or table. 2. Take out the stem, cable clip and base. Use the included screwdriver and one screw to fasten base to the stem.

  • Page 8: Section 5: Mount Installation

    Section 5: Mount Installation 1. Open the package and take out the product with foam still attached. Gently place it on a desktop or table. Remove the extra parts and the foam covering the monitor. If the monitor is already attached to the stand, remove the stand. Button 2.

  • Page 9: Section 6: Basic Operation

    Section 6: Basic Operation 1. Insert one end of the DisplayPort (DP) cable into your PC’s graphics card. An HDMI cable may also be used. HDMI cable is not included. 2. Connect the other end of the cable to the corresponding connector on your monitor.

  • Page 10: Section 8: Osd

    Section 8: OSD The On-Screen Display (OSD) Menu may be used to adjust your monitor’s settings and appears on screen after turning on the monitor and pressing the M button. When using the monitor for the first time, settings will automatically adjust to optimal settings according to your computer’s configuration.

  • Page 11: Osd Menu Functions

    8.1 – OSD Menu Functions Main Menu Sub-Menu Options Description NONE Switch to DP signal input HDMI 1 (2.0), Input Source HDMI 2(1.4), NONE Switch to HDMI signal input HDMI 3 (1.4) Brightness 0~100 Adjust display brightness Contrast 0~100 Adjust display contrast Brightness/ Contrast Turn on DCR function...

  • Page 12: Section 9: Eco Modes And Gameplus Switching

    Main Menu Sub-Menu Options Description Language English, Español, Set OSD language Русский, Français, 한국, 日本語, 简体 中文 Adjust the OSD’s horizontal position OSD H-Position 0-100 OSD V-Position 0-100 Adjust the OSD’s vertical position 0-100 Adjust OSD’s overall transparency Transparency OSD Time Out 5-100 Set how long the OSD remains open after non-use...

  • Page 13: Section 10: Troubleshooting

    Section 10: Troubleshooting The screen is blank • Press the power button to turn the monitor on. • Confirm the brightness and contrast settings are set normally. • Check if the indicator light is flashing. If so, there is no signal from your video source.

  • Page 14: Section 11: Specifications

    Warranty services are provided by Viotek Warranty Pro (“WP”). If a hardware defect arises and a valid claim is received within the Warranty Period, at its option and to the extent permitted by law,...
  • Page 15 WP will: (1) repair the hardware defect by using new or refurbished parts that are equivalent to new in performance and reliability; or (2) exchange the Product with a product that is new or refurbished which is substantially equivalent to the original product. This Warranty is for one replacement only of like-items and does not cover items out of production if the product is no longer made or stocked.
  • Page 16 COPYRIGHT © 2019 VIOTEK. ALL RIGHTS RESERVED.
