Summary of Contents for Keysight 81950A
- Page 1 Keysight 81950A Compact Tunable Laser Source Getting Started Guide...
- Page 2 AND ANY INFORMATION CONTAINED ment (EULA), a copy of which can be found HEREIN, INCLUDING BUT NOT LIMITED TO at http://www.keysight.com/find/sweula. THE IMPLIED WARRANTIES OF The license set forth in the EULA represents Keysight 81950A Compact TLS Module Getting Started Guide...
-
Page 3: Table Of Contents
Device Characterization at high power levels Low line width source for complex modulation formats SBS suppression feature enables high launch power Specifications: Optical Output Polarization Maintaining Fiber Angled and Straight Contact Connectors Signal Input and Output Keysight 81950A Compact TLS Module Getting Started Guide... -
Page 5: Getting Started
Keysight 81950A Compact Tunable Laser Source Modules Getting Started Guide Getting Started Safety Considerations Initial Safety Information for Tunable Laser Modules Laser Safety Labels / 10 Introduction / 11 Typical Use Models / 13 Optical Output / 14 Signal Input and Output... -
Page 6: Safety Considerations
Keysight Technologies assumes no liability for the customer’s failure to comply with these requirements. Before operation, review the instrument and manual, including the red safety page, for safety markings and instructions. -
Page 7: Initial Inspection
Operating Environment The safety information in your mainframe’s User’s Guide summarizes the operating ranges for the Keysight 81950A Compact Tunable Laser Source modules. In order for these modules to meet specifications, the operating environment must be within the limits specified for your mainframe. -
Page 8: Input/Output Signals
Getting Started Input/Output Signals There is one BNC input connector on the front panel of a Keysight CAUTION 81950A Compact Tunable Laser Source module. To prevent the BNC interface from damage, do not exceed the voltage limit of +- 5V when applying external voltage. -
Page 9: Initial Safety Information For Tunable Laser Modules
* Max. CW output power is defined as the highest possible optical power that the laser source can produce at its output connector. ** Max. permissible CW output power is the highest optical power that is permitted within the appropriate laser class. Keysight 81950A Compact TLS Module Getting Started Guide... -
Page 10: Laser Safety Labels
• The laser radiation can seriously damage your eyesight. • The use of optical instruments with this product will increase eye hazard. • Refer servicing only to qualified and authorized personnel. Keysight 81950A Compact TLS Module Getting Started Guide... -
Page 11: Introduction
What is a Tunable Laser Source? A Tunable Laser Source (TLS) is a laser source for which the wavelength can be varied through a specified range. The Keysight Technologies range of compact TLS modules also allow you to set the output power, and to choose between continuous wave or modulated power. -

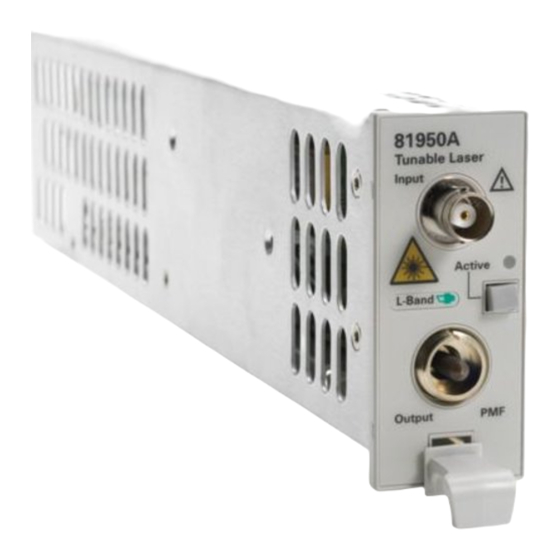

Page 12: Front Panels
[State] parameter in the instrument’s Graphical User Interface, or remotely using GPIB commands. When the ‘Active’ LED is lit the output is enabled. When the active LED is not lit the output is disabled. Keysight 81950A Compact TLS Module Getting Started Guide... -
Page 13: Typical Use Models
Low line width source for complex modulation formats The low line width of the Keysight 81950A Compact TLS module makes this module an ideal light source for transmission systems with (D)QPSK and higher order modulation formats and as local oscillator for coherent receivers. -
Page 14: Optical Output
Getting Started Optical Output Polarization Maintaining Fiber A Polarization maintaining fiber (PMF) output is standard for Keysight 81950A Tunable Laser Source Family. PMF is aligned to maintain the state of polarization. A well defined state of polarization helps ensure constant measurement conditions. -
Page 15: Angled And Straight Contact Connectors
Getting Started Angled and Straight Contact Connectors To ensure most accurate measurements, the Keysight 81950A Fast sweeping Compact TLS module is equipped with angled contact connectors. Angled contact connectors help you to control return loss, since reflected light tends to reflect into the cladding, reducing the amount of light that reflects back to the source. -
Page 16: Signal Input And Output
Getting Started Signal Input and Output There is one BNC input connector on the front panel of a Keysight CAUTION 81950A Compact Tunable Laser Source module. To prevent the BNC interface from damage, do not exceed the voltage limit of +- 5V when applying external voltage. - Page 18 This information is subject to change without notice. © Keysight Technologies 2016 Edition 3.0, March 2016 Printed in Malaysia www.keysight.com...
