USER MANUAL FOR COMFLEX-5H00 1W2W
5 WEB GUI
ComFlex can be monitored and controlled by WEB GUI, follow below contents to achive system
parameter setting and commissioning.
5.1
WEB GUI CONNECTION
Step 1: Connect MU OMT port to PC RJ45 port with the supplied Ethernet cable to set up a physical
connection.
Step 2: Go to laptop Control Panel\Network and Internet\Local Area Connection. Right click it and click
Properties. . Then click"Obtain an IP address automatically".

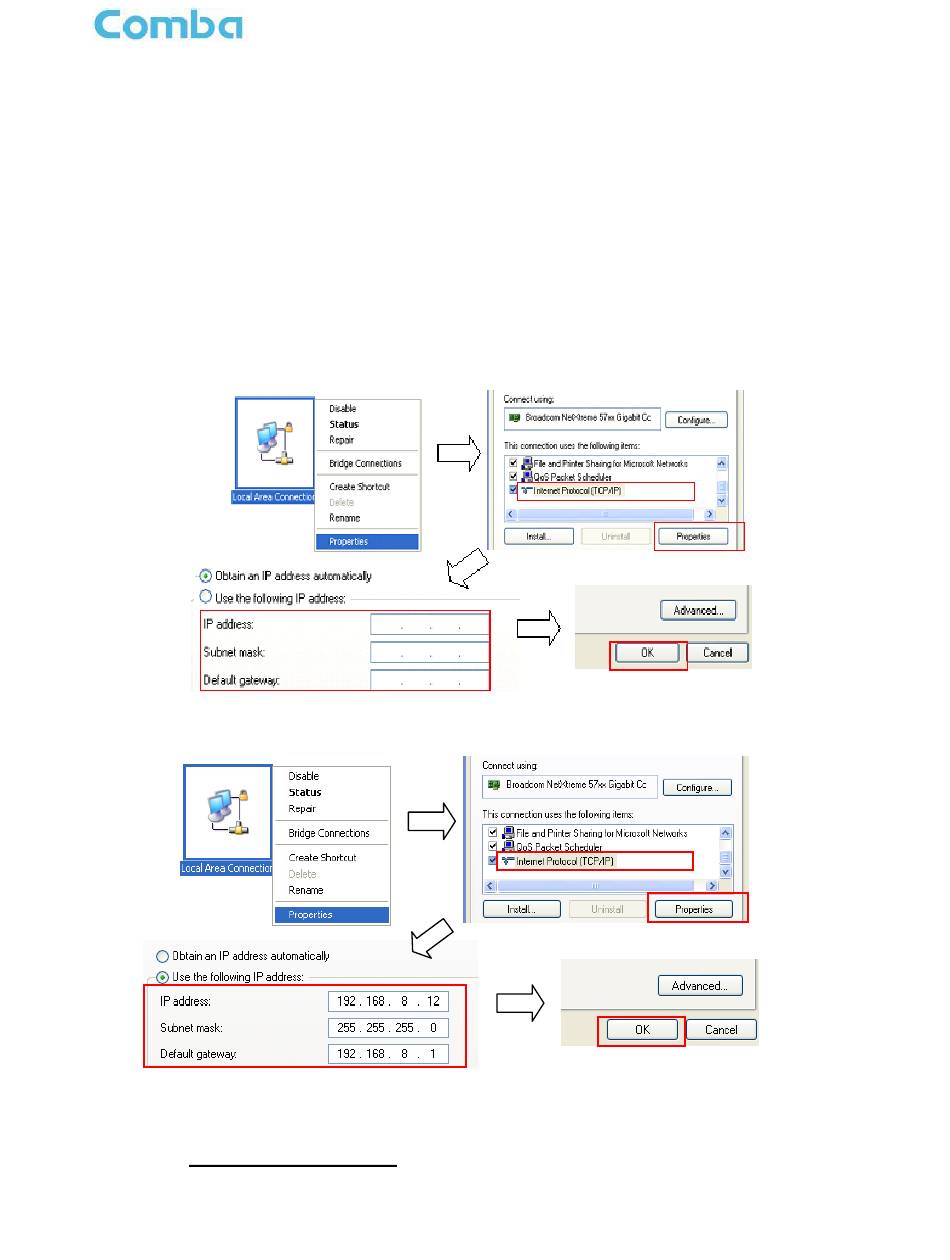

Figure 40: PC IP Address obtain automatically
Figure 41: PC IP Address Setting
Step 3: Open browser (browser IE7.0, IE8.0, Chrome or Firefox, suggest disply resolution is 1024×768),
input Web GUI IP address: 192.168.8.101, or input" http://combaomt.com" , click [Enter].
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 42
