Summary of Contents for STUDIOSPARES FORTISSIMO MKII Series
- Page 1 964 North Circular Road, Staples Corner, London, NW2 7JR. www.studiospares.com...

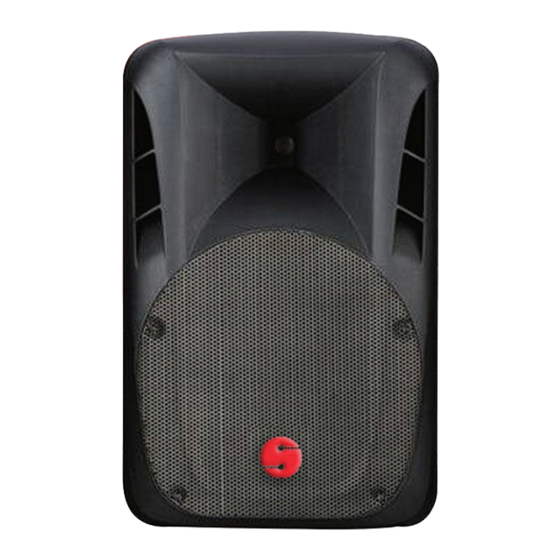

- Page 2 USER MANUAL FORTISSIMO MKII Loudspeaker Range...
-
Page 3: Important Safety Symbols
IMPORTANT SAFETY SYMBOLS This symbol is used to indicate that some hazardous live terminals are involved within this apparatus, even under the normal operating conditions, which may be sufficient to constitute the risk of electric shock or death. This symbol is used in the service documentation to indicate a specific component that can be replaced only by the component specified in the service documentation for safety reasons. - Page 4 Please consult a professional technician if you are wanting to mount the speaker with the Wall Bracket. Only use the speaker bracket or other matched brackets made by Studiospares to support the speakers. Make sure to place the bracket on a flat, anti-skid surface.
- Page 5 4. Safety Instructions Read this before operating the device. Before connecting the A. C. power cord make sure the Voltage Selector is set for your local A.C. supply voltage. For supplies between 220 and 240V ensure it is set to 230V. For supplies between 110 and 120V ensure it is set to 115V.
- Page 6 Active Panel (Fig2) Line/Mic switch: - Press this switch for a mic level input and release for a line level input. Audio Input: - Combination XLR and JACK socket suitable for microphones and line level equipment. Clip LED (PEAK):- When the signal level is close to peak, this LED lights up. Please reduce the signal level to avoid distortion.
- Page 7 MF knob: - It boosts or attenuates MF more than 2.5KHz by 12dB. LF knob: - It boosts or attenuates 15d B of LF below 100Hz. Volume knob (LEVEL) Line out connector (LINK): - Balanced XLR output to link with another active speaker cabinet or other equipment.
- Page 8 5. Installation The Fortissimo MKll Series of loudspeakers can be suspended or mounted on a 35mm speaker stand, or be used as stage monitor. Suspension: The Fortissimo MKll Loudspeakers have 5x M10 suspension points: Top = 2 Bottom = 1 Side = 2 M10X20 ring bolt can be...
- Page 9 6. Optional parts Optional parts are available. Please contact our sales team or check our website: www.studiospares.com. 7. Specification (Passive) Model Type 10” 2 way passive full range speaker 12” 2 way passive full range speaker cabinet. cabinet. Frequency Response 60Hz –...
- Page 10 Model Type 15" 2 way passive full range speaker cabinet Frequency Response 45Hz--20KHz Sensitivity 97dB Impedance 8Ω Rated Power 300W (RMS), 1200W (Peak) Crossover Frequency 2.0kHz LF Unit 15R MFLF /65mm voice coil/300W HF Unit 34mm compression driver/1 inch throat/30W Coverage 90°x60°...
-
Page 11: Troubleshooting
20.2kg 8. Service Information If you have a problem with your Studiospares product or think it has developed a fault you should first carefully check the Trouble Shooting section in this guide. If this does not solve the problem or if the product is physically damaged, contact your nearest branch for service details.
