Summary of Contents for Wärme WH-20P
-
Page 2: Table Of Contents
TABLE OF CONTENTS Technical Data Safety Instructions Product Description Display Control Panel Assembly Free Standing Option • Wall Mounting • Use and Operation Switching Your Wärme Designer Heater On/O • Child Lock Function • Setting The Temperature • Timer Function •... -
Page 3: Technical Data
Any failure caused by ignoring the items and cautions mentioned in this user manual are not covered by our warranty. TECHNICAL DATA Item number WH-20P Power supply 230 V ~ 50 Hz Power consumption 2000 W Safety Instructions •... -
Page 4: Product Description
PRODUCT DESCRIPTION LCD Screen Control Panel Glass Screen Foot Wall Bracket For more information visit: www.designerheater.com... -
Page 5: Display
PRODUCT DESCRIPTION Display 24 hour scale (each dot represents 30 minutes) Temperature Child Lock Monday Comfort mode Tuesday Wednesday Economy mode Thursday Free-frost mode Friday Saturday Sunday Heating icon-if on, indicates that heating process is activated Programmed weekly heating mode Clock Instant heating mode Control Panel... -
Page 6: Assembly
Assembly Free Standing Option Attach the two plastic feet to the bottom of the appliance with the delivered screws. Be sure to place your Wärme Designer Heater on a flat surface. Wall Mounting Finding a suitable location: Your Wärme Designer Heater must be installed so that airflow is not obstructed. -
Page 7: Use And Operation
Use and Operation Switching Your Wärme Designer Heater On/Off Plug the heater into a safe and convenient place. Press the key to activate the menu. The LCD display will show the current temperature and the set time (default 12:00). Child Lock Function To unlock the heater, press and hold the key for 5 seconds until it beeps. -
Page 8: Setting The Time
Use and Operation Setting The Time Please note, you must set the time in weekly program mode. To set the time press the key. TIME The hour will flash on the LCD display. Set the hour using the arrows. Confirm by pressing the key again. -
Page 9: Heating Mode
Heating Modes Heating Modes Your Wärme Designer Heater has two di erent heating modes: • Instant Heat Mode • Programmed Weekly Heating Mode Press the key and use the arrows to select the desired mode. The icon of the selected mode PROG will be highlighted at the bottom of the LCD display. -
Page 10: Programmed Weekly Heating Mode
Heating Modes Programmed weekly heating mode This mode is designed to represent a segment plug timer. Please note: the circle that goes around the time and temperature starts at midnight and each dot represents half an hour. To enter Programmed weekly heating mode, press the key and use the arrows until the PROG... -
Page 11: Cleaning And Care
Cleaning And Care Cleaning and Care Maintenance Always disconnect your Wärme Designer Heater and let it completely cool before any maintenance. Use a vacuum cleaner to remove dust on the grilles. Clean the outside of the unit with glass cleaner. Never immerse the unit in water nor let water drip into the unit. - Page 12 w w w.d e si g n e r h e ate r.co m...
Need help?
Do you have a question about the WH-20P and is the answer not in the manual?
Questions and answers

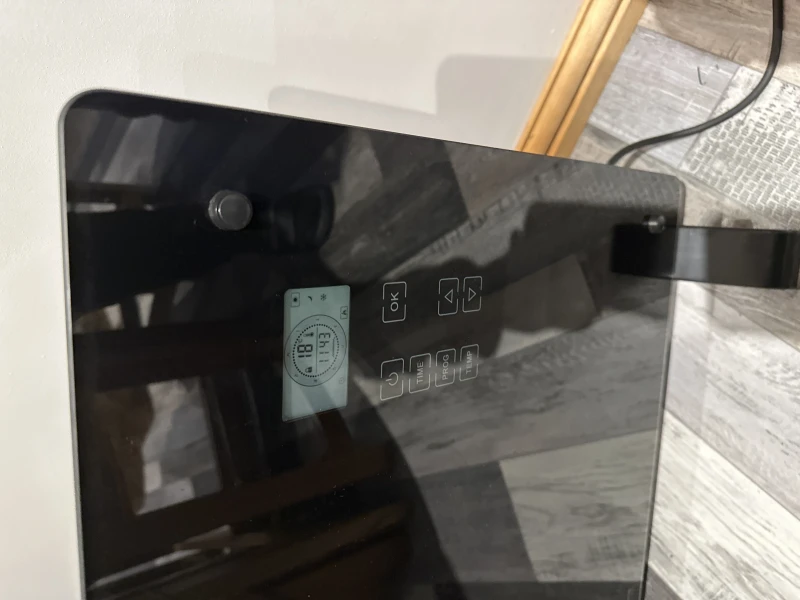

Temperature stuck on 15 and i can't change the temperature
The Wärme WH-20P heater may be stuck at 15°C due to being in "Free-frost mode," which maintains a low temperature to prevent freezing. To change the temperature, adjust the settings using the control panel:
1. Press the TEMP key to adjust the temperature.
2. Use the up or down arrows to set the desired temperature.
3. Confirm the selection by pressing OK.
If the heater is locked, unlock it first before making changes.
This answer is automatically generated

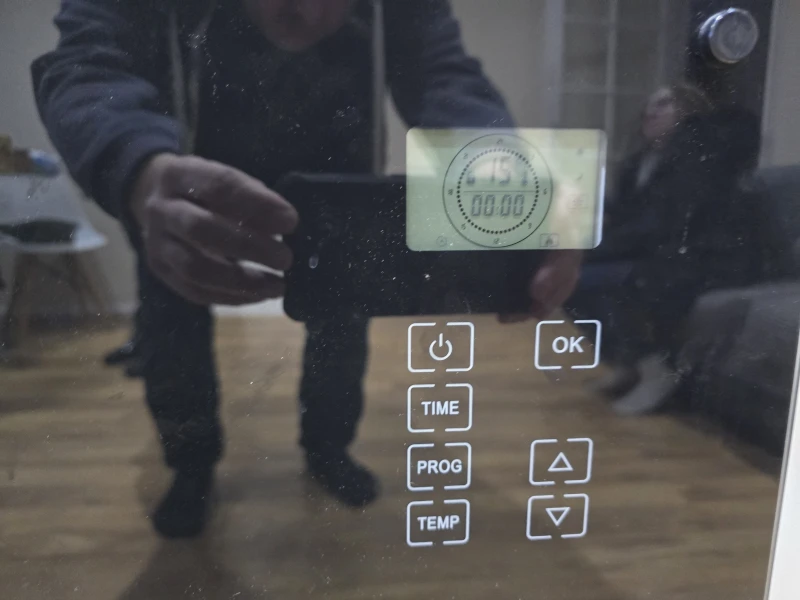

How do u take the timer off
