- Page 1 DPS Series DPS-10 DPS-12 U S E R ’ S M A N U A L A u d i o / V i d e o S u b w o o f e r S y s t e m...
- Page 2 C a u t i o n w w w . v e l o d y n e . c o m DPS User’s Manual...
-
Page 3: Table Of Contents
Ta b l e o f C o n t e n t s Congratulations ........... .1 Installation . -
Page 4: Congratulations
C o n g r a t u l a t i o n s Congratulations on your purchase of a Velodyne Digital Power Slot™ (DPS) subwoofer system. This system represents the state-of-the-art in low frequency reproduction. Read and follow the instructions below to insure safe and proper system operation. -
Page 5: Installation
I n s ta l l a t i o n Your new subwoofer system provides for a number of installation options. Read all the installation information below in order to determine which installation option is best for your system. Remember to perform all installation procedures with system power turned off. Figure 1. - Page 6 The following table indicates musical style and which preset is recommended for it. Musical Style Action Adventure Movies Alternative Rock Blues Broadway and Vocalists Children’s Music Christian and Gospel Classic Rock Classical Country — Rock Country — Soft Dance and DJ Folk Hard Rock and Metal Indie Music...
- Page 7 The following table shows the settings for various presets: Subsonic Filter Preset Frequency Movies 24 Hz R&B – Rock 27 Hz Jazz – Classical 24 Hz (Reference) Games 34 Hz RESTORE DEFAULTS – This feature allows you to restore default settings for your DPS subwoofer.
- Page 8 IMPORTANT NOTE: Some manufacturers preset their receivers with the Sub-Out channel signal at a minimum level. It is very important to verify that your receiver Sub-Out channel is set to the same output level, or higher, as your front right and left channels. Refer to your receiver manual for the individual channel level adjustment procedure.
-
Page 9: Rear Panel Connections
Figure 2. DPS Rear Panel Connections R e a r Pa n e l C o n n e c t i o n s Figure 2 shows the connections on the rear panel of the DPS. Following are brief descriptions of the connections described in Figure 2. -
Page 10: Rear Panel Connections - Detailed Explanation
(B) SPEAKER LEVEL INPUT Terminals Connect these input terminals to the speaker output terminals of your amplifier or receiver. If you use this method of connection, when you go to the receiver speaker set up menu, make sure you select the large speaker option. Note: Do not use both the LINE INPUT/LFE INPUT connections and SPEAKER LEVEL INPUT connections simultaneously. - Page 11 S p e a k e r L e v e l O u t p u t When connected in this fashion, your satellite speakers will be fed the same input signal as the subwoofer. This removes the lower bass from your satellites, enabling them to do a better job reproducing high frequencies and giving your receiver’s amp more headroom (up to 50% more power).
-
Page 12: Placement
P l a c e m e n t True subwoofers operate at extremely low frequencies, which are primarily omni-directional. While it is recommended that the subwoofers be placed on the same plane as the satellite speakers, room and system conditions often dictate otherwise. Keep in mind that frequency response and output level can be drastically influenced by placement, depending on the acoustic properties of your listening room. -
Page 13: Troubleshooting And Service
T r o u b l e s h o o t i n g a n d S e r v i c e Before seeking service for your amplifier or subwoofer, please re-check all systems. Following is a simple troubleshooting guide to assist you. 1. -
Page 14: Specifications
S p e c i f i c a t i o n s Specifications Driver Amplifier (Class A/B) Frequency Response Low-Pass Crossover Inputs Outputs Magnet Voice Coil Warranty Cabinet (H/W/D) (cm) Shipping Weight (approx.) Specifications are subject to change without notice. w w w . -
Page 15: Velodyne Products
V e l o d y n e P r o d u c t s 120V DD Series ® DD-10 DD-12 DD-15 DD-18 Digital Drive 1812 Signature Edition DLS™-R Series DLS-3500R DLS-3750R DLS-4000R DLS-5000R DPS™ Series DPS-10 DPS-12 MicroVee™ ®... - Page 16 Register. . . ON LINE . . . It’s faster . . . and easier VELODYNE ACOUSTICS, Inc. (“VELODYNE”) warrants all electronics for a period of three years, drivers for a period of five years, and full range speakers for a period of five years. All VELODYNE products have a warranty from the...
- Page 17 Velodyne Acoustics, Inc. 345 Digital Drive Morgan Hill, CA 95037 408.465.2800 voice 408.779.9227 fax 408.779.9208 service fax www.velodyne.com Service E-mail: service@velodyne.com Product E-mail: help@velodyne.com Technical E-mail: techhelp@velodyne.com 63-DPS1012 Rev B JUN07 w w w . v e l o d y n e . c o m...
Need help?
Do you have a question about the DPS SERIES DPS-10 and is the answer not in the manual?
Questions and answers

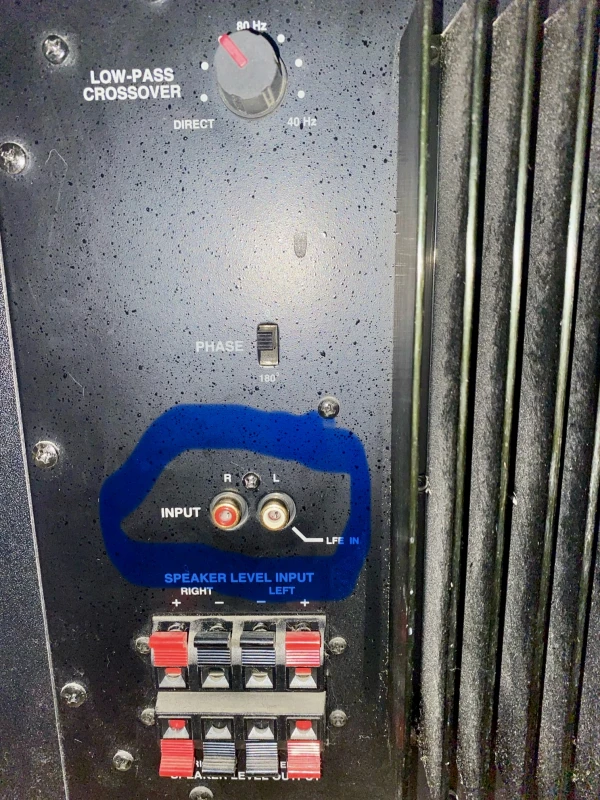

Where to get a new Input / LFE In Replacement RCA Jack? Mine got loose and started to hum when the wire got moved or if the bass made it move. I can wiggle it a bit. I can put it one, even if it needs soldering.
