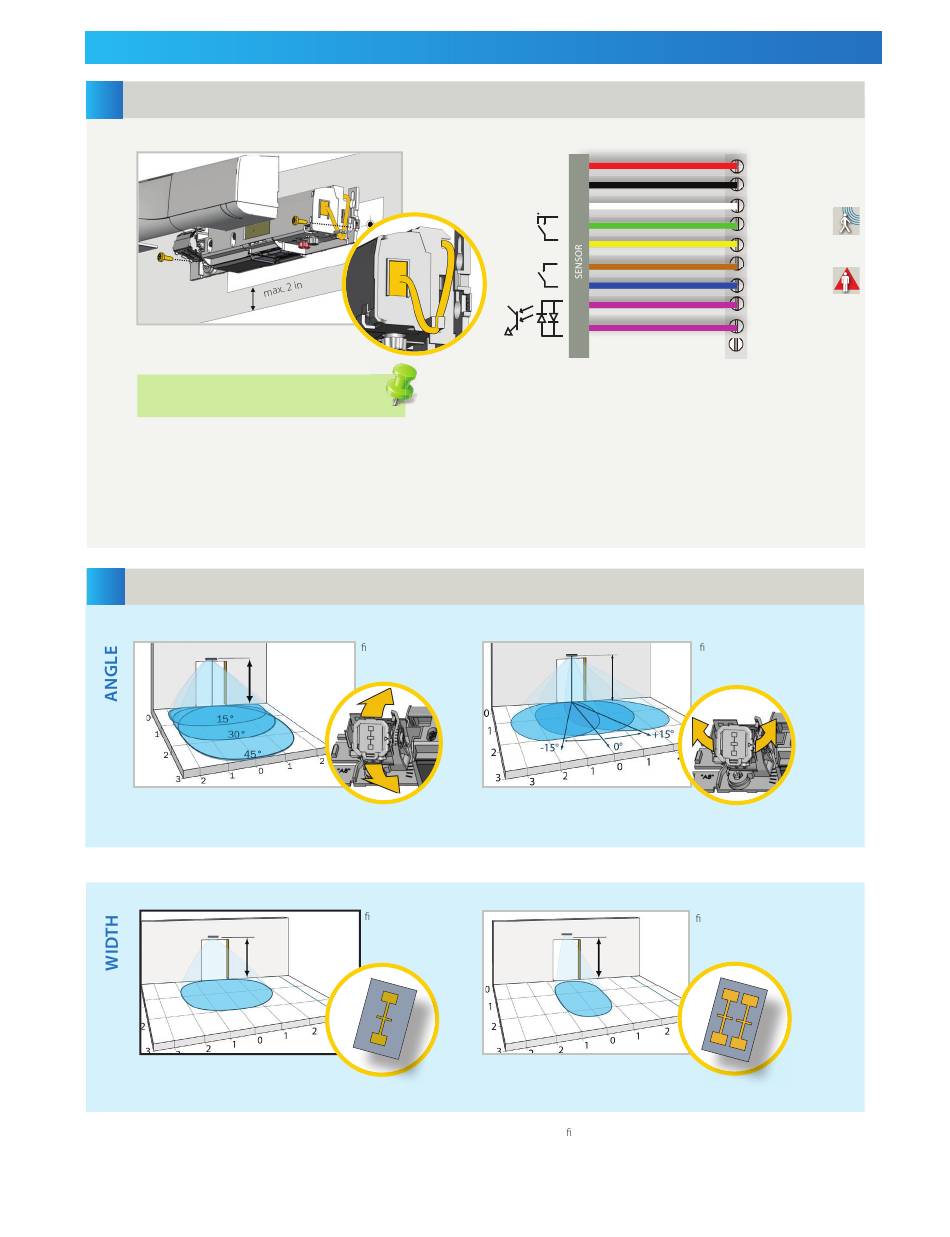

IXIO-DT1: INSTALLATION GUIDE
1
MOUNTING & WIRING
Mounting is compatible with the WIZARD.
Sensor connectivity (power and relays) must utilize only the supplied harness.
Sensor power must be supplied from a Class 2 supply source limited to 15 W.
Sensor is intended to be monitored for proper operation by the door operator or system.
Harness shall be routed separated from any Mains or non-Class 2 voltage cable for correct operation or shall be rated for the Mains voltage,
and suitable protection and routing means shall be used according to National and Local Codes to prevent damage to the harness.
2
RADAR OPENING IMPULSE FIELD
7.2 ft
from 15° to 45°, default 30 °
7.2 ft
13 ft x 6.5 (wide)
Page 2 of 8
12-24 V AC, 50/60 Hz
12-30 V DC
Max 2.5 W
*
*
eld size: 9
immunity: 2
from -15° to 15°, default 0°
eld size: 9
immunity: 2
6.5 x 8 ft (narrow)
The size of the detection eld varies according to the mounting height of the sensor.
RED
BLACK
WHITE
GREEN
YELLOW
BROWN
BLUE
PURPLE
PURPLE
* Output status when sensor is operational
eld size: 9
immunity: 2
7.2 ft
eld size: 9
immunity: 2
7.2 ft
75.5751.08 IXIO-DT1 UL 201601220
POWER SUPPLY
OPENING INPUT
SAFETY INPUT
TEST
OUTPUT
