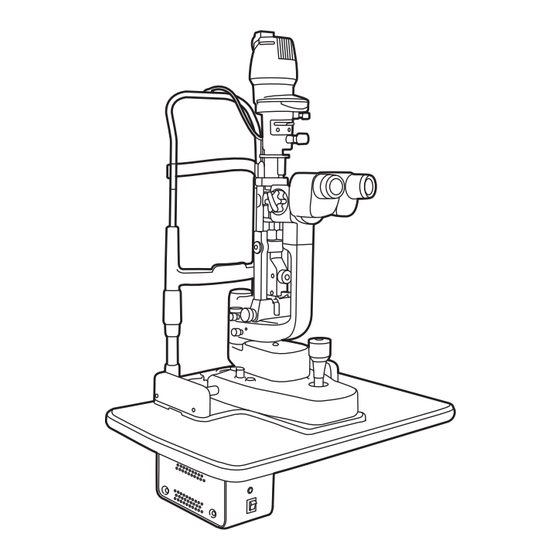

- Page 1 INSTRUCTION MANUAL SLIT LAMP SL-D701...
-
Page 3: Purpose Of This Manual
INTENDED USE / INDICATIONS FOR USE The Slit Lamp SL-D701 is an AC-powered slitlamp biomicroscope intended for use in eye examination of the anterior eye segment, from the cornea epithelium to the posterior capsule. It is used to aid in the diagnosis of diseases or trauma which affect the structural properties of the anterior eye segment. -
Page 4: General Safety Information
U.S., European and other international medical device design and manufacturing standards. Unauthorized mod- ification of the Topcon SL-D701 software or hardware, or any addition or deletion of any application in any way can jeopardize the safety of operators and patients, the performance of the instrument, and the integrity of patient data. -
Page 5: Electromagnetic Compatibility (Emc)
CAUTION Ensuring the Safety of Patients and Operators Be careful not to let the patient touch this instrument. The patient's hand may be pinched by the movable part. To avoid burns caused by heat, do not replace the lamp with a new one immediately after it goes off. To avoid injury to the patient's head, incline the illumination unit slowly while holding the base unit. -
Page 6: Displays And Symbols For Safe Use
DISPLAYS AND SYMBOLS FOR SAFE USE In order to ensure the safe use of the product and to prevent danger to the operator and others, or damage to prop- erty, important warnings are placed on the product and inserted in the instruction manual. It is recommended for all users to take note of the meaning of the following displays and icons before reading the "GENERAL SAFETY INFORMATION"... -
Page 7: Positions Of Warning And Caution Indications
POSITIONS OF WARNING AND CAUTION INDICATIONS To ensure safety, warning labels are provided on the instrument body. Use the instrument following these warning instructions. If any of the following labels are missing, contact your dealer or TOPCON (see the back cover). Label Meaning... -
Page 8: User Maintenance Items
MAINTENANCE USER MAINTENANCE ITEMS Item Inspection time Contents Inspection Before using • Adjusting the diopter and pupillary distance • Focus of slit image • The base unit must move smoothly. • The components must be fitted in place correctly. • The chinrest unit must be fitted to the table unit correctly. •... -
Page 9: Specifications And Performance
SPECIFICATIONS AND PERFORMANCE SPECIFICATIONS Microscope unit Type Galileo type Magnification Drum, 5-step magnification Magnification steps 6/10/16/25/40 6.37 (φ35.1mm) 9.94 (φ22.5mm) Overall magnification (actual vision field) 15.87 (φ14.1mm) 25.37 (φ8.8mm) 39.62 (φ5.6mm) Magnification: 12.5x Eyepiece lens Diopter adjustment range: -5D to +5D Binocular tubes PD adjustment: 55 to 78mm Illumination unit... - Page 10 Agency Compliance The SL-D701 is designed to comply with the following agency standards: • IEC 60601-1: 2005 Ed3.0 • EN60601-1: 2006/AC:2010 • IEC 60601-1-2 Ed3.0: 2007/EN60601-1-2:2007/AC:2010 • AAMI/ANSI ES60601-1:2005/A32:2010 • ISO 10939:2007 • ISO 15004-1:2006 • ISO 15004-2:2007 • EC Medical Device Directive 93/42/EEC...
-
Page 11: General Information On Usage And Maintenance
To keep the eye open. To understand and follow instructions when undergoing an examination. INTENDED USER PROFILE The SL-D701 SLIT LAMP is an electric instrument for medical use. Use this instrument under a doctor's guidance. ENVIRONMENTAL CONDITIONS FOR USE Temperature: 10°C to 40°C... -
Page 12: Dimensions And Weight
DIMENSIONS AND WEIGHT Dimensions, Weight Dimensions: w/Table 550mm(W) x 399mm(D) x 760 to 790mm(H) w/ Unit Table 440mm(W) x 399mm(D) x 760 to 790mm(H) w/o Table 329mm(W) x 349mm(D) x 652 to 682mm(H) w/o Table and Chinrest 329mm(W) x 306mm(D) x 652 to 682mm(H) Weight: w/Table 19kg w/ Unit Table... -
Page 13: Usage Method
USAGE PURPOSE, FUNCTION AND EFFECTS This instrument is used for the enlargement observation of eyeballs and the parts. OPERATING AND USAGE METHOD Usage method If required, use with the supplied accessories. Connect the power supply cord to a commercial power source. Turn ON the power switch. - Page 15 • Defective condition: Please provide us with as much detail as possible on the problem. SLIT LAMP SL-D701 INSTRUCTION MANUAL The 2013 version (2013.08-100TH Date of issue: Sep 18, 2013 Published by TOPCON CORPORATION 75-1 Hasunuma-cho, Itabashi-ku, Tokyo, 174-8580 Japan. ©2013 TOPCON CORPORATION ALL RIGHTS RESERVED...
- Page 16 SLIT LAMP SL-D701 44701 90910 Printed in Japan 1309-100TH...
