INNOVAPLAS FIESTA 1001-N-C-S Manufacturer's Instructions page 3

E

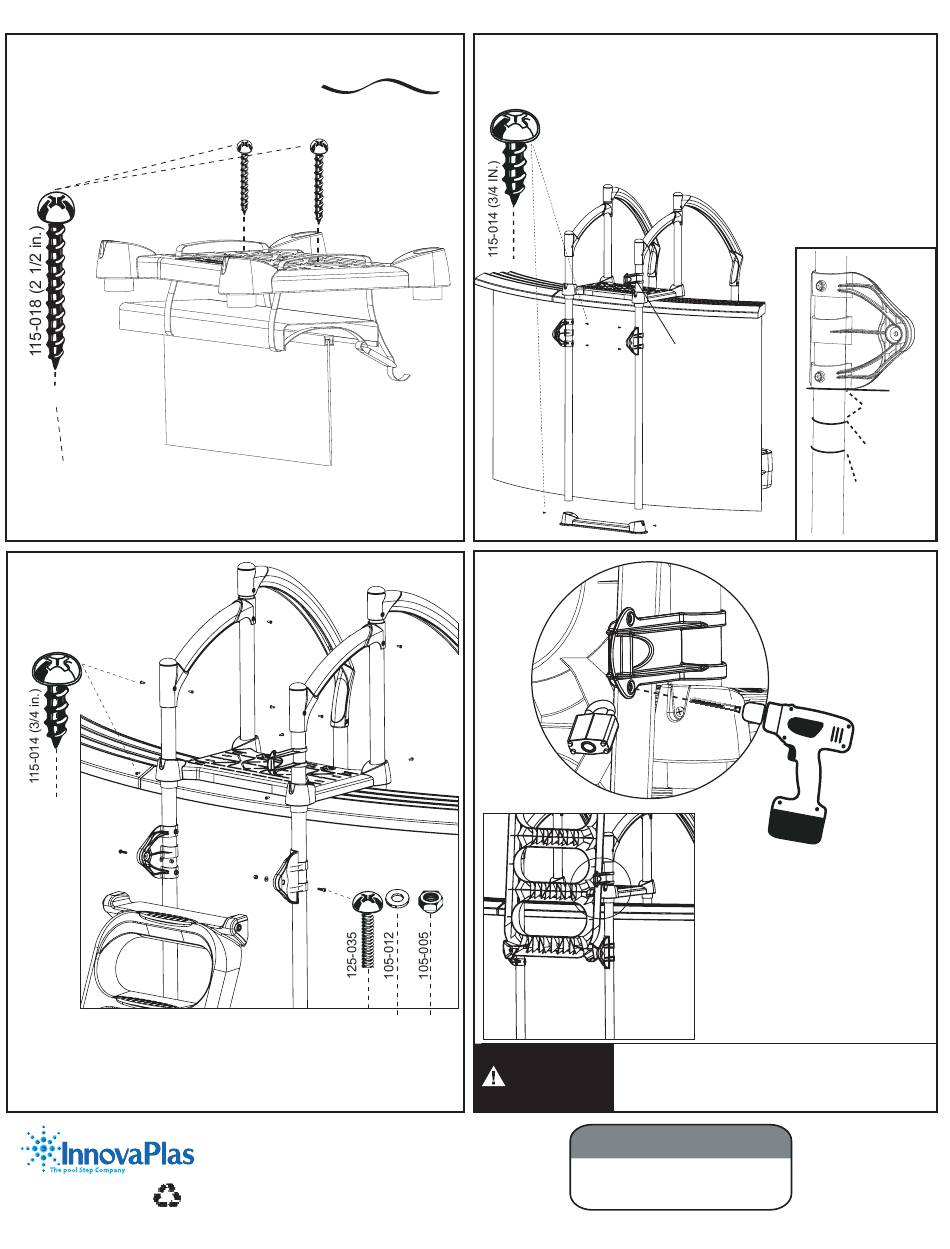

1) Once the step is in the pool
secure the platform to the top
seat (see illustration) using the
two straps provided.
x2
OPTIONAL
:
Once the pool step has been completely assembled and secured to the
pool, attach the 2 screws supplied through the platform to the top seat of
your pool to provided a more rigid assembly.
G
x12
1) Secure the handrails and
platform to the posts with the
screws provided.
370 Lajeunesse St,
St-Jérome (Québec),
Canada J7Y4E5
Security strap
x2
x2 x2
x2
2) Secure the ladder to the
pivot blocks using the bolts,
washers and nuts provided.
WWW.INNOVAPLAS.COM
F
1) Trace a line on each post at 39 inches from the ground for 48'' &
52'' pools. If you have a 54'' pool, trace a line at 40.5'' from the ground.
2) Slide the pivot blocks onto the posts and line up with
the traced marks. Secure with the screws provided.
x6
H
SWING THE LADDER UP AND LOCK IN
PLACE WHEN THE POOL IS NOT IN USE
WARNING
TO PREVENT DROWNING AND
UNAUTHORIZED ENTRY.
MANUFACTURER
WARRANTY
1 year on the ladder
and step.
1 year on the hardware.
3) Slide the 2 posts through
the platform and handrails and
slide the lock in place .
4) Secure the ladder base to the
post with the screws provided.
lock
Use sliding lock as a guide to drill
hole into ladder in up position.
Use a 5/16'' drill bit.
**PADLOCK REQUIRED**
REV. 29/03/11
align
54''
48'' & 52''
