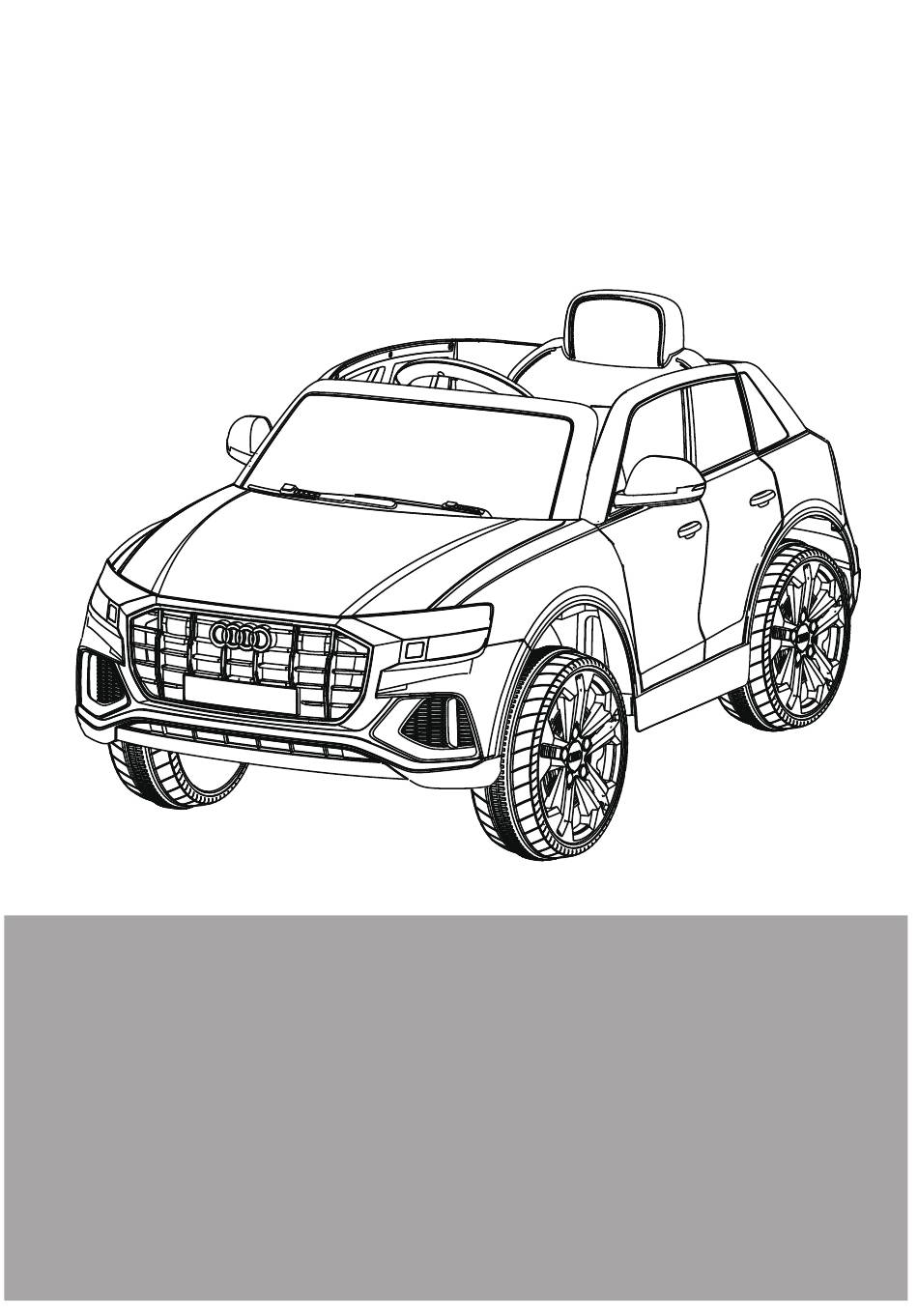

AUDI Q8
BATTERY OPERATED RIDE-ON
Owner's Manual
with Assembly Instructions
Styles and colo(u)rs may vary.
Made in China.
The owner's manual contains important safety information as well as assembly, use and
maintenance instructions.
The Ride-on Car must be assembled by an adult who has read and understands the
instructions in this manual.
Keep the package away from children and dispose of properly before use.
Keep this manual for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AUDI Q8 and is the answer not in the manual?

Questions and answers

Related Manuals for Jiajia AUDI Q8

Summary of Contents for Jiajia AUDI Q8

  • Page 1 AUDI Q8 BATTERY OPERATED RIDE-ON Owner’s Manual with Assembly Instructions Styles and colo(u)rs may vary. Made in China. The owner’s manual contains important safety information as well as assembly, use and maintenance instructions. The Ride-on Car must be assembled by an adult who has read and understands the instructions in this manual.
  • Page 2 Follow the recommendations in this manual, they are designed to improve the safety and operation of your ride-on car and it’s rider. Audi Q8 Electric Ride-on manufactured by Zhejiang Jiajia Ride-on Co.,Ltd. (Address: Xincang Industrial Zone, Xincang Town, Pinghu City, Zhejiang Province, China). Trademarks, design patents and copyrights are used with the approval of owner AUDI AG.

  • Page 3: User Notice

    User Notice │ 2 WARNING! • CHOKING HAZARD - Small parts. Not suitable for children under 36 months. The product contains small parts, keep children away when assembling. • ADULT ASSEMBLY REQUIRED. • Always remove protective material and poly bags and dispose before assembly.

  • Page 4: Parts Diagram

    Parts Diagram │ 3 HINT: Some parts shown are assembled on both sides of vehicle...

  • Page 5: Parts List

    Parts List │ 4 Q’ty (pcs) PART REMARKS PART NAME Vehicle body Rear gear box 2WD 1 PC labeled “R”, the other one labeled “L” Rear wheel Front wheel Ø10 washer Lock nut Hubcap View mirror Left and right Steering wheel M5x40 machine screw Placed on the steering wheel Ø5 nut...
  • Page 6 Attach the Rear Wheels │ 5 HINT: If your vehicle is Two / Four Wheels Driving Type, see the next page please. Rear Bottom View Remove all the parts from the rear axle. 1. Slide the rear gear box onto the rear axle from Left Side (“R” labeled gear box should be fit to the “R”...
  • Page 7 Attach the Rear Wheels │ 6 Rear Bottom View Remove all the parts from the rear axle. 1. Slide the rear gear box onto the rear axle. “R” labeled gear box should be fit to the “R” side of vehicle body; “L” labeled gear box should be fit to “L” side of vehicle body.

  • Page 8: Attach The Front Wheels

    Attach the Front Wheels │ 7 Front Bottom View Remove all the parts from the front axle. 1. Slide a Ø10 washer onto the front axle. 2. Slide a front wheel onto the front alxe. 3. Slide a Ø10 washer onto the front axle. 4.

  • Page 9: Attach The Steering Wheel

    Attach the Steering Wheel │ 8 HINT: If the steering wheel of your vehicle equipped with the sound function, please follow the steps 1-4 to add the batteries (Not Included), and refer to the battery information on page 2. 1. With a screwdriver remove the screw on the battery cover located in the center of the steering wheel.

  • Page 10: Connect The Power Supply

    Connect the Power Supply │ 9 Rear Top View Red battery White vehicle connector connector White motor Red vehicle connector connector 1. Plug the red fuse connector into the terminal on battery. 2. Plug the vehicle connector into the motor connector on body as shown above.
  • Page 11 Attach the Mirrors & Motor Hood(s) │ 10 1. Insert the mirror into the hole on the side of the vehicle. Push until you hear it “click” into place. Repeat for the other side. 2. Fit the motor hood over the motor. 3.
  • Page 12 Attach the View Seat │ 11 Tabs on back of seat 1. Fit the tabs on back of the seat into the grooves on the rear of the vehicle. 2. Insert two M5x16 machine screws through the seat and into the vehicle body, and tighten them with a screwdriver.
  • Page 13 Use Your Ride-on │ 12 1. Power button: Turns the vehicle on and off. 2. Foot pedal: Applies power (speed) to the vehicle. ● To move the car, press the pedal down. ● To brake or slow down, release pressure from the pedal. 3.

  • Page 14: Battery Disposal

    Charging │ 13 WARNING! • ONLY an adult is allowed charge and recharge the battery! • This product with Charging Protection: when charging, all functions will be cut off. • The POWER SWITCH must be turned in OFF position when charging. •...

  • Page 15: Troubleshooting Guide

    Troubleshooting Guide │ 14 Possible Cause Solution Problem Vehicle does not run Battery low on power Recharge battery. Thermal fuse has tripped Reset fuse, see <Fuse> Check that the battery connectors are firmly plugged Battery connector or wires into each other. If wires are loose around the motor are loose contact your distributor please.
  • Page 16 Maintaining │ 15 • It is parents' responsibility to check main parts of the toy before using, Must regularly examine for potential hazard, such as the battery, charge, cable or cord, plug, screws are fastening enclosure of other parts and that in the event of such damage, the toy must not be used until that damage had been properly removed.
