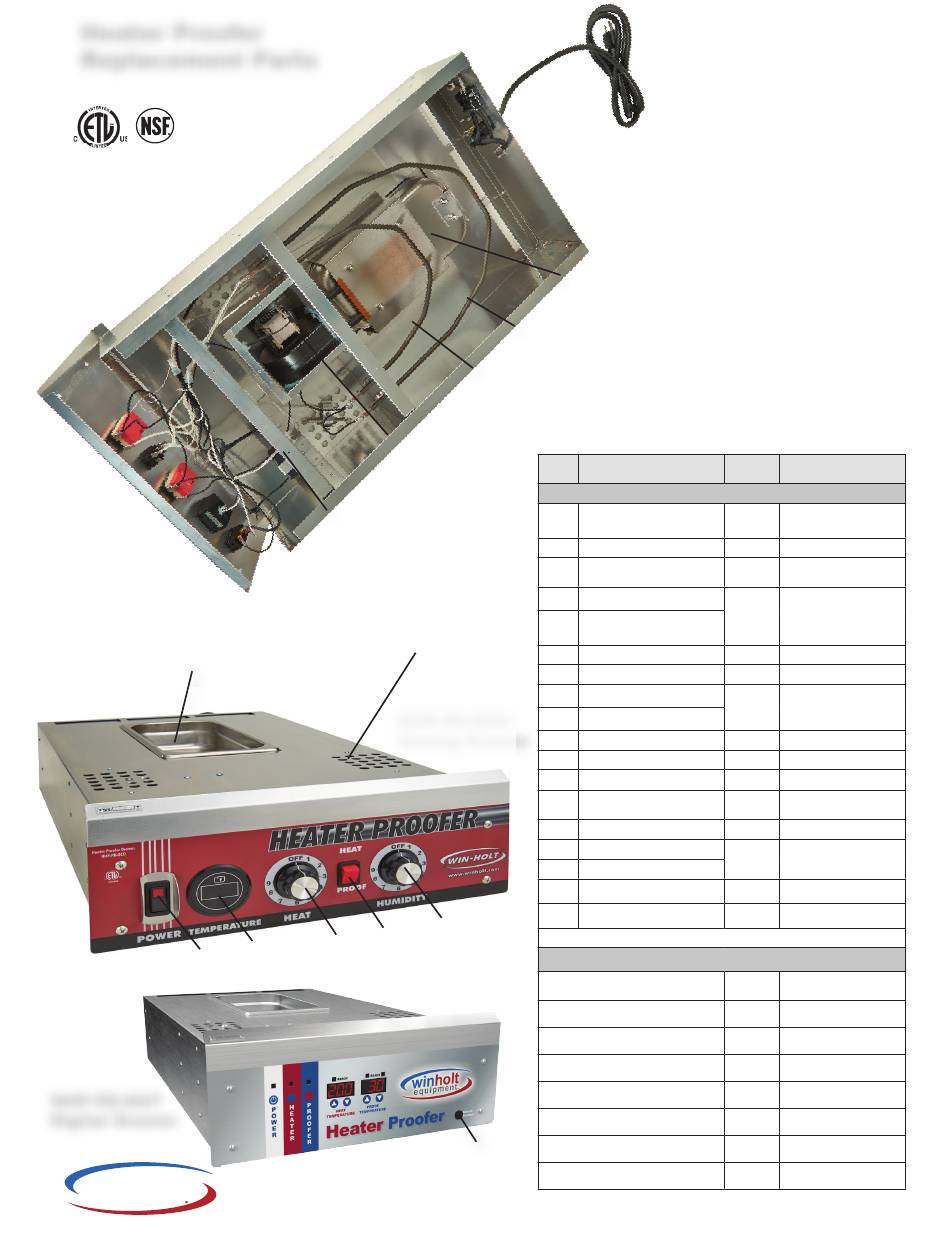

Drawer Assembly And Parts - winholt NHPL-1833-ECOC-2D-DGT Operational, Maintenance & Service Bulletin

Heater Proofer
Replacement Parts
(5)
(3)
(4)
(2)
(1)
Water Pan (12A)
(1)
NHP-PD-DGT
Digital Drawer
winholt
equi p ment
10
(6)
(2A)
Air baffle and
circulating air blower
provide even heat
distribution
NHP-PD-ECO
Analog Drawer
(14)
(3)
(13)
(2)
800.444.3595
(9)
(12)
(10)
(11)
Part
Part Description
Location
Heater Drawer Parts List
Digital Drawer
—
Analog Drawer
1
Main Power Switch
Main Power Switch
1
Units shipped after 5.2013
2
L.E.D. Thermometer
2A
Thermometer Transformer
.
3
Heat/Proof Switch
9
Power Inlet
4
Thermostat (Heat)
5
Thermostat (Proof)
6
Blower & Motor Assembly
10
900W Heater Element
11
600W Heater Element
600W Water Pan Heater
12
Element
12A
Water Pan w/studs
13
Heat Control Knob
14
Proofer Control Knob
15
Circuit Breaker
--- External Drip Pan
Replacement power cord available at local home improvement stores
Cabinet Parts List
Replacement Door Lexan
1836 Series
Replacement Universal Runner (1)
Door Gasket for NHPL-1810HHC
Door Gasket for NHPL-1825UNC
Door Gasket for 1836 Series
Replacement Door Lexan
Universal Runner
Replacement Door Lexan
(15)
Mini Half Height
Plastic Door Handle
| fax: 516.222.0371
Drawer view from upside
down with bottom cover
removed.
Removable Drawers
Makes Cleaning Quick & Easy
HEATER PROOFER
POWER SUPPLY
120VAC 60Hz
13.5 AMP
Order# Model#
1069296 NHP-PD-DGT
631208 NHP-PD-ECO
637108 H-106-2B
987124 H-106-2C
123887 H-105
232784 H-106-1
123908 H-107
170851 H-220
637095 H-225-B
170907 H-226
170915 H-227
170923 H-228
696482 H-242
123916 H-108
1081691 H-249
683665 WHPP6122.5D
247505
NHPL-DR
657150
NHPL-1825-UN-RUNNER
681416
NHPL-1810/HH-DR GSKT
681328
NHPL1825-UN-DR GSKT
650484
NHPL1836-DR GSKT
657459
NHPL-DR/UN
657432
NHPL-DR/HH
233656
H-323-2
