3. Connect the WA-4200 AP's two LAN ports to the two LACP-enabled ports on
the switch.

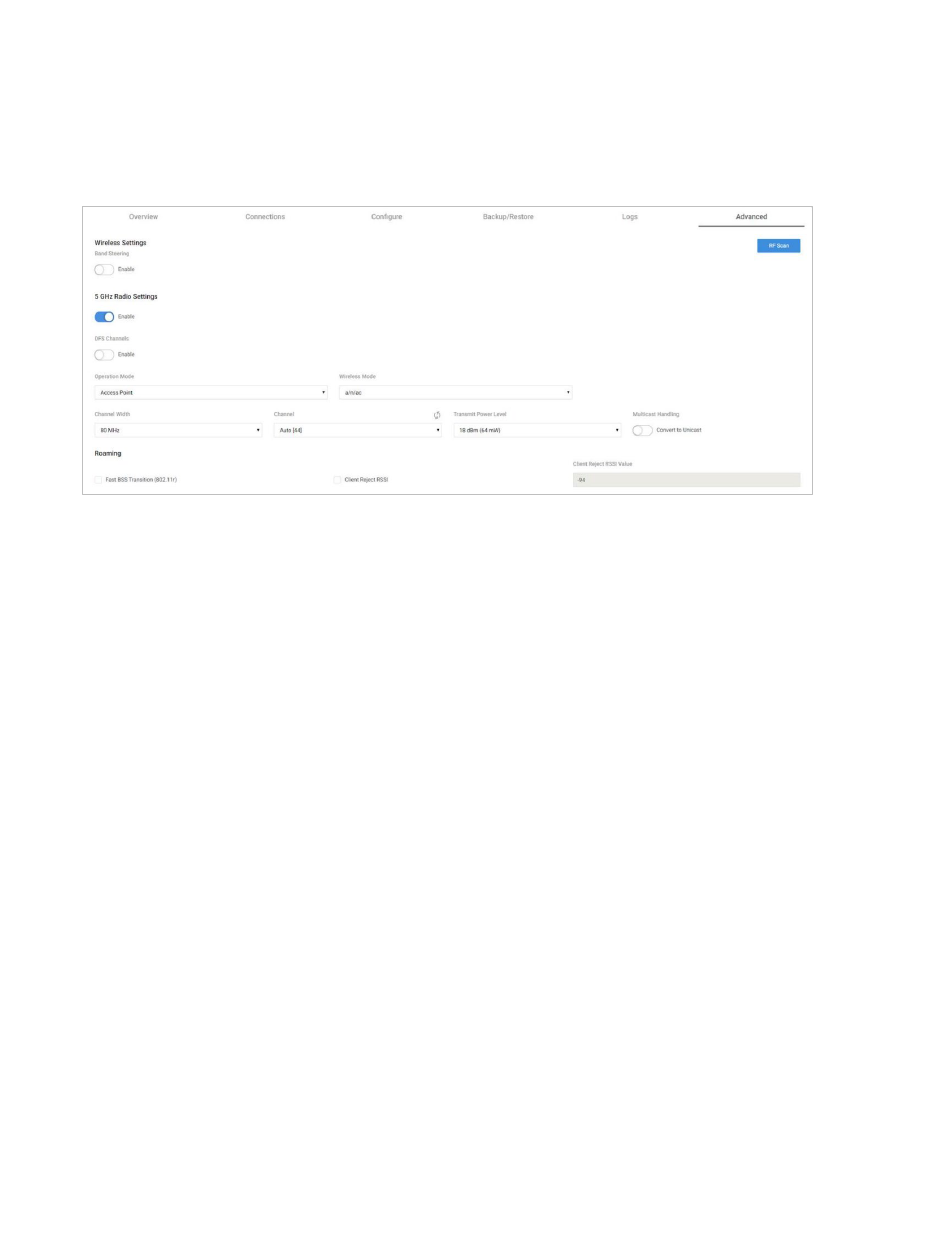

Wireless Settings

Click this tile to configure advanced WiFi radio settings such as channel, power, RF scan,
and roaming features.
• Wireless Settings
Band Steering : Band steering steers 5 GHz-capable clients to that frequency. By
•
enabling this function, the 2.4 GHz SSID and settings will be copied to the 5 GHz
band.
• RF Scan : Click to perform an automatic site survey of RF signals. The AP will scan
the channels for connected devices and will then display them in a table.
5 GHz and 2.4 GHz Radio Settings
•
Enable : Click this toggle to enable this WiFi radio band.
•
• DFS Channels : Enable this toggle to turn on DFS (dynamic frequency selection).
If you see five or more networks when connecting to your home or office Wi-Fi,
chances are your Internet is slower than it should be due to channel interference.
DFS uses 5 MHz radar frequencies, when they are not already in use. If available,
using these frequencies in otherwise congested Wi-Fi space can mean a clearer
Wi-Fi signal and less buffering, fewer interruptions, and better speeds.
Operation Mode : Both the 5 and the 2.4 GHz bands have the following operating
•
modes:
• Access Point : Standard mode of operation. Allows a wireless connection to
the LAN.
WDS Root : The AP with this mode set will be the "root" device that APs
•
configured with WDS Repeater and WDS Bridge will connect to.
WDS Bridge : This mode allows the AP to connect to a WDS Root Access
•
Point. This mode takes in the SSID broadcasted by the WDS Root Access
Point and turns it into Ethernet connectivity for client devices.
WDS Repeater : This mode allows the AP to connect to a WDS Root Access
•
Point. This setting will take the SSID broadcasted by the WDS Root Access
Point and rebroadcast it to end-user devices.
• Additional WDS Bridge and WDS Repeater settings:
•
WDS Root Access Point BSSID
•
WDS Root Access Point SSID
• Wireless Mode : Choose the setting that corresponds to the type of wireless
clients connected to your network. If you aren't sure which type of clients will
access the wireless networks, we recommend you keep the default settings.
11
