Table of Contents 1. Package Contents ..................3 Requirements ..................... 4 3. Wiring the Power Inputs ................5 4. Terminal Setup ................... 7 4.1 Logging on to the Console..............8 4.2 Configuring IP Address via Console ............9 4.3 Storing current switch configuration .............10 5. Starting Web Management .................11 5.1 Logging in to the Industrial Managed Switch .........11 5.2 Saving Configuration via Web ..............14 6. Recovering Back to Default Configuration .............15...

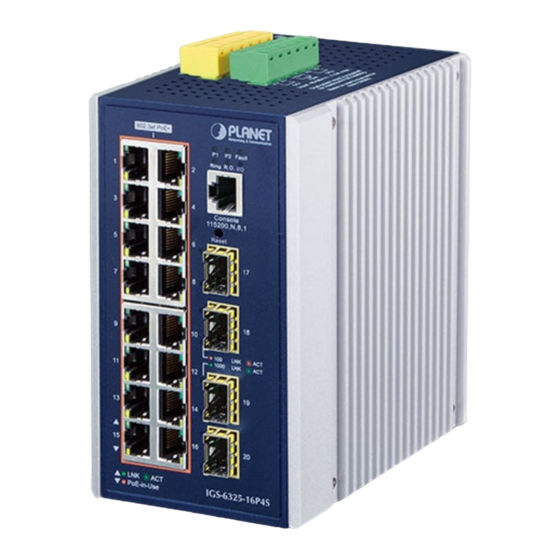

1. Package Contents Thank you for purchasing PLANET L3 Industrial Managed Switch, IGS-6325 DIN-rail series. The descriptions of these models are as follows: Industrial L3 16-Port 10/100/1000T 802.3at PoE + 4-Port IGS-6325-16P4S 100/1000X SFP Managed Ethernet Switch (-40~75 degrees C) Industrial L3 8-Port 10/100/1000T + 4-Port 10G SFP+ IGS-6325-8T4X Managed Ethernet Switch (-40~75 degrees C) Industrial L3 8-Port 10/100/1000T + 8-Port 100/1000X IGS-6325-8T8S4X SFP + 4-Port 10G SFP+ Managed Ethernet Switch (-40~75 degrees C) “Industrial Managed Switch” mentioned in this Quick Installation Guide refers to the above models. Open the box of the Industrial Managed Switch and carefully unpack it. The box...
Requirements The Industrial Managed Switch provides remote login interface for management purposes. The following equipment is necessary for further management: z Workstations running Windows XP/2003/Vista/7/8/2008/10, MAC OS X or later, Linux, UNIX, or other platforms are compatible with TCP/IP Protocols. z Workstations are installed with Ethernet NIC (Network Interface Card). z Serial Port Connection (Terminal) The above Workstations come with COM Port (DB9) or USB-to-RS232 converter. The above Workstations have been installed with terminal emulator, such as Hyper Terminal included in Windows XP/2003, putty or tera term. Serial cable -- one end is attached to the RS232 serial port, while the other end to the console port of the Industrial Managed Switch.
, 7.5A max. Dual power input is required for maximum PoE loading. Refer to user’s manual for more details. Figure 3-1: IGS-6325-16P4S Upper Panel IGS-6325-8T4X/IGS-6325-8T8S4X: 12~48V DC, 24V AC DI1 DO0 DO1 1 2 3 4 5 6 1A@24V 1 2 3 4 5 6...
Page 6
2. Tighten the wire-clamp screws for preventing the wires from loosening. Power 1 Power 2 Model Positive (+) Pin Negative (-) Pin IGS-6325-16P4S IGS-6325-8T4X Pin 1/5 Pin 2/6 IGS-6325-8T8S4X Figure 3-3: The pin of 6-contact terminal block connector The wire gauge for the terminal block should be in the range from 12 to 24 AWG. Please check the wire AWG Ampere specification before connecting Note PLANET Industrial Managed Switch.
4. Terminal Setup To configure the system, connect a serial cable to a COM port on a PC or notebook computer and to RJ45 type serial (console) port of the Industrial Managed Switch. IGS Industrial Managed Switch PC/Workstation with Terminal Emulation Software RJ45 to DB9 RS232 Cable Serial Port Console Port 115200,N,8,1 A terminal program is required to make the software connected to the Industrial Managed Switch. 1. Run terminal program on the OS. 2. When the following screen appears, make sure that the COM port should be configured as: Baud: 115200...
4.1 Logging on to the Console Once the terminal has been connected to the device, power on the Industrial Managed Switch and the terminal will display “running testing procedures”. The following console screen is based on the IGS-6325-16P4S. The display of the IGS-6325 series is the same as that of the IGS- 6325-16P4S.
4.2 Configuring IP Address via Console The Industrial Managed Switch is shipped with default IP address shown below: IP Address: 192.168.0.100 Subnet Mask: 255.255.255.0 To check the current IP address or modify a new IP address for the Switch, please use the procedure as follows: Display of the current IP Address 1. At the “#” prompt, enter “show ip interface brief”. IGS-6325-Series # show ip interface brief 2. The screen displays the current IP address shown in Figure 4-2. Figure 4-2: IP Information Screen Configuration of the IP Address 3. At the “#” prompt, enter the following command and press <Enter>...
The previous command would apply the following settings for the Industrial Managed Switch. IP Address: 192.168.1.100 Subnet Mask: 255.255.255.0 Figure 4-3: Configuring IP Address Screen 4. Repeat step 1 to check if the IP address has changed. 4.3 Storing current switch configuration 1. At the “#” prompt, enter the following command and press <Enter>. # copy running-config startup-config Figure 4-4: Saving Current Configuration Command Screen If the IP is successfully configured, the Industrial Managed Switch will apply the new IP address setting immediately. You can access the Web interface of the Industrial Managed Switch through the new IP address.
5. Starting Web Management The following shows how to start up the Web Management of the Industrial Managed Switch. Note the Industrial Managed Switch is configured through an Ethernet connection. Please make sure the manager PC must be set to the same IP subnet address.
Page 12
Default IP Address: 192.168.0.100 Default User Name: admin Default Password: admin Figure 5-2: Login Screen After entering the password, the main screen appears as shown in Figure 5-3. Switch Menu Sub-menu Figure 5-3: Web Main Screen of Industrial Managed Switch The Switch Menu on the top of the Web page lets you access all the commands and statistics the Industrial Managed Switch provides. The Switch Menu always contains one or more buttons, such as “System”, “Switching”, “Routing”, “QoS”, “Security”, “PoE”, “Ring”, “ONVIF” and “Maintenance”.
Page 13
Figure 5-4: Switch Menu Figure 5-5: Switch Sub-menu Figure 5-6: Switch Sub-menu Now, you can use the Web management interface to continue the Switch management. Please refer to the user manual for more. If you are not familiar with Switch functions or the related param- eter, press “Help icon” anytime on the Web page to get the help description.
5.2 Saving Configuration via Web To save all applied changes and set the current configuration as a startup configuration, the startup-configuration file will be loaded automatically across a system reboot. 1. Click the Save icon on the top Switch Menu bar. 2. Press the “Save Configuration” button. 3. Or the other way to save the setting is to Click Maintenance, Save Startup Config.
Web interface within the same subnet of 192.168.0.xx and default password. Be noted that all the previous setups will be disappeared after the factory default reset is made. 802.3at PoE+ Fault Ring R.O. Console 115200,N,8,1 Reset Button Reset 1000 LNK IGS-6325-16P4S PoE-in-Use Figure 6-1: IGS-6325 Series Reset Button...
