- Page 1 PRESSURISED SPIN CLEAR POND FILTER PFC-5000 / 8000 / 12000 / 20000 / 25000 / 30000 / 50000 FILTRE DE BASSIN PRESSURISE DE NETTOYAGE ROTATIF OUTPUT CONTROL DIAL FILTRO PER LAGHETTO PRESSURIZZATO CON ROTAZIONE FILTRO PRESURIZADO PARA ESTANQUES CON REMOCIÓN MEDIANTE...
- Page 2 To ensure your new pond filter is set up and running correctly, and to prevent any accidental damage or injury, please read and follow the below instructions carefully before using your product. SAFETY IMPORTANT! Disconnect the mains electricity supply before attempting any installation / maintenance of any kind.
- Page 3 To avoid injury, do not touch hot or moving parts such as, but not limited to · UV bulbs or impellers. During maintenance ensure all O-rings are present and intact. · If the appliance shows any signs of water leakage or the RCD unit switches ·...
- Page 4 ELECTRIC This unit comes complete with a generous supply of 3 core cable, however should any additional cable be required, the use of an approved waterproof cable connector with a proper rating is essential. A cord rated for less amperes or watts than the appliance rating may overheat.
- Page 5 The filter is suitable for burying up to the head rim of the unit. Make sure · access to the body of the system is possible for maintenance purposes. Burying the unit will help reduce the distance between the filter and the pond and provide higher return water pressure.

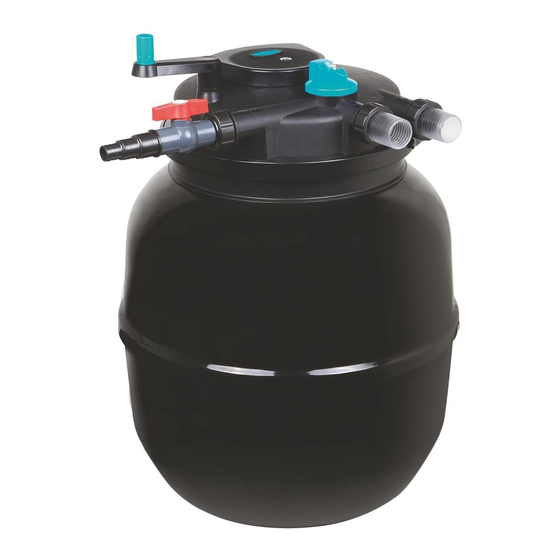

- Page 6 PRODUCT DIAGRAM Water Inlet Point - connects to pond pump Vortex System - centrifugal effect breaks down dirty water Mechanical Filtration Biological Filtration UV Bulb - clarification / sterilisation of water Water Outlet Point - connects to water return Spin Clear Point - maintenance and waste drainage Water Direction Knob - switches between normal and spin clear operation Spin Clear Handle - spins and squeezes the filter foams...
- Page 7 PARTS DIAGRAM UV HEAD COVER PFC LID HEAD CLASP HOSETAILS O-RING SPONGES MAIN HEAD O-RING OUTLET NUT UV SLEEVE FILTER PLATE PFC BODY DISPLAY ROD UV LAMP PLATE HOLDER HANDLE KNOB ROD BEARING UV O-RING MEDIA PLATE HANDLE SHAFT ROD WASHER UV QUARTZ BIO BALLS HANDLE BEARING...
- Page 8 PARTS DIAGRAM PFC-50000 BIO BALLS UV HEAD COVER ROD WASHER UV QUARTZ NUT PFC LID ROD SCREW MEDIA BASKET O-RING HANDLE BEARING SPONGES DIVERTER SCREWS HANDLE KNOB HANDLE SHAFT FILTER PLATE HOSETAIL O-RING DIVERTER PLATE UV SLEEVE PLATE HOLDER INTERNAL CONTAINER OUTLET NUT UV LAMP HEAD CLASP...
- Page 9 UVC OPERATION Always ensure that the filter has water flowing through the unit prior to · operating the UV. Never look directly at the UV light when operational. · Check that the UV is operational visually using the UV indicator. ·...
- Page 10 Filter Maintenance In general, it is recommended to disconnect your PFC and clean the pipes and filter media on a regular basis. Pipework will become blocked with waste and protein slime over time, so regular cleaning is important for optimal performance.
- Page 11 O-rings It is vital that O-rings are regularly inspected and replaced as the rubber watertight seal will perish over time, which may cause your unit to leak. Before replacing your o-rings, ensure they are well lubricated to ensure the seal is kept water tight.
- Page 12 SPECIFICATIONS MODEL PFC-5000 PFC-8000 PFC-12000 PFC-20000 UV POWER (WATTAGE) DIMENSIONS (LxWxH) (mm) 310x310x405mm 380x380x400mm 380x380x510mm 380x380x740mm FILTER BODY VOLUME (L) MAX FLOW RATE (L) 6000 9000 10000 10000 HOSETAIL FITS 20, 25 & 32mm 20, 25, 32 & 38mm CABLE LENGTH...
- Page 13 TROUBLESHOOTING UV Indicator is not Lighting Up If the UV indicator on the top of the filter lid is not lighting up follow these troubleshooting steps: 1. If you find that the UV light is not operational, check that you have power from the mains supply.
- Page 14 1. Make sure the unit is turned on 24 hours a day. Continuous running is needed to maintain a clean and healthy pond. 2. Remove pond waste and leaves and carry out a partial water change. If sludge is present treat your pond with All Pond Solutions Anti Sludge treatment.
- Page 15 3. Reduce feeding. Overfeeding introduces a lot of organic waste and is one of the main causes for cloudy water problems. 4. Make sure to perform regular water changes, check your unit is clean and adequate for your pond size and do not overstock it. My filter is leaking 1.
- Page 16 WARRANTY The All Pond Solutions PFC range is guaranteed against defects in material or workmanship under normal pond usage and comes with 24 months warranty for all electrical parts. The warranty period commences from the date of purchase. If you require support on how to use your unit, replacement parts or if your filter develops a fault during the warranty period, please contact the supplier of your unit.
