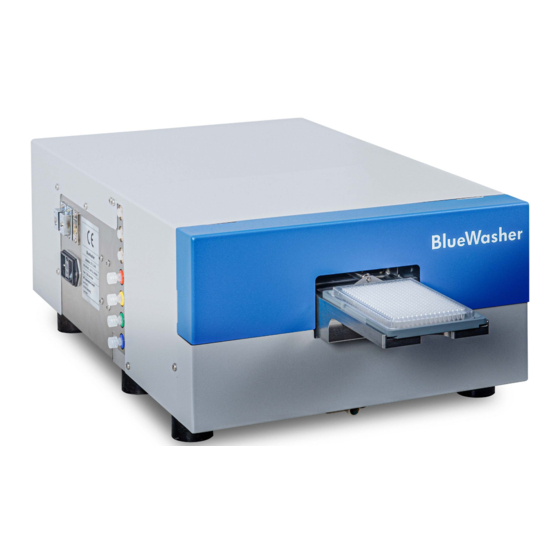

BlueCatBio BlueWasher Quick Start Manual

• Plate guides are required to center 1536w plates underneath dispenser pins to ensure
dispense jets enter wells centrally (in y-direction)
• Plate guides are pre-installed in Blue® Washers ordered with 1536w dispensers
• Plate guides are not needed and can be removed when dispensing into 96/ 384w plates, but
need to be re-installed when resuming 1536w dispensing
• Plate guides are adjustable in height and width. Ensure proper adjustment to plate types and
carriers used
• Warning: plate guides that are adjusted too narrow or low can cause carrier detachment
during homing
Pull off magnetically
attached front cover
and dispenser head
BlueCatBio Europe
Hornungsreuth 22a, DE-95512 Neudrossenfeld
E-Mail: info@bluecatbio.de
Guide: How to install & adjust
Blue® Washer plate guides
Mount guide to balcony
side in orientation shown;
tighten height-adjustment
Loosen width adjustment
Repeat installation on other side
Plate guides with
mounting screws and
washers
screws only lightly
Adjust height (top of
guide to bottom of
dispenser mount) to
approx. 11 mm.
Tighten screws.
screws on top of guide.
