5
Quick Guide
5.1 CORIOmaster mini Capabilities
CORIOmaster mini is a ground breaking system that allows you to display multiple inputs
on multiple output displays. The inputs can be resized, rotated and have borders added for
a creative look. Outputs can be displayed singly or grouped together for video walls or
blended projection. Displays can be off any size, resolution or rotation.
5.2 CORIOmaster mini Terminology
When you use the CORIOmaster control software you will notice references to Inputs,
Windows and Outputs. It is important that you understand what this means and how they
interact before you can fully understand how to get the most from your unit.
Inputs
Inputs are just that - Inputs! An input can be configured and sent directly to one
of the layouts for output.
Layout
A layout is an arrangement of one or more outputs (screens or projectors).
Canvas
Inputs are applied to a canvas to create layouts.
Outputs
Outputs show the resultant set up from the system.
5.3 CORIOmaster mini Modularity
The CORIOmaster mini frame comes as standard with a CPU module and an in built
Universal DVI input (with two inputs) and a single Power Supply Unit.
The modules available for CORIOmaster mini are:-
CORIOmaster mini can accept modules for Universal DVI, 3G-SDI, HD-SDI and
HDBaseT. These modules are factory fit only.
Universal DVI
3G-SDI
HD-SDI
HDBaseT
¹Universal DVI allows the connection of a number of different adaptors for HDMI, VGA, Y/C, Composite, etc.
²Although other modules have two connections, the HD-SDI card allows the connection of four HD-SDI
connections.
³ The HDBaseT module allows for transmission of uncompressed, HDMI quality, video, audio and LAN up to
100m, with good quality cabling. The card has two independent HDBaseT outputs and a single LAN input,
supporting 100BaseT.

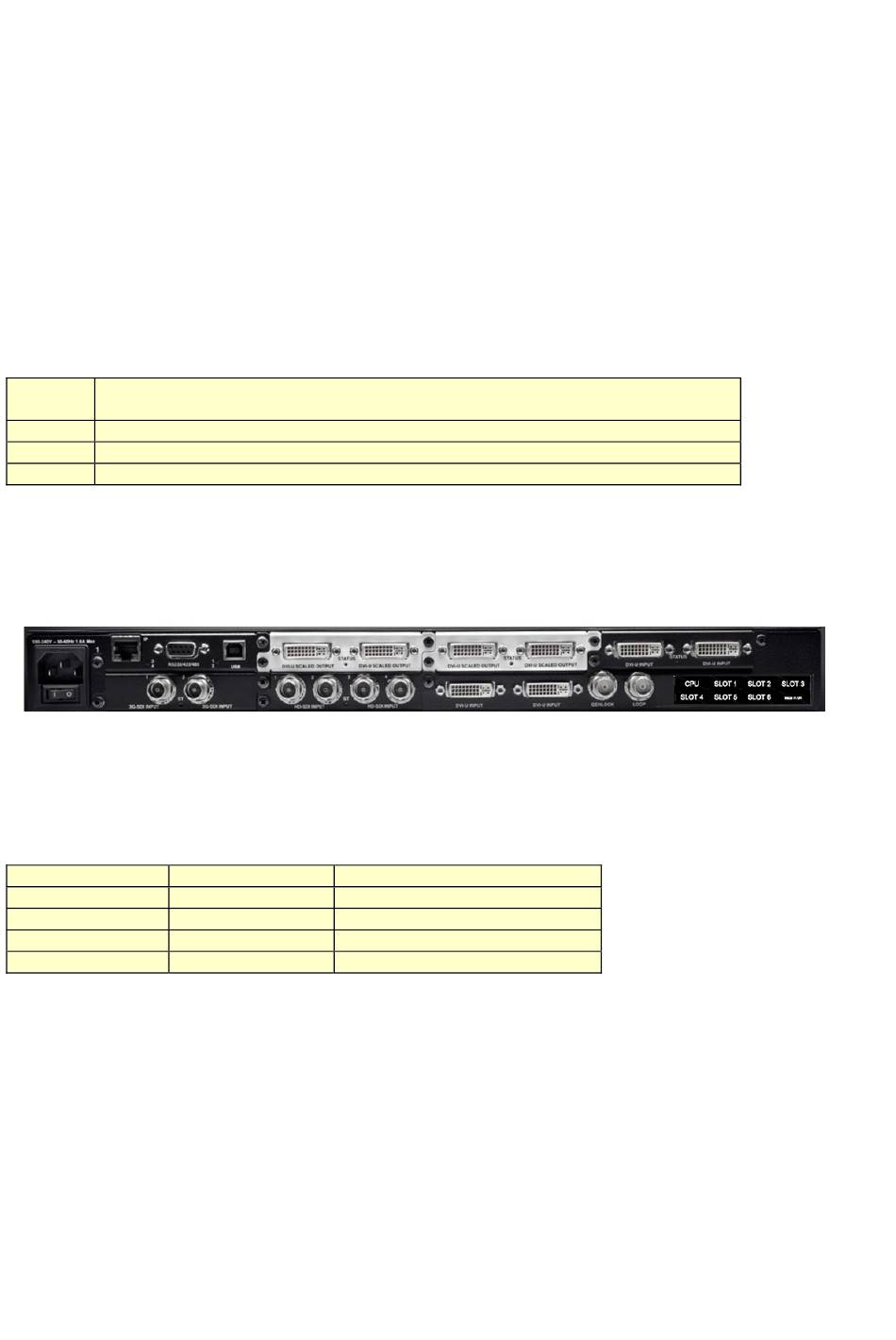

5.4 CORIOmaster mini Connections
The rear of the CORIOmaster mini has a dual Universal DVI input, CPU Card and a Power
Supply with slots available for another 5 input or output modules together with internal
space for an addition power supply.
Input Cards
Output Cards
CM-DVIU-2IN¹
CM-DVIU-SC-2OUT¹
CM-3GSDI-2IN
CM-3GSDI-SC-2OUT
CM-HDSDI-4IN²
-----
CM-HDBT-SC-2OUT-1ETH³
-----
