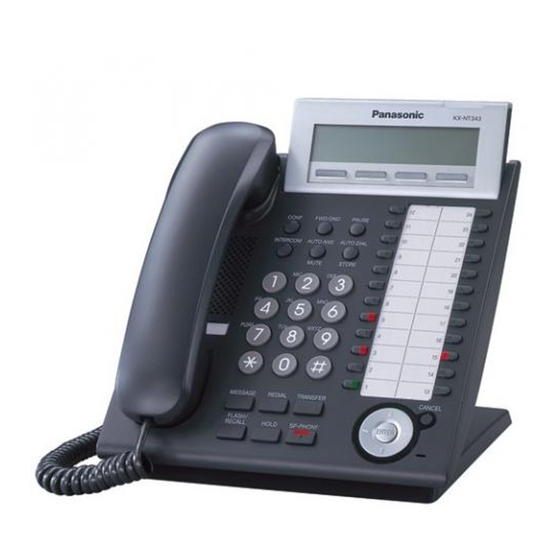

Panasonic KX-NT343 Quick Reference Manual
  1. Manuals
  2. Brands
  3. Panasonic Manuals
  4. IP Phone
  5. KX-NT343
  6. Quick reference manual
Panasonic KX-NT343 Quick Reference Manual

Panasonic KX-NT343 Quick Reference Manual

Proprietary
Hide thumbs Also See for KX-NT343:

Advertisement

Table of Contents

NT300X_QRG.fm Page 1 Friday, June 22, 2007 10:20 AM
<KX-NT346>
KX-NT343/KX-NT346/KX-NT366
Model No.
Thank you for purchasing an IP Proprietary Telephone (IP-PT).
Please read this manual carefully before using this product and save
this manual for future use. For more details, please refer to the
manuals of the PBX.
Note:
In this manual, the suffix of each model number is omitted unless
necessary.
This unit supports the following optional devices and features:
Display
Flexible Outside (CO) Line Buttons
Self Labelling
KX-NT303 Add-on 12 key module
KX-NT305 Add-on 60 key module
KX-NT307(PSLP1528) Bluetooth
Module
KX-A239AL/BX/X/EJ Optional AC
Adaptor
CODEC
Q: Available
*1
KX-NT366 is only available for KX-TDE100/KX-TDE200.
*2
KX-NT305 is only available for KX-TDE100/KX-TDE200.
*3
G.722 is only available for KX-TDE100/KX-TDE200.
• For information on connecting the KX-NT307, refer to the KX-NT307
®
Bluetooth
Module Installation Instructions.
This model supports the following PBX versions:
KX-TDA30: PSMPR Software File version 4.0000 or later
KX-TDE100/KX-TDE200: PMMPR Software File version 1.0000 or later
Trademark:
The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and
any use of such marks by Matsushita Electric Industrial Co., Ltd. is under
licence.
Quick Reference Guide
IP Proprietary Telephone
KX-NT343 KX-NT346 KX-NT366
3-Line
6-Line
24
24
Q
Q
*2
Q
Q
Q
Q
Q
Q
G.729A, G.711, G.722
*1
6-Line
48 (12×4)
Q
Q
Q
*3

Advertisement

Table of Contents
loading

Related Manuals for Panasonic KX-NT343

Summary of Contents for Panasonic KX-NT343

  • Page 1 For more details, please refer to the manuals of the PBX. Note: In this manual, the suffix of each model number is omitted unless necessary. This unit supports the following optional devices and features: KX-NT343 KX-NT346 KX-NT366 Display 3-Line 6-Line 6-Line Flexible Outside (CO) Line Buttons 48 (12×4)

  • Page 2: Location Of Controls

    NT300X_QRG.fm Page 2 Friday, June 22, 2007 10:20 AM Location of Controls L M N <KX-NT346> A LCD (Liquid Crystal E INTERCOM: Used to make or Display) receive intercom calls. B PAUSE: Used to insert a F AUTO ANS (Auto Answer)/ pause when storing a MUTE: Used to receive an telephone number.
  • Page 3 NT300X_QRG.fm Page 3 Friday, June 22, 2007 10:20 AM Location of Controls G AUTO DIAL/STORE: Used Q Microphone: Used for hands for System/Personal Speed free conversations. Dialling or storing programme R Navigator Key: Used to changes. adjust the volume and the H TRANSFER: Used to transfer display contrast or select a call to another party.
  • Page 4 NT300X_QRG.fm Page 4 Friday, June 22, 2007 10:20 AM Settings Speaker volume While in a hands-free conversation Handset/Headset While using the handset or volume headset Press Up to increase Ringer volume While on-hook or receiving a call or Down to decrease the volume.

  • Page 5: Features List

    (CO) Redial REDIAL Quick Dialling quick dial no. One-touch Dialling To store (KX-NT343/KX-NT346) For storing on a KX-NT366, refer to page 13. AUTO DIAL PAUSE PAUSE desired no. * (max. 32 digits) (CO) STORE * Enter outside line access number before outside phone number.
  • Page 6 NT300X_QRG.fm Page 6 Friday, June 22, 2007 10:20 AM Features List System Speed Dialling To dial AUTO DIAL system speed dial no. (3 digits) STORE Doorphone Call doorphone no. (2 digits) C. Tone During a Conversation Call Hold To hold To retrieve a call at the holding extension HOLD INTERCOM...

  • Page 7: Setting The Telephone According To Your Needs

    NT300X_QRG.fm Page 7 Friday, June 22, 2007 10:20 AM Features List Setting the Telephone According to Your Needs Do Not Disturb Both Calls Outside Calls Cancel C. Tone Intercom Calls Timed Reminder To set 12 H hour/minute (4 digits) 24 H hour/minute (4 digits) 1 time...

  • Page 8: Making Use Of The Voice Mail Service

    NT300X_QRG.fm Page 8 Friday, June 22, 2007 10:20 AM Features List Making Use of the Voice Mail Service Listening to a message From your own extension KX-TVM series Listen to Message VPS extension no. Deliver Message Mailbox Password* Mailbox Management * If you have no password, you can skip Automated Attendant the last step.
  • Page 9 NT300X_QRG.fm Page 9 Friday, June 22, 2007 10:20 AM Features List During playback Repeat Voice Guidance Exit • Consult your dealer for more details regarding feature numbers. • It is possible to assign flexible CO buttons as feature buttons. • Control panel/button names and descriptions can be found in “Location of Controls”...

  • Page 10: Using The Lcd Display

    NT300X_QRG.fm Page 10 Friday, June 22, 2007 10:20 AM Accessing Features Using the Display Using the LCD Display It is possible to access the following directories, logs, and menus by pressing left or right on the Navigator Key while this unit is idle: Extension Number Directory System Speed Dialling Directory Personal Speed Dialling Directory...
  • Page 11 NT300X_QRG.fm Page 11 Friday, June 22, 2007 10:20 AM Accessing Features Using the Display Table 2 (Option mode) Times 10 11 12 13 14 15 Buttons " ä ö ü À Á Â Ã Ä Å Æ Ç Ð È É...

  • Page 12: Self Labelling (Kx-Nt366 Only)

    NT300X_QRG.fm Page 12 Friday, June 22, 2007 10:20 AM Self Labelling (KX-NT366 only) The KX-NT366 IP-PT features 12 flexible buttons, with an LCD screen next to the buttons. Each item can be named on the LCD screen through personal or system programming to reflect the function of its corresponding flexible button.
  • Page 13 NT300X_QRG.fm Page 13 Friday, June 22, 2007 10:20 AM Self Labelling (KX-NT366 only) Storing a One-touch Dialling button, and setting the displayed text for the Self Labelling LCD Display AUTO DIAL (CO) PAUSE desired no. * (max. 32 digits) STORE * Enter outside line access number (CO) before outside phone number.
  • Page 14 • Use a straight CAT 5 (or higher) Ethernet cable (not included) that is 6.5 mm in diameter or less. AC adaptor • Use a Panasonic AC adaptor KX-A239AL (PQLV206AL)/KX-A239BX (PQLV206CE)/KX-A239X (PQLV206)/KX-A239EJ (PQLV206E). • The AC adaptor is used as the main disconnect device. Ensure that the...
  • Page 15 NT300X_QRG.fm Page 15 Friday, June 22, 2007 10:20 AM Connection CAUTION: When selecting Ethernet cables Ethernet cable Use flexible, high-quality, snagless (without strain relief) cables. Do not use cables with coating that may tear or crack when bent. To prevent damage to the cables, use cables* that do not protrude from the bottom of the base when the operation board is set to level 1.

  • Page 16: Operation Board Angle Adjustment

    NT300X_QRG.fm Page 16 Friday, June 22, 2007 10:20 AM Operation Board Angle Adjustment The angle of the operation board can be set to one of eight angles (level 1 = 0°, level 8 = 45°). CAUTION: Hold the operation board until the operation board is secured at the desired angle.
  • Page 17 Before you install or uninstall the Add-on Key Module, turn off the unit by disconnecting the AC adaptor (if connected) and the Ethernet cable connected to the switching hub. KX-NT303 (For KX-NT343/KX-NT346) 1. Open the cover. 2. Attach the KX-NT303 to your unit with the screws (included).
  • Page 18 NT300X_QRG.fm Page 18 Friday, June 22, 2007 10:20 AM Installing the KX-NT303/KX-NT305 KX-NT305 (For KX-NT343/KX-NT346) 1. Open the cover. 2. Attach the KX-NT305 to your unit with the screws (included). 3. Plug the flat cable into the 4. Close the cover.

  • Page 19: Wall Mounting

    NT300X_QRG.fm Page 19 Friday, June 22, 2007 10:20 AM Wall Mounting 1. Remove the wall mounting adaptor from the unit as shown, set the operation board to level 1, then connect and secure the cables. • The cables can also be run from the top of the unit (page 14, 15).

  • Page 20: Installation Environment

    • If you are having problems making calls, disconnect the Ethernet cable and connect a known working IP-PT. If the known working IP-PT operates properly, have the defective IP-PT repaired by an authorised Panasonic factory service centre. If the known working IP-PT does not operate properly, check the PBX and the Ethernet cable.

  • Page 21: Important Notice

    • If an error message is shown on your display, consult the network administrator. • The firmware of the KX-NT343, KX-NT346, and KX-NT366 are protected by copyright laws and international treaty provisions, and all other applicable laws. It cannot be reverse engineered, decompiled or disassembled.

  • Page 22: Information On Disposal For Users Of Waste Electrical & Electronic Equipment (Private Households)

    0682 This product is intended to be connected to a Panasonic PBX only. Panasonic Communications Co., Ltd. declares that this equipment is in compliance with the essential requirements and other relevant provisions of Radio &...

  • Page 23: Wall Mounting Template

    NT300X_QRG.fm Page 23 Friday, June 22, 2007 10:20 AM One screw here One screw here 157 mm WALL MOUNTING TEMPLATE 1. Drive the screws into the wall as indicated. Note: If the KX-NT305 is attached to the unit, leave 157 mm of space between the 2 screws for the unit and the 2 screws for the KX-NT305, as indicated above.
  • Page 24 1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531, Japan Copyright: This material is copyrighted by Panasonic Communications Co., Ltd., and may be reproduced for internal use only. All other reproduction, in whole or in part, is prohibited without the written consent of Panasonic Communications Co., Ltd.
