Summary of Contents for Alva GH309
-
Page 2: Table Of Contents
USING YOUR HEATER 9-10 FLASHBACK (flames in burner tube) Danger CHANGING YOUR CYLINDER 10-11 MAINTENANCE FREQUENTLY ASKED QUESTIONS 12-13 Contact an approved ALVA technician. SPECIFICATIONS TROUBLE SHOOTING FEATURES AFTER SALES SERVICE Do It Yourself ELECTRIC HEATER INSTRUCTIONS IMPORTANT SAFETY INFORMATION 17-18 INSTALLATION... -
Page 3: Warranty
Reading and understanding this manual should give you a good indication of what to expect from your Alva heater. If this product is not what you want or need, please help Alva and the environment by not damaging or destroying any part of the packaging, the manual or the Styrofoam inserts. -
Page 4: Gas Heater Instructions
GAS HEATER INSTRUCTIONS THIS IS A LOW PRESSURE APPLIANCE TO BE USED ONLY WITH A 2.8kPa SANS 1237 APPROVED REGULATOR (REGULATOR FITTED AND SUPPLIED). NEVER USE THE GAS AND ELECTRIC HEATERS AT THE SAME TIME... -
Page 5: Important Safety Information
DO NOT use this heater if you do not clearly understand the instructions and/or how to operate the controls. • Phone the customer care line at 086 100 ALVA (2582) or email info@stingray.co.za for assistance. • DO NOT use this heater in an enclosed area, which could restrict airflow, as this is a flue-less heater (It does not have a fixed chimney). -
Page 6: Method Of Assembly
DO NOT over tighten the clamps. Repeat this step to the other hose end. ALVA offers a call out service to assist with heater setup. If you have any questions while setting up or using this heater, please visit www.alva.co.za or call 086 100 ALVA (2582) or... -
Page 7: Heater Set Up
ASSEMBLY INSTRUCTIONS Remove the 2 screws and the 2 securing nuts connecting the rear guard to the heater base. Set the 2 screws and 2 nuts aside for later use. (See Fig.B) Screws and Nuts from Step 1 will be used in Step 5. -
Page 8: Assembly Instructions
Set the cylinder support down onto the cylinder base. (Fig.E) Fig.E Secure the cylinder support to the cylinder base using the 2 screws and nuts which you removed in Step 1. (Fig.F) Fig.F HOSE CONNECTOR ON REGULATOR 6. When connecting the HOSE TIP supplied hose and regulator to the heater, first insert the tip of... - Page 9 HEATER SET UP Before removing this heater from the packaging, read this manual in full and make sure that it is what you want /need. Remove the heater from the packaging. After the heater has been removed from its packaging, remove the back panel from inside the back cavity.
-
Page 10: Leak Test
• Ventilate the area. contact Alva on 086 100 ALVA Connections to be leak tested (2582). • Check for leaks Regulator into cylinder Hose to regulator •... -
Page 11: Flashback (Flames In Burner Tube)
Once the pilot flame ignites hold down the knob for another 10-15 seconds. Repeat step 3 if the pilot flame does not stay lit. This may require more than one attempt. Once the pilot flame and centre panel are burning, you can select the settings ‘... -
Page 12: Maintenance
(Fig. I) If any part of the heater is in need of replacing, use only original Alva parts. Using any other spare parts is dangerous and will void the warranty. When the heater is not going to be used for an extended period of time, keep covered or in its box, to prevent dust from settling on the panels. -
Page 13: Frequently Asked Questions

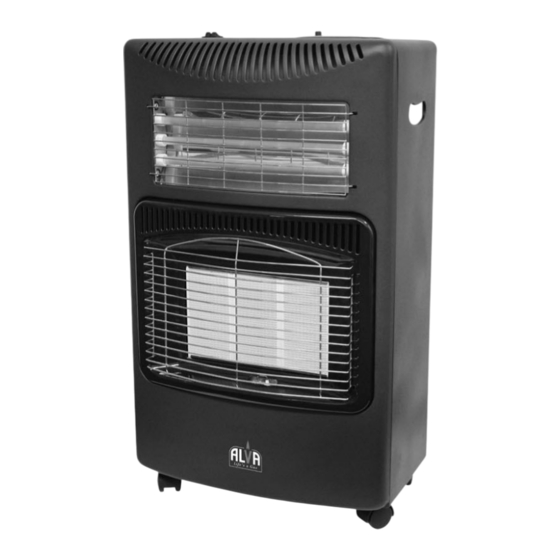

When I open a door or window for ventilation won’t I get cold? The Alva GH309 is an infrared radiant gas heater. Infrared heaters heat objects as well as the air. This means, that even though you have cooler air coming into your room, the infrared heater will warm the room and make sure that you do not feel the cold. - Page 14 I just took my heater from storage, but there seems to be a blue flame rolling on the panels. Is my heater faulty? It is normal for dust to settle on the panel. When this happens, the heater will not burn properly at first, giving the appearance of a blue flame running on the panel.
-
Page 15: Specifications
SPECIFICATIONS Model ALVA GH309 If you are still unable Type of Gas to correct the problem Operating pressure 2.8kPa with the information in this guide , then Injector size 0.60mm you need to contact Gas Consumption your nearest dealer or... -
Page 16: Features
MANUFACTURED FOR AND DISTRIBUTED BY your nearest dealer or Alva Marketing (Pty) Ltd manufacturer. P.O. Box 30014 Tokai, 7966 Tel: 021 442 1540 E-mail: info@stingray.co.za www.alva.co.za @StingrayGroupSA www.facebook.com/AlvaGas TOLL FREE NUMBER 086 100 ALVA (2582) -
Page 17: Electric Heater Instructions
ELECTRIC HEATER INSTRUCTIONS NEVER USE THE GAS AND ELECTRIC HEATERS AT THE SAME TIME. -
Page 18: Important Safety Information
IMPORTANT SAFETY INFORMATION As with all appliances, misuse of this appliance or failure to fully follow these instructions may cause fire, injury or death. Please read the instructions carefully Please read all the instructions before using your heater. before use. If you have any doubt or concerns about this appliance’s Retain this manual for installation, please consult a qualified electrician. - Page 19 • Keep the heater clean. DO NOT insert objects where the infra- red tube are located, as this may cause electric shock, fire or damage the heater. • NEVER touch the appliance with wet or damp hands or feet. • NEVER expose the appliance to atmospheric conditions (rain, sun, etc) It is unsafe to use...
-
Page 20: Installation
INSTALLATION Please select the location carefully, allowing 1m clearance from any combustible surface. Do not extend the power cord. This appliance must be earthed. Always make sure that there is no power connected to the heater during installation. USING YOUR HEATER Remember to remove the transit protectors from the tubes before use. -
Page 21: Trouble Shooting Guide
Be sure the heater is fault free: replacing, use only Check that the thermostat can be turned ON and OFF. original Alva parts. You will hear an audible “click”. Using any other spare Check the electric wiring is properly connected. -
Page 22: Specifications
P.O. Box 30014 dealer or manufacturer. Tokai, 7966 Tel: 021 442 1540 Please note that E-mail: info@stingray.co.za replacement heating elements are available www.alva.co.za from Alva. @StingrayGroupSA 086 100 ALVA (2582) www.facebook.com/AlvaGas TOLL FREE NUMBER 086 100 ALVA (2582)
