Mortara Quinton CR60 Service Manual

Mortara Quinton CR60 Service Manual

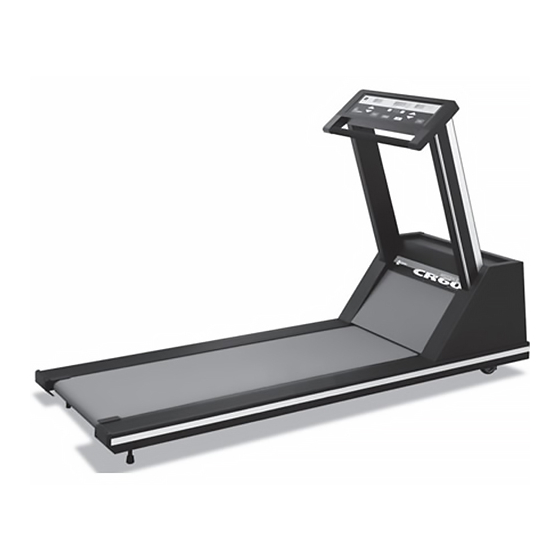

Rehabilitation treadmill
Hide thumbs Also See for Quinton CR60:
Table of Contents

Advertisement

Quick Links

TABLE OF CONTENTS
REF 042101-001 Rev C
Manufactured by Mortara Instrument, Inc., Milwaukee, Wisconsin U.S.A.
CAUTION: Federal law restricts this device to sale by or on the order of a physician.
CR60
REHABILITATION TREADMILL
SERVICE MANUAL
