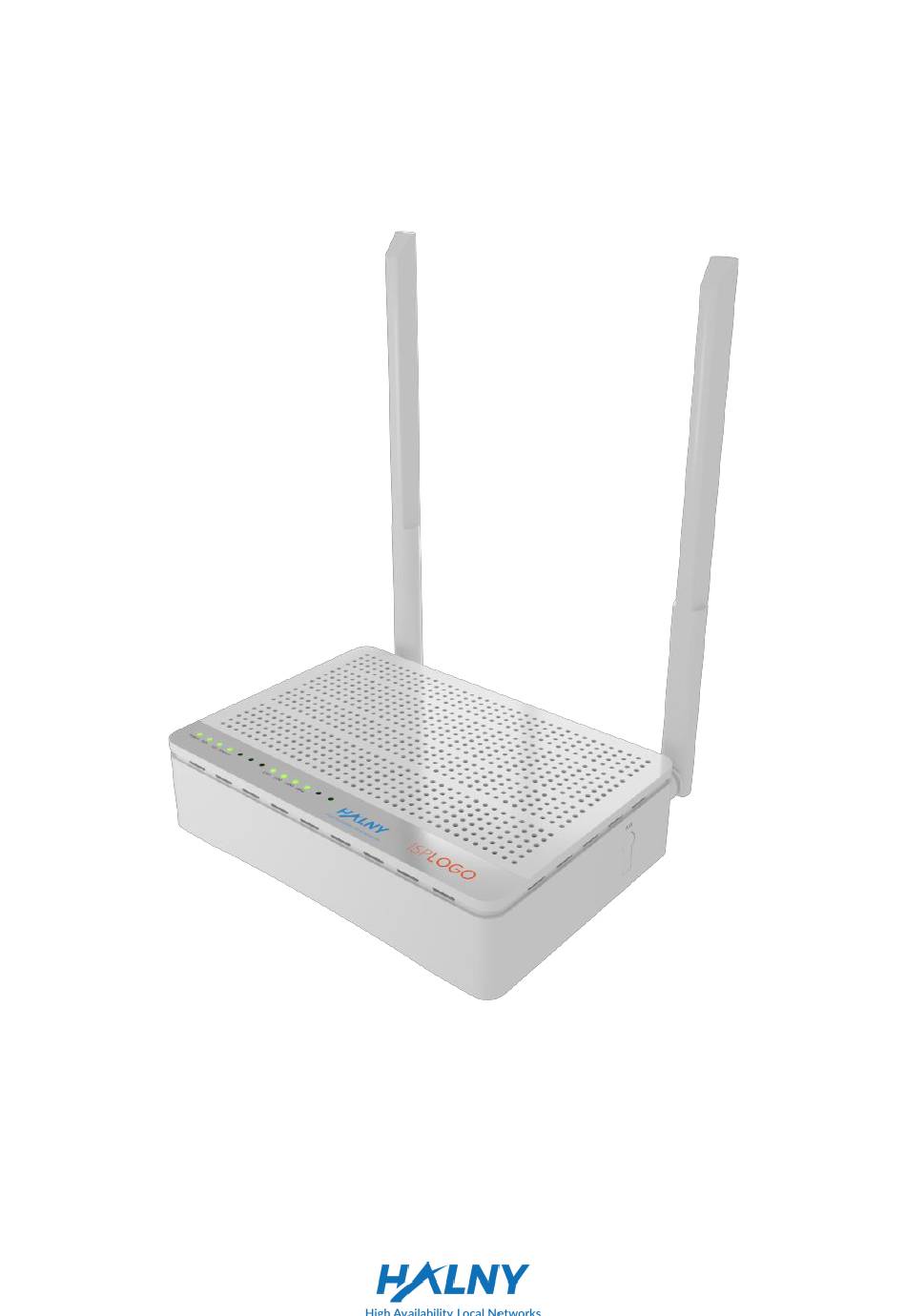

Page 1 Quick Installation Guide GPON ONT HALNY HL-4GMV...
Page 2: Electric Safety
HALNy HL-4GMV Quick Installation Guide Safety Guidance 1.1 Safety Check Before installing the device, you must check the following items. 1.1.1 Electric Safety ⚫ Ensure that there are no inflammable, conductive or moist objects around. Check whether the cables are aged and whether other electrical appliances are placed stably, ⚫...
Page 3: Features And Function
Users should assume responsibilities for any accidents due to incompliance with the above instructions. 2 Overview This chapter mainly describes functions and the structure of the HALNy HL-4GMV. 2.1 Features and Function ⚫ Fast rate. Support up to 1.25Gbps uplink and 2.5Gbps downlink data transmission rates, ⚫...
Page 4: Front Panel
HALNy HL-4GMV Quick Installation Guide 2.2 Front, Rear and bottom Panel The description of the front panel and the rear panel of the GPON ONU as follows. 2.2.1 Front Panel Fig. 1 - Front Panel Color Status Description The power works normally.
Page 5: Rear Panel
HALNy HL-4GMV Quick Installation Guide Color Status Description Voip account is registered Phone1-2 Green Blink Phone call Port deactivated or Voip account is unregistered Pairing ok Green Blink In pairing Not activated/not triggered Table 1. ONU LED Indication Table PON LED Status Instruction...
Page 6: Bottom Panel
HALNy HL-4GMV Quick Installation Guide 2.2.3 Bottom Panel Fig 3 Bottom Panel ONT Bottom Panel Description： Interface Function GPON interface for connecting to a SC/APC patchcord SC/APC 3 ONU Installation The chapter describes the required installation operations before you use the device for the first time.
Page 7: Installation Preparations
Step 1 Use the one end of the network cable to connect the Ethernet interface of the computer. Step 2 Use other end of a network cable to connect the Ethernet interface on the rear panel of the HALNy HL-4GMV. 3.3.2 Connecting the Fiber Caution ⚫...
Page 8: Connecting The Power Adapter And Power Cord
HALNy HL-4GMV Quick Installation Guide ⚫ If fibers need to be fixed or bended during cabling, do not fasten the fibers too tight. Avoid fiber extrusion, which may lead to increase of fiber material or unavailable fiber. 3.2.3 Connecting the Power Adapter and Power Cord ⚫...
Page 9: Troubleshooting
HALNy HL-4GMV Quick Installation Guide 4 Troubleshooting Symptom Solution  Check whether the power connection is correct, The POWER  Check whether the power adapter matches the indicator is not on device.  Check whether the SN of ONU matches OLT, The PON indicator is ...
Page 10: Technical Specification
HALNy HL-4GMV Quick Installation Guide 5 Technical Specification Main Technical Specifications Standard GPON Standard ITU-T G.984 Uplink 1.25Gbps Rate Downlink 2.5Gbps Optical interface Single Mode RJ-45 10/100/1000Mbps MDI/MDIX Self 4 LAN ports adaption Interface 2 POTS ports RJ-11 FXS WiFi 2.4Ghz 802.11n (2T2R MIMO) 300Mbps...
Page 11: Additional Information
36-062 Zaczernie 190F (POLAND) info@fibrain.pl Information furnished by HALNy Networks is believed to be accurate and reliable. However, no responsibility is assumed by importer for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Page 12 HALNy HL-4GMV Quick Installation Guide Recycling This product bears selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means that this product must be handled according to European directive 2012/19/EU order recycled dismantled. This will minimize the negative...
