Inverto Unicable II Installation Manual
Cascadable multiswitch with terrestrial input and 8x dcss / scr / legacy+ terrestrial outputs
Hide thumbs
Also See for Unicable II:
- Installation & user manual (16 pages) ,
- Installation manual (12 pages) ,
- Installation manual (8 pages)
Related Manuals for Inverto Unicable II
Summary of Contents for Inverto Unicable II

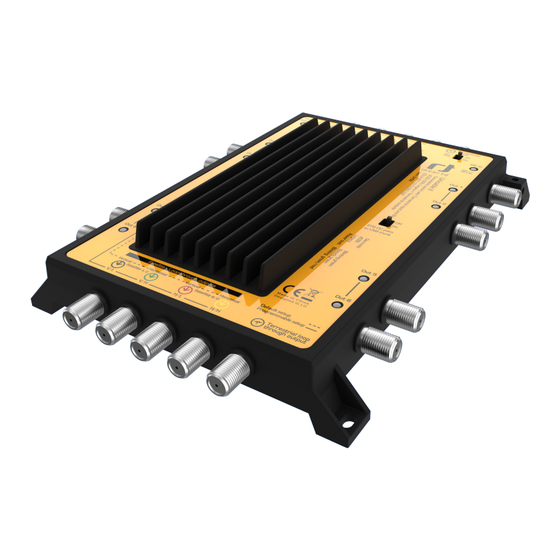

- Page 1 Unicable II Multiswitch ™ Unicable II Cascadable switch with Terrestrial input and 8x dCSS/ SCR/Legacy+Terrestrial outputs IDLU-UST110-CUO8O-32P Item: 5458 Installation manual...
-
Page 2: Warranty
Thank you for purchasing Inverto’s advanced Unicable II multiswitch and we are certain it will meet your expectations. Before installing and operating the product, please read the following instructions and recommendations. We suggest that you keep this manual for future use. - Page 3 All the eight STB output ports combine the Terrestrial input signal. Note: The default configuration of the Multiswitch can be updated using Inverto’s SatPal or Unicable II Programmer device (not supplied with the product and sold as a separate accessory) and a PC...
- Page 4 The following diagram describes a typical single household installation based on the default configuration of the product: Connect the cables from the Quattro LNB to the input connectors marked with LNB V/L, V/H, H/L and H/H inputs respectively (pay attention to identification of the Quattro LNB connectors). The multis witch is equipped with Terrestrial input.
- Page 5 Unicable II /Legacy /Legacy Unicable II Unicable II /Legacy /Legacy Cascaded / Terminated Outputs Wideband Wideband Terrestrial Antenna MSW= Unicable II Multiswitch STB = Unicable I/II Setop box (EN50494/EN50607) UB16 UB16 UB16 UB16 AC/DC UB16 UB16 UB16 UB16 MSW = Multiswitch...
- Page 6 The following diagram illustrates reception of four satellites using wide-band LNBs. Each STB can access any transponder on any of the four satellites: Wideband LNB Wideband LNB Wideband LNB Wideband LNB SAT A - Hor./ Ver. SAT B - Hor./ Ver. SAT C - Hor./ Ver.
-
Page 7: Technical Parameters
Integrated phase noise 1.5° max. Output signal level (AGC) -25 dBm (83 dBuV) Gain: Unicable II™ (dCSS) output (out of AGC) 25 dB min. Gain: terrestrial signal -19 dB @ port 4 over 400~600MHz (-25 dB min.) [amplification = OFF] +1 dB @ port 4 over 400~600MHz (-9 dB min.) [amplification = ON]... - Page 8 User band (channel) bandwidth 46 MHz, programmable 10 MHz ~ 80 MHz User band (channel) gain ripple 3 dB max. User band (channel) frequencies Default Unicable II™ dynamic user bands per output port: CH1: 1210MHz EN50607+EN50494 CH2: 1420MHz EN50607+EN50494 CH3: 1680MHz EN50607+EN50494...
- Page 9 Short circuit protection: Yes Power Inserter 5-2400MHz, 750mA max Model: IDLU-PINS01-OOOOO-OPP Item: 5344 SatPal Controller Model: IDLU-SPAL03-OOOBT-OPP Item: 5415 Unicable II 2-way Combiner, 5-2400MHz Model: IDLU-UCM103-OOO2O-OPB Item: 5398 Unicable II 2-way splitter, 5-2400MHz Model: IDLU-USP104-OUO20-OOB Item: 5389 Unicable II 4-way splitter 5-2400MHz...
-
Page 10: Troubleshooting
* For purpose of brevity, some product descriptions in this sheet remain at platform level and may not be referred to as detailed data-sheets of the products. Inverto Digital Labs reserves the right to amend, omit or add products, product-... - Page 11 Notes ..................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
- Page 12 For purpose of brevity, some product descriptions in this sheet remain at platform level and may not be referred to as detailed datasheets of the products. Inverto Digital Labs reserves the right to amend, omit or add products, product-lines, and / or fea- tures without notice.
