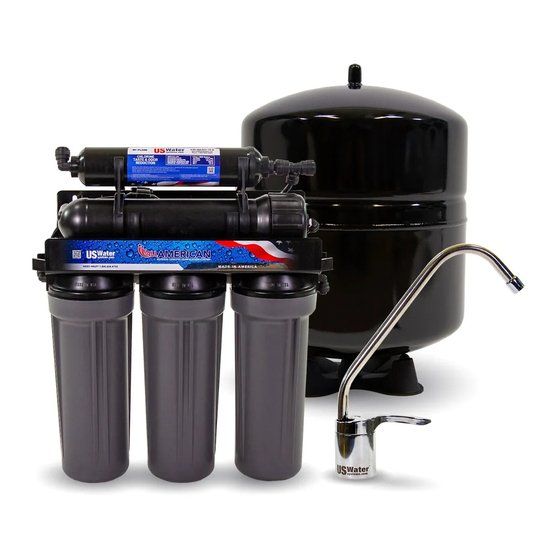

REVERSE OSMOSIS SYSTEM MANUAL
5-Stage Standard
All of our systems are BPA-Free
You can rest assured that we will
USA
MADE IN THE
not use products that contain BPA
or other harmful chemicals.
Do you know which RO system is best for your water treatment needs? Call our certified water treatment experts today!
Need help? 1.800.608.87.92
5-Stage Standard
with High-Pressure option
All of our systems use American
Made Filters and Membranes. For
USA
MADE IN THE
your drinking water safety, we
don't cut corners by using cheap
foreign imitations.
Rev. 1.1 4/20/20
With a US Water Systems RO system, you can have
peace of mind in knowing that your water quality
will be unparalleled.
US WATER SYSTEMS ALL AMERICAN
REVERSE OSMOSIS SYSTEM
50 GPD | 100 GPD
OPTIONAL PERMATE PUMP
6-Stage Akaline
6-Stage Akaline
with High-Pressure option
All of our systems use the highest
USA
quality FDA Approved and NSF
MADE IN THE
and WQA Certified components.
Our quality is unequaled.
www.uswatersystems.com
Advertisement
Table of Contents
Related Manuals for US Water Systems 5-Stage Standard
Summary of Contents for US Water Systems 5-Stage Standard
- Page 1 With a US Water Systems RO system, you can have peace of mind in knowing that your water quality 100% MADE IN AMERICA will be unparalleled. US WATER SYSTEMS ALL AMERICAN REVERSE OSMOSIS SYSTEM 50 GPD | 100 GPD OPTIONAL PERMATE PUMP...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Content Page System Overview - 5-Stage Purification Process System Overview - 6-Stage Purification Process Installation and plumbing diagram for 5-Stage System Installation and plumbing diagram for 5-Stage System with permeate pump Installation and plumbing diagram for 6-Stage System Installation and plumbing diagram for 6-Stage System with permeate pump Parts included checklist and tools needed Location... -
Page 3: System Overview - 5-Stage Purification Process
SYSTEM OVERVIEW Need help? 1.800.608.87.92 Indianapolis, IN | USA www.uswatersystems.com... -
Page 4: System Overview - 6-Stage Purification Process
SYSTEM OVERVIEW Need help? 1.800.608.87.92 Indianapolis, IN | USA www.uswatersystems.com... -
Page 5: Installation And Plumbing Diagram For 5-Stage System
(Black Tube with Flow Capillary) Membrane Housing Storage Tank Feed Water Inlet From Angle Stop Connector. (Orange Tube) US Water Systems American Revolution RO System Flow Schematic | No Scale | April 2020 Need help? 1.800.608.87.92 Indianapolis, IN | USA www.uswatersystems.com... -
Page 6: Installation And Plumbing Diagram For 5-Stage System With Permeate Pump
Permeate Check Valve Elbow Fitting (Center Port) Storage Tank Feed Water Inlet From Angle Stop Connector. (Orange Tube) US Water Systems American Revolution RO System Flow Schematic | No Scale | April 2020 Need help? 1.800.608.87.92 Indianapolis, IN | USA www.uswatersystems.com... -
Page 7: Installation And Plumbing Diagram For 6-Stage System
(Black Tube with Flow Capillary) Storage Tank Membrane Housing Feed Water Inlet From Angle Stop Connector. (Orange Tube) US Water Systems American Revolution RO System Flow Schematic | No Scale | April 2020 Need help? 1.800.608.87.92 Indianapolis, IN | USA www.uswatersystems.com... -
Page 8: Installation And Plumbing Diagram For 6-Stage System With Permeate Pump
Membrane Housing Permeate Check Valve Elbow Fitting (Center Port) Feed Water Inlet From Angle Stop Connector. (Orange Tube) US Water Systems American Revolution RO System Flow Schematic | No Scale | April 2020 Need help? 1.800.608.87.92 Indianapolis, IN | USA www.uswatersystems.com... -
Page 9: Parts Included Checklist And Tools Needed
PARTS INCLUDED CHECKLIST AND TOOLS NEEDED John Guest Inlet Color-coded John All Filters & Membrane John Guest faucet fitting & Tank Valve Guest tubing Drain saddle Storage tank Tank Base Filter Wrench Sanitizing packet Mounting screws TDS meter Installation manual &... -
Page 10: Location
LOCATION Your R/O system may be installed under a sink, in a basement or other location, depending on available space. Do not install unit where temperatures fall below freezing; otherwise, damage will result. Connection to an icemaker should also be considered for optimum performance. Guidelines for component placement are as follows: FAUCET should be placed near the sink where drinking/ cooking water is normally required. -
Page 11: Faucet Installation
FAUCET INSTALLATION If the sink has a sprayer it may be disconnected for faucet installation. A pipe cap or plug will be necessary to seal the sprayer connection. To make the faucet mounting hole (if sprayer or second hole is not used), check below to make sure the drill does not interfere with any- thing below. -
Page 12: Feed Water Angle Stop Valve And Tubing Installation
FEED WATER ANGLE STOP VALVE AND TUBING INSTALLATION To install the John Guest angle stop valve, turn off the cold water supply valve for the sink faucet. Open the sink faucet cold water and relieve the pressure. Remove the sink faucet “whip hose” or tubing from the shutoff valve. There will be residual water spilled when this tube is removed. -
Page 13: Drain Saddle Installation
DRAIN SADDLE INSTALLATION Prior to drain saddle installation it is important to inspect the condition of drain pipes to make sure they are not thin and frail. Drain saddle valves are designed to be installed on standard 1-1/4” OD drain pipe. Install the drain saddle valve above the trap (between the sink and trap) and on the vertical or horizontal tailpiece. -
Page 14: Tank Installation
TANK INSTALLATION Apply Teflon tape to the Tank outlet threads. About 6-8 wraps will be sufficient. Figure 10. FIGURE 10 Install the tank valve by turning it clockwise. Tightening it hand tight is usually adequate but additional tightening may be required. Figure 11. -
Page 15: Initial Tubing Connections
INITIAL TUBING CONNECTIONS Initial tubing connections You may want to leave the access tubing and not cut it. This will allow space to pull the unit out of the cabinet for filter changes without disconnecting all the tubing. If you want to secure the system and cut the tubing to fit that is fine, but this may require that the system be removed for filter changes or the filters will have to be changed in the cabinet which is sometimes difficult. -
Page 16: System Start-Up
SYSTEM START-UP Check all connections to be sure they are secure, and make sure red retention clips are in place on every John Guest fitting. Turn on feed water valve and check for leaks. (Turn off and correct leaks if leaks occur.) Close the valve (the tank should be closed from the previous step) on storage tank and open faucet until a steady stream of water flows. -
Page 17: Flushing System And Checking Operation
FLUSHING SYSTEM AND CHECKING OPERATION To make sure RO system is operating correctly, follow these simple procedures: 1. Open faucet handle and allow tank to completely drain (water will be discolored and will have suds from the sanitizing solution). 2. Close faucet and re-fill the system. 3. -
Page 18: Icemaker Hookup (Optional)
ICEMAKER HOOKUP (OPTIONAL) We highly recommend the use of a permeate pump if unit is connected to an icemaker. The RO drinking water device can be connected to any standard refrigerator ice maker or ice maker/water dispenser. 3/8” tubing must be used for ice maker connections. If your system is using 1/4”... -
Page 19: Warranty
• The warranty does not cover any claims submitted to US WATER SYSTEMS, INC. more than 30 days after expiration of the applicable warranty, and does not apply unless prompt notice of any claim is given to an authorized US WATER SYSTEMS, INC. Dealer or to US WATER SYSTEMS, INC. or a designated contractor is provided access to the installation and to the water treatment equipment.
