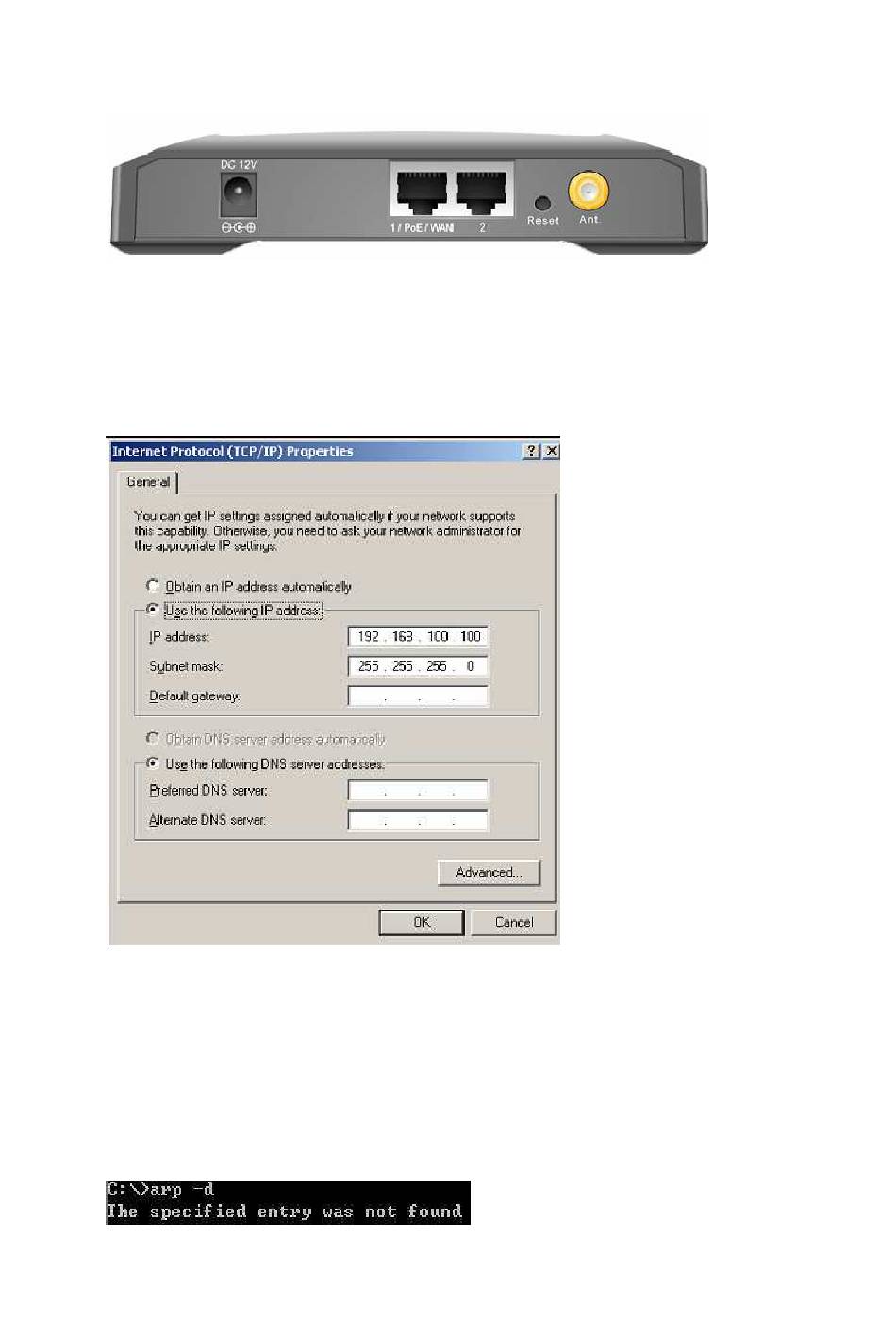

1.> Connect your internet cable to WAN port of WL-5470PoE and connect your PC to

LAN 2 via Ethernet cable .

2.> Connect the power adapter to the WL-5470PoE 's power port.

3.> Wait about 1 ~ 2 minutes to complete the bootup procedure .

4.> Please make sure your PC's IP is in the same subnet as the AP

(e.g 192.168.100.100 Subnet mask : 255.255.255.0) .

5.>Check whether you can ping WL-5470PoE's IP (192.168.100.252).

If you can not ping 192.168.100.252 , please try the tips as below.

Please try to open the cmd window and input command: arp –d .

The command will clean the arp table.

Please input the command "arp –d" several times until it shows "the specified entry

was not found", and try again.

Table of Contents

Need help?

Do you have a question about the WL-5470PoE and is the answer not in the manual?

Page 1 1.> Connect your internet cable to WAN port of WL-5470PoE and connect your PC to LAN 2 via Ethernet cable . 2.> Connect the power adapter to the WL-5470PoE ’s power port. 3.> Wait about 1 ~ 2 minutes to complete the bootup procedure .
Page 2 6.>Open the web browser and enter http://192.168.100.252/. 7.>Click on “Mode“ 8.>Select GW Mode in the main page 9.>Reboot device 10.>Click Setup for detail configuration 11.> Band: You can choose one mode of the following you need. (2.4GHz (B) / 2.4GHz (G) / 2.4GHz (B+G)). The default is 2.4GHz (B+G) mode.
Page 3 WL-5470POE provides WEP, WPA-PSK (TKIP), WPA2-PSK (AES) and WPA2-PSK (AES) security policy. 15.>WAN Port : WL-5470POE provides 4 methods for client to access the internet. This depends on the location and the service which the ISP provides. You need to contact the ISP for detail information.
Page 4 18.>Please set your PC or wireless client to dhcp client , it will get the IP address from WL-5470PoE’s DHCP sever.
