Summary of Contents for Sonance OMNI-6T

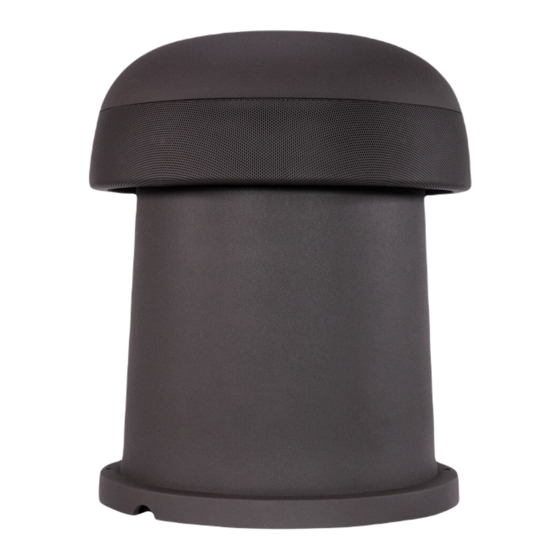

- Page 1 OMNI-6T OMNIDIRECTIONAL OUTDOOR SPEAKER INSTRUCTION MANUAL...
- Page 2 Product Description and Box Contents Sonance. Product Features 9. Refer all servicing to qualified service personnel. Product Preparation Installation Technical Specifications Architectural Specification Technical Assistance and Service Warranty BOX CONTENTS (1) OMNI-6T Speaker (2) Silicon-Filled Wire Nuts (1) Installation Manual...
- Page 3 • Weatherized, earth-tone brown, mineral-filled landscaping environments, against soil/mulch, and in polypropylene housing makes the OMNI-6T the shadows of foliage. Bury the OMNI-6T for optimal disappear in landscaping and behind foliage performance and security or anchor above ground • Bury the speaker in-ground or secure above-ground...
- Page 4 In a typical 70V/100V mono configuration, multiple When choosing an amplifier, the maximum number of OMNI-6T units can be wired in parallel along a single speakers and the output level of each speaker must be 2-conductor wire. Alternatively, a 4-conductor wire can known.
- Page 5 2. Prepare the wires to be connected by stripping back the insulation to expose approximately 1/2” of copper. Combine the positive (+) wires from the amplifier, the speaker, and the line running to the next speaker. Using the included silicone filled wire nuts, twist the wires together ensuring that no copper is exposed (Figure 5).
- Page 6 SONANCE DSP2-750 CAUTION MADE IN CHINA RISK OF ELECTRIC SHOCK DO NOT OPEN AVIS RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR CONTROL STATUS T15AL / 250VAC REPLACE FUSE ONLY CAUTION WITH SAME TYPE AND RATING AC 100-120V ~ 60Hz REMPLACER UNIQUEMENT AVEC...
- Page 7 12” (305mm) Bury 6–8” (150–200mm) 11.36” (289mm) SPECIFICATIONS Frequency Range (-10dB) 35Hz – 25kHz Frequency Range (-3dB) 60Hz – 20kHz Power Capacity 120 Watts Continuous Program Power | 60 Watts Continuous Pink Noise Nominal Sensitivity 88 dB Nominal Coverage Angle 360 Degrees Hortizontal Coverage, 160 Degrees Vertical Coverage Rated Maximum SPL 107dB @ 1 Meter (3.3 feet) Average, 133dB Peak...
- Page 8 Mil Spec 810 for humidity, salt spray, temperature and UV, have IEC 529 and an IP-66 waterproof rating. The 3. If you are returning the product directly to Sonance, loudspeaker shall be the Sonance Omni-6T. No other call us to obtain a return authorization number system shall be acceptable unless the above combined (RMA) before shipping.
- Page 9 PARTICULAR PURPOSE ARE SPECIFICALLY EXCLUDED. No one is authorized to make or modify any warranties on behalf of Sonance. The warranty stated above is the sole and exclusive remedy and Sonance’s performance shall constitute full and final satisfaction of all obligations, liabilities and claims with respect to the Product.
