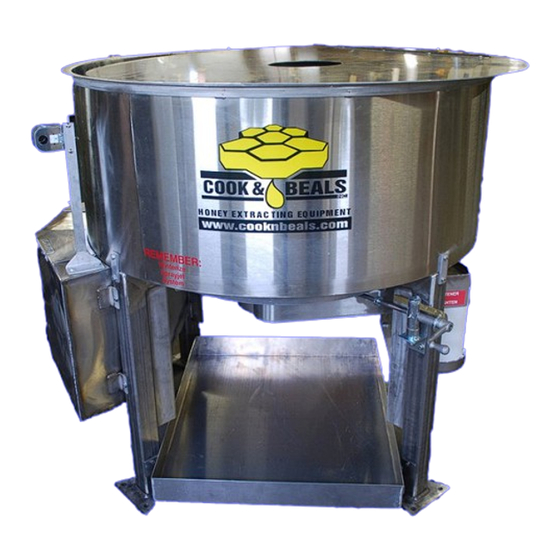

Summary of Contents for Cook & Beals Spin-Float Honey-Wax Separator
- Page 1 Spin-Float Honey-Wax Separator U.S. Patent #: 3217979 Canadian Patent #: 723027 Instructions for replacing separator belts Cook & Beals, Inc. PO Box 220 Loup City, NE 68853 308-745-0154 info@cooknbeals.com...
- Page 2 Instructions for replacing separator belts Loosen cutter belt tightener (see 1A). Loosen drum belt tightener bolts 1 & 2 (see 1A-C & 2A-C). Loosen all 4 motor belt tightener bolts (see 1A). Remove worn belts: a. Motor belt #6941 (see 1A) b.
- Page 3 Cutter Belt Tightener Rod Drum Belt Tightener Bolt #2 Motor Belt #6941 Cutter Belt Shield Motor Belt Tightener Bolts (4) Separator Base Plate Drum Belt Tightener Bolt #2 Cutter Belt Shield Drum Belt Tightener Bolt #2 Cutter Belt Shield...
- Page 4 Tachometer Sensor Cutter Belt Tightener Rod Drum Belt #6944 Tachometer Sending Disc Drum Belt Tightener Bolt #1 Tachometer Sensor Cutter Belt Tightener Rod Drum Belt #6944 Tachometer Sending Disc Drum Belt Tightener Bolt #1 Cutter Belt Tightener Rod Drum Belt Tightener Bolt #1...
- Page 5 Drum Belt Tightener Bolt #2 Cutter Belt #6937 Motor Belt #6941 Drum Belt Tightener Bolt #2 Cutter Belt #6937 Motor Belt #6941...
