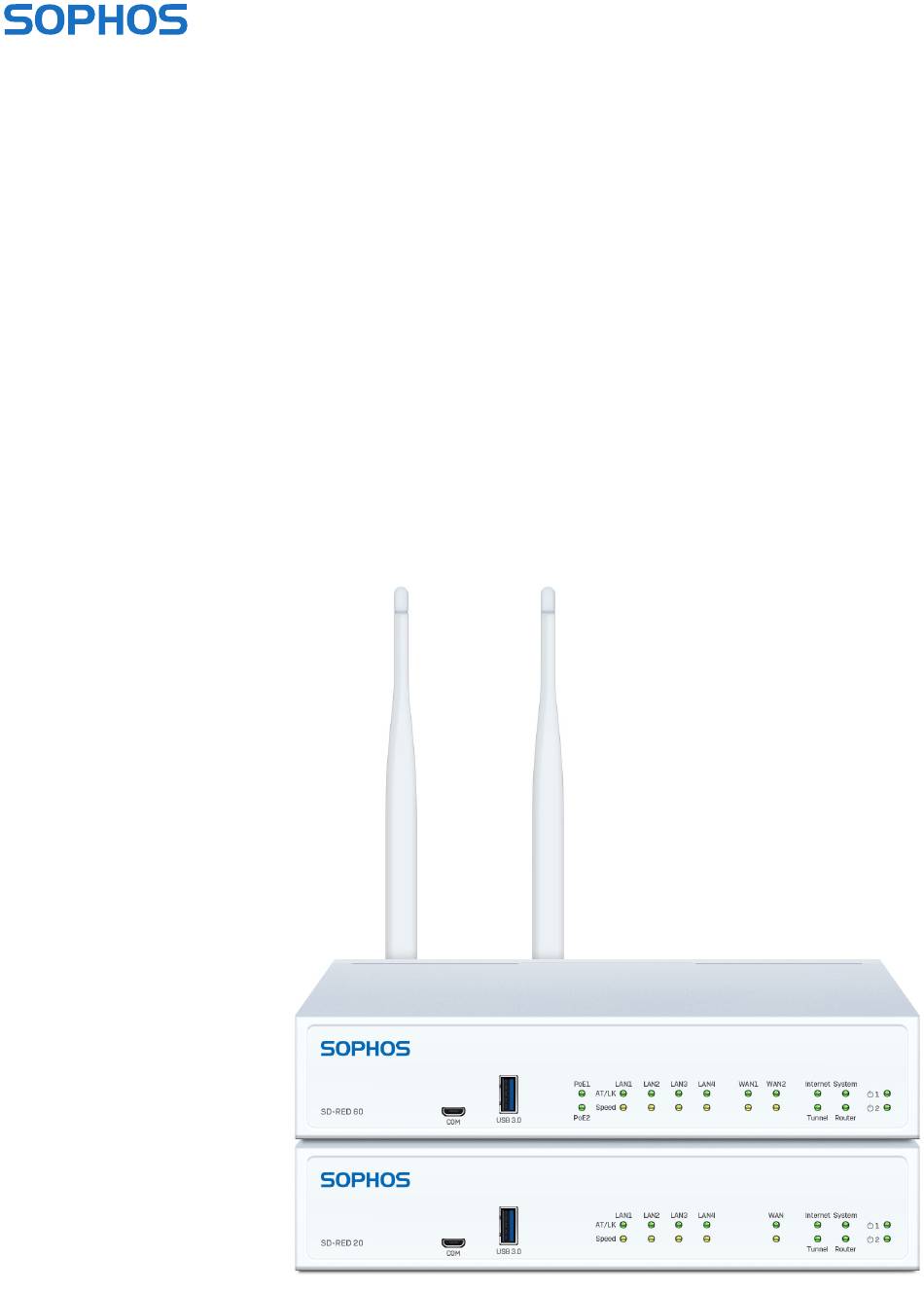

- Page 1 Operating Instructions SD-RED 20 / SD-RED 60...
-
Page 2: Security Symbols
All configuration and management is done on a Sophos Firewall located at your main facility and requires no technical skills at the remote site. These operating instructions will help you install and configure the Sophos SD-RED device and provide technical specifications of all SD-RED models. -
Page 3: Operating Elements And Connections
4 x GbE LAN 60 only) USB 3.0 2 x Power supply Expansion Bay for optional Wi-Fi or 3G/4G module * The displayed images show the SD-RED 60. The SD-RED 20 model may vary slightly. Interfaces LAN Ports Type Speed Comment LAN1–LAN4... - Page 4 Operating Instructions Module Slots Comment Expansion slot Can be used for Sophos 3G/4G or Wi-Fi modules which are optionally available from your Sophos partner Power and Port LEDs Power LEDs Power 1 Green Power Supply 1 Active Power Supply 1 Failure...
-
Page 5: Installation
Configuring the SD-RED device Configure the SD-RED device in your central SG UTM or XG Firewall as described in the respective Sophos Firewall Administration Guides. After completion, the configuration will be uploaded to the cloud-based Sophos broker service. Connecting the SD-RED at the remote site Connect the SD-RED device to your router or cable at the remote site as described within the Quick Start Guide and power it on. - Page 6 Adding an optional 3G/4G or Wi-Fi expansion module Both SD-RED models have an expansion bay at the back allowing you to add either a Sophos 3G/4G or a Wi-Fi module, which are available from your Sophos partner. Both modules are shipped with two antennas (for 3G/4G or 802.11 ac 2x2 Wi-Fi).
-
Page 7: Mounting Instructions
Reliable ground: Reliable grounding must be maintained at all times. To ensure this, the rack itself should be grounded. Particular attention should be given to power supply connections other than the direct connections to the branch circuit (i.e., the use of power strips, etc.). SD-RED 20 / SD-RED 60... -
Page 8: Wall Mount
Make sure they stand out 4-8mm. We recommend using wall plugs and screws with the dimensions shown below. Hang the SD-RED unit on the wall by aligning the key holes with the mounted screws. SD-RED 20 / SD-RED 60... - Page 9 Operating Instructions SD-RED Wall mount template Do not shrink to fit when printing SD-RED 20 / SD-RED 60...
-
Page 10: Rack Mount
However, only the SD-RED 60 specific kit provides additional bracket(s) to hold the desktop-type power adapter(s). These are not included with the SD-RED 20 specific kit since this model uses wall mount type power adapters which are directly plugged into the wall outlet or power strip. - Page 11 Screws with other dimensions might damage the appliance. Rackmount installation LEDs Front facing installation Wallmount installation ø6.3 ø8 Ports ø4 ø3.5 22.2 Back facing installation SD-RED 20 / SD-RED 60...
- Page 12 Registered in England and Wales No. 2096520, The Pentagon, Abingdon Science Park, Abingdon, OX14 3YP, UK Sophos is the registered trademark of Sophos Ltd. All other product and company names mentioned are trademarks or registered trademarks of their respective owners.
