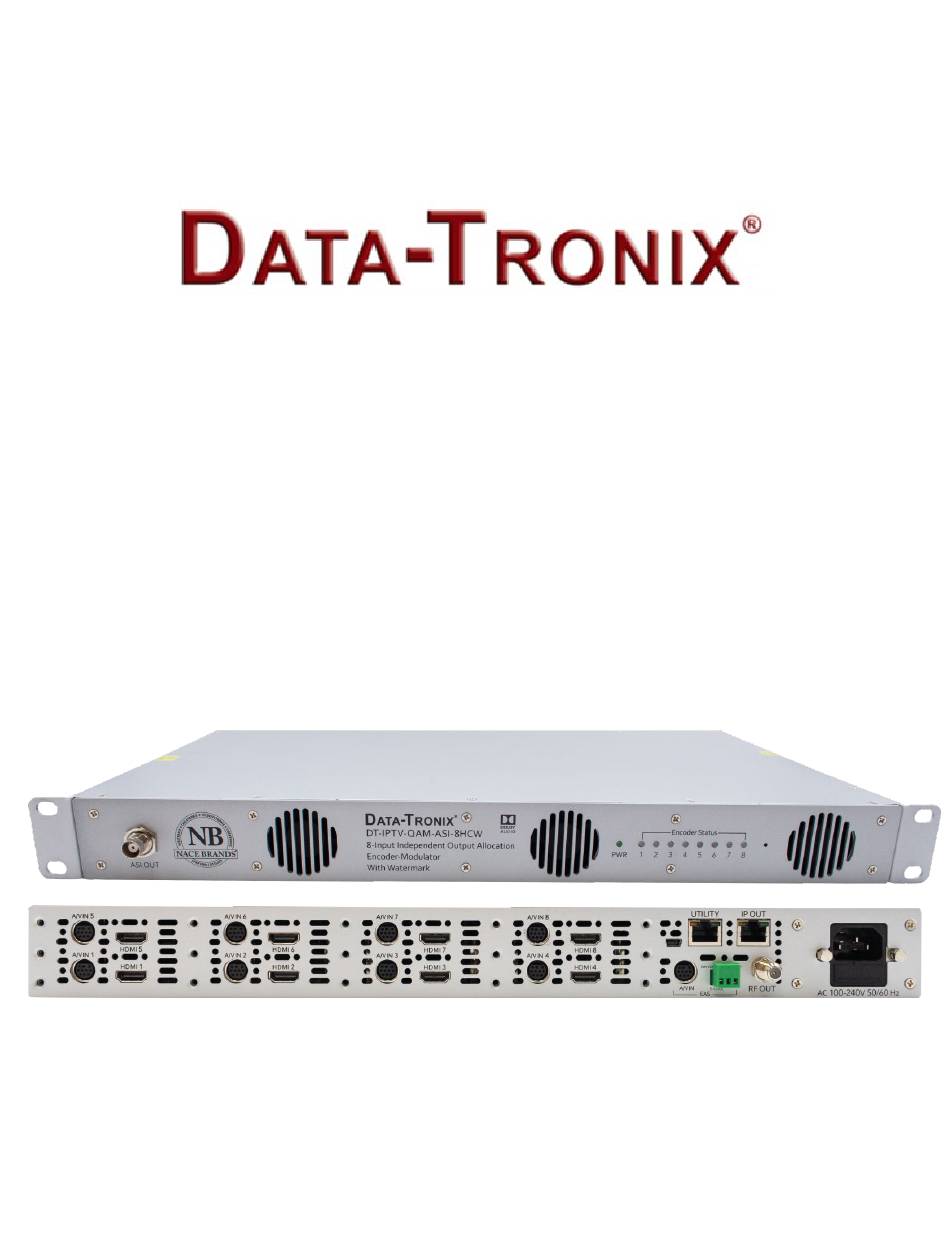

- Page 1 USER GUIDE & INSTALLATION MANUAL DT-IPTV-QAM-ASI-8HCW 8 Input HD Digital Encoder-Modulator...
-
Page 2: Table Of Contents
ETUP SECTION 7 ADMINISTRATION ..........................16 Reboot: ................................16 Reset to Default: ..............................16 Backup: ................................16 Restore/Upload saved file configurations: ......................16 Change Password: ............................17 Private Address Ranges, IPv4 ...........................17 PRODUCT NOTES:..............................18 NACE: 610-429-1511 | sales@datatronix.biz | www.datatronix.biz | DT-IPTV-QAM-ASI-8HCW Manual v1.0 Page 2... -
Page 3: Safety Precautions
8 HDMI cables One installation / configuration manual Inspect the package before starting installation to ensure there is no damage and all supplied contents are present. NACE: 610-429-1511 | sales@datatronix.biz | www.datatronix.biz | DT-IPTV-QAM-ASI-8HCW Manual v1.0 Page 3... -
Page 4: Product Description
8 IP and ASI (MPTS) streams making it ideal for any Commercial RF system. The high quality HD design allows for watching action packed movies and sports channels on any HDTV. The DT-IPTV-QAM-ASI-8HCW Encoder/Modulator is a feature rich Digital Encoding platform allowing it to be deployed in a variety of installations. -
Page 5: Specifications
Standard Weight 11.3 lbs. Output 1000Base-T Ethernet, Language English Full Duplex MPEG-TS over UDP / RTP *Subject to change without notifications UDP/RTP Unicast and Multicast, 8 Separate SPTS NACE: 610-429-1511 | sales@datatronix.biz | www.datatronix.biz | DT-IPTV-QAM-ASI-8HCW Manual v1.0 Page 5... -
Page 6: Hardware Installations And Connections
Installation System Installer must adhere to Article 820-40 of the NEC that provides guidelines for proper grounding and specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as possible. Unpacking and Inspection Each unit is shipped factory tested. -
Page 7: Encoder Programming And Setup Via Gui Interface
After connecting the device to the “Web Management” port located on the rear of the device and connecting to a PC / Laptop. Step 1: Enter Device's IP address in web browser. Overview Page of DT-IPTV-QAM-ASI-8HCW FIG 1: full view of Overview page showing the Encoder’s status. NACE: 610-429-1511 | sales@datatronix.biz | www.datatronix.biz | DT-IPTV-QAM-ASI-8HCW Manual v1.0 Page 7... -
Page 8: System Parsing / Response Time
FIG 2: Above shows inputs 1-8 system status including: Video Source parameter, Video Output setting, Audio Output, Bitrate, and more. The Overview page provides a quick snapshot of the DT-IPTV-QAM-ASI-8HCW when fully functioning. System Parsing / Response Time: The initial System Parsing time will vary as the system identifies and populates the required parameters. -
Page 9: Encoder Setup
- Note: All changed parameters will be shown in red. 4. Select “Active/Inactive” to activate for remaining parameters as required. 5. Select “Save and Confirm” to save all changed parameters. 6. Select “Apply” in the pop-up window. NACE: 610-429-1511 | sales@datatronix.biz | www.datatronix.biz | DT-IPTV-QAM-ASI-8HCW Manual v1.0 Page 9... - Page 10 NACE: 610-429-1511 | sales@datatronix.biz | www.datatronix.biz | DT-IPTV-QAM-ASI-8HCW Manual v1.0 Page 10...
-
Page 11: Streaming Setup
4. Select ‘Save and Confirm’ once all the streams are setup. Disabling IP Streams: The DT-IPTV-QAM-ASI-8HCW offers the user a SPTS output stream. Each Stream can be disabled as required. To disable an IP Stream uncheck the checkbox in front of the appropriate IP Stream_ID (1-8). -
Page 12: Rf Setup
Use the RF Setup Page to setup each RF Output. The DT-IPTV-QAM-ASI-8HCW Manual V1.0 offers the integrator the ability to set the output channel independently of the other output channels of the DT-IPTV-QAM-ASI-8HCW Manual V1.0 Encoder. This professional parameter allows the integrator greater flexibility for placing video streams within the system. - Page 13 Note: If the RF is disabled, the frequency will not be occupied. - If a stream is disabled, the stream will occupy the channel frequency even if not present in the RF diagram. Disabled RF/QAM NACE: 610-429-1511 | sales@datatronix.biz | www.datatronix.biz | DT-IPTV-QAM-ASI-8HCW Manual v1.0 Page 13...
-
Page 14: Asi Control
Remove/Add ASI streams as required. Select Save and Confirm to save all modified parameters. Disable RF/QAM: The DT-IPTV-QAM-ASI-8HCW offers the integrator the ability to disable a RF QAM. To disable a RF (QAM) output, “uncheck” the checkbox associated with the RF QAM. -
Page 15: Network Configuration
Use the Streaming IP tab to modify the Streaming IP port of the device as required. Save and Confirm: Once all parameters are set remember to Save and Confirm all changes. NACE: 610-429-1511 | sales@datatronix.biz | www.datatronix.biz | DT-IPTV-QAM-ASI-8HCW Manual v1.0 Page 15... -
Page 16: Section 7 Administration
3. Locate the required file to be imported. 4. Select “Upload” to import the selected file into the device. 5. Remember to save and backup any and all changes. NACE: 610-429-1511 | sales@datatronix.biz | www.datatronix.biz | DT-IPTV-QAM-ASI-8HCW Manual v1.0 Page 16... -
Page 17: Change Password
It is important to note that only some of the 172.xx.xx.xx and the 192.xx.xx.xx address ranges are designated for private use. The remaining addresses are public and can be routable via the global Internet. More information regarding private addresses can be found at http://www.iana.org and https://www.arin.net NACE: 610-429-1511 | sales@datatronix.biz | www.datatronix.biz | DT-IPTV-QAM-ASI-8HCW Manual v1.0 Page 17... -
Page 18: Product Notes
Product Notes:...
