- Page 1 Installation and maintenance instructions eloBLOCK VE .. /14 EU I FI (fi) Publisher/manufacturer Vaillant GmbH Berghauser Str. 40 D-42859 Remscheid Tel. +492191 18 0 Fax +492191 18 2810 info@vaillant.de www.vaillant.de...
-
Page 2: Table Of Contents
Contents Contents 10.8 Replace the pressure sensor....... 16 10.9 Replacing the NTC sensor ........16 Safety ..............3 10.10 Replace the safety cut-out ........16 Action-related warnings ......... 3 10.11 Replacing the expansion vessel ......17 Danger caused by improper operation ....3 10.12 Replacing the PCB and the display ..... -
Page 3: Safety
Safety 1 – compliance with all inspection and main- Safety tenance conditions listed in the instruc- Action-related warnings tions. Classification of action-related warnings Intended use also covers installation in ac- The action-related warnings are classified in cordance with the IP code. accordance with the severity of the possible Any other use that is not specified in these danger using the following warning signs and... -
Page 4: Regulations (Directives, Laws, Standards)
1 Safety tact gap of at least 3 mm, e.g. fuse or cir- Regulations (directives, laws, standards) cuit breaker). ▶ Secure against being switched back on ▶ Observe the national regulations, stand- again. ards, directives, ordinances and laws. ▶ Wait for at least 3 minutes until the capa- citors have discharged. -
Page 5: Notes On The Documentation 2
Notes on the documentation 2 Notes on the documentation Expansion vessel Safety cut-out Heat exchanger Heating unit Observing other applicable documents ▶ Always observe all the operating and installation instruc- tions included with the system components. Storing documents ▶ Pass these instructions and all other applicable docu- ments on to the end user. -
Page 6: Functionality
4 Set-up CE marking The product consists of a cylindrical heat exchanger with heating rods and a hydraulic group. The hydraulic group includes the heating pump, the pressure sensor and the expansion relief valve. A maintenance valve in the hydraulic ... -
Page 7: Minimum Clearances
Set-up 4 Minimum clearances Wall-mounting the product Check whether the wall has sufficient load-bearing ca- pacity to bear the operational weight of the product. Check if the supplied fixing material may be used for the wall. Condition: The load-bearing capacity of the wall is sufficient, The fixing material may be used for the wall ▶... -
Page 8: Removing And Installing The Front Casing
4 Set-up Removing and installing the front casing Installing and removing the side casing 4.6.1 Removing the front casing 4.7.1 Removing the side casing ▶ Remove the front casing as shown in the above illustra- tion. 4.6.2 Installing the front casing Caution. -
Page 9: Installation
Installation 5 4.7.2 Installing the side casing Caution. Risk of material damage caused by residues in the pipelines. Welding remnants, sealing residues, dirt or other residues in the pipelines may damage the product. ▶ Flush the heating installation thoroughly before installing the product. Warning. -
Page 10: Connecting The Expansion Relief Valve
5 Installation Connecting the expansion relief valve 5.3.1 Connecting the power supply cable Use an intake funnel to connect a drain line to the outlet (1) of the expansion relief valve. Route as short a drain line as possible at a downward gradient away from the product. - Page 11 Installation 5 5.3.4 Connecting the control and external Condition: No domestic hot water cylinder connected components ▶ Connect an external signal transmitter via a screw ter- minal (AKZ 950/3 or similar) to connections LA and N on plug connection X15 (→ Page 24). ▶...
-
Page 12: Start-Up
6 Start-up 5.3.9 Connecting the product to a single-phase Provided the national regulations and technical rules do not stipulate more stringent requirements, the following applies: power grid You must treat the heating water in the following cases Condition: Product with 6 or 9 kW output –... -
Page 13: Checking The Filling Pressure Of The Heating Installation
Start-up 6 – Filling and purging the heating installation Adey MC5 – Fernox F3 – Sentinel X 300 – Sentinel X 400 Additives intended to remain permanently in the installation – Adey MC1+ – Fernox F1 – Fernox F2 – Sentinel X 100 –... -
Page 14: Checking Function And Leak-Tightness
7 Adapting the product to the heating installation Checking function and leak-tightness Eliminating faults in the pump Check that the product functions correctly and check If a fault occurs in the pump, this is shown by the pump's the leak-tightness. status LED. -
Page 15: Drain The Product And Heating Installation
Inspection and maintenance 10 10.3 Drain the product and heating installation 10.4.1 Checking that the pump works correctly Secure a hose to the heating installation's draining Check that the pump status LED is functioning cor- device. rectly. Route the free end of the hose to a suitable drainage Pump status LED (→... -
Page 16: Replacing The Heating Rods
10 Inspection and maintenance 10.6 Replacing the heating rods 10.8 Replace the pressure sensor Remove the plug (1). Disconnect the heating rod cable connections (1) to the Use a screwdriver to remove the safety clamp (2). PCB and to the mains terminal block (N, blue). Remove the pressure sensor (3). -
Page 17: 10.11 Replacing The Expansion Vessel

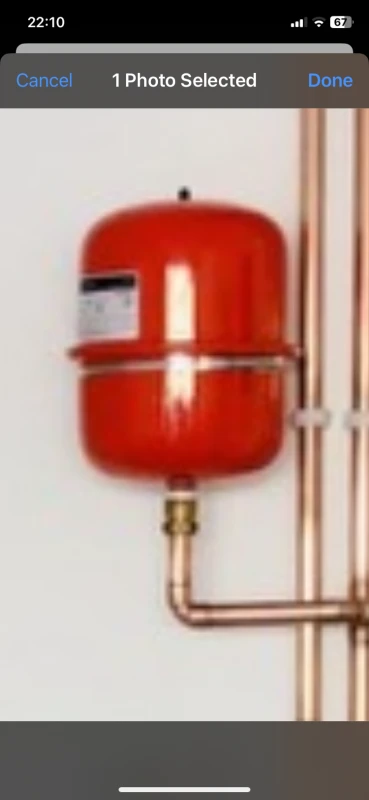

Decommissioning 11 – 10.11 Replacing the expansion vessel The pre-charge pressure must be 0.02 MPa (0.2 bar) higher than the static height of the heating installation. Fill and purge the heating installation. – The water pressure must be 0.02 MPa to 0.03 MPa (0.2 bar to 0.3 bar) higher than the pre-charge pres- sure of the expansion vessel. -
Page 18: 13 Customer Service
13 Customer service 13 Customer service Validity: Finland, Vaillant Asiakaspalvelumme yhteystiedot löytyvät takapuolella mainitun osoitteen alta tai WWW-sivulta osoitteesta www.vaillant.fi. Installation and maintenance instructions eloBLOCK 0020265768_01... -
Page 19: Appendix
Appendix Appendix Status codes – Overview Status codes are displayed in the Live Monitor. Status code Meaning Displays in heating mode S.00 Heating: No heat demand S.04 Heating mode S.07 Heating mode: Pump overrun Displays in domestic hot water mode Domestic hot water demand via cylinder temperature S.20 sensor... - Page 20 Appendix Factory Own setting Code Parameter Values or explanations setting D.010 Status of the internal heating pump 0 = Pump does not run Not ad- justable 1 = Pump runs D.011 Status of the external pump 0 = Pump does not run Not ad- justable 1 = Pump runs...
- Page 21 Appendix Factory Own setting Code Parameter Values or explanations setting 45 to 85 ℃ 80 ℃ D.071 Target value maximum heating flow temperature D.072 Internal pump overrun time after Adjustable from 1 to 10 minutes in increments of 1 2 min cylinder charging minute D.075...
-
Page 22: C Overview Of Fault Codes
Appendix Factory Own setting Code Parameter Values or explanations setting D.149 Explanation for fault F.75 Defined displays for the fault analysis 0 = No fault 1 = Pump blocked 2 = Electrical pump fault 3 = Dry fire 4 = Alarm, voltage at pump is too low 5 = Pressure sensor fault 6 = No signal from the pump (PWM) D.152... -
Page 23: D Pump Status Led
Appendix Code Meaning Remedy F.073 Fault: Water pressure sensor Interruption/short circuit of water pressure sensor, interruption/short cir- cuit to GND in supply line to water pressure sensor or water pressure sensor defective F.074 Fault: Water pressure sensor Line to water pressure sensor has a short circuit to 5 V/24 V or internal fault in the water pressure sensor Water pressure sensor signal outside correct range (too high) -
Page 24: F Wiring Diagrams
Appendix Wiring diagrams VE6 /14 EU I, VE9 /14 EU I, VE12 /14 EU I, VE14 /14 EU I wiring diagram Connection terminal N Cylinder temperature sensor Immersion heaters 6 kW (2 x 3 kW), 9 kW (3 kW + Cylinder thermostat 6 kW), 12 kW (2 x 6 kW), 14 kW (2 x 7 kW) Output limiter... -
Page 25: Ve18 /14 Eu I, Ve21 /14 Eu I Wiring Diagram
Appendix VE18 /14 EU I, VE21 /14 EU I wiring diagram Connection terminal N Cylinder temperature sensor 18 kW (3 x 6 kW), 21 kW (3 x 7 kW) immersion Cylinder thermostat heaters Output limiter Limit thermostat for underfloor heating (remove the Room temperature control bridge when connecting) Power supply –... -
Page 26: Ve24 /14 Eu I, Ve28 /14 Eu I Wiring Diagram
Appendix VE24 /14 EU I, VE28 /14 EU I wiring diagram Connection terminal N Cylinder temperature sensor 24 kW (4 x 6 kW), 28 kW (4 x 7 kW) immersion Cylinder thermostat heaters Output limiter Limit thermostat for underfloor heating (remove the Room temperature control bridge when connecting) Power supply –... -
Page 27: G Inspection And Maintenance Work - Overview
Appendix Inspection and maintenance work – Overview Work To be carried To be carried out in general out as required Function check Check that the product is functioning correctly and check the technical parameters. Checking the hydraulics Check the filling pressure of the heating installation and top up with water, if necessary. Check the pre-charge pressure of the expansion vessel and increase the pressure, if necessary. -
Page 28: I Remaining Feed Head
Appendix Remaining feed head Remaining feed head [mCe] [98.07 mbar] Flow rate quantity [m³/h] Characteristic values of the VRC DCF outdoor temperature sensor Temperature (°C) Resistance (ohms) 2167 2067 1976 1862 1745 1619 1494 1387 1246 1128 1020 Characteristic values of internal temperature sensors Temperature (°C) Resistance (ohms) 327344... -
Page 29: L Technical Data
Appendix Temperature (°C) Resistance (ohms) 6535 5330 4372 3605 2989 2490 2084 1753 1481 1256 1070 Technical data Technical data – General VE 6 /14 EU I VE 9 /14 EU I VE 12 /14 EU I VE 14 /14 EU I Operating pressure, max. - Page 30 Appendix Technical data – Heating VE 6 /14 EU I VE 9 /14 EU I VE 12 /14 EU I VE 14 /14 EU I 25 to 85 ℃ 25 to 85 ℃ 25 to 85 ℃ 25 to 85 ℃ Heating adjustment range 35 to 70 ℃...
-
Page 31: Index
Index Index Article number ............... 6 Basic diagram................ 3 CE marking................6 Competent person..............3 Corrosion................4 Data plate ................6 Decommissioning ..............17 Disposal, packaging ............17 Disposing of the packaging ..........17 Documents ................5 Electricity ................3 Eliminating faults .............. - Page 32 0020265768_01 0020265768_01 10.12.2018 Supplier Vaillant Group International GmbH Berghauser Strasse 40 42859 Remscheid Tel. +492191 18 0 www.vaillant.info © These instructions, or parts thereof, are protected by copyright and may be reproduced or distributed only with the manufacturer's written consent. Subject to technical modifications.
