Thank you for choosing Sunnydaze Decor. We stand behind our brand and the quality of the items we sell. Replacement parts or products will be
sent at our discretion, within the one-year warranty period. Proof of purchase, with the date of purchase as well as photos of the defective
merchandise, must be provided. If you have any questions, comments or concerns please feel free to contact us by phone at: 888-881-4668. You
may also contact us by email: customerservice@serenityhealth.com, or via our webpage at: www.serenityhealth.com/contact-us/

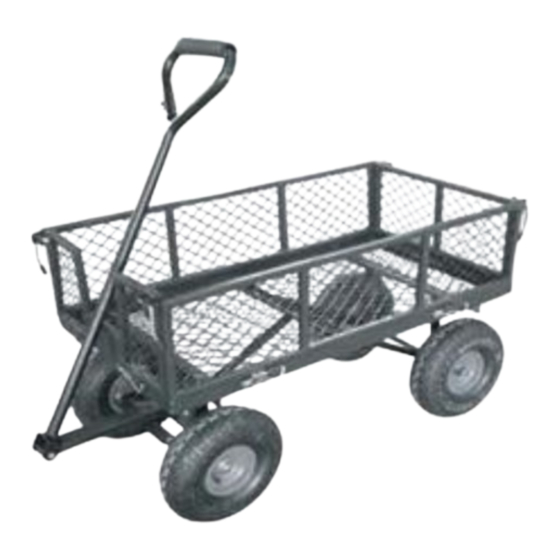

Garden Cart
with Removeable Folding Sides
INSTRUCTIONS
1.) Remove parts from carton. Place carton on flat surface. Assemble cart while on the carton to avoid
scratching or damaging the parts.
2.) Tools Needed: Socket wrench and adjustable crescent wrench
Parts List
A. Bed (1)
B. Side Panels (2)
C. Front Panel (1)
D. Back Panel (1)
E. Wheels (4)
F. Front Axle Support Assembly (4)
G. Yoke (1)
H. Front Strut (1)
I. Front Axle Connection Bar (1)
J. Rear Axle Support Assembly (1)
K. Rear Axle Brace (2)
L. Handle (1)
Hardware List
M. M12 Washers (4)
N. M12 Nylon Nuts (4)
O. M8 Washers (10)
P. M8 Nylon Nuts (10)
Q. Plastic Spring Washers (4)
R. M8 x 60 Hex Bolt (1)
S. M8 x 20 Hex Bolts (2)
T. M8 x 20 Carriage Bolts (7)
U. Fence Assembly Pins (8)
V. Cotter Pin (1)

Advertisement

loading
Need help?

Need help?

Do you have a question about the QH-UC and is the answer not in the manual?

Questions and answers

Related Manuals for Sunnydaze Decor QH-UC

Summary of Contents for Sunnydaze Decor QH-UC

  • Page 1 Thank you for choosing Sunnydaze Decor. We stand behind our brand and the quality of the items we sell. Replacement parts or products will be sent at our discretion, within the one-year warranty period. Proof of purchase, with the date of purchase as well as photos of the defective merchandise, must be provided.
  • Page 2 3.) Turn (Part A) BED Upside down. 4.) Attach (PART J) REAR AXLE SUPPORT ASSEMBLY to rear of bed using (PART T) M8X20 CARRIAGE BOLTS, (PART O) M8 WASHERS and (PART P) M8 NYLON NUTS. 5.) Attach (PART K) Left and Right REAR AXLE BRACES to (PART A) BED using (PART T) M8X20 CARRIAGE BOLTS (PART O) M8 WASHERS AND (PART P)
  • Page 3 8.) Attach (PART F) FRONT AXLE SUPPORT ASSEMBLY to FRONT OF BED using (PART T) M8 x20 CARRIAGE BOLTS, (PART O) M8 WASHERS and (PART P) M8 NYLON NUT. 9.) Attach (PART H) FRONT STRUT to (PART A) BED using (PART T) M8 x 20 CARRIAGE BOLT, (PART O) M8 WASHER, and (PART P) M8 NYLON NUT.
  • Page 4 11.) Turn cart over onto wheels. 12.) Secure (PART L) HANDLE to (PART G) YOKE using (PART R) M8 X 60 HEX BOLT, (PART O) M8 WASHER and (PART P) M8 NYLON NUT. Tighten bolts fully. 13.) One at a time, attach (PART B) SIDE PANELS by aligning the hinges, and sliding (PART U) ASSEMBLY PINS in the hinge hole.

  • Page 5: Important Safety Instructions
