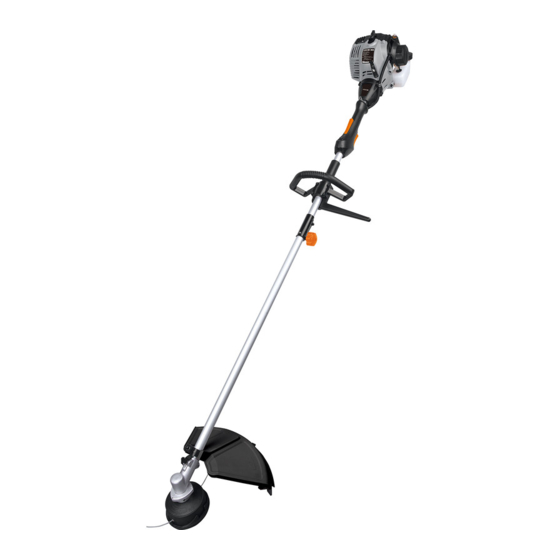

BAUKER SBC30 Original Instruction Manual

Petrol brush cutter with multi tools
Hide thumbs
Table of Contents

Advertisement

Quick Links

SBC30
PETROL BRUSH CUTTER WITH
MULTI TOOLS
ORIGINAL INSTRUCTION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SBC30 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for BAUKER SBC30

  • Page 1 SBC30 PETROL BRUSH CUTTER WITH MULTI TOOLS ORIGINAL INSTRUCTION MANUAL...

  • Page 2: General Safety Warnings

    PRODUCT SAFETY WARNING! READ ALL INSTRUCTIONS Failure to follow all instructions listed below may result in, fire Important - Please read these instructions fully before starting assembly and/or serious injury. This product should not be operated by those General Power Tool Safety Warnings who are unfamiliar with the manual.

  • Page 3: Working Environment

    cutter may result in serious personal injury. 7. Working environment Objects thrown by the trimmer can cause serious injury. Before Important - Please read these instructions fully before starting assembly operating the trimmer, carefully inspect the area and remove General Power Tool Safety Warnings any broken glass, pieces of wire, and other loose objects –...
  • Page 4 11. Transport, handling and storage of the unit a) Switch off the engine when you cross roads or gravel paths. b) Always clean and maintain before storing, pay special attention to the guards and cutting attachments. Before transporting the unit in a vehicle - stop the engine and allow it to cool.

  • Page 5: Maintenance And Repair

    17. Check that all fasteners, guards and handles etc are in place and secure. Tighten as necessary. 18. Check the fuel level. Starting with a full tank will help to eliminate or reduce operating interruptions for refueling. MAINTENANCE AND REPAIR Check the air filter.
  • Page 6 ADDITIONAL SAFETY WARNINGS FOR GRASS TRIMMER Never use the trimmer in rain or damp weather. Avoid cutting wet grass as you may slip. Always keep feet and hands well away from the cutting line, take special care when starting. Replace cutting head if cracked, chipped, or damaged in any way.
  • Page 7 d) Avoid operating while people, especially children, are nearby. e) Dress properly! Do not wear loose clothing or jewellery, which can be caught in moving parts. Use of sturdy gloves, non-skid footwear and safety glasses is recommended. Use extra care when handling fuels. They are flammable and the vapours are explosive.

  • Page 8: Maintenance And Storage

    b) Ensure that the hedge trimmer is correctly located in a designated working position before starting the engine. While operating the hedge trimmer, always ensure that the operating position is safe and secure, especially when using steps or a ladder. d) Do not operate the hedge trimmer with a damaged or excessively worn cutting device.
  • Page 9 may result in serious personal injury. 2. Carry the pole hedge trimmer by the handle with the cutter blade stopped. When transporting or storing the pole hedge trimmer always fit the cutting device cover. Proper handling of the pole hedge trimmer will reduce possible personal injury from the cutter blades.
  • Page 10 Restrict the use of your saw to adult users who understand and can follow safety rules, precautions, and operating instructions found in this manual. Wear protective gear. Always use steel toed safety footwear with non-slip soles; snug-fitting clothing; heavy-duty, non-slip gloves;...

  • Page 11: Physical Condition

    Do not operate saw from a ladder or in a tree. Make sure the chain will not make contact with any object while starting the engine. Never try to start the saw when the guide bar is in a cut. Do not put pressure on the saw at the end of the cut.
  • Page 12 Continual and regular users should have their hearing checked regularly. MAINTAIN THE SAW IN GOOD WORKING ORDER Have all chain saw service performed by a qualified service dealer with the exception of the items listed in the maintenance section of this manual. For example, if improper tools are used to remove or hold the flywheel when servicing the clutch, structural damage to the flywheel can occur and cause the flywheel to burst.

  • Page 13: Pole Saw Safety Warnings

    POLE SAW SAFETY WARNINGS Do not use the machine when the operator is tired, ill or under the influence of alcohol or other drugs. To reduce the risk, please keep bystanders at a safe distance from the machine during its operation. Be aware of the dangerous of operating positions, as well as the risk of being struck by falling branches or branches that, having hit the ground, rebound, the operator may be struck...

  • Page 14: Component List

    COMPONENT LIST 11. SDS CHOKE LEVER 1. STEP GUARD 2. AUXILIARY HANDLE 12. FUEL TANK CAP 3. IGNITION SWITCH ON/OFF 13. AIR FILTER COVER 14. FUEL TANK 4. THROTTLE INTERLOCK 15. THROTTLE TRIGGER 5. MAIN HANDLE GRIP 6. HARNESS RING 16.
  • Page 15 23 24 EN-15...
  • Page 16 EN-16...
  • Page 17 31 32 EN-17...
  • Page 18 EN-18...
  • Page 19 tighten loose 2-4mm EN-19...
  • Page 20 loose EN-20 lock...
  • Page 21 lock EN-21...
  • Page 22 EN-22...
  • Page 23 EN-23...
  • Page 24 EN-24...
  • Page 25 EN-25...
  • Page 26 0.6-0.7mm EN-26...
  • Page 27 SYMBOLS To reduce the risk of injury, please read the instruction manual Warning Wear ear protection Wear eye protection Wear dust mask Wear protective gloves Wear protective footwear Wear protective clothing The distance between the machine and bystanders shall be at least 15 m Beware of thrown objects Beware of blade thrust Keep hands away from blade...
  • Page 28 10 m Warning of danger from overhead electric-power lines Choke open Choke close Engine -manual starter Chain oil fill/oil pump Continuously variable Naked flames in the work area, around the product and in the vicinity of flammable materials are prohibited Do not smoke in the work area, around the product and in the vicinity of flammable materials This product produces noxious exhaust fumes.

  • Page 29: Technical Data

    TECHNICAL DATA Engine Engine type two-stroke, air cooled gasoline engine Engine displacement 30cc Engine power 760W Engine idle speed 2900/min Volume (fuel tank) 600ml Fuel (petrol/oil) 40:1 Brush cutter Max engine speed 8000/min Max cutting diameter Ø23cm Grass trimmer Line length 2*2.5m Max cutting diameter Ø46cm...

  • Page 30: Noise Data

    NOISE DATA A weighted sound pressure = 95 dB(A) A weighted sound power = 115 dB(A) = 3 dB(A) Wear ear protection. VIBRATION INFORMATION Typical weighted vibration, front handle: a = 7.6 m/s² ; rear handle:a = 5.9 m/s² Uncertainty K = 1.5 m/s² WARNING: The vibration emission value during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used dependant on the following examples and other variations on how the tool is used:...
  • Page 31 OPERATION INSTRUCTIONS WARNING! Read all instructions carefully. Do not connect the spark plug before it is completely assembled. Always use gloves during assembly. INTENED USE 1. This 4 in 1 petrol multi-tool is designated with an engine displacement of 30cc. Depending on the attached accessory this product is intended to be used as: a).
  • Page 32 Grass trimmer spool replacement description(See Fig. B3-B6) 1) Hold the trimmer spool and pull out the cover.(B3) 2) Removing the spool from its housing. 3) Inserting 15mm of line into one of the holes in the upper section of the spool and wind line in the direction of the arrows on the top of the spool .
  • Page 33 3. Release the locking levers when the desired angle is adjusted. Ensure that the hook engaged between two teeth of the tooth wheel (a). Make sure the engages automatically a locking levers and the joint is secured. Pole Chain Saw Assembly (See Fig. F1-F11) 1.

  • Page 34: Operation

    4. Position the tube locking/release button (a) into the guide recess (b) of the clamp. 5. Ensure the locking button is engaged with the location hole in the clamp. 6. Tighten the knob securely by turning clockwise. 7. Loosen the clamp by turning the clamp knob counterclockwise. 8.

  • Page 35: General Behaviour

    5. Hold the product stable and pull the recoil starter handle firmly; repeat until the engine starts. (See Fig. K4) Allow the recoil starter rope to return slowly and controlled after each pull! WARNING! Make sure that the cutting blade is not touching the ground or other objects when starting the product! 6.
  • Page 36 Brush Cutter WARNING! To avoid hazards never cut heavier weeds, brush and similar vegetation with a thickness of over 20mm. Avoid contact with stones, wire, glass etc. that may cause injury to the user! Inspect the blade regularly for damage, cracks or breaks! Always replace a damaged blade! WARNING! When working with the cutter blade there is always a risk of kickback if the cutting head comes into contact with a hard object! Kickback will cause the sudden stalling...
  • Page 37 WARNING! During cutting work, ensure that no contact is made with objects, e.g. such as wire fencing or main plant stems. This may result in damage to the cutter bar. a) Always hold the equipment firmly in both hands, with one hand on the round handle and the other hand on the tubular shaft.

  • Page 38: Maintenance

    Sawing techniques Be thoroughly aware of the danger of rebounding branches. Sawing Off Small Branches (See Fig. Q2) Set your saw cut from top to bottom, as illustrated. Be aware of early breaking of the branch if you have underestimated the size and weight. Be completely aware of the falling cut material.

  • Page 39: Environmental Protection

    instructions of your saw chain sharpener. Resharpening a saw chain takes some practice. If in doubt, replacing the saw chain is preferable. Checking the blade and guide bar if need sharpen or replace after cutting 300times. STORAGE 1. Clean the product as described above. 2.

  • Page 40: Troubleshooting

    TROUBLESHOOTING If you experience problems, check the following: Symptom Cause Solution Start/Stop switch “O” Move to position "I". Choke not OFF (cold engine) Move choke to the OFF position. Out of Fuel Add fuel and press priming bulb to fill carburetor. Bad fuel, trimmer stored without Drain fuel tank and carburetor, draining fuel, refueled with bad...
  • Page 41 MAINTENANCE Remove the plug from the socket before carrying out any adjustment, servicing or maintenance. Your power tool requires no additional lubrication or maintenance. There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry place.

  • Page 42: Declaration Of Conformity

    Positec Power Tools (Europe) Ltd, PO Box 6242, Newbury, RG14 9LT, UK Declare that the product Petrol Brush Cutter With Multi Tools Description SBC30 (SBC-designation of machinery, representative of Petrol Brush Cutter with Type Multi Tools) cutting brush, trimming grass, trimming hedges and bushes, forest work...
