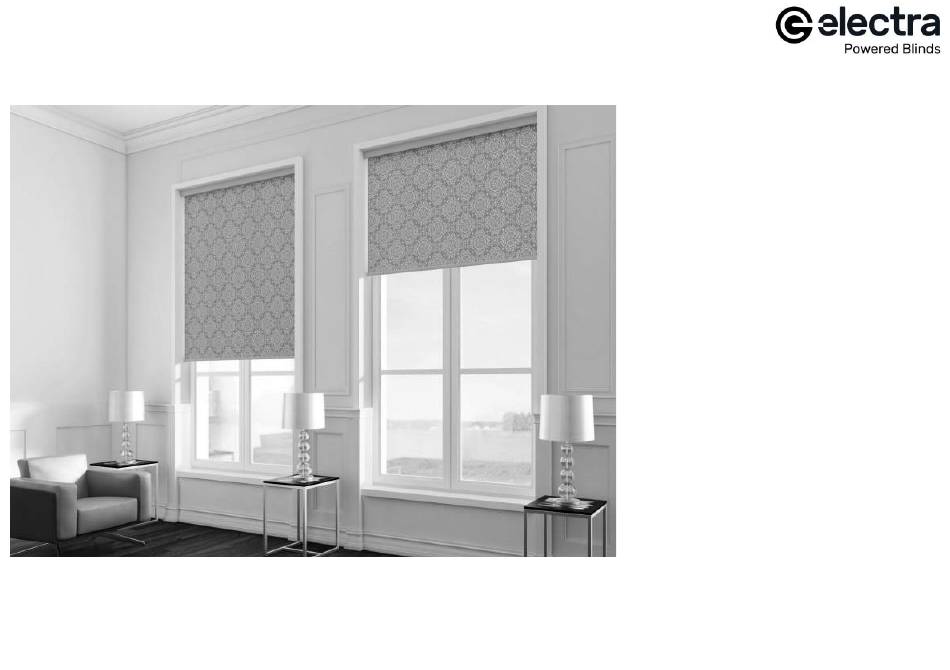

- Page 1 Electra Roller and XL Roller blinds How to install, programme and operate your blind electrablinds.co.uk Ref 11/18...
-
Page 2: Table Of Contents
Contents The contents of your order - Page 3 Battery Pack installation - Page 4 Uncassetted Roller Blind Installation - Page 5 Cassetted Roller Blind installation - Page 6-7 Power up & testing - with a control - Page 8 - Page 9 Power up &... -
Page 3: The Contents Of Your Order
The contents of your order Controls Uncassetted roller blind Cassetted roller blind Power supply If you ordered a control with your blind(s), then Rechargeable Battery Pack it will be one of the following: Single-Channel Rechargeable battery tube Each blind ordered will have... -
Page 4: Battery Pack Installation
Battery pack Installation Step 1: Fit the clips for your battery pack using suitable fixings. The battery pack is supplied with screws and wall plugs suitable for fixing to a solid brick or block wall. If you have ordered a blind that fits inside the recess, fit your battery pack close to the window frame at the back of the recess. -
Page 5: Uncassetted Roller Blind Installation
STEP 2- Fitting the brackets Secure the brackets in place at the marks previously made using suitable fixings. STEP 3- Mounting the Roller Blind Hold the blind to the brackets with the fabric hanging from the back of the blind and the motor head aerial hanging vertically down (pointing towards the floor). -
Page 6: Cassetted Roller Blind Installation
Cassetted Roller Blind Installation Before fitting the cassetted blind, we recommend you install the battery pack- see page 4 for guidance. STEP 1 - Remember when positioning your blind to make sure the fabric will clear any window handles or obstructions. If your blind is outside the recess it will require a face-fix - position your bracket a minimum distance of 3.2cm from the ceiling. - Page 7 Cassetted Roller Blind Installation continued STEP 3- Fitting Removing Place the front lip of your cassette into the front If you need to remove the blind, hook of the clip and push upwards into the clip lever the lip of the clip at the back until there is a firm 'click'.
- Page 8 Power up & testing - blind supplied with a control Before we dispatch your blind, we test it to ensure it's operating correctly. We also set the upper and lower stop positions based on your individual window height measurement. Lastly, your remote control or wall switch will be paired to your motor so you're ready to go! Once your blind is fixed securely in place, you are ready to connect the battery pack.
- Page 9 The following instructions are relevant if you already have a remote control/wall switch and selected 'no control needed' when ordering your Electra blind. The blind supplied has been set up with the up and down stop position preset for your convenience.
-
Page 10: Operation
General control We have programmed your roller blind to automatically stop at preset upper and lower stop positions. It couldn't be simpler- just press the Up or Down button until the blind starts moving and your blind will move in the respective direction until it reaches the preset stop position, where it will stop automatically. -
Page 11: Adjusting The Upper & Lower Stop Positions
Adjusting the upper & lower stop positions 3. Adjust to the desired 1a. Adjust upper stop position 4. Press and hold the 'my' upper/lower stop - press the up button and send 2. Press and hold the button until the blind position using either the blind to the current upper Up and Down buttons... -
Page 12: Reset And Reprogramme Procedure
Reset and reprogramme procedure Before you begin - Disconnect the power to all other powered blinds while programming. Note: for a cassetted blind, you'll need to remove the cassette cover to access the program button. Slide the two clear plastic sliders on the bottom of the cassette box towards the middle of the blind and lift the cassette cover upwards to remove. - Page 13 Reset procedure continued STEP 5: Use the up STEP 6 : Press and hold button to move the the 'my' and up button blind until it reaches until the blind starts to the upper limit position. move up. The blind will Press and hold the 'my' automatically stop at and down buttons until...
-
Page 14: Add/Delete Controls
Add/delete controls Delete a control Add a control Control already paired to the Control to add to the blind blind memory Step 1 - Take a handset or wall Step 1 - Press the program button on your handset or switch that is already wall switch that already programmed to the blind... -
Page 15: Multi Channel Programming
Multi-channel programming Assigning additional channels with a 4 channel control Example: Two blinds with independent control on channels 1 (blind 1) & 2 (blind 2) - set up the blinds for group control so that when you press channel 3, blinds 1 & 2 will operate together). Your 4-Channel Step 1 - Select Channel 1 which operates blind 1. - Page 16 electrablinds.co.uk...
