Parts List
1

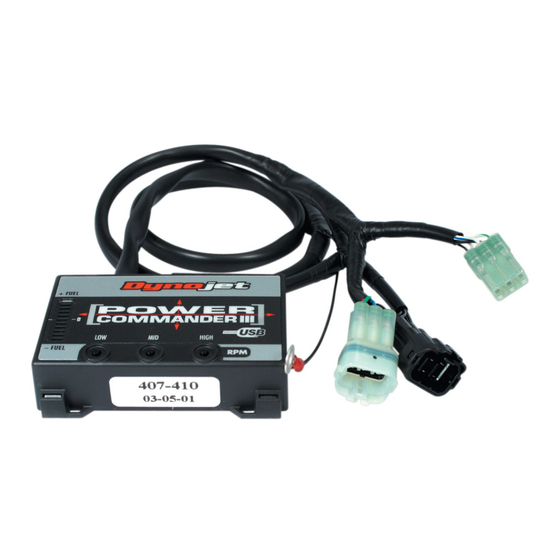

Power Commander
1
USB Cable
1
CD-ROM
1
Installation Guide
1
Power Adapter
2
Power Commander Decals
2
Dynojet Decals
1
Velcro
Strip
®
1
Alcohol Swab
The ignition MUST be turned
OFF before installation!
You can also download the Power
Commander software and latest maps
from our web site at:
www.powercommander.com
PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION
Dynojet Research 2191 Mendenhall Drive North Las Vegas, NV 89031 (800) 992-4993 www.powercommander.com
i705-411
1998-2001 Ducati 996
Installation Instructions
Button Adjustment Display
Faceplate Buttons
Expansion Port
1998-2001 Ducati 996 - PCIII USB - 1
USB Port
Advertisement
Table of Contents
Related Manuals for Dynojet Power Commander III 705-411
Summary of Contents for Dynojet Power Commander III 705-411
- Page 1 Commander software and latest maps from our web site at: www.powercommander.com PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION Dynojet Research 2191 Mendenhall Drive North Las Vegas, NV 89031 (800) 992-4993 www.powercommander.com i705-411 1998-2001 Ducati 996 - PCIII USB - 1...
- Page 2 Lift the rear section. Unscrew this connector Remove the left hand side fair- ing. Locate the plug that resides in between the two throttle bodies (Fig. A). This plug has a round, silver retaining ring on the end of it. Unscrew this connector by turn- ing it counter-clockwise.
- Page 3 Attach the ground wire from the PCIII to front, left hand, mount- Ground wire ing point of the ECU (Fig. D). Attach the PCIII to the top of the ECU using the supplied vel- cro. (Fig. D). Make sure to clean both surfaces with the alcohol swab before attaching the velcro.
