The video Output Resolution can be configured.
FHD: 1080P/1080i
HD: 720P
SD: 480i/576i, 480P/576P
8.1 Down Scaling the output
The HDMI-IP-E has the capability of down scaling the input source to a lower
resolution by setting the output with the pull down menu.
Fig 8-3: FHD (1080P/i) source can be down scaled to HD (720P) or SD
Figure 8-4: HD (720) source can be down scaled to SD
APANTAC LLC,
info@apantac.com, TEL: +1 503 968 3000, FAX: +1 503 389 7921
HDMI-IP-E and HDMI-IP-R

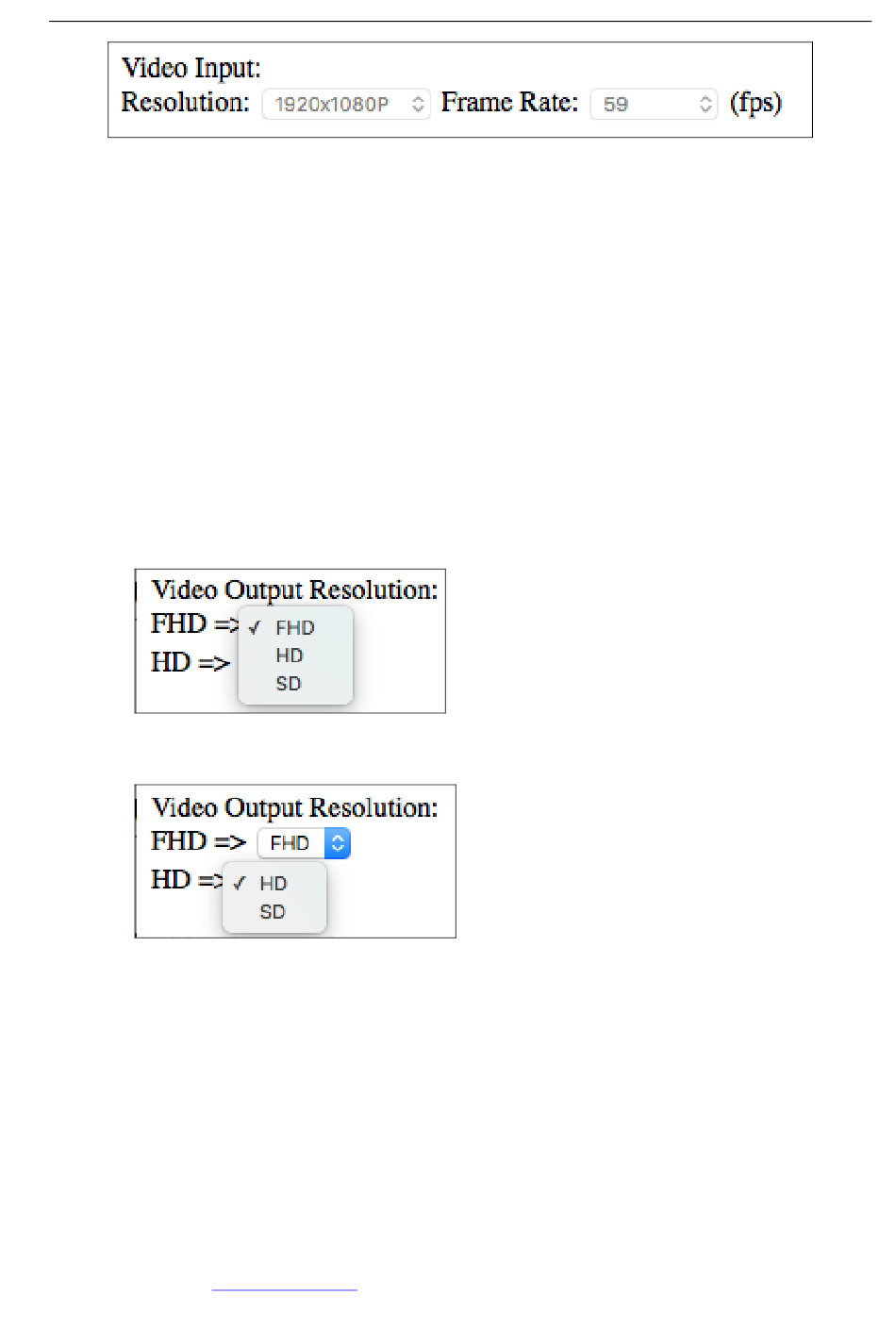

Fig 8-2: Video Input and resolution settings
10200 SW Allen Blvd. Suite C, Beaverton, OR 97005 USA
16
