Bose Companion 5 Service Manual

Multimedia speaker system
Hide thumbs Also See for Companion 5:
Table of Contents

Advertisement

Quick Links

®
Companion
5 Multimedia
Speaker System
©2006 Bose Corporation
Service Manual
Reference Number 290177-SM Rev. 03
Electronic Copy Only

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Companion 5 and is the answer not in the manual?

Questions and answers

Related Manuals for Bose Companion 5

Summary of Contents for Bose Companion 5

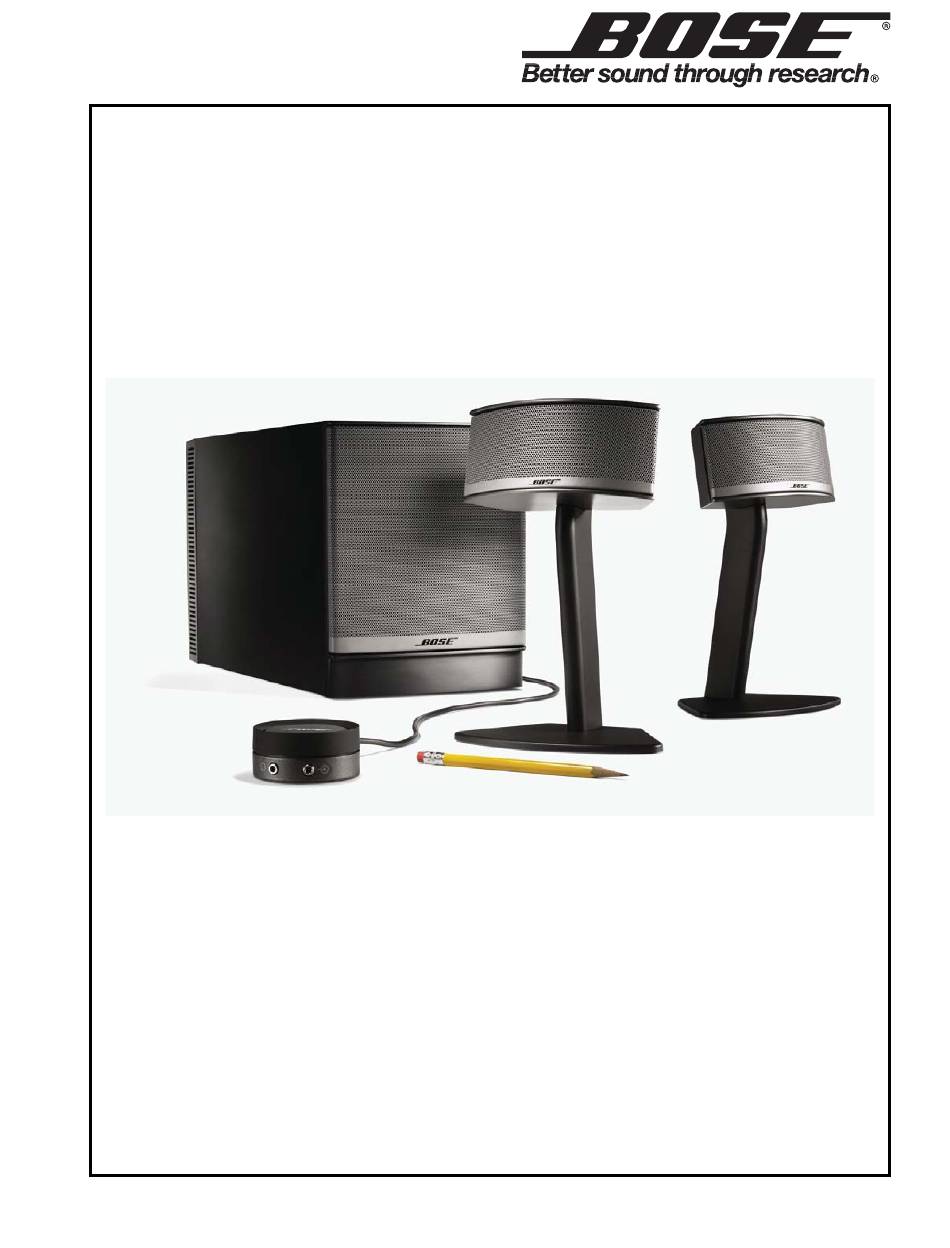

  • Page 1 ® Companion 5 Multimedia Speaker System ©2006 Bose Corporation Service Manual Reference Number 290177-SM Rev. 03 Electronic Copy Only...

  • Page 2: Table Of Contents

    Audio Test Procedures ......................19-20 USB Test Procedures ........................21 Service Manual Revision History ....................22 CAUTION: The Companion 5 Multimedia Speaker System contains no user-serviceable parts. To prevent warranty infractions, refer servicing to warranty service stations or factory service. PROPRIETARY INFORMATION...

  • Page 3: Electrostatic Discharge Sensitive (Esds) Device Handling

    ® Product Description Companion The Companion 5 is a multi-channel multimedia speaker system connecting to personal computers via a USB 2.0 interface. No additional sound card is required to enjoy 5.1-channel audio content from the host PC. The two speaker arrays combined with advanced audio processing algorithms provide a spacious presentation of stereo content and a compelling experience with multi-channel content.

  • Page 4: Specifications

    Specifications Mechanical Dimensions: Bass Module: 8 5/8 “H x 7 1/8” W x 16 3/4” D (21.8 x 18 x 42.5 cm) Satellite Speaker: 9” H x 5 3/4” W x 4” D (22.86 x 14.60 x 10.16 cm) Control Pod: 2 1/2 “D x 1 1/8”...

  • Page 5: Part List Notes

    PART LIST NOTES 1. This part is not normally available from Customer Service. Approval from the Field Service Manager is required before ordering. 2. The individual parts located on the PCBs are listed in the Electrical Part List. This part is critical for safety purposes. Failure to use a substitute replacement with the same safety characteristics as the recommended replacement part might create shock, fire and/or other hazards.
  • Page 6 ® COMPANION 5 PACKAGING VIEW Figure 1. Companion 5 Multimedia Speaker System Packaging View Item Description Part number Note PACKING, FOAM, EPS, RS, BB 298097 PACKING, FOAM, EPS 295570 REMOTE CONTROL ASSY 295974-001 ARRAY/STAND ASSY, RIGHT 300634-001 ARRAY/STAND ASSY, LEFT...
  • Page 7 289388-007 HARNESS, IDC, FLAT CABLE 291575-088 SCREW, TAPP, 8-11x1.5, PAN, XRC/SQ 289388-024 ASSY, PCB, DSP, US/JAPAN 299766-201 ASSY, PCB, DSP, ROHS, EURO 303250-202 BRACKET HEATSINK 296120-001 SCREW, TAPP, 6-32, PAN, TORX 279948-08 PAD, THERMAL, DIODE 295975-001 HEATSINK, COMPANION 5 296119-001...

  • Page 8: Electrical Part Lists

    ELECTRICAL PART LIST Bass Module DSP PCB Resistors Reference Description Part Number Note Designator R0010 5.9k, 0603, .1W, 1% 191465-5901 R0011 750 OHM, 0603, .1W, 1% 191465-7500 R0012 12.1K, 0603, .1W, 1% 191465-1212 R0013 19.6K, 0603, .1W, 1% 191465-1962 R0014 9.09 OHM, 0603, .1W, 1% 191465-9091 R0015...
  • Page 9 ELECTRICAL PART LIST Bass Module DSP PCB Resistors (continued) Reference Description Part Number Note Designator R0452 4.7K, 0603, .1W, 5% 199403-472 R0453 150K, 0603, .1W, 1% 191465-1503 R0454 4.7K, 0603, .1W, 5% 199403-472 R1000 4.3K, 0603, .1W, 5% 199403-432 R1001 4.3K, 0603, .1W, 5% 199403-432 R1002...
  • Page 10 ELECTRICAL PART LIST Bass Module DSP PCB Resistors (continued) Reference Description Part Number Note Designator R0452 4.7K, 0603, .1W, 5% 199403-472 R6222 8.25K, 0603, 100MW, 1% 191465-8251 R7000 2K, 0603, .1W, 1% 191465-2001 R7001 2K, 0603, .1W, 1% 191465-2001 R7002 JUMPER,CHIP, 0805 133627 R7004...
  • Page 11 ELECTRICAL PART LIST Bass Module DSP PCB Capacitors Reference Description Part Number Note Designator C0010 15000uF, EL, SNP, 105C, 25V, 20% 261614-153EB3 C0015 .022uF, 0603, X7R, 50V, 10% 191470-223 C0019 .047uF, 0805, X7R, 50V, 10% 286499-473 C0024 .047uF, 0805, X7R, 50V, 10% 286499-473 C0025 .047uF, 0805, X7R, 50V, 10%...
  • Page 12 ELECTRICAL PART LIST Bass Module DSP PCB Capacitors (continued) Reference Description Part Number Note Designator C0355 .01uF, 0603, X7R, 50V, 1% 191470-103 C0356 1uF, EL, 85C, 50V, 20% 177902-010H C0357 1uF, EL, 85C, 50V, 20% 177902-010H C0358 560pF, 0603, X7R, 50V, 10% 191470-561 C1000 2.2uF, EL, 85C, 35V, 20%...
  • Page 13 ELECTRICAL PART LIST Bass Module DSP PCB Capacitors (continued) Reference Description Part Number Note Designator C0355 .01uF, 0603, X7R, 50V, 1% 191470-103 C6101 100pF, 0805, COG, 50V, 5% 133622-101 C6200 100pF, 0805, COG, 50V, 5% 133622-101 C6201 .047uF, 0603, X7R, 25V, 5% 196999-473 C6202 33000pF, X7R SMD, 0603, 25V, 10%...
  • Page 14 ELECTRICAL PART LIST Bass Module DSP PCB Diodes Reference Description Part Number Note Designator D0010 DIODE, SMD, 10A, 200V, S10D 256405-200 D0011 DIODE, SMD, 10A, 200V, S10D 256405-200 D0012 DIODE, SMD, 10A, 200V, S10D 256405-200 D0013 DIODE, SMD, 10A, 200V, S10D 256405-200 D0016 DIODE, SMD, 10A, 200V, S10D...
  • Page 15 ELECTRICAL PART LIST Bass Module DSP PCB Transistors (continued) Reference Description Part Number Note Designator Q6202 XSISTOR, BPLR, N, 40V, 200mA, SOT23 146819 Q6203 XSISTOR, BPLR, N, 40V, 200mA, SOT23 146819 Q7100 XSISTOR, BPLR, P, 40V, 200mA, SOT23 148596 Q7100 XSISTOR, BPLR, P, 40V, 200mA, SOT23 287939-001 (RoHS)
  • Page 16 ELECTRICAL PART LIST Bass Module I/O PCB Resistors Reference Description Part Number Note Designator 10K, POTENTIOMETER, 1B, 20% 273741-001 RES, CF, 1/4W, 5%, 10K 120968-1035 Miscellaneous Reference Description Part Number Note Designator FUSE, 2.0 AMPS, AXIAL, US/JAPAN 269855-02000 FUSE, SLO-BLO, 1.0A, EURO/UK/AUS 298780-1000 AC CONNECTOR 273692-001...

  • Page 17: Disassembly Procedures

    DISASSEMBLY PROCEDURES Disassembly The following procedure shows the disassem- bly of the bass module to allow access to the DSP and I/O boards. Note: The cabinet is glued together prevent- ing any type of internal repair beyond the boards. The woofer and the transformer are both inside the cabinet and cannot be re- placed.
  • Page 18 DISASSEMBLY PROCEDURES 2. I/O Board Removal 2.1 Use a small flat-head screw driver to pull the Bass control off of the rear cabinet. 1.5 Remove the four 6-32 TORX screws that holds the heatsink bracket in place. 2.2 Remove the three Phillips-head screws that secure the I/O board in place.

  • Page 19: Audio Test Procedures

    Audio Test Procedures Note: There are two different test procedures 2. Bass Module Sweep Test for the Companion 5. 2.1 Apply a 100 mVrms, 10 Hz signal to the 1. Audio test input of the bass module. 2. USB light up and play test 2.2 Set the volume knob on the control pod to...
  • Page 20 Audio Test Procedures (continued) 3. Bass Module, Bass Compensation Test 5. Satellite Air Leak Test 3.1 Apply a 90 mVrms, 100 Hz signal to the 5.1 Apply a 60 mVrms, 300 Hz signal to the input of the bass module. input of the bass module.

  • Page 21: Usb Test Procedures

    USB Test Procedures USB Light up and play test Equipment required: 1. IBM Compatible or Macintosh computer with USB 2.0 or above 2. USB 2.0 Cable, type A to B (part number 292477-001) Test Set up 1. Connect the satellites to the output jacks on the bass module.

  • Page 22: Service Manual Revision History

    SERVICE MANUAL REVISION HISTORY D ate R evision D esc ription of Ch ange Cha nge Dr iv en By Page s Lev el Affe cted 06 /1 6/06 D ocume nt relea se d at Service M an ual revision 00 relea se 09 /2 1/06...
  • Page 23 SPECIFICATIONS AND FEATURES SUBJECT TO CHANGE WITHOUT NOTICE Bose Corporation The Mountain Framingham Massachusetts USA 01701 P/N: 290177-SM Rev. 03 12/2006 (H) http://serviceops.bose.com...
  • Page 24 DATE BOSE CORP PROPRIETARY RIGHTS ARE 290179 32108 DSP ASSY 294826-101 294826-102 INCLUDED HEREIN. THIS INFORMATION MAY @ECN_N NOT BE COPIED.TRANSFERRED OR DISCLOSED EXCEPT AS AUTHORIZED BY BOSE CORP AT REV 00 ****** SCALE N/A CAT. CODE SHEET 1 OF...
  • Page 25 CLASS DWG NO. 290179 TP49 +10V TP36 TP74 TP37 R21-NV 10K TP38 TP51 TP39 TP52 MUTE TP40 TP53 TP41 RMTGND TP54 TP42 BOSELINK VOLUME TP55 TP43 TP56 SENSOR TP63 AUXRIGHT TP62 AUXLEFT TP64 HPRIGHT TP65 HPLEFT +10V TP80 IOGND THIS DRAWING IS BASED ON VISULA DATA ALL CHANGES MUST BE MADE USING THE VISULA FILES ATTACHED TO...
  • Page 26 147239 2.00K 2.2uF R1001 AUX_RIGHT 4.3K C1001 C1011 SAFETY CONTROLLED C1003 R1005 470pF SG1001 100pF 6.8K RMTRET FRAMINGHAM, MA 01701-9168 DESCRIPTION PC Board, COMPANION 5, SIZE FSCM CLASS DWG NO. 290178 32108 SCALE N/A CAT. CODE * SHEET 1 OF...
  • Page 27 CLASS DWG NO. 290178 +3.3V C6206-NV BEQ+ 1000pF PG1 C/2 1.5V U7000 1.2V R6209 R6208 R6208 R6210 R6208 R6208 R6211 289857-705 R6204 4.7K 4.7K 4.7K 8.25K 4.7K 4.7K 4.7K J8000 U6200 3.09K 187618-001 296441-001 USB5V CPBCMP- 143_AHCLKR0_1 AXR0[0]_113 2.1V R8000 CPMCMP+ 139_ACLKR0 7_DM...
  • Page 28 CLASS DWG NO. 290178 VRAW VRAW C151 .033uF U150 R451 257975 VCC1 VCC2 10.3V MODE C156 Out1+ In1+ 5.1V C158 C152 R162 R453 R151 D450 560pF 150K 8.25K 135247-5231 3.32 0.01uF In1- 8.1V 0.5V VRAW C157 Out1- Q450 R150 3.9K 146819 +3.3V PAMUTE...
  • Page 29 CLASS DWG NO. 290178 RT6206 TEMPSEN2 RT6307 VRAW TEMPSEN1 1MEG 1MEG 1MEG C20-NV 271765-002 C21-NV 0.047uF R9240 0.047uF 14.6V SEC1 28.3V D9200 147239 0.022uF SEC2 27.6V 17.3V 5.90K 0.047uF C11-NV 27.8V R9234-NV 1.0uF D10, D11, D12, D13, D16 28.3V Q9032 0.047uF 27.8V 146819...
  • Page 30 DSP PCB ASSEMBLY Companion 5 Q450 C159 D450 C6202 R6204 C6205-NV U7001 C4002 C160 R6208 R150 C156 C157 C259 C4000 C4004 C260 C14-NV R250 Q13-NV U6002 C256 R6006 R6008 D15-NV C257 RT6206 U6000 C357 R9237 C9213 C9211 R9236 R350 C356...
  • Page 31 DSP PCB ASSEMBLY Companion 5 R1010 R362 R363 R262 R263 C352 C353 C252 C253 R1005 R1004 R1011 R1001 R1000 C354 C355 C153 C255 C152 C154 C155 C254 R164 R264 R364 R365 R162 R163 R165 R265 C1006 R1006 R1008 R6153-NV R6151-NV...
  • Page 32 CLASS DWG NO. REVISIONS DESCRIPTION DATE INITIAL RELEASE PETE CORTESE/ 4/09 PAUL COLLINS SIGNATURES REQUIRED PRINT NAME SIGNATURE TSG REPRESENTATIVE PAUL COLLINS CELL LEAD DAVID MIKEL REPAIR SUPERVISOR KEVIN KING (________________) THER TSG TECHNICIAN DATE Pete 4/09 FRAMINGHAM, MA 01701-9168 Cortese APPLICABLE DOCUMENTS: DESCRIPTION...
  • Page 33 Companion are ensure detection and synchronization between the computer synchronized PC and the Companion 5. Also, make sure the volume is turned up at least half way in Windows Media Player. Companion 5 No volume Check the control...
  • Page 34 Companion 5 Multimedia ® Speaker System Theory of Operation CONTENTS Product Description and Overview ....................2 Power Supplies, Block Diagram ...................... 3 Power Supply, VSNUB ........................4 Power Supply, VRAW......................... 5 Power Supply 5V and 10V Regulators .................... 6 Power Supply 1.2V Regulator ......................7 Power Supply 3.3V Regulator ......................
  • Page 35 Control pod Overview Companion 5 is a multi-channel multimedia speaker system connecting to personal computers via a USB 2.0 interface. No sound card is required to enjoy 5.1-channel audio content from the host PC. The two speaker arrays combined with advanced audio processing algorithms provide a spacious presentation of stereo content and a compelling experience with multi-channel content.

  • Page 36: Power Supplies, Block Diagram

    Power Supplies VSNUB VRAW 3.3V 1.2V Bose Brand FET U50, U51 U902, Q9031 Quasi-Regulator Power Supply Block Diagram Bass module rectifies un-regulated power VSNUB from the secondary of the line power transformer. VSNUB is, in turn, converted to the various other potentials required by the system. Nominally 26VDC, this voltage varies with load and line levels, but is limited to 31.5V maximum(assuming line voltage of 140V AC).

  • Page 37: Power Supply Vsnub

    Power Supply VSNUB From Transformer To 3.3 V Regulator VSNUB VSNUB is formed by rectifying the transformer secondary potential via power rectifiers D10-D13. An additional rectifier, D16 prevents discharge of the filter capacitor, C48 through the FET switch, Q10, whenever this switch is on.

  • Page 38: Power Supply Vraw

    Power Supply VRAW From Transformer To 3.3 V Regulator VRAW Vraw provided power to the Audio Power Amplifiers, U150, U150, U350, and the +5V regulator. Its potential is monitored by the DSP, U7000, via the circuit associated with VRAWSEN. When active the potential can vary from 12 vdc to 14.0 vdc.

  • Page 39: Power Supply 5V And 10V Regulators

    Power Supply 5V and 10V Regulators From Transformer To 3.3 V Regulator The only internal power requirement for 5 volts are the CODEC, U4000, power supply and the current source for the ramp circuit formed by Q6201 and R6207. The source for the +5V linear regulator, U11, is Vraw. +5V is provided only when Vraw is enabled.

  • Page 40: Power Supply 1.2V Regulator

    Power Supply 1.2V Regulator 1.2V The processing core of the DSP is the sole consumer of the 1.2 volt power supply. Its relatively high current consumption requires efficient power conversion. The Texas Instruments TPS40055, U50, provides the PWM control functions for a synchronous-rectifier power circuit. U51 is a dual N-channel FET used as switch transistor and synchronous rectifier for the buck regulator circuit.

  • Page 41: Power Supply 3.3V Regulator

    Power Supply 3.3V Regulator 3.3V The USB controller, U6000, the I/O circuitry of the DSP, U7000, and the digital processing portions of the CODEC, U4000 all require power from +3.3V. This circuitry is biased both during normal operation and stand-by, so no enable control is required.

  • Page 42: Sensor And Power Failure Detection

    Sensor and Power Failure Dectection USB Controller Out to Control Sensor SENSOR is generated by switching the +3.3 volt supply via Q6102. SENSOR powers the touch sensor in the control module. switching SENSOR off momentarily forces the control module touch sensor to reset, forcing its output to the muted state.

  • Page 43: Usb Controller

    U6000. R8002 provides the necessary pull up to the D+ line in order to signal to the host that the Companion 5 is present and is a full-speed device. The resistor divider R6011 and R6013 permits U6000 to sense the presence of the USB5V signal from the host.
  • Page 44 The TAS1020 contains an internal ROM and all Data and Program RAM. An external EEROM, U6002, stores the portion of the program code custom to the Companion 5 application. Once the TAS1020 has come out of reset, it will read the code stored in U6002 via the Inter Integrated Circuit (I2C) communications path on pins 43 and 44.

  • Page 45: Audio Interface

    Audio Interface 3.3V USB Input U6000 TAS1020B USB Controller and EEPROM Microprocessor EEPROM 3.3V 1.2V I2C Bus I2C Bus McASPs BADDATA Audio clock master DSPINT 5V 3.3V U7000 TI DSP CCLIP TMS320DA710 DACs ADCs Q6101 BSCLIP U4000 WM8772 or AK4626 Out to CODEC Amplifier...

  • Page 46: Miscellaneous Control

    Miscellaneous Control USB Controller To Power Supply To DSP Pin 14 To I/O Board Miscellaneous Control Power management is affected by controlling the pins for SENSOR, VRAWON, and DSPRESET\. SENSOR is controlled by U6000.26, which is inverted in logic level from SENSOR. The function of SENSOR is explained in section 2.7.

  • Page 47: Digital Signal Processor

    Digital Signal Processor USB Controller To DSP Pin 14 The Texas Instruments TMS320DA705 (U7000) is a floating-point Digital Signal Processor with internal ROM and 192kbytes of internal RAM. No external RAM is required or supported by this processor. The internal ROM includes a boot loader algorithm that permits booting the custom application portion of the program code from a variety of external devices.

  • Page 48: Conversion And Ramp Generation

    Conversion and Ramp Generation Analog inputs Several signals monitored by the DSP are analog in nature. One of the two Advanced Serial Processor (McASP) engines that are available in the DSP is used to perform the analog to digital conversion with the aid of several external components.
  • Page 49 Ramp Calibration Ramp Calibration In order to calibrate the Analog to Digital Conversion, the DSP uses a general-purpose i/o pin to overdrive the analog VRAWSEN signal present at the comparator input U6200.9 for the duration of a conversion cycle. This forces the input to +3.3 volts.

  • Page 50: Audio Path

    Audio Path 3.3V USB Input U6000 TAS1020B USB Controller and EEPROM Microprocessor EEPROM 3.3V 1.2V I2C Bus I2C Bus McASPs BADDATA Audio clock master DSPINT 5V 3.3V U7000 TI DSP CCLIP TMS320DA710 DACs ADCs Q6101 BSCLIP U4000 WM8772 or AK4626 Out to CODEC Amplifier...
  • Page 51 Audio Path (continued) 3.3V USB Input U6000 TAS1020B USB Controller and EEPROM Microprocessor EEPROM 3.3V 1.2V I2C Bus I2C Bus McASPs BADDATA Audio clock master DSPINT 5V 3.3V U7000 TI DSP CCLIP TMS320DA710 DACs ADCs Q6101 BSCLIP U4000 WM8772 or AK4626 Out to CODEC Amplifier...
  • Page 52 Time-Division Multiplex serial transmission. This is a scheme where all data between two points can be transmitted over one data line. In Companion 5, separate data lines are used for different paths. The frame sync, FCLK, is generated by the USB controller (U6000.35). This signal is high for the first bit (MSB) of the first audio sample transmitted in each frame.
  • Page 53 BUFFER HEADPHONE OUTPUT ANALOG STEREO Companion 5 Audio Path Signal Routing and Clocking TDMA, 8 slot: U6000 Provides Clock, Frame Sync USB Audio Input Audio information from the Personal Computer can contain anywhere from two to six channels of information.

  • Page 54: Power Amplifiers

    In this condition the internal bias for the amplifiers is turned off and the outputs are not active. Companion 5 does not use this state. During system stand-by, the Vraw power supply is turned off. Transistor Q450, resistors, R451 and R453, and Zener D450 convert the MUTE signal from the USB controller to...

  • Page 55: Headphone Amplifier

    Headphone Amplifiers Left and Right Out to I/O Board Audio from and Headphone CODEC Jack Headphone Amplifiers The amplifiers, U1000, are configured to provide 2.3 dB non-inverting voltage gain in order to drive the head- phones. The headphone amplifiers are not capable of being muted. The control module must provide a mute signal any time the headphones are plugged in.

  • Page 56: Block Diagram

    Block Diagram...
