Canon AE-1 PROGRAM Instructions Manual page 3

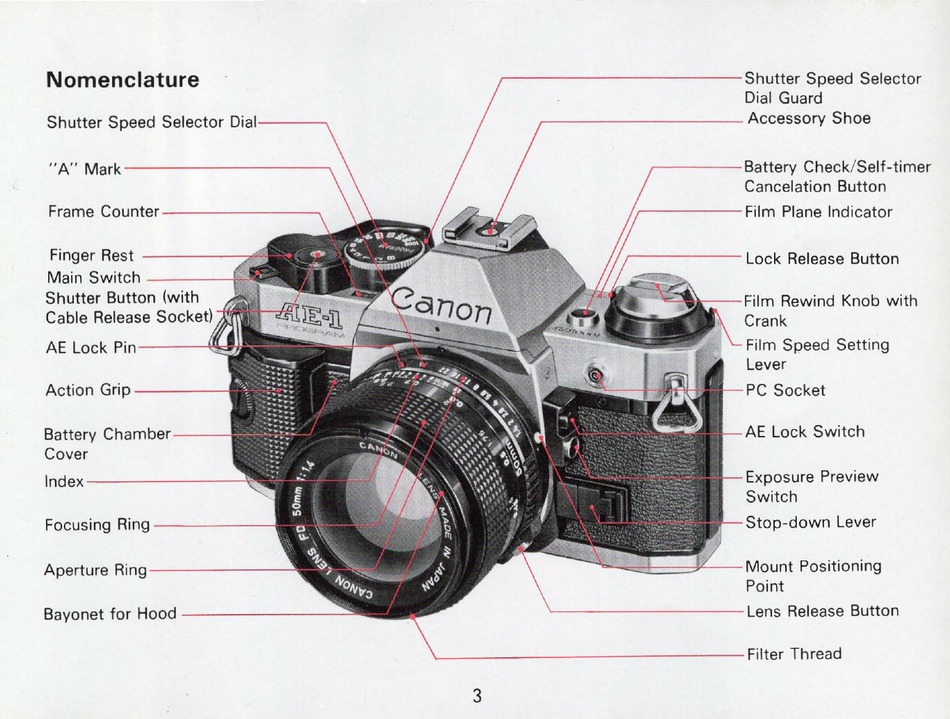

Nomenclature
Shutter Speed Selector
UI<II ---____,
"A" Mark - - - - - - - - - - - - - - . ,
Frame Counter -------~
Finger Rest
- - - -- .,.,&
Main Switch
- -- --j
Shutter Button (with
Cable Release Socket)
AE Lock Pin- - - - - I!!od'
Action Grip
- - -- - j
Battery
Cover
Index - - -- - -- -
Focusing Ring
- -- -----<
Aperture Ring - -- -- - -
Bayonet for Hood - - - - - - - -
. - - - - - - - - - - - -- Shutter Speed Selector
Dial Guard
, - - - - - - - - - - - Accessory Shoe
r - - - - - - B"ttp.rv Check/ Self-timer
Cancelation Button
/ ,- - - -- Film Plane Indicator
r---- - - - Lock Release Button
-'~h--- Film Rewind Knob with
Crank
Film Speed Setting
Lever
PC Socket
AE Lock Switch
Exposure Preview
Switch
Stop-down Lever
-. ..... =::!::==:¥-- -
Mount Positioning
Point
' - - - - - - - - - - Lens Release Button
' -_ __ __ _ _ __ __ __ _ _ Filter Thread
3
